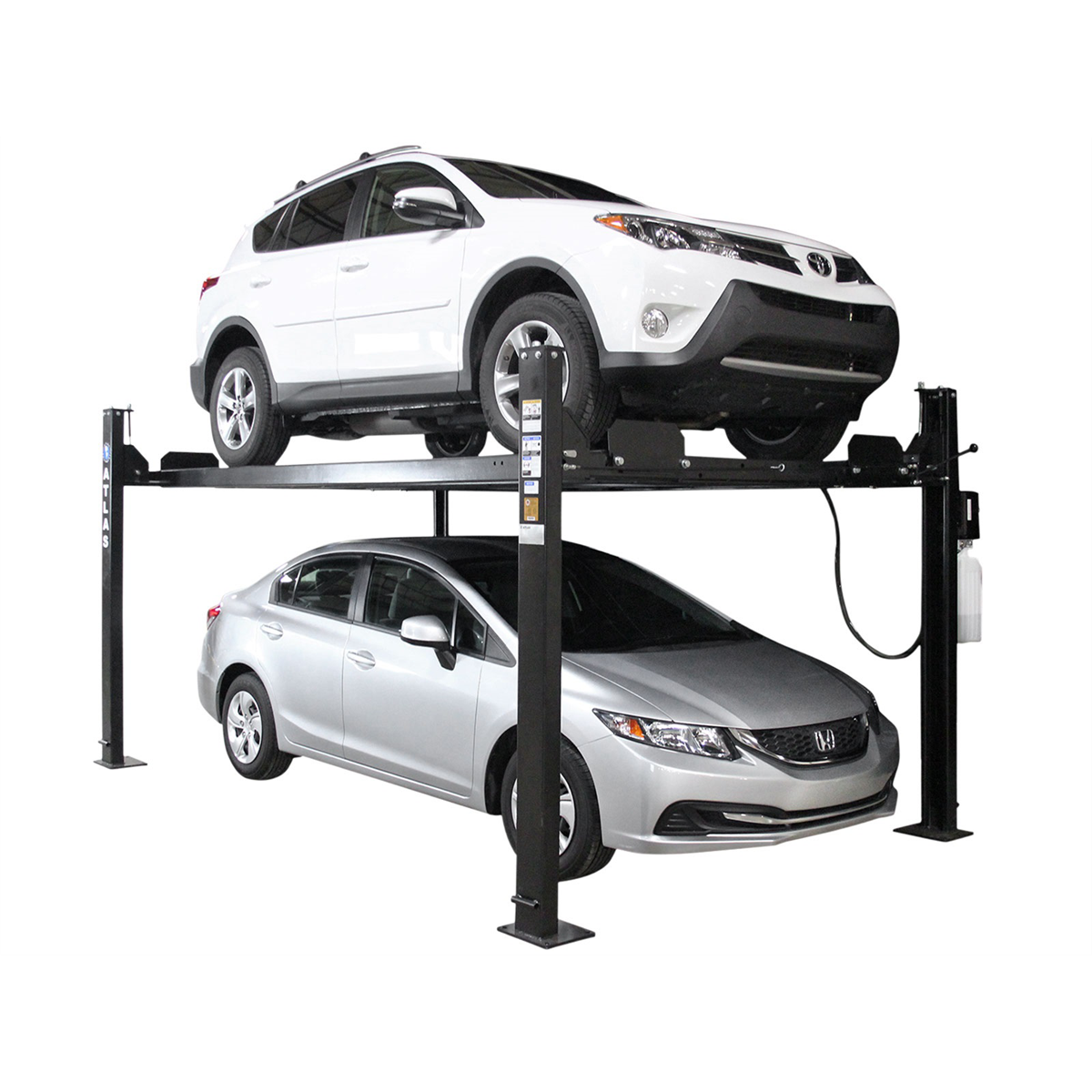

Atlas Apex 8 ALI Certified 8,000 lb 4-Post Lift
Atlas Apex 8 ALI Certified 8,000 lb 4-Post Lift
ALI-certified 8,000 lb 4-post lift — portable, free-standing & perfect for vehicle storage
SKU: ATEATTD-APEX8
Regular price
$5,199
Sale price
$5,199
Regular price
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Talk to a Pro
3 experts online now · avg. reply <2 min
Largest Showroom in the Midwest
Our Team has 100+ Years of Experience
Fast Nationwide Shipping
Real People Ready to Help
Key Highlights
ALI Certified
Professional-grade safety and compliance
8,000 lb Capacity
Handles most cars & trucks
Portable Design
Caster kit with poly wheels
Double Lock Safety
Single-point release
Storage Solution
Double your available parking space
Caster Kit Included
Quick and easy repositioning
The Atlas APEX8 is an ALI Certified version of our most popular 4-post hobbyist lift, the Atlas Garage PRO8000. Perfect for the customer with too many cars and not enough space. The APEX8 allows the user to easily double their space by stacking most passenger cars. The Atlas APEX8 is designed and built for use by homeowners or restoration shops. This lift is not recommended for use in commercial repair shops where it would be raised and lowered several times per day. The Atlas APEX8 is nearly 200 lbs. heavier than comparable lifts in the market. It includes a free caster kit with polyurethane wheels. The caster kit can be installed or removed in just a matter of minutes making the lift portable and allowing it to move between bays or even outside. With those features and with the added peace of mind of the ALI Certification the APEX8 is one of the best values in our four-post hobbyist product line. Many customers who purchased this lift also purchased the Atlas RJ35 .
- ALI-certified 8,000 lb lifting capacity
- Free-standing portable design
- Durable powder-coated finish
- Single-point lock release
- Lock ladder lifting system
- Double lock safety system
- Steel approach ramps included
- Wheel stops included
- Two wheel chocks included
- Caster kit with polyurethane wheels
- Optional anchor bolt installation
- Ideal for vehicle storage and maintenance
- 110V electric operation
- Shipping weight: 2,000 lbs.
- 5-year structural warranty
- 2-year hydraulic warranty
Capacity & Dimensions
| Capacity | 8,000 lbs. |
| Lifting Height To Top Of Runway | 72" (6') |
| Clearance Under Runways | 67" (5' 7") |
| Height Of Columns | 86 5/8" (7' 2 5/8") |
| Overall Width (Without Motor) | 104" (8' 8") |
| Overall Width (With Motor) | 114" (9' 6") |
| Overall Length Without Ramps | 186 1/2" (15' 6 1/2") |
| Overall Length With Ramps | 207 5/6" (17' 3 5/6") |
| Shipping Weight | 2,000 lbs. |
Runway & Clearance
| Approach Ramp Length | 37 1/2" (3' 1 1/2") |
| Runway Width | 18 2/3" |
| Runway Rail Width | 2 1/2" |
| Runway Length | 169 1/2" (14' 1 1/2") |
| Runway Thickness | 4 1/3" |
| Width Between Runways | 38" (3' 2") |
| Width Between Runway Rails | 33" (2' 9") |
| Outside Runway To Outside Runway | 75 1/4" (6' 3 1/4") |
Vehicle Fitment & Power
| Clearance Between Columns | 94" (7' 10") |
| Length Between Columns | 157 1/3" (13' 1 1/3") |
| Maximum Wheel Base | 154" (12' 9") |
| Drive Thru Width | 80 1/4" (6' 8 1/4") |
| Motor / Electrical Requirement | 110 Volt (30 AMP Breaker Required) |
