Key Highlights

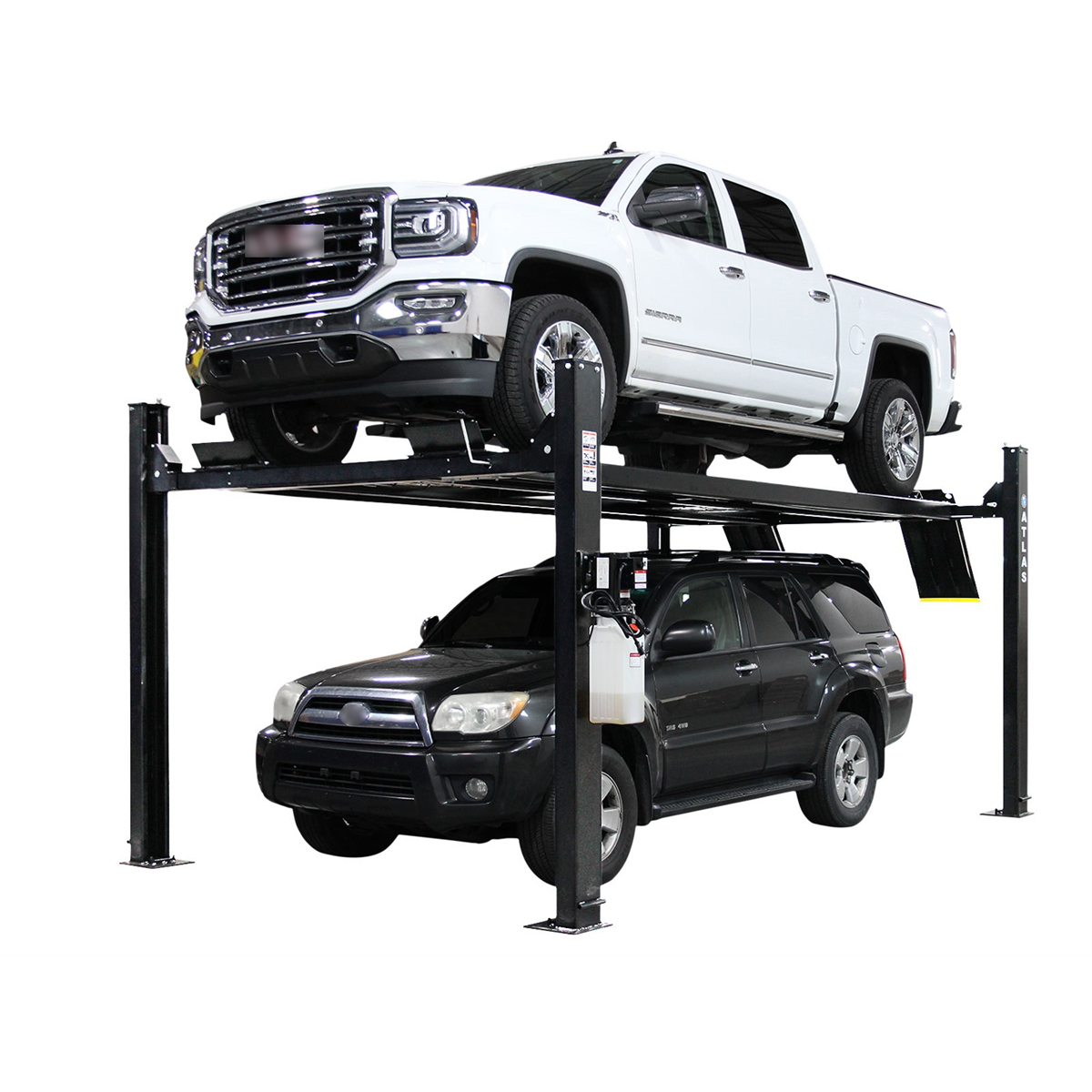

The Atlas APEX9 ALI certified 4 post lift is a heavy duty hobbyist and commercial grade lift and a true 9,000 lb. capacity lifting solution built for serious shop environments and demanding enthusiasts who refuse to compromise on performance, versatility, or build quality. When you need a portable four post lift that can genuinely handle the full range of vehicles your shop or garage services, the APEX9 delivers on every level.
The APEX9 is extra long, allowing it to handle some of the longest wheelbase vehicles on the road today. Whether you are servicing full size crew cab pickup trucks, extended vans, or other long wheelbase commercial vehicles, the APEX9 has the runway length to accommodate them safely and comfortably. The APEX9 is also extra wide, allowing even diesel dually trucks to be driven directly onto the runways without the clearance concerns that make so many competing portable lifts impractical for dually owners and the shops that service them. And with extra lift height built in, everything from Smart Cars to full size dually trucks can be parked both below and on the runways, maximizing your storage capacity and making the APEX9 one of the most space efficient vehicle storage and service lifts available anywhere in its class.
The Atlas APEX9 is one of the heaviest portable hobbyist lifts on the market today. That substantial mass translates directly into greater structural rigidity, a more stable lifting platform, and the kind of long term durability that serious shop environments and heavy daily use demand. This is not a lift that cuts corners in the name of portability.
The APEX9 includes free plastic drip trays, a free steel jack tray, and a caster kit with polyurethane wheels. The caster kit can be installed or removed in just a matter of minutes, making the lift fully portable and allowing it to move between bays or even outside with minimal effort. That combination of heavy duty construction and genuine portability is a rare and valuable combination that sets the APEX9 apart from fixed installation alternatives.
The Atlas APEX9 also features tracks between the runways to allow the use of a rolling bridge jack such as the Atlas RJ6BK directly on the lift, dramatically expanding the range of service work that can be performed on vehicles while they are elevated. That rolling jack compatibility transforms the APEX9 from a storage and basic service lift into a truly full featured commercial service platform capable of handling a much broader range of repair and maintenance tasks.
The commercial grade features and ALI Certification of the Atlas APEX9 make this lift the perfect choice for automotive service centers and the "Mr. Homeowner" who needs a portable professional four post lift built to the highest verified safety and performance standards in the industry. ALI Certification provides the independent third party validation that the APEX9 meets or exceeds the most rigorous standards for lift design, construction, and safe operation, giving shop owners, service centers, and serious enthusiasts the confidence that comes with owning a lift that has been formally tested and certified.
If you are searching for an ALI certified portable four post lift for a commercial automotive service center, an extra long and extra wide hobbyist lift capable of handling diesel dually trucks and long wheelbase vehicles, or the most fully featured and heavily built portable four post lift available at this price point, the Atlas APEX9 stands in a class of its own.
- ALI-certified 9,000 lb lifting capacity
- Free-standing portable design
- Heavy-duty commercial-grade construction
- Extra-tall, extra-wide and extra-long design
- Durable powder-coated finish
- Diamond plated runways
- Single-point lock release
- Lock ladder lifting system
- Double lock safety system
- Steel approach ramps included
- Steel jack tray included
- Four plastic drip trays included
- Two wheel chocks included
- Caster kit with polyurethane wheels
- Optional anchor bolt installation
- Perfect for vehicle storage or service
- 110V electric operation
- Shipping weight: 2,975 lbs.
- 5-year structural warranty
- 2-year hydraulic warranty
| Capacity | 9,000 lbs. |
| Lifting Height To Top Of Runway | 86" (7' 2") |
| Clearance Under Runways | 81 1/4" (6' 9 1/4") |
| Height Of Columns | 99" (8' 3") |
| Overall Width (Without Motor) | 121 7/8" (10' 1 7/8") |
| Overall Width (With Motor) | 133 7/8" (11' 1 7/8") |
| Overall Length Without Ramps | 204" (17') |
| Overall Length With Ramps | 227 1/2" (18' 11 1/2") |
| Shipping Weight | 2,975 lbs. |
| Approach Ramp Length | 31 1/2" |
| Runway Width | 20 1/8" |
| Runway Rail Width | 2" |
| Runway Length | 196 1/2" (16' 4 1/2") |
| Runway Thickness | 4 3/4" |
| Width Between Runways | 38 7/8" (3' 2 7/8") |
| Width Between Runway Rails | 34 3/4" (2' 10 3/4") |
| Outside Runway To Outside Runway | 79" (6' 7") |
| Clearance Between Columns | 108 1/8" (9' 1/8") |
| Length Between Columns | 184 1/4" (15' 4 1/4") |
| Maximum Wheel Base | 184" (15' 4") |
| Drive Thru Width | 98 5/8" (8' 2 5/8") |
| Motor / Electrical Requirement | 110 Volt (30 AMP Breaker Required) |
