Mobile Column Lifts

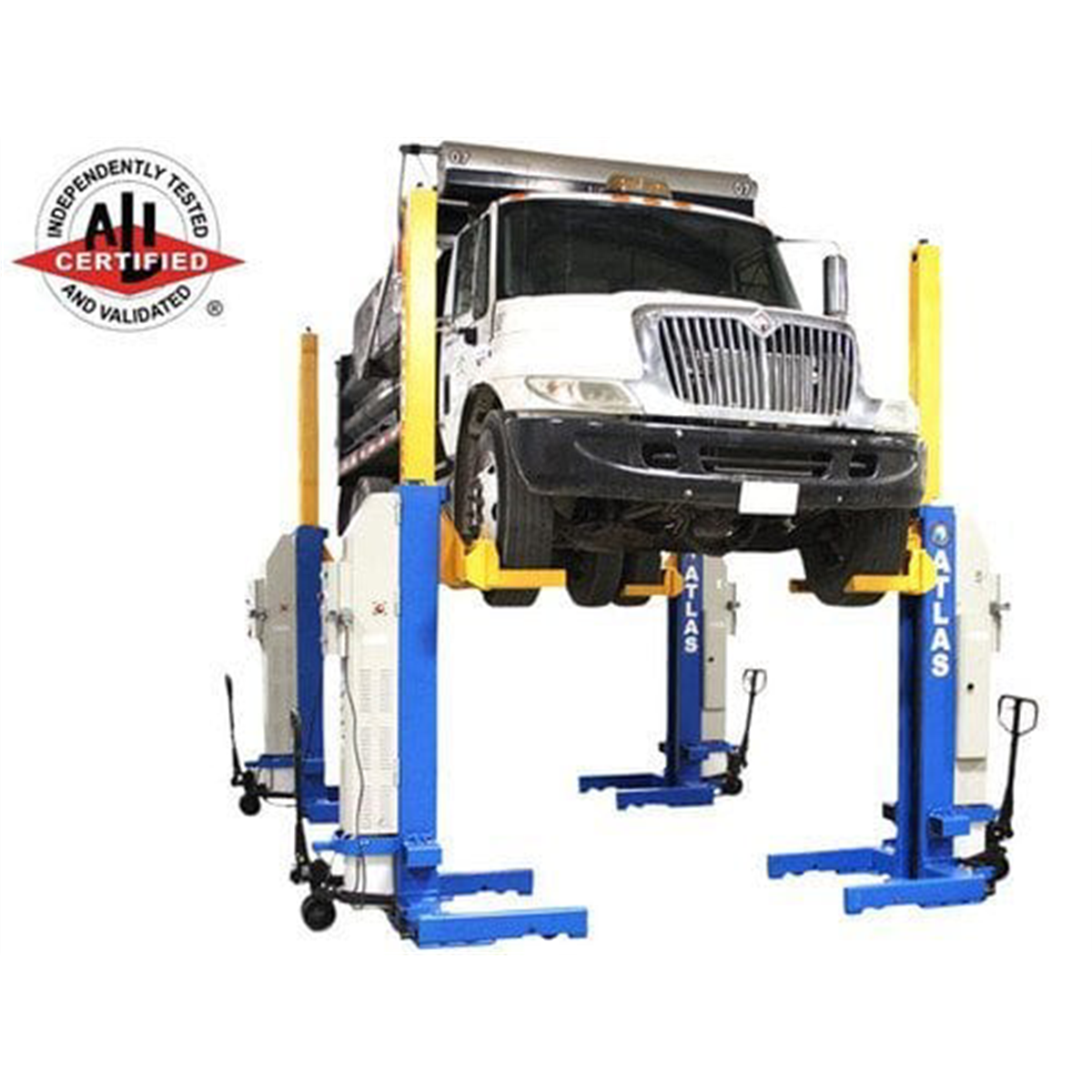

Atlas 4034BC 74,000 lb ALI Certified Mobile Column Lift
Atlas 4034BC 74,000 lb ALI Certified Mobile Column Lift
ALI certified battery-powered mobile column lift system with 18,500 lb. capacity per column
SKU: ATEML-4034BC
Regular price
$29,599
Sale price
$29,599
Regular price
Shipping calculated at checkout.
Need Help Deciding?
Specs can only tell you so much. Call or text our team for a straight answer on fit, install, and what actually works for your space and your vehicle.
Quantity
Couldn't load pickup availability
Largest Showroom in the Midwest
Our Team has 100+ Years of Experience
Fast Nationwide Shipping
Real People Ready to Help
Key Highlights
ALI Certified
Professional-grade safety and compliance
18,500 Lb Capacity
Heavy Duty Lifting
Expandable System
Supports 4, 6, or 8 column configurations
Battery Powered
Cordless shop mobility
Electronic Synchronization
Keeps all columns lifting evenly
Portable Mobile Columns
Easy positioning and storage
PRODUCT DETAILS
Product Overview
The ALI Certified Maxima® mobile column lift system is the perfect choice for any repair shop that needs to safely raise those heavier trucks but has limited bay space. Each heavy duty mobile column is DC motor powered and equipped with a pair of rechargeable...
Show More
Indiana Showroom
See this product in person
Most products we sell are on the floor of our 50,000 sq ft warehouse in Daleville, Indiana ready for a hands-on demo.
Plan Your Visit
The ALI Certified Maxima® mobile column lift system is the perfect choice for any repair shop that needs to safely raise those heavier trucks but has limited bay space. Each heavy duty mobile column is DC motor powered and equipped with a pair of rechargeable batteries. This, coupled with the hydraulic pallet jack system on each column, allows for unparalleled freedom of movement. The columns may even be moved outside for use on a level concrete surface with a minimum thickness of six (6) inches. The mobile columns can be easily stored out of the way when not in use.The Maxima® ML4034BC mobile column set offers you full lifting capacity for both short and long wheel base vehicles. The lifting capacity and maximum vehicle wheelbase length may be increased by adding 2 or 4 extra columns. Easily adjustable forks can accommodate tire diameters from 19 inches to 44 inches. Each column is equipped with an LCD screen, an emergency stop button, and has a lifting capacity of 18,500 lbs.Battery power lasts 10-20 lifts depending on load and is recharged with attached 110V Single (1) phase cord.Optional Maxima® Tripod Support Stands can be used to support vehicles for wheel service.THIS PRODUCT DROP SHIPS FROM THE MANUFACTURER
- ALI certified mobile column lift system
- Simultaneous operation of all columns
- LCD screen displays exact lifting height
- Electronic synchronization system
- Hydraulic flow control and mechanical safety locks
- Portable column design
- Expandable from 4 to 6 or 8 columns
- Adjustable forks fit tire diameters from 19 in. to 44 in.
- Emergency stop button on every column
- Four 32 ft. column connecting cables included
- 2.2 kW 24V DC motor with dual batteries per column
- Battery powered operation
- Suitable for indoor or outdoor use on approved concrete surfaces
- 2 year limited warranty
Lifting Capacity
| Capacity per Column | 18,500 lbs. |
| Maximum Lifting Height | 67 in. |
| Supported Tire Diameter | 19 in. - 44 in. |
Power System
| Motor | 2.2 kW 24V DC |
| Battery Configuration | Two Batteries per Column |
| Charging Power | 110V Single Phase |
Dimensions
| Overall Height | 145 in. |
| Resting Height | 88 1/2 in. |
| Width | 43 1/2 in. |
| Length | 55 1/2 in. |
| Column Width | 13 1/4 in. |
Warranty & Shipping
| Warranty | 2 Year Limited |
| Weight per Column | 1,700 lbs. |
| Shipping Weight (4 Columns) | 6,800 lbs. |
