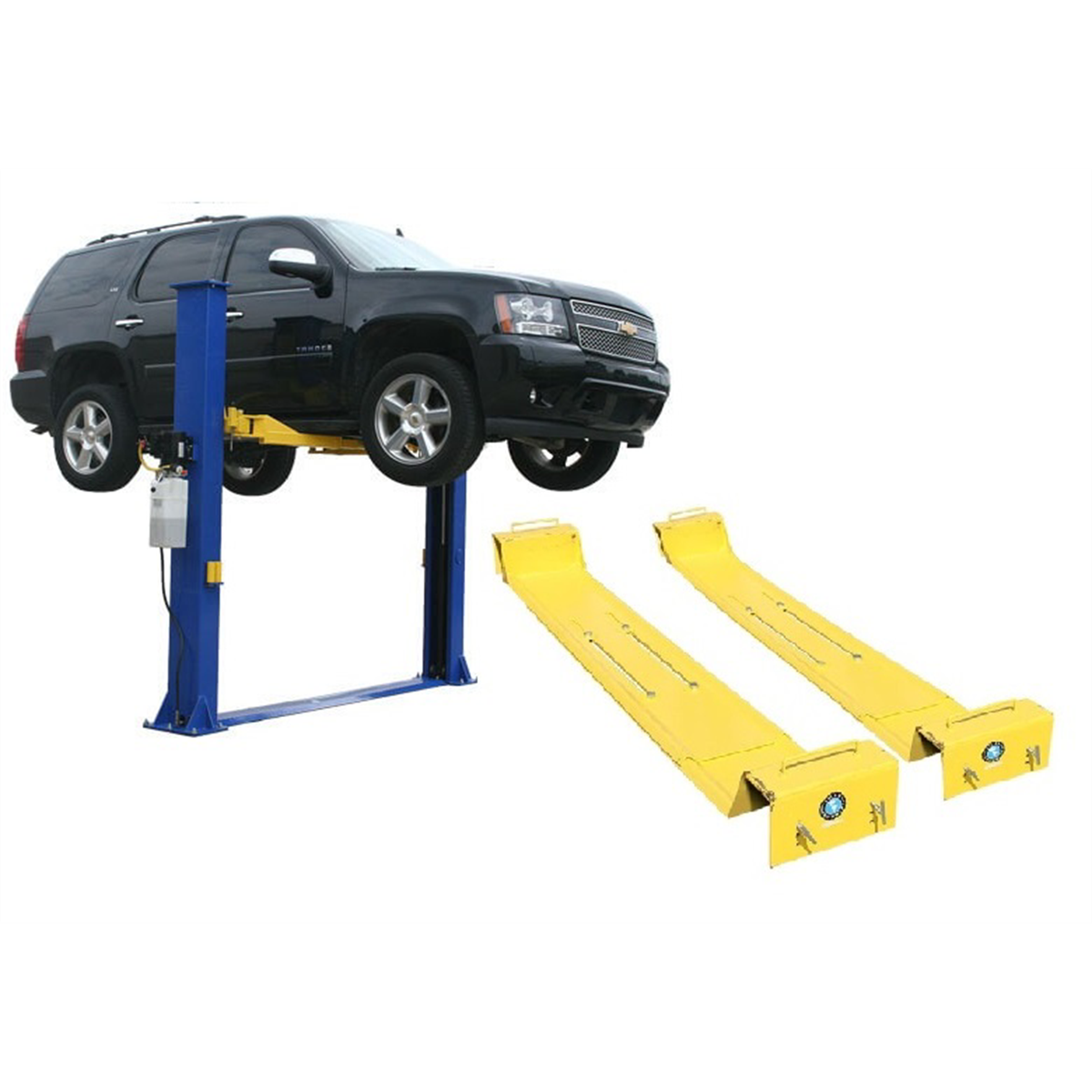

Atlas 9KBPX 2-Post+Lawn Mower Adapter Combo
Atlas 9KBPX 2-Post+Lawn Mower Adapter Combo
Low-ceiling 9,000 lb 2-post lift combo — includes lawn mower adapter for ATVs, UTVs, golf carts & more
SKU: ATEXH-9KBPX-COMBO
Regular price
$4,699
Sale price
$4,699
Regular price
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Talk to a Pro
3 experts online now · avg. reply <2 min
Largest Showroom in the Midwest
Our Team has 100+ Years of Experience
Fast Nationwide Shipping
Real People Ready to Help
Key Highlights
9,000 lb Capacity
Heavy-duty lifting
Includes Lawn Mower Adapter
Lift lawn tractors, ATVs, UTVs and golf carts with ease
Low-Ceiling Friendly
Baseplate design with 122.5" overall height
Secondary Lock System
Additional safety protection in the event of chain failure
Dual Hydraulic Cylinders
Reliable lifting operation
Shop-Ready Package
Essential tools included
The Atlas® 9KBPX is an economically designed baseplate two-post lift great for low ceiling garages. The total column height of 111 ÔøΩ" (9 feet 3 ÔøΩ inches) allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 feet 6 inches. The Atlas® 9KBPX "chain over roller" lift features a spring loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain. The reliable dual chain-drive cylinders, symmetric arms, and automatic arm restraints make this the perfect choice for "Mr. Homeowner" or small commercial shop looking to service cars, SUVÔøΩs and light duty trucks (not recommended to lift Diesel Dually or other large truck
This combo includes the Atlas® Lawn Mower Adapter or LMA. The LMA allows the user to raise lawn tractors, ATV's, UTV's, golf carts, and other small vechicles. NOTE: the capacity of the adapter when used on the 9KBPX is less then 9,000 lbs. If you have questions about the LMA and it's capabilities please contact a sales rep.
- 9,000 lb lifting capacity
- Includes Atlas Lawn Mower Adapter (LMA)
- Baseplate open-top design for low ceilings
- Designed for garages with limited overhead clearance
- Symmetric lifting arms
- Dual hydraulic chain-drive cylinders
- Secondary Lock System (SLS)
- Automatic arm restraints
- Dual-point lock release
- 8-piece truck adapter set included
- Mounting hardware included
- Lawn mower adapter supports up to 5,000 lbs.
- Ideal for ATVs, UTVs, golf carts and lawn tractors
- Shipping weight: 1,400 lbs.
- Will Call Only product
Lift Capacity & Dimensions
| Lift Capacity | 9,000 lbs. |
| Overall Height | 111 1/2" (9' 3 1/2") |
| Overall Floor Width | 134 1/2" (11' 2 1/2") |
| Outside Column to Outside Column | 124 7/8" (10' 4 7/8") |
| Maximum Lift Height (Without Adapters) | 74 1/2" |
| Maximum Lift Height (With Adapters) | 81" |
| Minimum Arm Height | 4" |
| Shipping Weight | 1,400 lbs. |
Column & Clearance
| Inside Column Width | 110" (9' 2") |
| Drive Thru Width | 101" (8' 5") |
| Column Size | 7 1/4" x 11" |
| Column Steel Thickness | 5 mm |
| Base of Lift | 14 1/4" x 18 1/4" |
Power & Installation
| Motor / Electrical Requirement | 220 Volt Single Phase (30 AMP Breaker Recommended) |
| Oil Requirement | 3-5 Gallons AW32/AW46 (Not Included) |
| Adapter Heights | 4 Each 1.5", 5" |
| Arm Hole / Adapter Peg Size | 1.5" |
| Concrete Requirement | Minimum 4" Thick, 3000 PSI Concrete |
Lawn Mower Adapter
| Adapter Capacity | Up to 5,000 lbs. |
| Adjustable Width | 8' to 11' |
| Wheel Base Range | 32" to 90" |
| Wheel Well Width | 12" |
| Steel Thickness | 3/16" |
| Adapter Shipping Weight | 600 lbs. |
| Compatible Lift Arm Width | Up to 5 1/2" |
