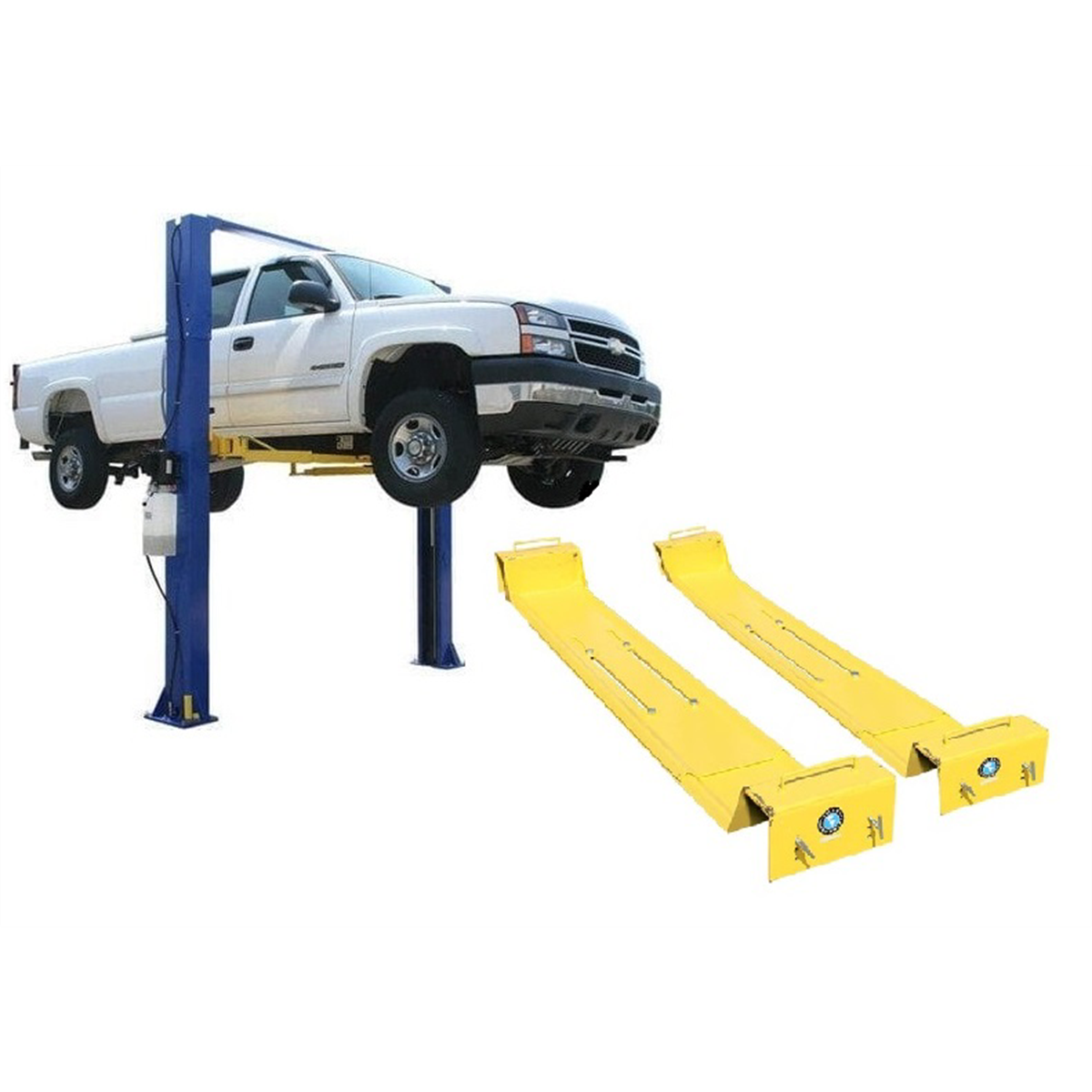

Atlas 9KOHX 2-Post+Lawn Mower Adapter Combo
Atlas 9KOHX 2-Post+Lawn Mower Adapter Combo
Versatile 9,000 lb 2-post lift combo — adjustable overhead design with lawn mower adapter included
SKU: ATEXH-9KOHX-COMBO
Regular price
$4,799
Sale price
$4,799
Regular price
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Talk to a Pro
3 experts online now · avg. reply <2 min
Largest Showroom in the Midwest
Our Team has 100+ Years of Experience
Fast Nationwide Shipping
Real People Ready to Help
Key Highlights
9,000 lb Capacity
Heavy-duty lifting
Includes Lawn Mower Adapter
Lift lawn tractors, ATVs, UTVs and golf carts with ease
Adjustable Height Design
Multiple installation height options
Secondary Lock System
Additional safety protection in the event of chain failure
Symmetric or Asymmetric Setup
Flexible installation options
Complete Lift Package
Adapters & Hardware Included
The light duty Atlas® 9KOHX lift is an economy designed overhead, clear-floor 2-post lift. The reliable chain-drive cylinders and dual safety system make this the perfect choice for "Mr. Homeowner" or small commercial shops looking to service cars, SUV's and light duty trucks. The 9KOHX can be adjusted to two different height settings, either 11' 6" or 11' 10", allowing it to fit in almost any standard garage.
The Atlas® 9KOHX has symmetric columns and specially designed arms that can be set in either the symmetric or asymmetric position. The asymmetric/symmetric arm design offers an extremely low lift pad position on the EZ-metric lift arm configuration. This low pad height will allow the operator to position the lift arms under most small cars (with low pick up points) and heavier pick up trucks. The Atlas® 9KOHX two post "chain over roller" lifts have a spring loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain.
This combo includes the Atlas® Lawn Mower Adapter or LMA. The LMA allows the user to raise lawn tractors, ATV's, UTV's, golf carts, and other small vechicles. NOTE: the capacity of the adapter when used on the 9KOHX is less then 9,000 lbs. If you have questions about the LMA and it's capabilities please contact a sales rep.
The 9KOHX is the perfect choice for those who demand the most lifting capacity at the lowest possible price.
- 9,000 lb lifting capacity
- Includes Atlas Lawn Mower Adapter (LMA)
- Overhead open-floor design
- Adjustable height: 11' 6" or 11' 10"
- Symmetric or asymmetric arm configuration
- Automatic arm restraint system
- Dual-point lock release
- Secondary Lock System (SLS)
- Dual hydraulic chain-drive cylinders
- Protective rubber carriage guards
- Powder-coated finish
- 8-piece truck adapter set included
- Sliding arm adapter set included
- Mounting hardware included
- Freight prepaid
- Lawn mower adapter supports up to 5,000 lbs.
- Shipping weight: 1,450 lbs.
Lift Capacity & Dimensions
| Lift Capacity | 9,000 lbs. |
| Overall Height | 138" (11' 6") or 142" (11' 10") |
| Overall Floor Width | 134 1/2" (11' 2 1/2") |
| Outside Column to Outside Column | 124 7/8" (10' 4 7/8") |
| Maximum Lift Height (Without Adapters) | 74 1/2" |
| Maximum Lift Height (With Adapters) | 81" |
| Minimum Arm Height | 4" |
| Shipping Weight | 1,450 lbs. |
Column & Clearance
| Inside Column Width | 110" (9' 2") |
| Drive Thru Width | 100" Symmetric / 90 1/2" Asymmetric |
| Column Size | 7 1/4" x 11" |
| Column Steel Thickness | 5 mm |
| Base of Lift | 14 1/4" x 18" |
Power & Installation
| Motor / Electrical Requirement | 220 Volt Single Phase (30 AMP Breaker Recommended) |
| Oil Requirement | 3-5 Gallons AW32/AW46 (Not Included) |
| Adapter Heights | 4 Each 1.5", 5" |
| Arm Hole / Adapter Peg Size | 1.5" |
| Concrete Requirement | Minimum 4" Thick, 3000 PSI Concrete |
Lawn Mower Adapter
| Adapter Capacity | Up to 5,000 lbs. |
| Adjustable Width | 8' to 11' |
| Wheel Base Range | 32" to 90" |
| Wheel Well Width | 12" |
| Steel Thickness | 3/16" |
| Adapter Shipping Weight | 600 lbs. |
| Compatible Lift Arm Width | Up to 5 1/2" |
