Two-Post Lifts

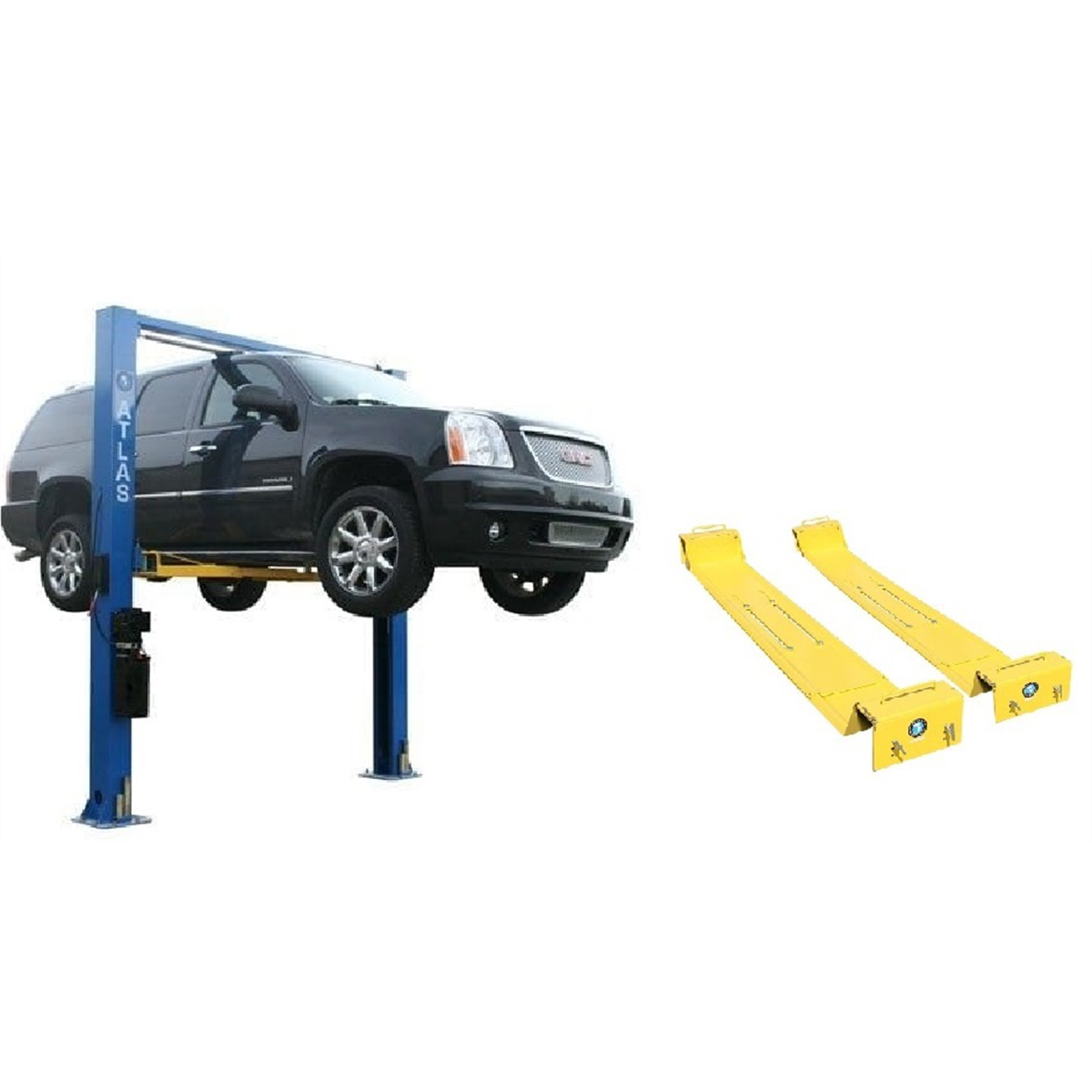

Atlas 9OHSC 2-Post Lift + "Lawnmower" Adapter Combo
Atlas 9OHSC 2-Post Lift + "Lawnmower" Adapter Combo
9,000 lb lift & mower adapter combo — overhead design for vehicles, ATVs, UTVs and lawn equipment
SKU: ATEATTD-9OHSC-COMBO
Regular price
$5,199
Sale price
$5,199
Regular price
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Talk to a Pro
3 experts online now · avg. reply <2 min
Largest Showroom in the Midwest
Our Team has 100+ Years of Experience
Fast Nationwide Shipping
Real People Ready to Help
Key Highlights
9,000 lb Capacity
Heavy-duty lifting
Lawn Mower Adapter Included
For ATVs, UTVs and mowers
Open-Floor Design
Maximum workspace clearance
Single-Piece Columns
Enhanced structural strength
Chain-Drive Cylinders
Dependable lifting power
Single-Point Lock Release
Simple and convenient operation
The Atlas® 9OHSC two post above ground lift is the perfect choice for those smaller commercial repair facilities or "Mr. Homeowners" who demand the highest quality at the absolute best price. The 9OHSC is a TRUE 9,000 lb. capacity two post lift that offers a great value to the customer.
The Atlas® 9OHSC is engineered and manufactured to lift vehicles ranging from Smart Cars® to a Suburban®. The 9OHSC incorporates a single piece 11ÔøΩ 10" formed column and an extra-long carriage that provides maximum column and arm strength to lift and support a 9,000 lb. vehicle.
The Atlas® 9OHSC has single piece columns and extra-long carriages to ensure years of trouble free service. The single piece columns require the customer to have a ceiling of at least 12 feet to stand up the column.
This combo includes the Atlas® Lawn Mower Adapter or LMA. The LMA allows the user to raise lawn tractors, ATV's, UTV's, golf carts, and other small vechicles. NOTE: the capacity of the adapter when used on the 9OHSC is less then 9,000 lbs. If you have questions about the LMA and it's capabilities please contact a sales rep.
- 9,000 lb lifting capacity lift combo
- Includes Lawn Mower Adapter (LMA)
- Overhead open-floor design
- Single-piece heavy-duty columns
- 11' 10" overall height
- 3-stage front arms and 2-stage rear arms
- Automatic arm restraint system
- Single-point lock release
- Protective rubber carriage guards
- Dual hydraulic chain-drive cylinders
- 12-piece truck adapter set included
- Mounting hardware included
- Lifts vehicles, ATVs, UTVs and lawn tractors
- Shipping weight: 1,430 lbs.
- Freight prepaid
Capacity & Dimensions
| Lift Capacity | 9,000 lbs. |
| LMA Capacity | Up to 5,000 lbs. |
| Overall Height | 142" (11' 10") |
| Overall Floor Width | 133 1/2" (11' 1 1/2") |
| Outside Column to Outside Column | 125 1/2" (10' 5 1/2") |
| Maximum Lift Height (Without Adapters) | 76 3/4" |
| Maximum Lift Height (With Adapters) | 87 3/4" |
| Minimum Arm Height | 4" |
| Shipping Weight | 1,430 lbs. |
Column & Clearance
| Inside Column Width | 109 1/2" (9' 1 1/2") |
| Drive Thru Width | 100 1/2" (8' 4 1/2") |
| Column Size | 8" x 9 3/8" |
| Steel Thickness | 5 mm |
| Base of Lift | 16 3/4" x 17 3/4" |
Power & Installation
| Motor / Electrical Requirement | 220 Volt Single Phase (30 AMP Breaker Recommended) |
| Oil Requirement | 3-5 Gallons AW32/AW46 (Not Included) |
| Adapter Heights | 4 Each 2", 3", 6" |
| Arm Hole / Adapter Peg Size | 1.5" |
| Concrete Requirement | Minimum 4" Thick, 3000 PSI Concrete |
Lawn Mower Adapter
| Adjustable Width | 8' to 11' |
| Wheel Base Range | 32" to 90" |
| Wheel Well Width | 12" |
| Steel Thickness | 3/16" |
| Fits Lift Arms Up To | 5 1/2" Wide |
| LMA Shipping Weight | 600 lbs. |
