Key Highlights

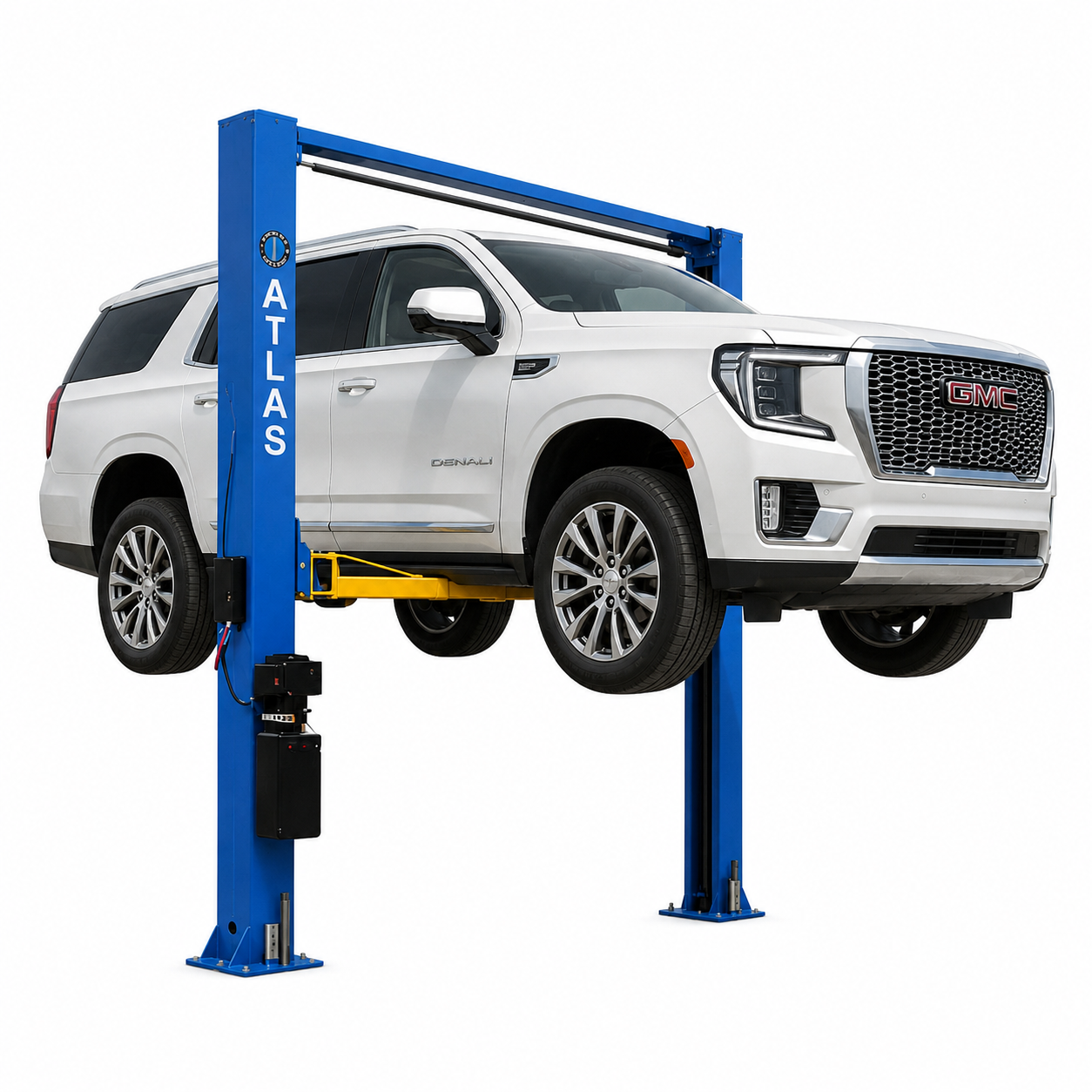

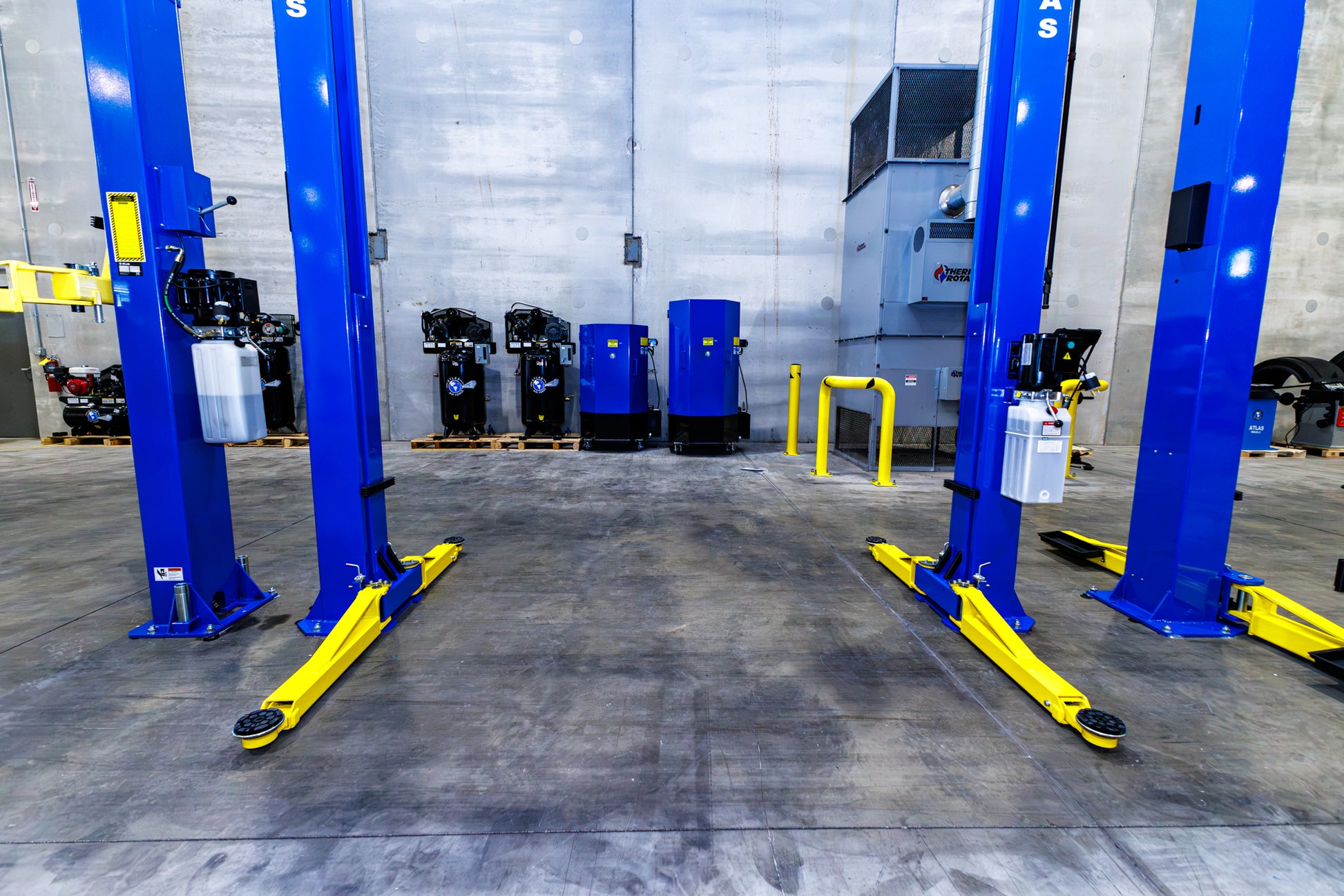

The Atlas 9OHSC two post above ground lift is the perfect choice for those smaller commercial repair facilities or "Mr. Homeowners" who demand the highest quality at the absolute best price. When it comes to finding a reliable, professional grade two post car lift that delivers real value without cutting corners, the Atlas 9OHSC stands out as one of the best options in its class.
The 9OHSC is a TRUE 9,000 lb. capacity two post lift that offers a great value to the customer. With a genuine 9,000 lb. lifting capacity, this above ground automotive lift gives both home garage users and small shop owners the confidence to tackle everything from routine maintenance to more involved repair work — all without worrying about the limits of their equipment.
The Atlas 9OHSC is engineered and manufactured to lift vehicles ranging from Smart Cars to a Suburban — making it one of the most versatile 9,000 lb. two post lifts available today. Whether you're servicing compact cars, full-size SUVs, or anything in between, the 9OHSC is built to handle the job safely and reliably every time.
The engineering behind the 9OHSC is where this lift truly distinguishes itself from the competition. The 9OHSC incorporates a single piece 11' 10" formed column and an extra-long carriage that provides maximum column and arm strength to lift and support a 9,000 lb. vehicle. This single piece column construction eliminates the weak points that can develop in multi-piece column designs over time, delivering a level of structural integrity that shop owners and serious enthusiasts can depend on for years of heavy use.
The Atlas 9OHSC has single piece columns and extra-long carriages to ensure years of trouble free service. Fewer joints, fewer potential failure points, and a more rigid overall structure means less maintenance, less downtime, and more time spent doing what matters — working on vehicles. Please note that the single piece columns require the customer to have a ceiling of at least 12 feet to stand up the column, so be sure to verify your garage or shop ceiling height before ordering.
If you're searching for a dependable two post car lift for a home garage, a reliable above ground automotive hoist for a small commercial shop, or simply the best value 9,000 lb. lift on the market, the Atlas 9OHSC deserves a serious look. Built tough, priced right, and engineered to last — the 9OHSC is everything you need in a two post lift and nothing you don't.
- 9,000 lb lifting capacity
- Overhead open-floor lift design
- Single-piece column construction
- Overall height: 142" (11' 10")

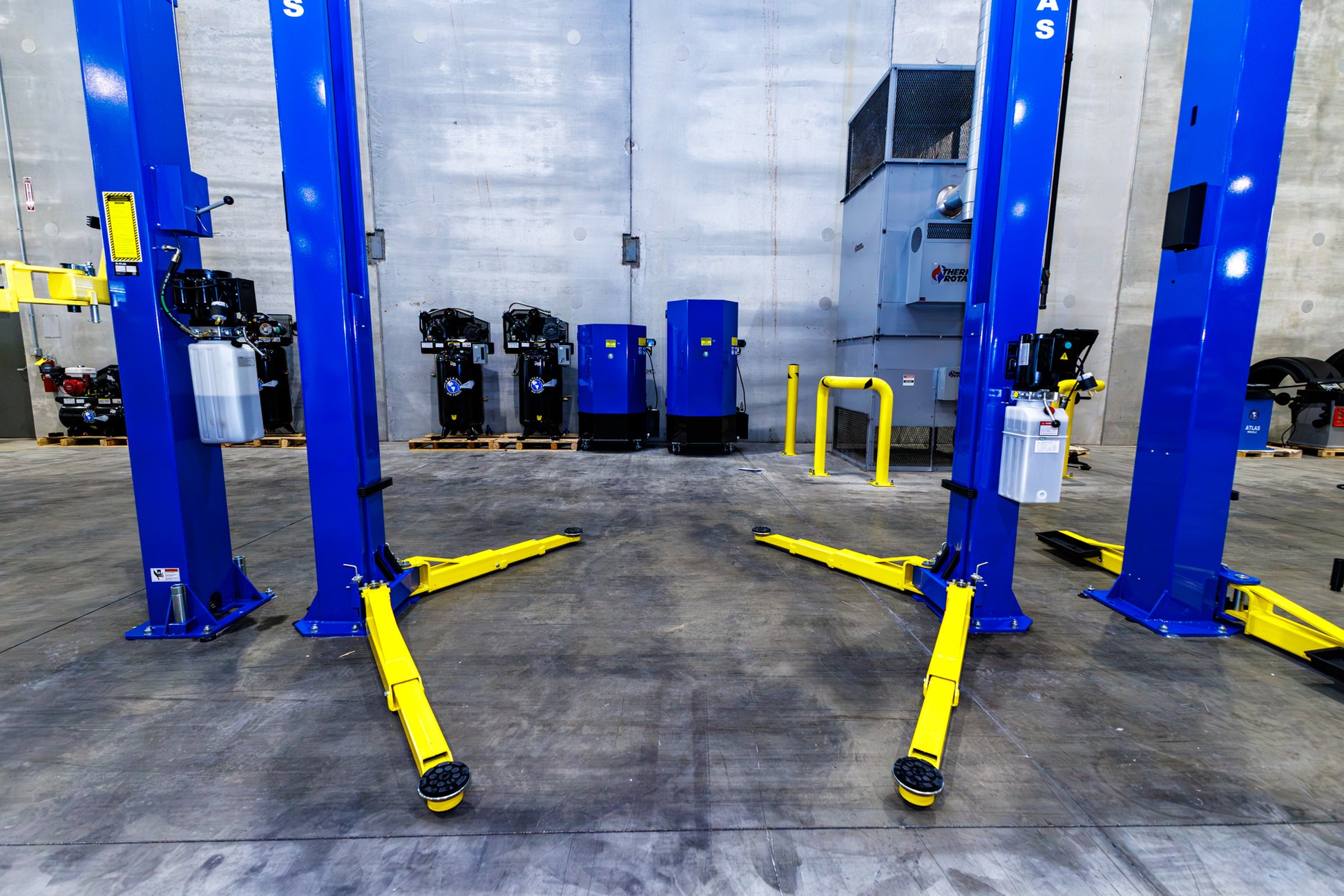

- 3-stage front arms & 2-stage rear arms
- Automatic arm restraint system
- Single-point lock release
- Rubber carriage protection guards

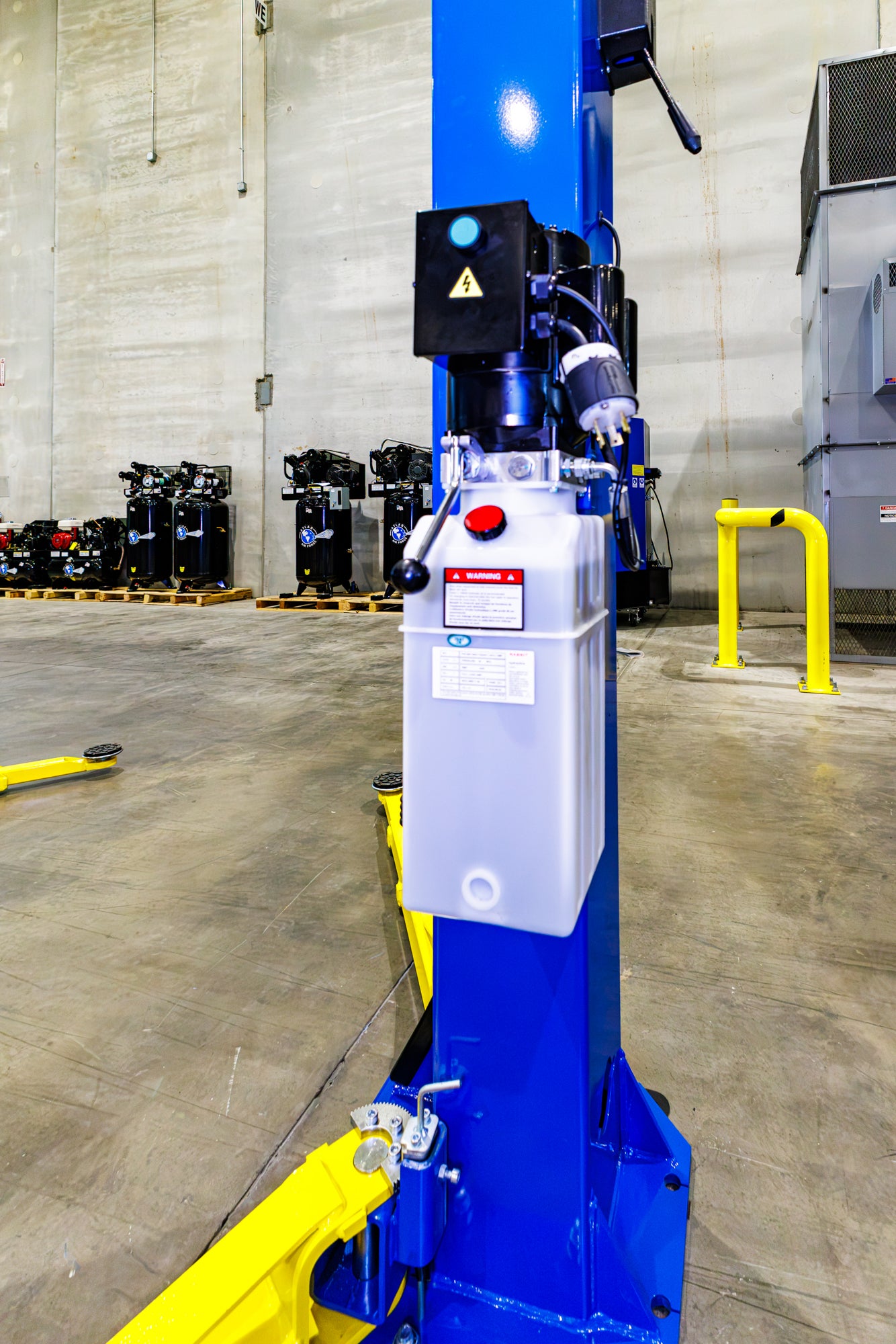

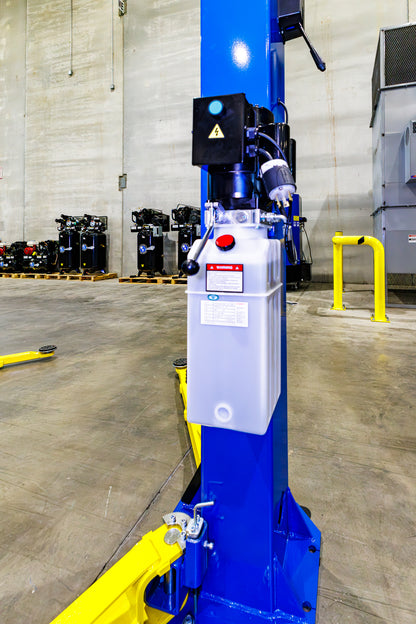

- Dual hydraulic chain-drive cylinders

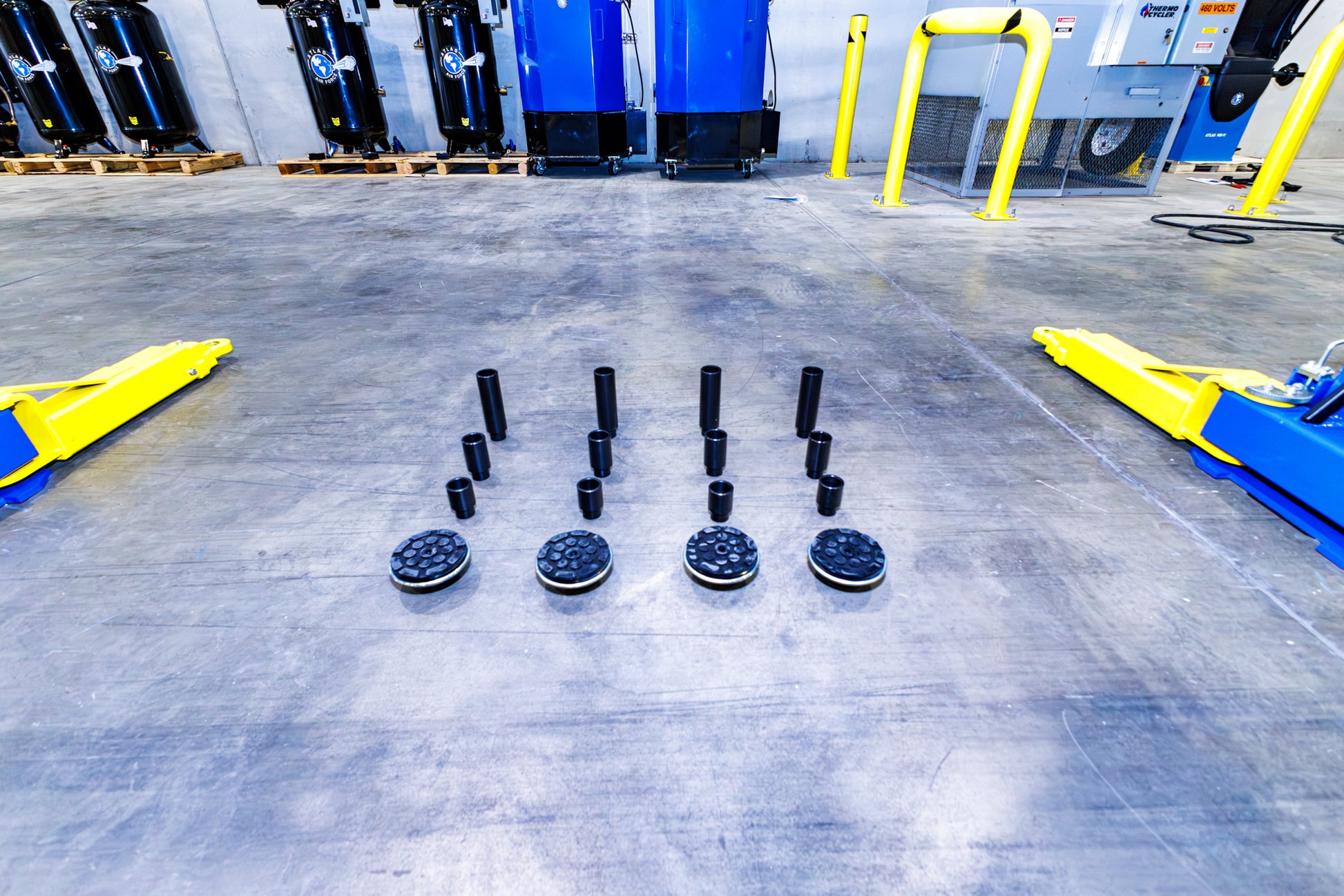

- Free 12-piece truck adapter set
- Mounting hardware included
- Shipping weight: 1,430 lbs.
- 5-year structural warranty
- 2-year hydraulic warranty (parts only)
| Capacity | 9,000 lbs. |
| Overall Height | 142" (11' 10") |
| Overall Floor Width | 133 1/2" (11' 1 1/2") |
| Outside Column to Outside Column | 125 1/2" (10' 5 1/2") |
| Shipping Weight | 1,430 lbs. |
| Maximum Lift Height (Without Adapters) | 76 3/4" |
| Maximum Lift Height (With Adapters) | 87 3/4" |
| Minimum Arm Height | 4" |
| Adapter Heights | 4 Each 2", 3", 6" |
| Arm Hole / Adapter Peg Size | 1.5" |
| Inside Column | 109 1/2" (9' 1 1/2") |
| Drive Thru | 100 1/2" (8' 4 1/2") |
| Column Size | 8" x 9 3/8" |
| Base of Lift | 16 3/4" x 17 3/4" |
| Motor / Electrical Requirement | 220 volt single-phase (30 amp breaker recommended) |
| Oil Requirement | 3-5 Gallons AW32/AW46 (Not Included) |
| Concrete Requirement | Minimum 4" thickness with 3000 PSI rating |
