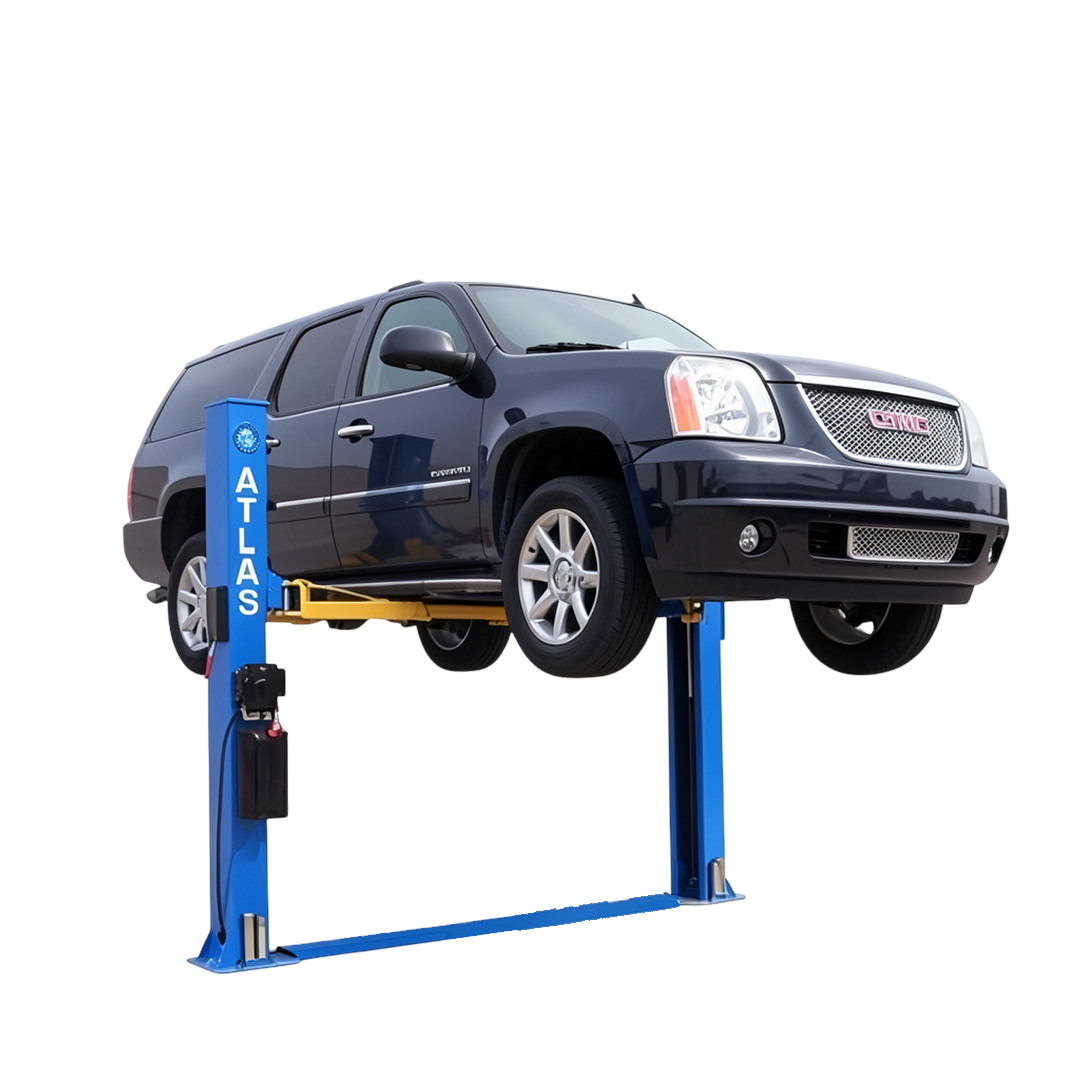

Atlas BP8000 8,000 lb Baseplate Lift

Atlas BP8000 8,000 lb Baseplate Lift

Low-ceiling 2-post lift — compact, capable & garage-friendly

SKU: ATEATTD-BP8000

Regular price $3,099
Sale price $3,099 Regular price
IN STOCK
Shipping calculated at checkout.
Quantity
We also offer Nationwide Shipping — shipping cost calculated at checkout.
We also offer Nationwide Shipping

shipping cost calculated at checkout.

Talk to a Pro
3 experts online now · avg. reply <2 min
  • Largest Showroom in the Midwest
  • Our Team has 100+ Years of Experience
  • Fast Nationwide Shipping
  • Real People Ready to Help
View full details

Key Highlights

8,000 lb Capacity
Handles most cars & trucks
Hobbyist Grade Lift
Designed for enthusiast garages
Automatic Arm Restraints
Enhanced vehicle stability
Dual Safety Locks
Extra peace of mind
Chain-Drive Cylinders
Dependable lifting power
5-Year Warranty
Long-term structural coverage

The Atlas BP8000 is a baseplate two-post lift designed specifically for low ceiling garages and for homeowners and shop owners who have been told their ceiling height rules out a quality two post lift, the BP8000 is the solution they've been waiting for. Purpose built to bring professional grade vehicle lifting capability to spaces where standard lifts simply won't fit, the BP8000 proves that a low ceiling doesn't have to mean compromising on quality, features, or performance.

The total column height of 108 inches — or exactly 9 feet — allows the BP8000 to be installed in almost any professional or home garage with a ceiling as low as 9 feet 3 inches. That incredibly compact column height opens up a world of possibilities for homeowners and small shop owners working in standard residential garages and low clearance commercial spaces where taller lifts are simply not an option. If you've been measuring your ceiling and coming up short, the Atlas BP8000 was engineered with your space in mind.

What truly sets the BP8000 apart from other low ceiling lift solutions is the fact that it refuses to sacrifice features in the name of compact design. The BP8000 includes many of the most popular features found on larger and more expensive lifts — delivering a premium lifting experience at a price point and in a footprint that makes it uniquely accessible. The single-point lock release makes lowering the vehicle smooth, safe, and effortless — no more walking around the lift to release individual locks on each column. The super-symmetric arms provide the versatility and vehicle coverage needed to safely lift a wide variety of cars, SUVs, and light trucks. And the included twelve piece truck adapter set — more comprehensive than the standard eight piece sets found on many competing lifts — gives operators the flexibility to safely service a broader range of vehicles right out of the box.

If you're searching for a low ceiling two post lift for a home garage, an affordable baseplate car lift for a small commercial shop, or a feature-packed above ground automotive hoist that fits where other lifts won't, the Atlas BP8000 delivers premium lift features in a compact, low clearance package that is hard to beat at any price. Don't let your ceiling height limit your capabilities — the Atlas BP8000 was built to fit your space and exceed your expectations.

  • 8,000 lb lifting capacity
  • Hobbyist-grade lift design
  • Baseplate open-top configuration
  • 3-stage front arms & 2-stage rear arms
  • Automatic arm restraint system
  • Single-point lock release
  • Double safety lock system
  • Dual hydraulic chain-drive cylinders
  • Free 12-piece truck adapter set
  • Mounting hardware included
  • Shipping weight: 1,300 lbs.
  • 5-year structural warranty
  • 2-year hydraulic warranty (parts only)
Lift Capacity & Dimensions
Capacity 8,000 lbs.
Overall Height 108" (9')
Overall Floor Width 132" (11')
Outside Column to Outside Column 124" (10' 4")
Shipping Weight 1,300 lbs.
Lifting Range
Maximum Lift Height (Without Adapters) 75 1/2"
Maximum Lift Height (With Adapters) 86 1/2"
Minimum Arm Height 4"
Adapter Heights 4 Each 2", 3", 6"
Arm Hole / Adapter Peg Size 1.5"
Installation & Requirements
Inside Column 109 1/8" (9' 1 1/8")
Drive Thru 99" (8' 3")
Column Size 7 1/4" x 11"
Base of Lift 17 1/2" x 17 3/4"
Motor / Electrical Requirement 220 volt single-phase (30 amp breaker recommended)
Oil Requirement 3-5 Gallons AW32/AW46 (Not Included)
Concrete Requirement Minimum 4" thickness with 3000 PSI rating
