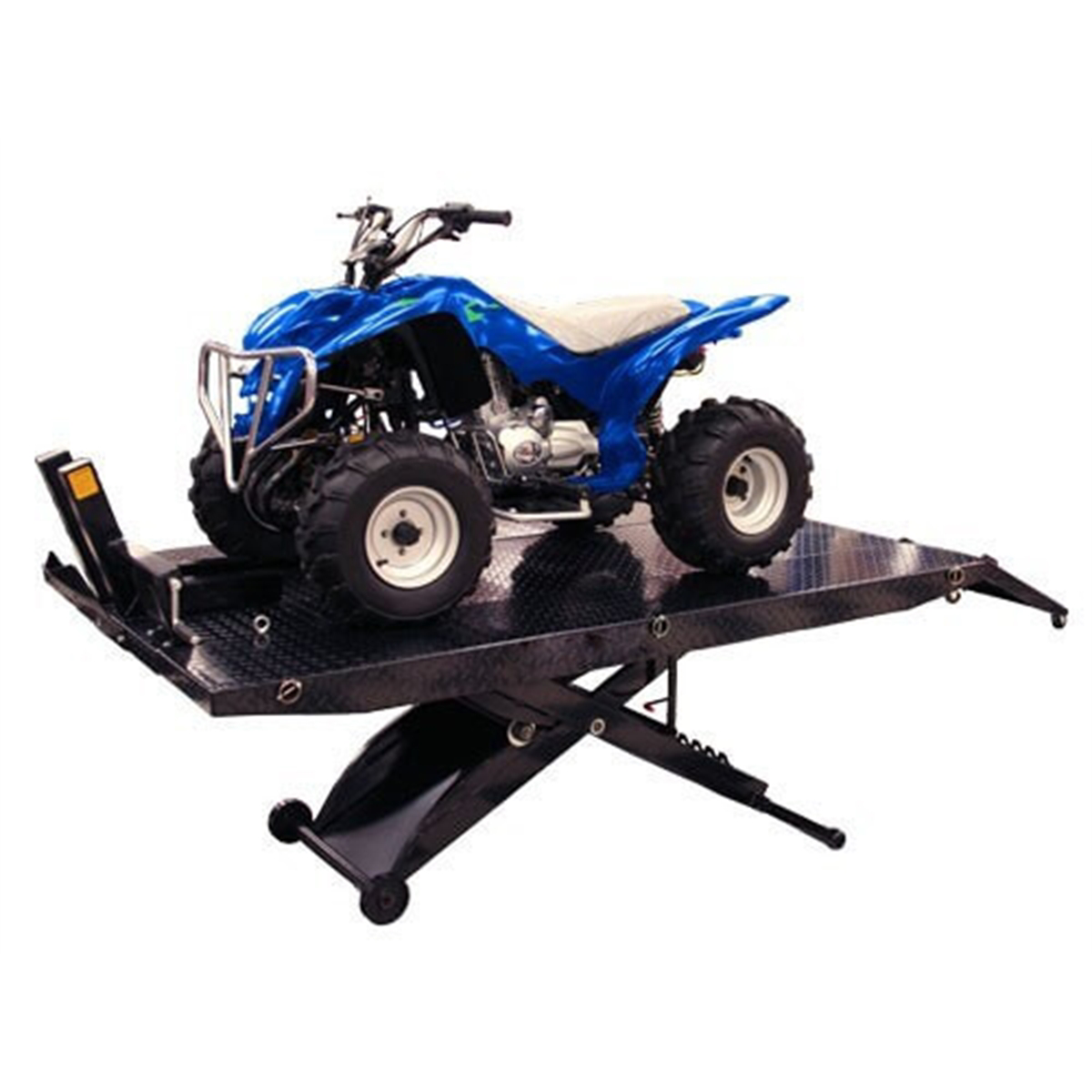

Atlas Cyclelift XLT 1,000 lb Motorcycle/ATV Lift

Features and Benefits:

• 1,000 lb. Capacity
• Standard Cyclelift with Side Extension Kit
• 48" Table Width (with extension kit installed)
• 93" Extended Table Length Standard
• 33" Full Lift Height
• Diamond Plate Surface
• Air Operated (External Air Supply Required)
• Removeable Rear Section for Wheel Removal
• Foot Pedal Control Included
• Front Wheel Vise Included
• Wheeled Dolly to Help Move Lift Included
• Shipping Weight: 700 lbs.
• 1 yr Parts Only Warranty

Atlas Cycle Lift XLT Specifications

• Weight Capacity: 1,000 lb.
• Length W/ Ramp: 113" (9' 5")
• Length W/O Ramp: 93" (7' 9")
• Width: 48" (4')
• Full Rise: 33" (2' 9")
• Fully Lowered: 7 1/4"
• Removable Approach Ramp: 20"
• Air Requirements: 90-100 PSI
• Shipping Weight: 700 lb.

The Atlas Cyclelift XLT has all the great features of our Atlas Cyclelift with the addition of a side extension kit. The lift has one of the industry's longest (standard) platforms in the industry, 93 inches long. Installing the extension kit on the Cyclelift extends the platform to 48" wide and allows the user to raise up ATV's, UTV's, Golf Carts, and Lawnmowers. The Atlas Cyclelift XLT is air operated and requires between 90-100 PSI to operate. The Cyclelift XLT is the perfect addition to any service department of professional motorcycle dealers or small equipment service shops. The Cyclelift XLT is also great for the Mr. Homeowner who wants to work on their own personal bike, ATV, lawnmower or other similar vehicles at home. This is a complete ATV lift that includes the side extension kit consisting of two 12" side extensions, two 12" ramp extensions, and a wheeled dolly. The Cyclelift XLT also includes standard the stabilizing bar, this bar provides greater stability for the raised platform by increasing the "footprint" of the lift. Many companies do not include this very important stabilizing bar in their "lift package". Other popular features include the padded front wheel vise, 19 1/2" long rear removable plate, and a wheeled dolly to assist in moving the lift.
