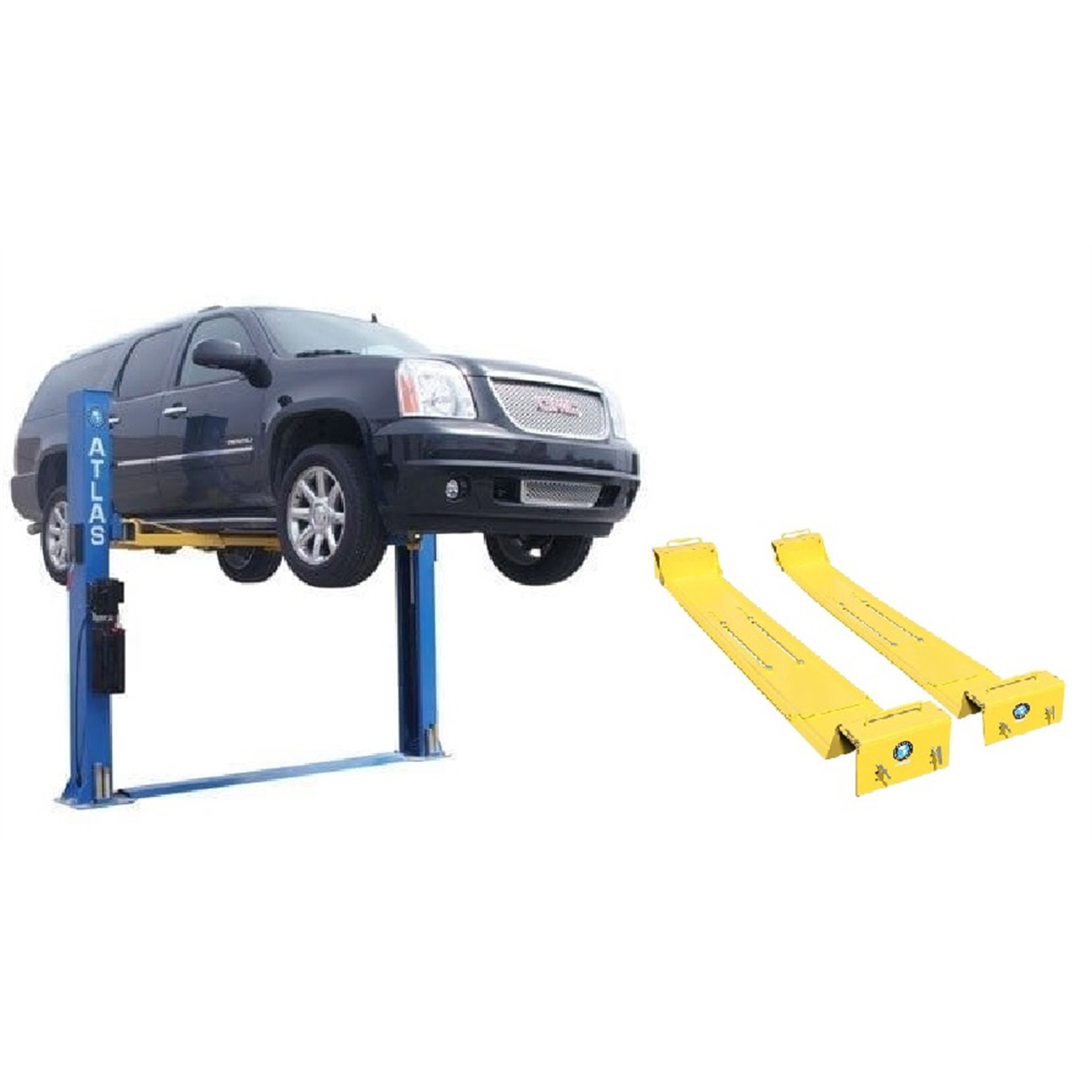

Atlas Equipment BP8000 2-Post Lift + Lawn Mower Adapter Combo
Atlas Equipment BP8000 2-Post Lift + Lawn Mower Adapter Combo
8,000 lb lift & mower adapter combo — low-ceiling friendly design for vehicles, ATVs and lawn equipment
SKU: ATEATTD-BP8-COMBO
Regular price
$5,199
Sale price
$5,199
Regular price
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Talk to a Pro
3 experts online now · avg. reply <2 min
Largest Showroom in the Midwest
Our Team has 100+ Years of Experience
Fast Nationwide Shipping
Real People Ready to Help
Key Highlights
8,000 lb Capacity
Handles most cars & trucks
Lawn Mower Adapter Included
For ATVs, UTVs and mowers
Low Ceiling Design
Perfect For Low Garages
Dual Safety Locks
Extra peace of mind
Chain-Drive Cylinders
Dependable lifting power
Super-Symmetric Arms
Improved vehicle positioning
The Atlas® BP8000 is a baseplate two-post lift designed for low ceiling garages. The total column height of 108 inches or 9 feet allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 foot 3 inches. The BP8000 also has many of the popular features found on larger more expensive lifts, including a single-point lock release, Super-symmetric arms, and a twelve piece truck adapter set.
This combo includes the Atlas® Lawn Mower Adapter or LMA. The LMA allows the user to raise lawn tractors, ATV's, UTV's, golf carts, and other small vechicles. NOTE: the capacity of the adapter when used on the BP8000 is less then 8,000 lbs. If you have questions about the LMA and it's capabilities please contact a sales rep.
- 8,000 lb lifting capacity lift combo
- Includes Lawn Mower Adapter (LMA)
- Hobbyist-grade lift design
- Baseplate open-top configuration
- Low-ceiling installation friendly
- 3-stage front arms and 2-stage rear arms
- Automatic arm restraint system
- Single-point lock release
- Double safety lock system
- Dual hydraulic chain-drive cylinders
- 12-piece truck adapter set included
- Mounting hardware included
- Lifts vehicles, ATVs, UTVs and lawn tractors
- Shipping weight: 1,300 lbs.
- Freight prepaid
Capacity & Dimensions
| Lift Capacity | 8,000 lbs. |
| LMA Capacity | Up to 5,000 lbs. |
| Overall Height | 108" (9') |
| Overall Floor Width | 132" (11') |
| Outside Column to Outside Column | 124" (10' 4") |
| Maximum Lift Height (Without Adapters) | 75 1/2" |
| Maximum Lift Height (With Adapters) | 86 1/2" |
| Minimum Arm Height | 4" |
| Shipping Weight | 1,300 lbs. |
Column & Clearance
| Inside Column Width | 109 1/8" (9' 1 1/8") |
| Drive Thru Width | 99" (8' 3") |
| Column Size | 7 1/4" x 11" |
| Steel Thickness | 6 mm |
| Base of Lift | 17 1/2" x 17 3/4" |
Power & Installation
| Motor / Electrical Requirement | 220 Volt Single Phase (30 AMP Breaker Recommended) |
| Oil Requirement | 3-5 Gallons AW32/AW46 (Not Included) |
| Adapter Heights | 4 Each 2", 3", 6" |
| Arm Hole / Adapter Peg Size | 1.5" |
| Concrete Requirement | Minimum 4" Thick, 3000 PSI Concrete |
Lawn Mower Adapter
| Adjustable Width | 8' to 11' |
| Wheel Base Range | 32" to 90" |
| Wheel Well Width | 12" |
| Steel Thickness | 3/16" |
| Fits Lift Arms Up To | 5 1/2" Wide |
| LMA Shipping Weight | 600 lbs. |
