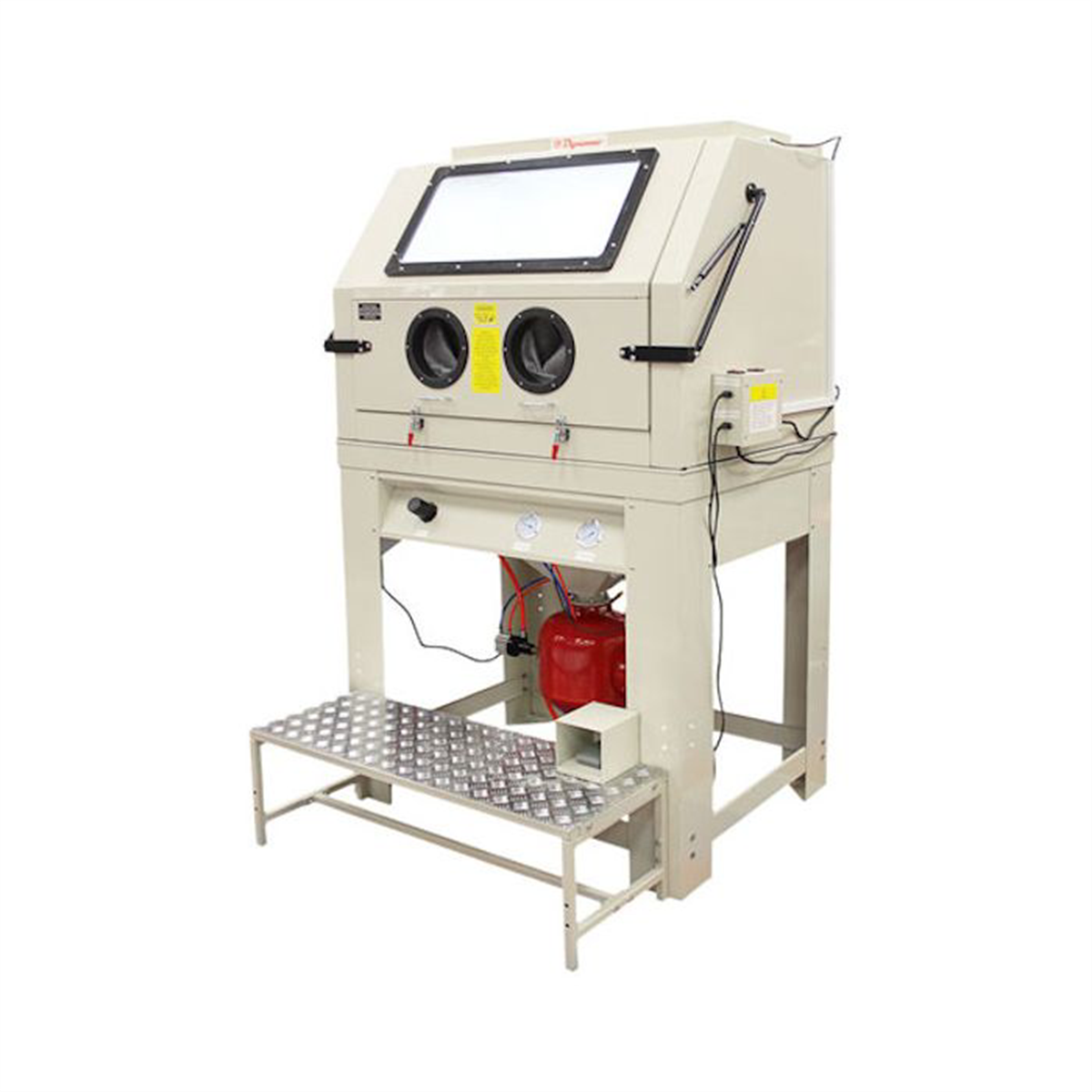

Atlas PSBC990 Pressurized Large Sandblast Cabinet with Vacuum

Atlas PSBC990 Pressurized Large Sandblast Cabinet with Vacuum

Pressurized media blasting cabinet with large work area and high-speed cleaning performance

SKU: ATEHTPSBC990

Regular price $3,199
Sale price $3,199 Regular price
IN STOCK
Shipping calculated at checkout.
Quantity
We also offer Nationwide Shipping — shipping cost calculated at checkout.
We also offer Nationwide Shipping

shipping cost calculated at checkout.

Talk to a Pro
3 experts online now · avg. reply <2 min
  • Largest Showroom in the Midwest
  • Our Team has 100+ Years of Experience
  • Fast Nationwide Shipping
  • Real People Ready to Help
View full details

Key Highlights

Pressurized Blasting
Up to 4x faster cleaning
Large Work Area
Fits oversized parts
Built-In LED Light
Improved visibility
Dust Collection System
Cleaner work environment
Foot Pedal Control
Hands-free operation
220 lb Capacity
Supports heavy parts

The Atlas® PSBC990 pressurized sandblast cabinet features a higher velocity stream that allows work to be done up to 4 times faster than other sandblast cabinets on the market. The direct pressure system which pneumatically pushes the blast media through the air hose, makes it is possible to clean hard to reach areas that are impossible with other sandblast cabinet models. The PSBC990's direct pressure system is best utilized on heavy steel or extra thick coatings that require additional friction on the surface to be removed. But the PSBC990 also comes equipped with a pressure valve to lower the blasting pressure for more sensitive parts.

The Atlas® PSBC990 uses a powerful vacuum system to keep the work area free of "floating" rust and used media. After the glass bead contacts the surface to be cleaned, a portion of the bead is "destroyed" becomes almost weightless. The vacuum system removes the "floating" rust particles and the "used up" glass beads.

The Atlas® PSBC990 has a large front folding door for easy loading and unloading. It has excellent lighting and a very powerful vacuum system. The lower hopper stores the abrasive material for use and reuse and opens easily to allow easy removal of any media. The pressurized tank below the hopper allows for an adjustable, high pressure air flow of abrasive material to be blasted.

  • Large media blasting cabinet
  • 46" x 34" x 33 1/2" work area
  • Pressurized for stronger and faster blasting
  • Foot operated control valve
  • Heavy duty blasting gun with replaceable ceramic nozzles
  • Self-contained dust collection system
  • Cartridge filter with bottom gate clean-out
  • Extra large front/top load door
  • Built in LED light
  • Standing bench included
  • Extra nozzles included
  • Plastic protectors included
  • 110V power
  • Recommended for glass bead media
  • Replacement parts always in stock
  • Freight prepaid
Work Area
Work Area 46" W x 34" D x 33 1/2" H
Window Dimensions 12 3/4" x 27 1/4"
Gloves 24" Gauntlet
Interior Weight Capacity 220 lbs
Equipment
Power Gun NE490 Foot Pedal w/ Gun
Vacuum Attached
Requirements
Electric Requirement 110 Volt
Air Requirement 24 CFM / 125 PSI
Dimensions
Overall Dimensions 56 1/2" W x 65" D x 81" H
Shipping Weight 600 lbs
