Atlas PTC500 Center Post Tire Changer with Assist Arms
Atlas PTC500 Center Post Tire Changer with Assist Arms
Platinum center post tire changer with dual assist arms, wheel lift, and lever/leverless system
SKU: ATEAP-PTC500
Regular price
$8,499
Sale price
$8,499
Regular price
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Talk to a Pro
3 experts online now · avg. reply <2 min
Largest Showroom in the Midwest
Our Team has 100+ Years of Experience
Fast Nationwide Shipping
Real People Ready to Help
Key Highlights
Lever / No-Lever System
Flexible operation for different tire types
Dual Assist Arms Included
Ideal for run-flat and low-profile tires
Integrated Wheel Lift
Reduces lifting effort and improves safety
Smart Lock System
Fast and secure wheel mounting
Center Post Design
Improved stability and precision handling
Built-In Bead Blaster
Faster inflation of stubborn tires

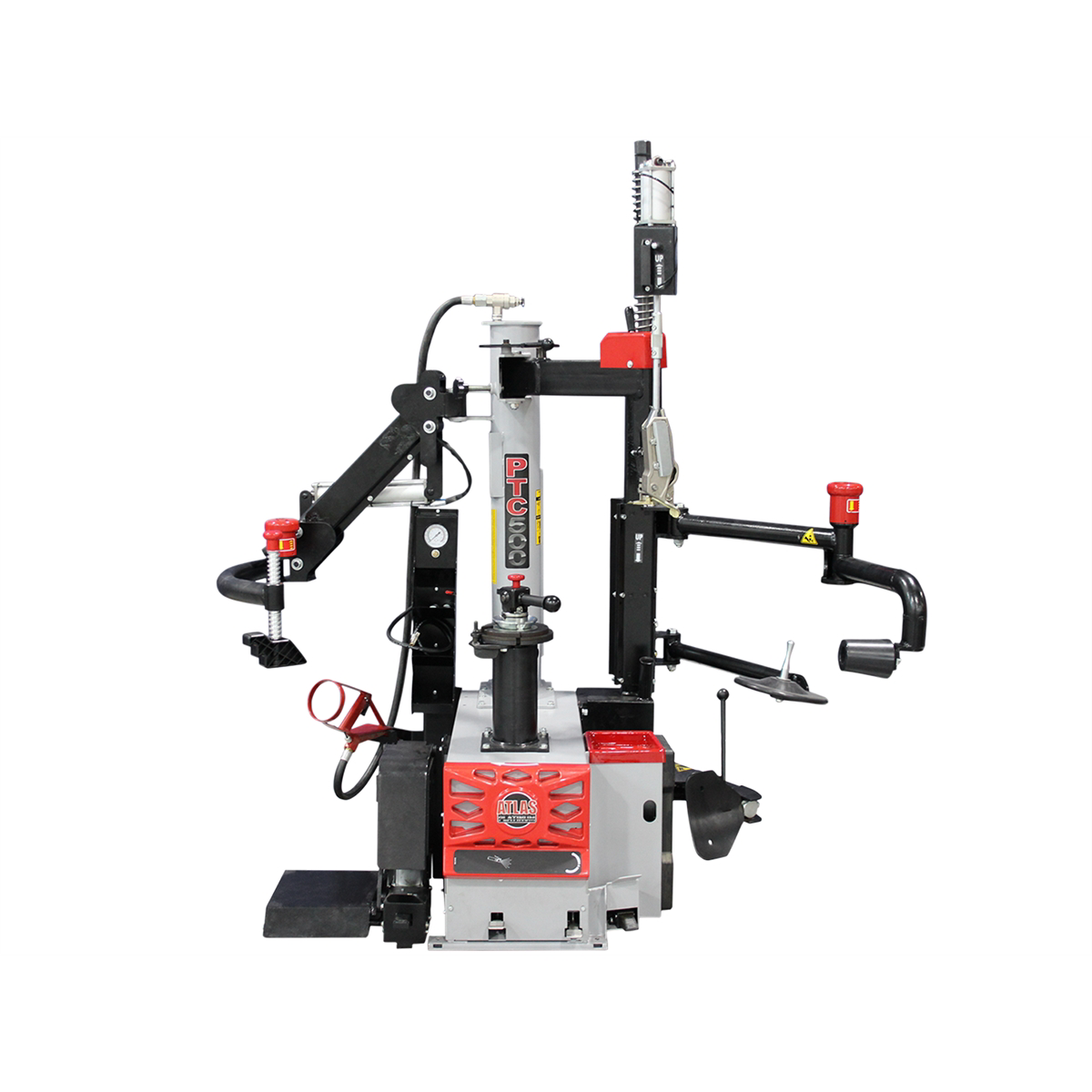

The Atlas Platinum PTC500 center post tire changer is designed for high-volume tire shops that deal with the most challenging wheel and tire combinations in the market. The Atlas Platinum PTC500 includes patented, innovative features that make it stand out from the competition! The first of these is the "Lever/No-Lever System" which allows the machine to be used with a standard tire tool/lever or in a "leverless" mode with no manual tools required. The second outstanding feature is the "Smart Lock" system which allows the tire to be mounted and immediately locked in position with a flip of the lever which eliminates the need to manually thread the center cone or to maintain a complicated pneumatic locking system. The external bead seating system makes inflating even the most challenging tires a breeze. Finally, the integrated wheel lift helps reduce employee lifting injuries or damage to expensive wheels. The Atlas Platinum range of wheel service equipment has a 2-year warranty and incorporates the highest quality Italian designed components and engineering to assure it is the best value available at its price. For a Demount and Mount demonstration video click here .
- Platinum center post tire changer
- Dual assist arms included
- Integrated wheel lift system
- Lever / no-lever tire changing system
- Air-operated bead breaker (external air required)
- External bead-blast system
- Smart Lock center-post system
- Metal mount/demount head with replaceable plastic inserts
- Filter, regulator and lubricator included
- Multiple plastic protectors included
- 47" maximum tire diameter capacity
- 30" clamping range
- 7 RPM rotation speed
- 6,924 lb bead breaker force
- 110V operation
- 885 lbs shipping weight
- 2-year parts warranty
Capacity & Dimensions
| Clamping Range | 12" - 30" |
| Maximum Tire Diameter | 47" |
| Maximum Wheel Width | 15" |
Performance
| Turntable Speed | 7 RPM |
| Bead Breaker Force | 6,924 lbs |
| Assist System | Dual Assist Arms |
Power & Requirements
| Air Requirement | 120-145 PSI |
| Voltage | 110 Volt |
| Shipping Weight | 885 lbs |
