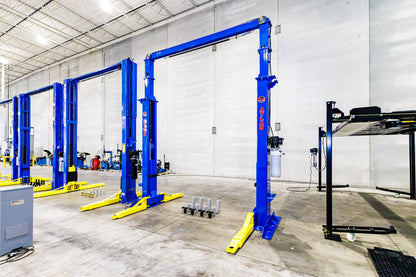

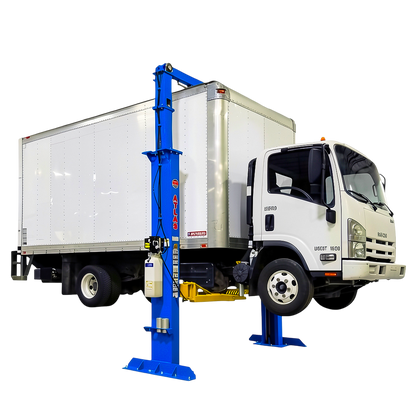

Atlas PVL15 ALI Certified 15,000 lb Heavy Duty 2-Post Lift
Atlas PVL15 ALI Certified 15,000 lb Heavy Duty 2-Post Lift
ALI-certified 15,000 lb 2-post lift — extra-tall, heavy-duty & built for commercial trucks
SKU: ATEAP-PVL15
Regular price
$12,799
Sale price
$12,799
Regular price
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Talk to a Pro
3 experts online now · avg. reply <2 min
Largest Showroom in the Midwest
Our Team has 100+ Years of Experience
Fast Nationwide Shipping
Real People Ready to Help
Key Highlights
15,000 lb Capacity
Built for heavy-duty trucks and fleet vehicles
ALI Certified
Professional-grade safety and compliance
Extra Tall Design
Ideal for service trucks and taller vehicles
Direct-Drive Cylinders
Smooth and reliable lifting

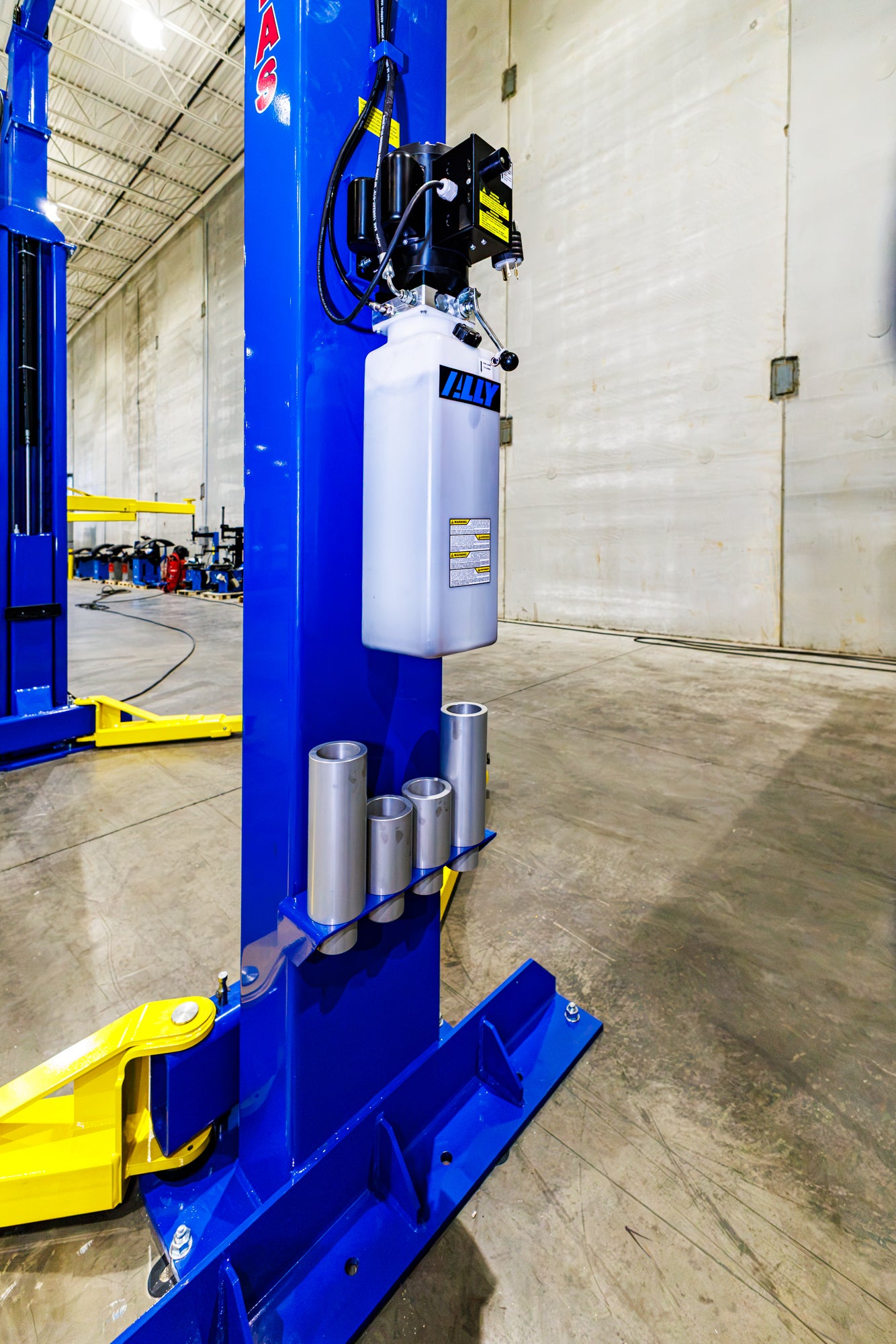

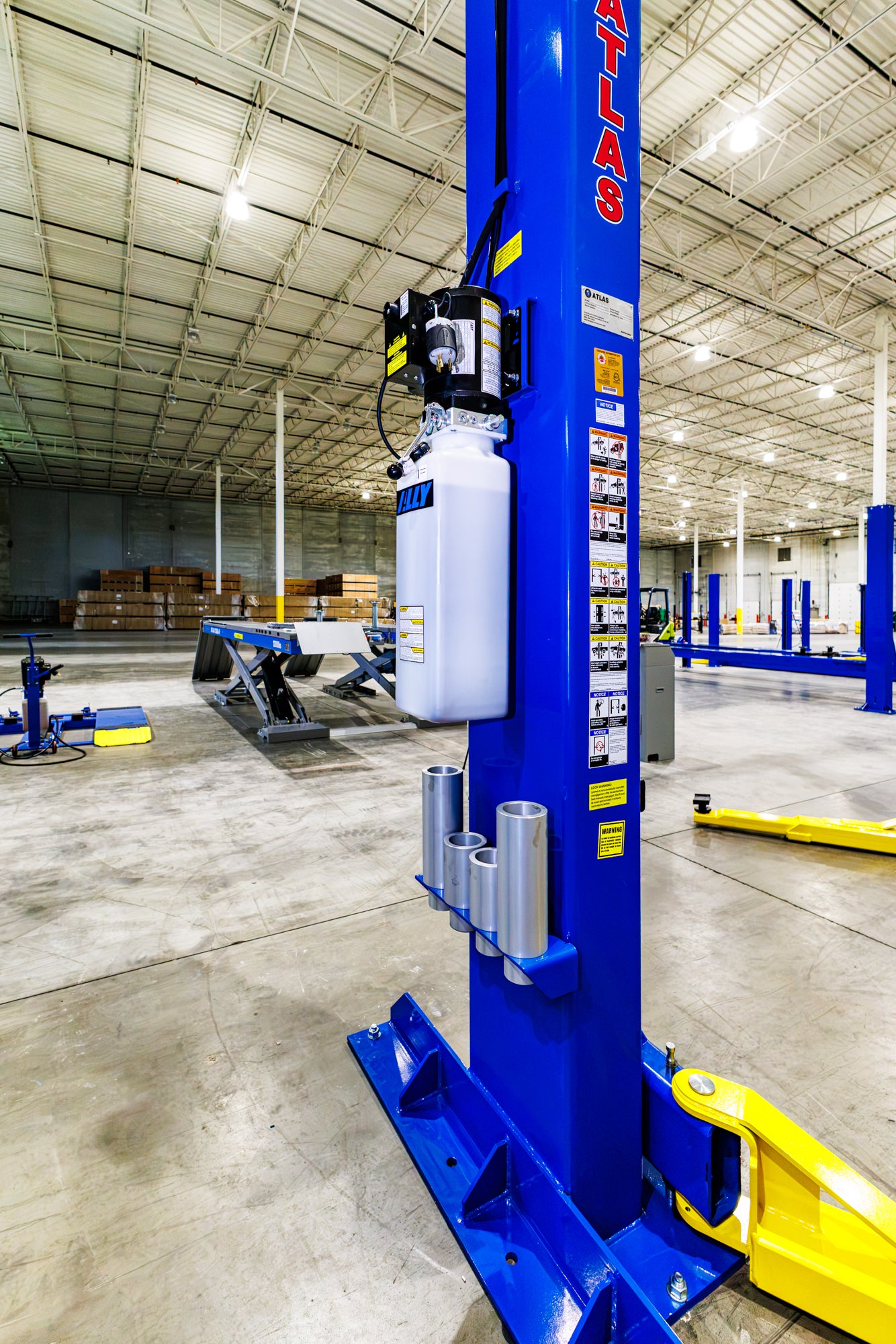

Premium ALLY Power Unit
Reliable hydraulic performance
Commercial Grade
Designed for daily use

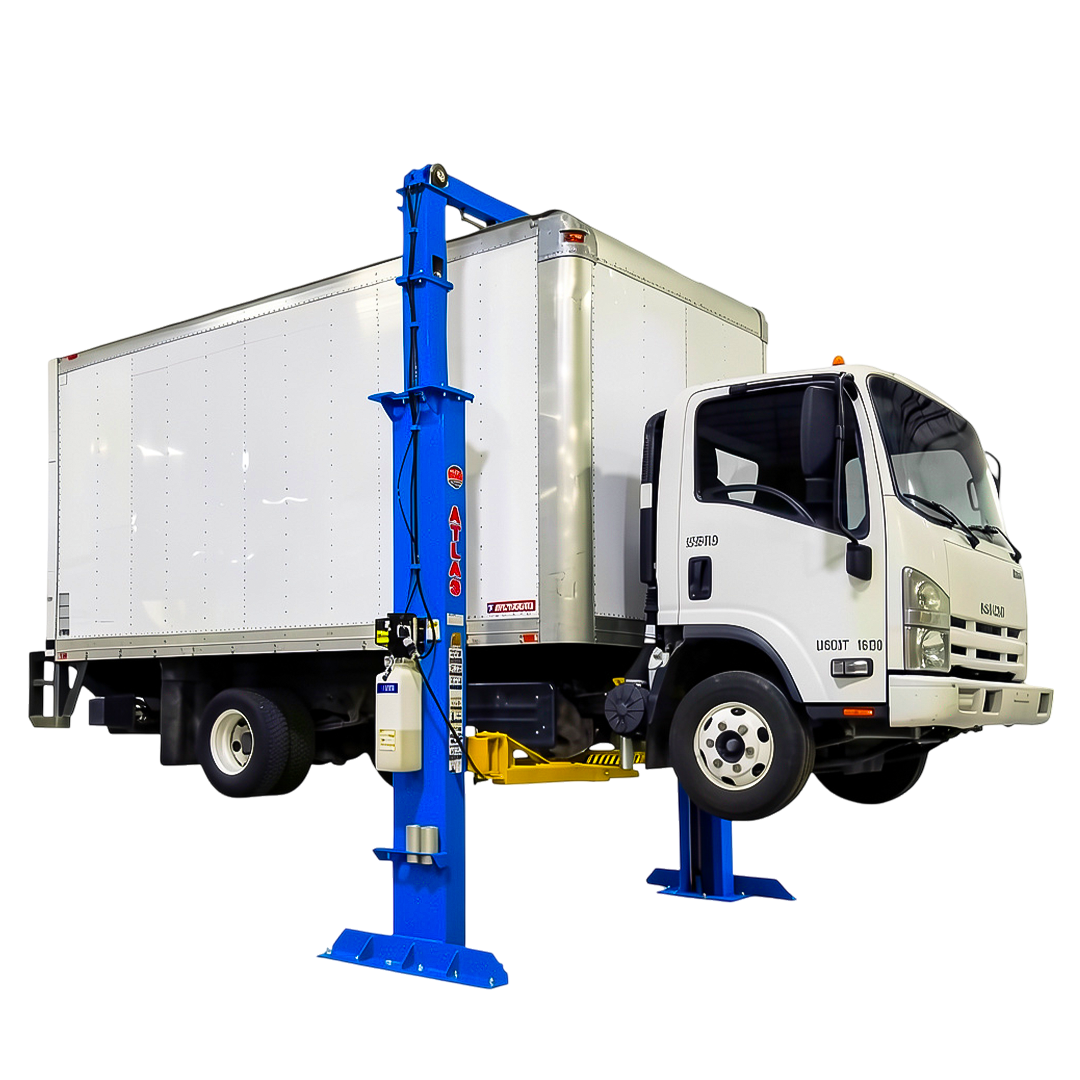

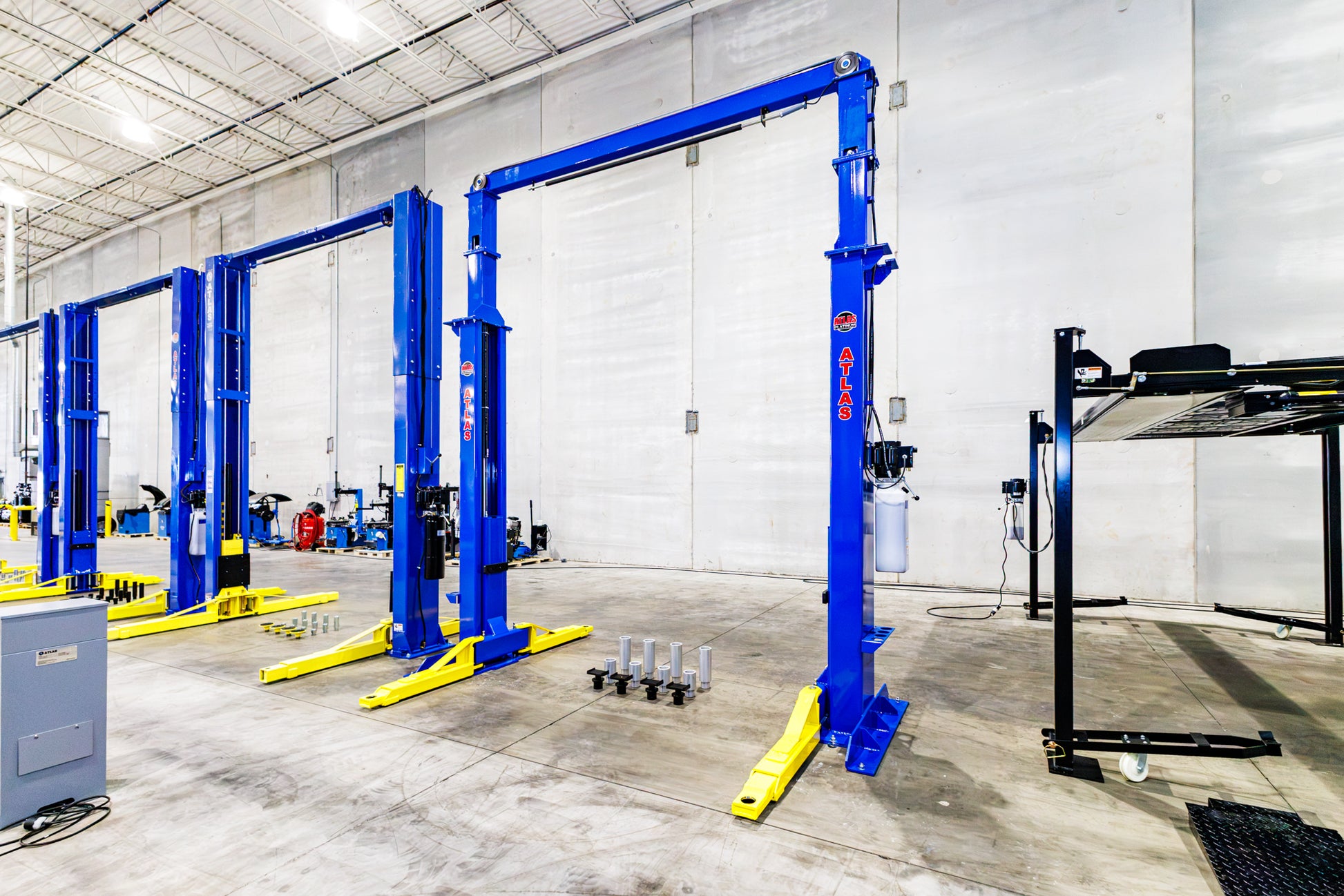

The Atlas Platinum PVL15 is an ALI CERTIFIED, commercial grade, 15,000 lb. capacity overhead two-post lift designed to accommodate both long wheel base trucks and service trucks. The Platinum PVL15 has an overall height of 174 1/2" (14' 6 1/2"), but can be extended by an extra 2 feet to accommodate taller vehicles with the Height Extension Kit. This product features an ALLY Hydraulic AL2300 Power Unit. This premium power unit is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.
- 15,000 lb lifting capacity
- ALI certified commercial-grade lift
- Extra-tall and extra-wide design

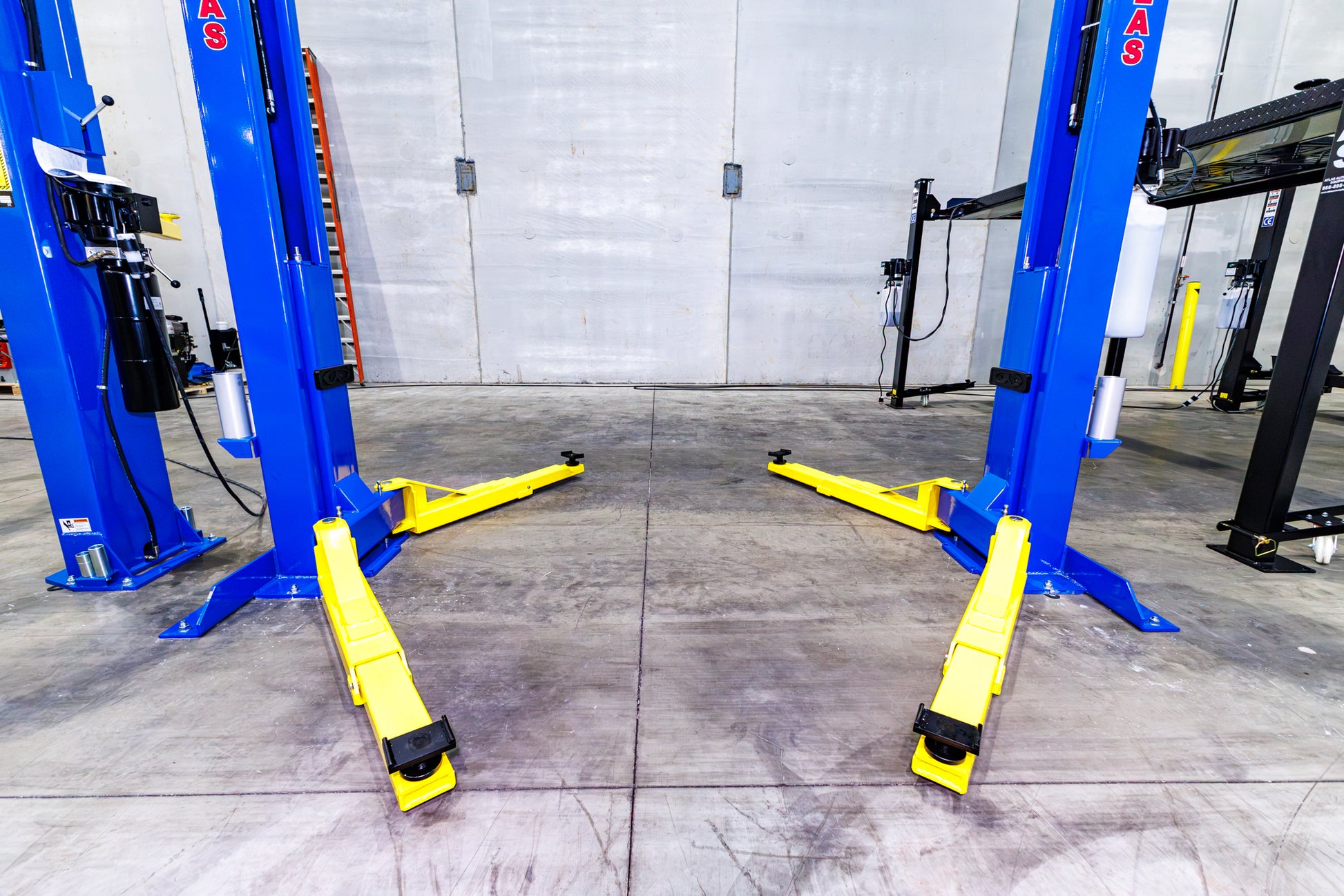

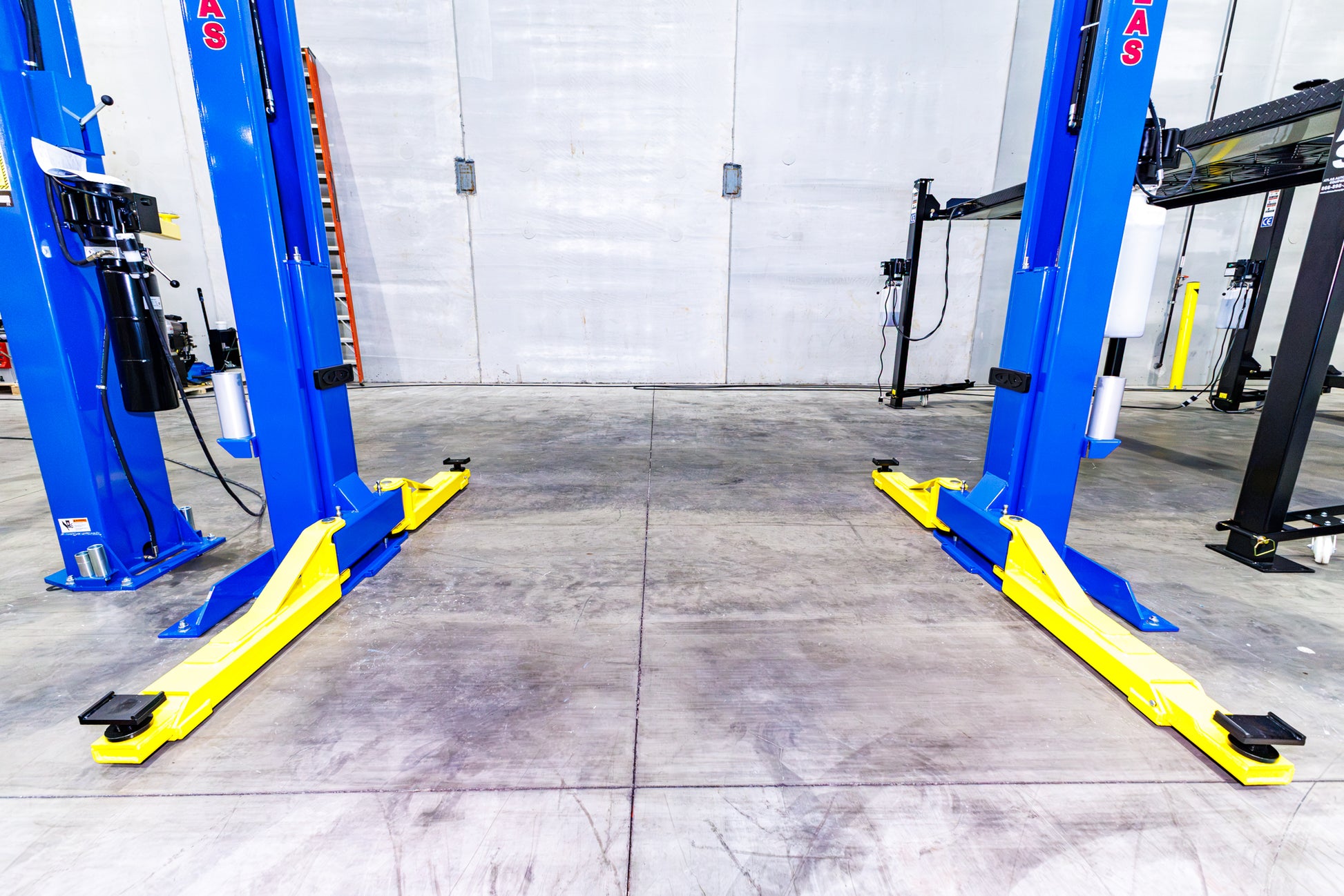

- Heavy-duty symmetric lifting arms
- Professional arm lock restraint system
- Dual direct-drive hydraulic cylinders
- Padded carriage protection
- Heavy-duty 3/8" equalization cables
- Premium ALLY power unit included

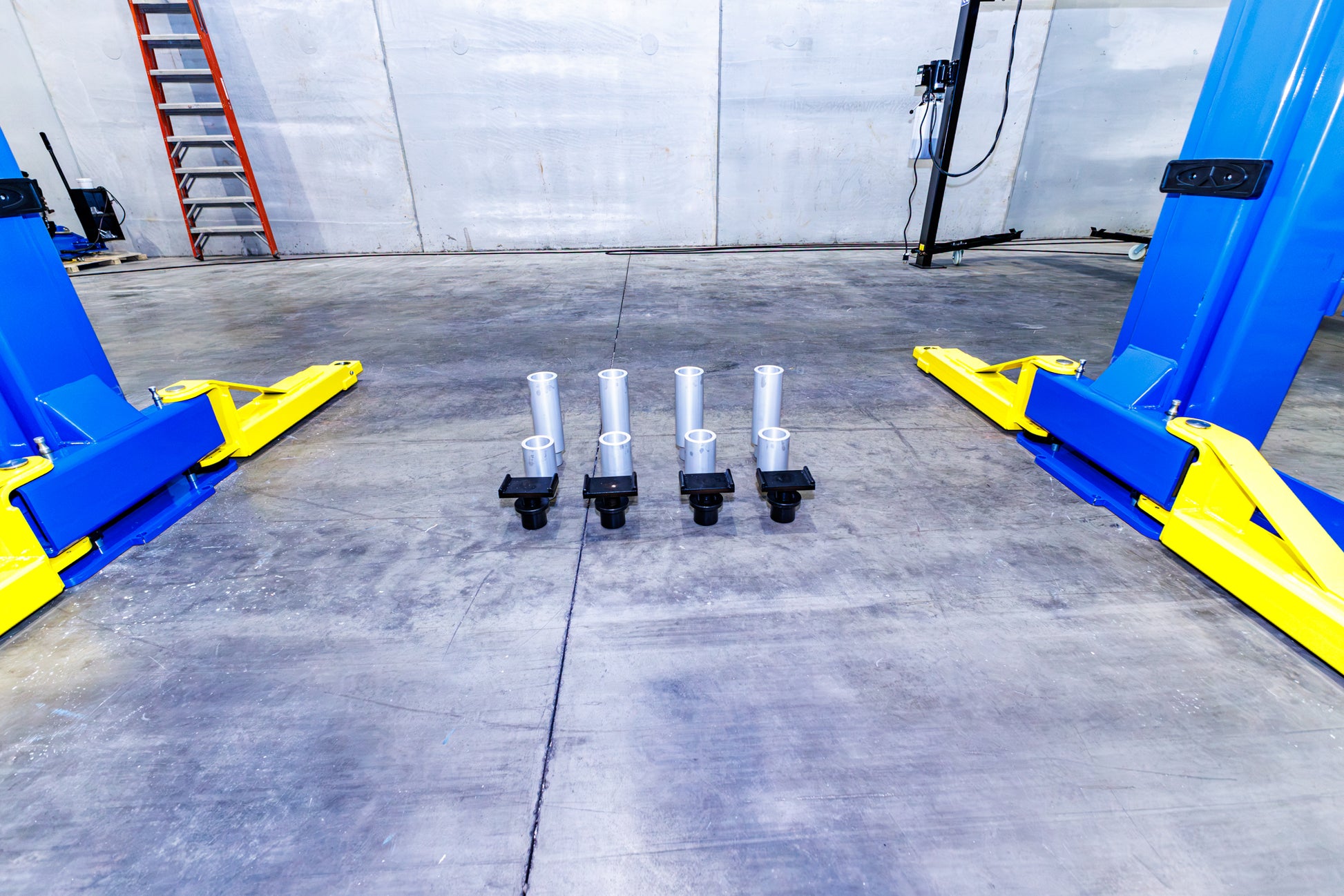

- 8-piece truck adapter set included
- 4 screw-up frame adapters included
- Mounting hardware included
- Shipping weight: 2,600 lbs.
- 5-year structural warranty
- 2-year hydraulic warranty
- 2-year power unit warranty
Capacity & Dimensions
| Capacity | 15,000 lbs. |
| Overall Height | 174 1/2" (14' 6 1/2") |
| Overall Floor Width | 148" (12' 4") |
| Outside Column to Outside Column | 135" (11' 3") |
| Maximum Lift Height (Without Adapters) | 72 3/4" |
| Maximum Lift Height (With Adapters) | 87 1/2" |
| Minimum Arm Height | 6" |
| Shipping Weight | 2,600 lbs. |
Column & Clearance
| Inside Column Width | 119 1/4" (9' 11 1/4") |
| Drive Thru Width | 107 1/2" (8' 11 1/2") |
| Column Size | 8" x 14 1/2" |
| Base of Lift | 21" x 48" |
Power & Installation
| Motor / Electrical Requirement | 220 Volt Single Phase (30 AMP Breaker Recommended) |
| Oil Requirement | 3-5 Gallons AW32/AW46 (Not Included) |
| Adapter Heights | 4 Each 5", 10" |
| Arm Hole / Adapter Peg Size | 2.75" |
| Concrete Requirement | Minimum 6" Thick, 3000 PSI Concrete |
