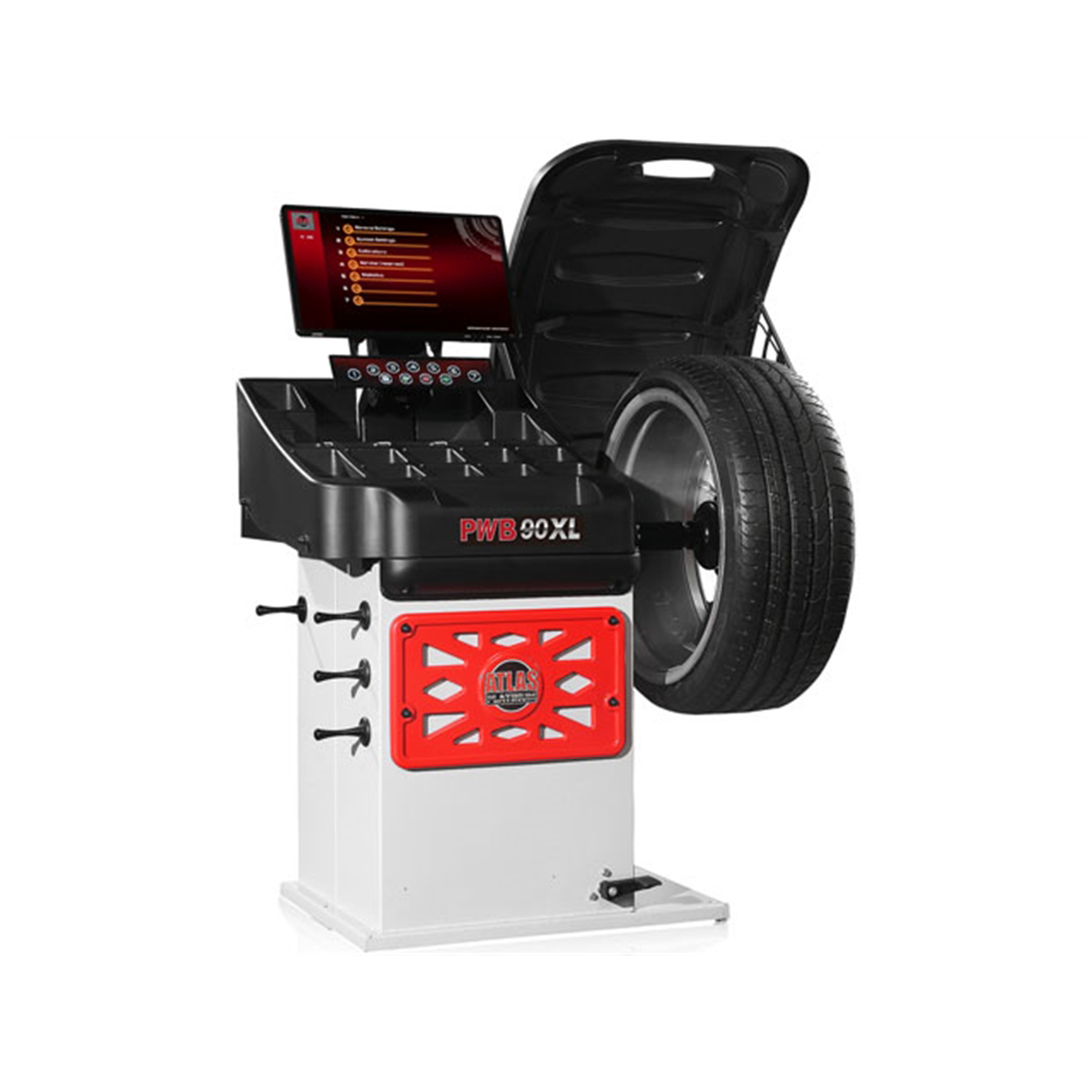

Atlas PWB90XL 3D Video Wheel Balancer with Laser Line

Atlas PWB90XL 3D Video Wheel Balancer with Laser Line

Premium 3D video wheel balancer with touchless sonar measurement and laser-guided weight placement

SKU: ATEAP-PWB90XL

Regular price $5,199
Sale price $5,199 Regular price
IN STOCK
Shipping calculated at checkout.
Quantity
We also offer Nationwide Shipping — shipping cost calculated at checkout.
We also offer Nationwide Shipping

shipping cost calculated at checkout.

Talk to a Pro
3 experts online now · avg. reply <2 min
  • Largest Showroom in the Midwest
  • Our Team has 100+ Years of Experience
  • Fast Nationwide Shipping
  • Real People Ready to Help
View full details

Key Highlights

Super Automatic 3D Entry
Touchless sonar measures rim width automatically
High-Resolution Video Display
Clear and intuitive balancing interface
Laser Guided Placement
Accurate wheel weight positioning
LED Wheel Illumination
Improved visibility during balancing
Optimatch Technology
Improves balancing of difficult wheel assemblies
Premium Italian Engineering
Built for professional high-volume use

The Atlas Platinum PWB90XL features Super Automatic 3D Data Entry via a single data entry gauge for offset and diameter, and touchless sonar for rim width (no old-fashioned measuring arm). Using the weight placement arm, the user can choose the most convenient location to put the weights, and a Laser Line guides the operator back to the exact location after the spin cycle, eliminating any possibility for human error and ensuring first time zero/zero results. The Fast & Easy Split function (FES) makes hiding adhesive weights behind the spokes a breeze and the Opposite Weight Function (OWF), allows the operator to change the weight application position from 12 o'clock to 6 o'clock for convenient access when applying adhesive weights. Optimization of tire and wheel unbalance (match mounting) is possible with the PWB90XL via OPTIMATCH software and makes balancing even the most difficult assemblies easy and efficient. Make no mistake, the PWB90XL is a real top of the line wheel balancer, competing with those big name brands seen as the benchmark for premium quality. This model guarantees speed, accuracy, and a long life by combining Italian engineering and components with the Factory Direct Value that Atlas is known for around the World.

  • Platinum 3D video motorized spin balancer
  • Italian engineering and components
  • High-resolution video monitor display
  • Super automatic 3D data entry
  • Touchless sonar rim width measurement
  • Laser line weight placement guide
  • LED wheel illumination light
  • Static and dynamic balancing modes
  • Optimatch balancing function
  • FES split-weight function
  • OPF opposite position function
  • Special ALU-S and ALU programs
  • NWN (No Wheel Need) system
  • Self-diagnosing operation
  • Self-calibrating system
  • USB port for firmware updates
  • No anchor-down installation required
  • Includes quick-release nut, cones, pliers and calipers
  • 2 Year Parts Only Warranty
Wheel Capacity
Maximum Tire Diameter 43"
Rim Size Range 10" - 30"
Rim Width Range 1 1/2" - 20"
Maximum Wheel Weight 165 lbs.
Performance
Balancing Speed 130 RPM
Cycle Time 7 Seconds
Accuracy 1 Gram
Weight Position Resolution 1.4 Degrees
Self Calibration Yes
Technical Specifications
Data Entry Super Automatic 3D
Shaft Size 40 mm
Power Supply 110 Volt
Shipping Weight 290 lbs.
