Tire Changer

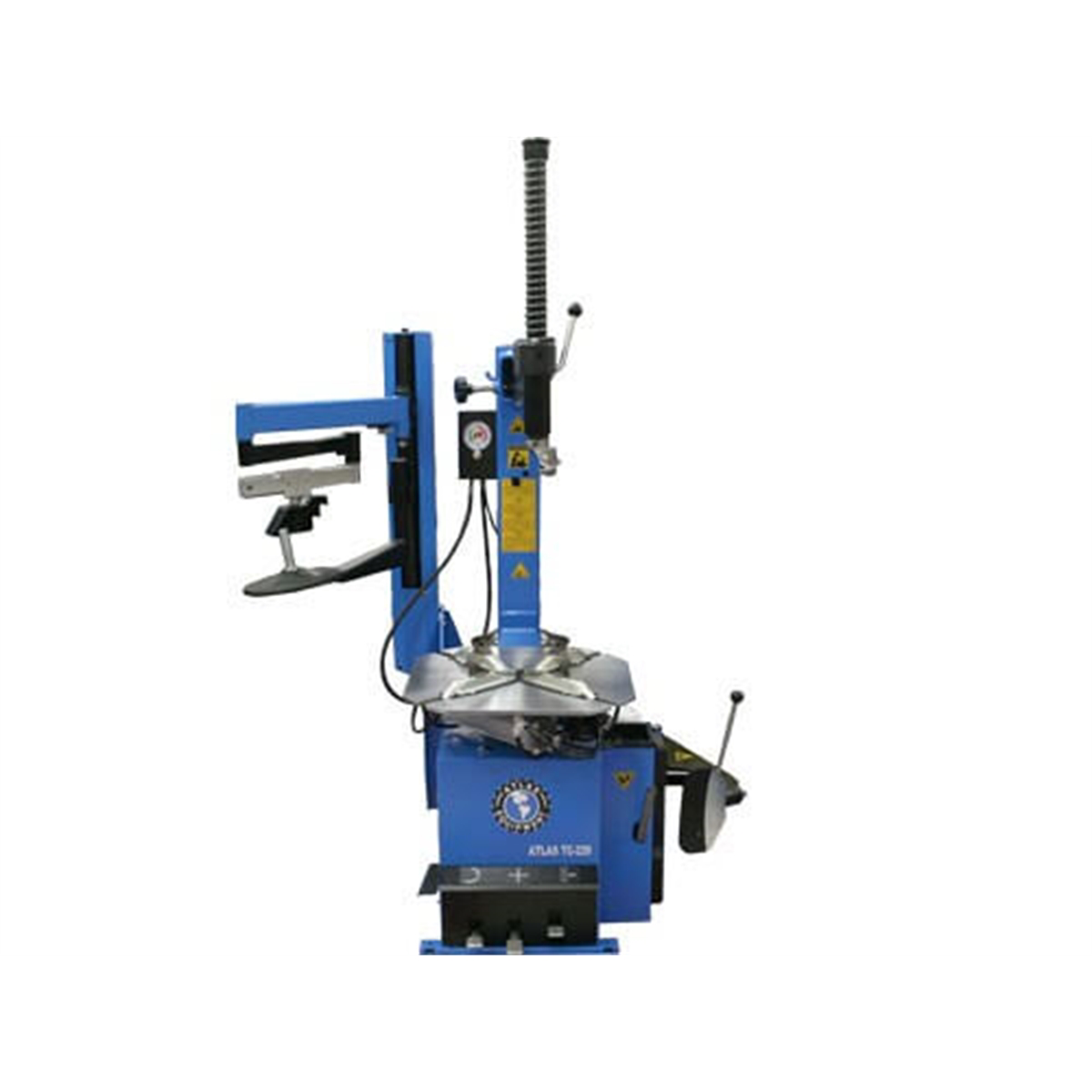

Atlas TC229LH Rim-Clamp Tire Changer with Assist Arm
Atlas TC229LH Rim-Clamp Tire Changer with Assist Arm
Professional tire changer with left-hand assist arm, bead blaster, and 25.25" rim capacity
SKU: ATETC229LH
Regular price
$3,299
Sale price
$3,299
Regular price
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Talk to a Pro
3 experts online now · avg. reply <2 min
Largest Showroom in the Midwest
Our Team has 100+ Years of Experience
Fast Nationwide Shipping
Real People Ready to Help
Key Highlights
Left-Hand Assist Arm
Extra support for low-profile tires
Built-In Bead Blaster
Faster inflation of stubborn tires
Rim Protection System
Safe for alloy and steel wheels
Powerful Bead Breaker
5,500 lb force for tough beads
Adjustable Clamping Jaws
Three mounting positions available
Complete Tire Service Package
Includes tools and accessories

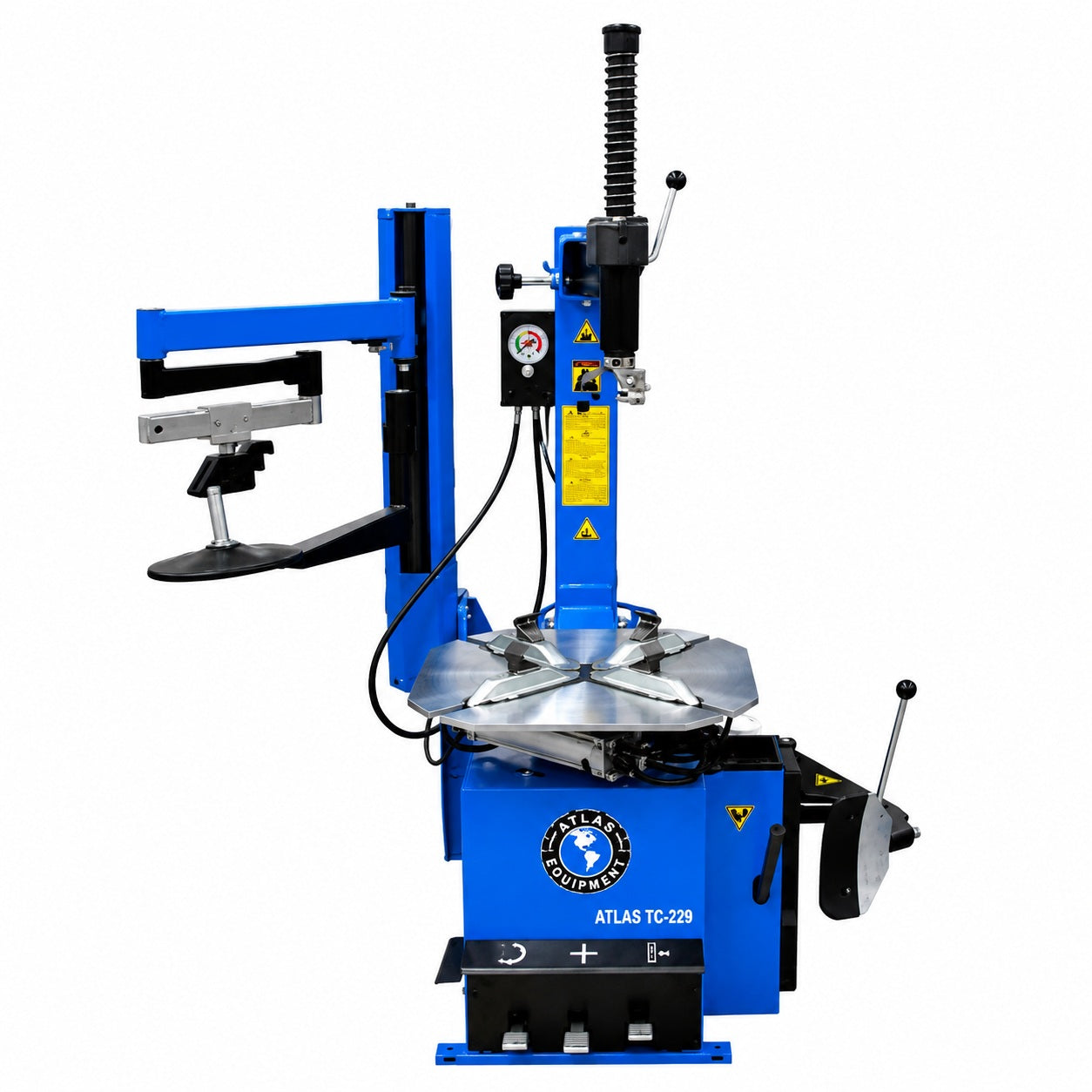

The Atlas® TC229LH rim clamp, swing arm tire changer is the perfect machine for homeowners, a small commercial garage or an ATV/Motorcycle dealer. This version of the TC229 comes with the Atlas® LHA or "Left Hand Assist" arm. The LHA is a valuable tool in changing stiff sidewall, low profile style tires. It also acts as an extra set of hands saving a single user time and effort. The TC229 also features the added built in "Beadblaster" system. The "Beadblaster" system helps inflate stiff sidewall or other "hard to inflate" tires. If you are plan on changing larger pickup truck (1 ton), large SUV, or agricultural tires (either now or in the future), you may want to consider the .
The Atlas® wheel clamp tire changers are designed to change the tires on both high priced alloy wheels and steel wheels without damaging the rim or the tire. The powerful bead breaker located on the side of the machine is designed to break even the most stubborn and rusted beads without damage to the rim. The turntable jaws (which can be covered with plastic covers) hold the rim securely without damaging the surface of the rim. These jaws can be moved to three different positions along the slide of the turntable to either increase or decrease the clamping range, and to handle the widest variety of tires.
The Atlas® TC229LH requires some assembly after purchase.
- Rim clamp swing arm tire changer
- Left-hand assist arm included
- Built-in bead blaster system
- Air-operated jaws and bead breaker
- Electric turntable operation
- Adjustable jaws with three positions
- Metal mount/demount head
- Inflator box with gauge included
- Filter regulator lubricator included
- 20-inch tire tool included
- Lube bucket with brush included
- Plastic jaw covers included
- Bead breaker shovel cover included
- Replacement plastic inserts included
- Motorcycle and ATV adapters available
- 885 ft-lbs turntable torque
- 5,500 lb bead breaker force
- 110V electric operation
- Shipping weight: 700 lbs.
- 1-year parts warranty
Capacity & Dimensions
| Maximum Tire Diameter | 39" |
| Maximum Wheel Width | 13" |
| Shipping Weight | 700 lbs. |
Rim Clamping Range
| External Locking Range | 9 3/4" - 23 1/4" |
| Internal Locking Range | 11 5/8" - 25 1/4" |
| Jaw Positions | 3 Adjustable Positions |
Power & Performance
| Table Motor | 1 HP |
| Turntable Torque | 885 ft/lbs. |
| Bead Breaker Force | 5,500 lbs. |
| Air Requirement | 90-110 PSI |
| Power Requirement | 110 Volt |
