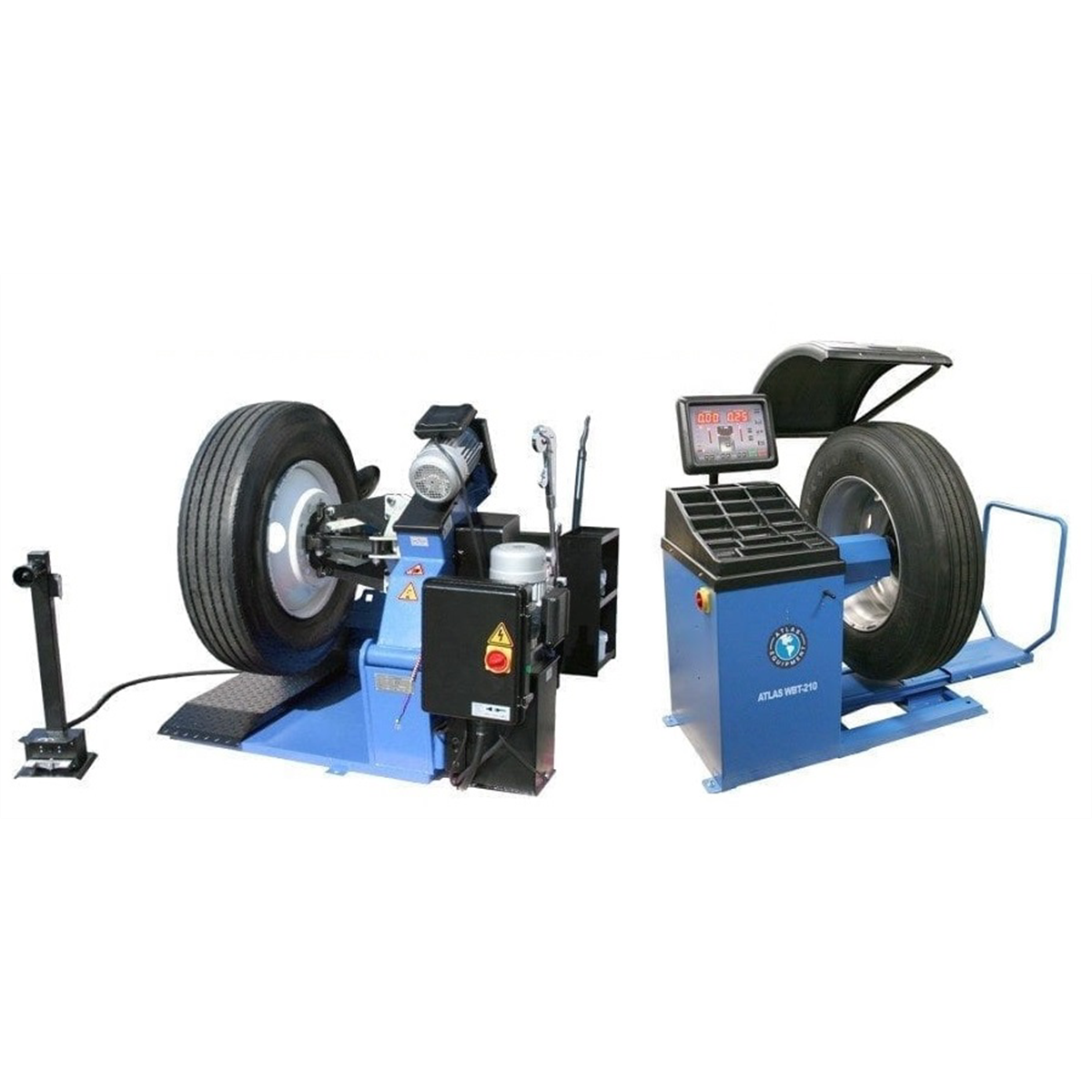

Atlas TC301 Truck Tire Changer + WBT210 Wheel Balancer Combo

Truck Tire Changer & Heavy Duty Wheel Balancer Combo Package:

• Handles rims from 13? to 27? and tire diameters in excess of 63?
• Accommodates tires with a max width of up to 30 1/2?
• Bead Breaker
• Mount/Demount Head
• Electric/Hydraulic Self-Centering Four Jaw Chuck
• 5 different rim locking positions
• Wired Mobile Control Unit
• Heavy Duty Tire Tool Included
• Rim Clamps for Steel and Alloy Wheels Included
• Alloy Rim Adapter Set w/ Plastic Inserts Included

• Cone sets for car and light truck tires included
• Cone and spacer set for truck, bus, or implement tires included
• Plastic Quick Release Nut & Heavy-Duty Steel Wing Nut Included
• Pneumatic wheel lift (external air supply required - NOT INCLUDED)
• Automatic start/stop when hood is lowered/raised
• Static and dynamic balancing modes
• Rapid optimization (OPT)
• Self-Diagnosing and Calibrating
• Exceptional stability in reading the unbalance between planes
• Display in grams or ounces, and in mm or inches
• Wheel Weight Pliers & Wheel Width Caliper Included
• Both Machines 1 Year Parts Only Warranty
• This part number WILL CALL ONLY

This Combo Package includes the Atlas® TC301 truck tire changer and the the heavy duty computerized Atlas® WBT-210 wheel balancer. The Heavy Duty Atlas® TC301 truck tire changer is designed and engineered to handle rim sizes from 13 inches to 27 inches and tire diameters in excess of 63 inches. The TC301 truck tire changer can easily accommodate tires with a maximum width of 30.5 inches. This tire changer has been sold all over the world for the last several years and is the result of a joint venture between a very prestigious Italian wheel service manufacturer and the premier wheel service equipment manufacturer in Asia.

The Atlas® WBT-210 is the perfect wheel balancer for those shops that want one balancer that can balance a 14 inch steel rim up to and including a 300 pound semi-truck tire. There are many large (32 inch) custom wheels and over-sized " gumbo-mudders " that can easily be balanced on the Atlas® WBT-210 computer wheel balancer.

The Atlas® WBT-210 is the perfect computer spin balancer for those trucking companies that operate everything from passenger cars to light trucks to over the road semi tractor/ trailer rigs. The 40 mm heavy duty shaft accommodates the standard mounting cones for most cars and pickup trucks. There are several large truck adapters included with the package that will allow the operator to mount and balance most BUDD style wheels.

Atlas® TC301 Specifications

• Rim Clamping Range 13" - 27"
• Minimum Clamping Size W/ Alloy Adapters 6 3/8"
• Max Wheel Weight 3,300 lbs.
• Max Tire Diameter 63" (5' 3")
• Max Tire Width 30 1/2" (2' 6 1/2")
• Clamping Power 6,614 lbs
• Operating Pressure 0-1885 PSI
• Acoustic Pressure 70dBA
• Bead Breaker Force 4112 lbs.
• Tool Arm Positioning Manual
• Tool Head Positioning Manual
• Construction Single Piece Frame w/ Solid Floor Plate
• Hydraulic Motor Power 2 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required
• Chuck Motor Power 3 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required
• Shipping Weight 1,390 lb.

  Atlas® WBT-210 Specifications

  • Max Tire Diameter 47"
  • Rim Sizes (Cars And Light Trucks) 10"-32"
  • Rim Width 1 1/2"-20"
  • Shaft Size 40mm
  • Max. Wheel Weight 440 lbs.
  • Balancing Speed 150 rpm Car-Light Truck Mode/90 rpm Truck Mode
  • Data Entry All Dimensions Manual Entr
