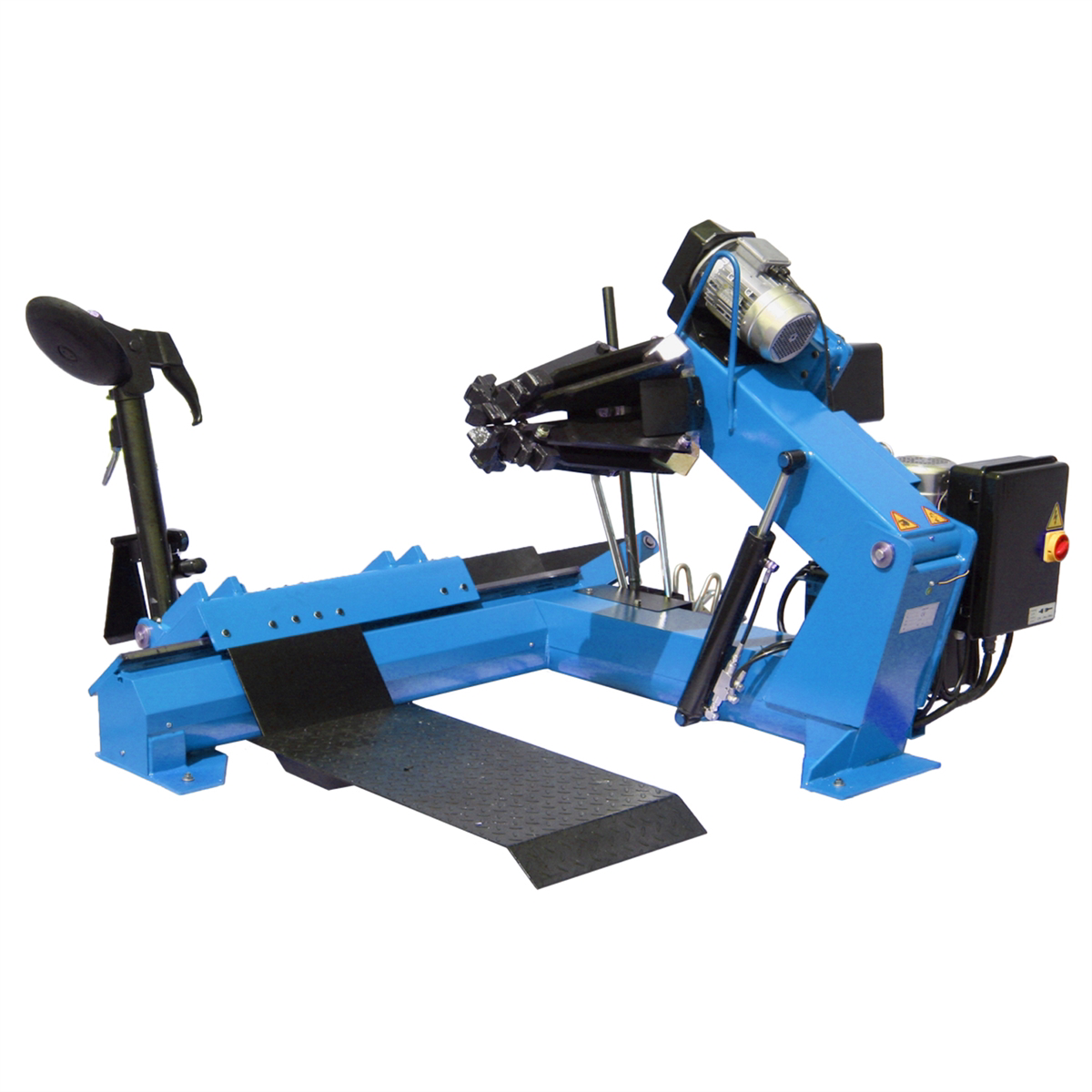

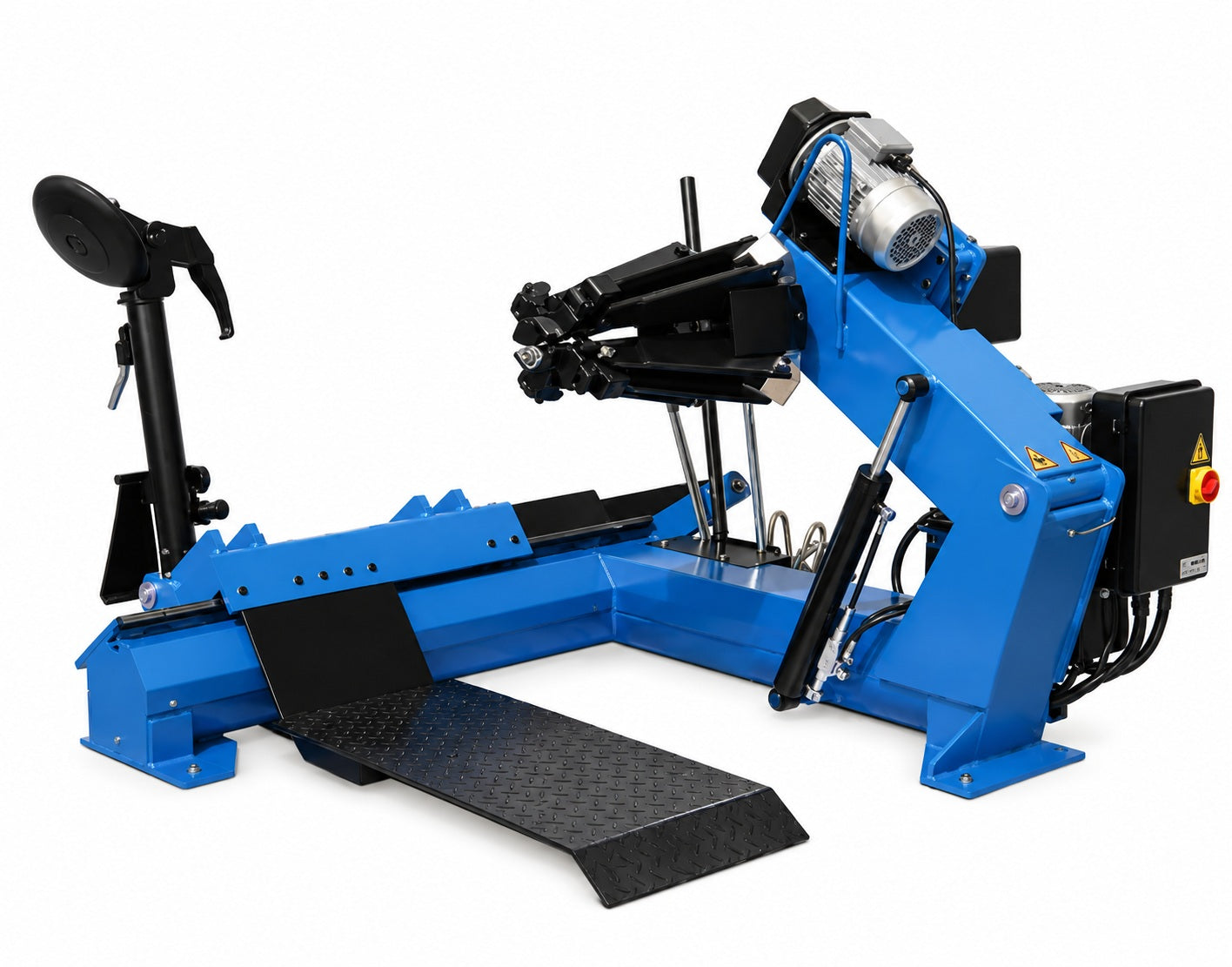

Atlas TTC303 Large Truck Tire Changer
Atlas TTC303 Large Truck Tire Changer
Super duty truck tire changer for rims up to 56 inches and tires over 90 inches
SKU: ATEATTC303
Regular price
$10,599
Sale price
$10,599
Regular price
Shipping calculated at checkout.
Need Help Deciding?
Specs can only tell you so much. Call or text our team for a straight answer on fit, install, and what actually works for your space and your vehicle.
Quantity
Couldn't load pickup availability
Largest Showroom in the Midwest
Our Team has 100+ Years of Experience
Fast Nationwide Shipping
Real People Ready to Help
Key Highlights
56 Inch Rim Capacity
Handles extra-large wheels
90 Inch Tire Diameter
Ideal for oversized tires
Hydraulic Chuck
Self-centering four jaw system
13,173 Lb Clamping Force
Secure wheel holding
42 Inch Tire Width
Supports wide tire assemblies
Heavy-Duty Design
Built for shop environments
PRODUCT DETAILS
Product Overview
The Super Duty Atlas TTC303 truck tire changer is designed and engineered to handle rim sizes from 4-1/4 inches to 56 inches and tire diameters in excess of over 90 inches. The Atlas Truck Tire Changer can easily accommodate tires with a maximum width of...
Show More
Indiana Showroom
See this product in person
Most products we sell are on the floor of our 50,000 sq ft warehouse in Daleville, Indiana ready for a hands-on demo.
Plan Your Visit
The Super Duty Atlas TTC303 truck tire changer is designed and engineered to handle rim sizes from 4-1/4 inches to 56 inches and tire diameters in excess of over 90 inches. The Atlas Truck Tire Changer can easily accommodate tires with a maximum width of up to 42 inches. This tire changer has been sold all over the world for the last several years and is the result of a joint venture between a very prestigious Italian wheel service manufacturer and the premier wheel service equipment manufacturer in Asia. This Atlas TTC303 truck tire changer is designed for high volume truck tire shops that demand dependability and durability in their equipment. The Atlas TTC303 handles off-road tires, agricultural tires, super single tires, and skidder tires with ease. The Atlas TTC303 truck tire changer is the perfect choice for the large truck tire center that does high volume truck tire work on standard over the road wheel assemblies and demands the capabilities to change agricultural and off road wheel assemblies.
- Super duty truck tire changer
- 220 volt single phase electric
- Handles rims from 14 in. to 56 in.
- Handles tire diameters over 90 in.
- Accommodates tire widths up to 42 in.
- Bead breaker
- Mount and demount head
- Electric hydraulic self-centering four jaw chuck
- 5 rim locking positions
- Wired mobile control unit
- Heavy duty tire tool included
- Rim clamps for steel and alloy wheels included
- Alloy rim adapter set with plastic inserts included
- 1 year parts only warranty
Wheel Capacity
| Rim Clamping Range | 14 in. - 46 in. |
| Maximum Clamping Size w/ Extensions | 56 in. |
| Max Wheel Weight | 3,300 lbs. |
| Max Tire Diameter | 90 1/2 in. (7 ft. 6 1/2 in.) |
| Max Tire Width | 42 in. (3 ft. 6 in.) |
Performance
| Clamping Power | 13,173 lbs. |
| Operating Pressure | 0 - 1885 PSI |
| Acoustic Pressure | <70 dBA |
| Bead Breaker Force | 5,930 lbs. |
Operation
| Tool Arm Positioning | Manual |
| Tool Head Positioning | Manual |
| Construction | Single Piece Frame w/ Solid Floor Plate |
Power & Shipping
| Hydraulic Motor | 2 HP, 220V, 1 Phase |
| Chuck Motor | 2 HP, 220V, 1 Phase |
| Breaker Requirement | 30 Amp |
| Shipping Weight | 1,800 lbs. |
