At a Glance
1250 mm
Max Wheel Diameter
13"–26"
Inside Clamping Range
11"–24"
Outside Clamping Range
3"–13"
Rim Width
8–10 bar
Working Pressure

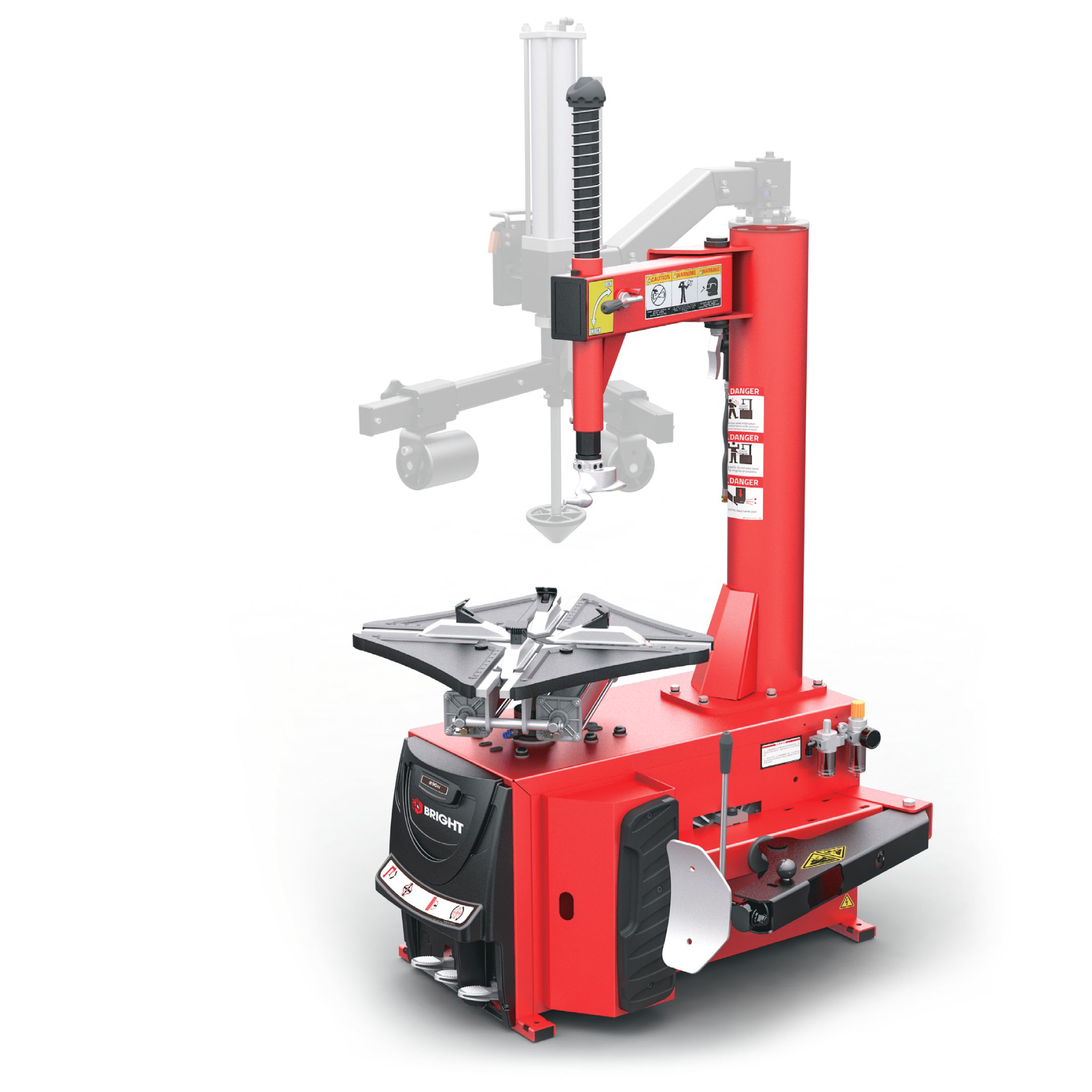

Product Description
The dominant position in the international market for 10 years, makes the series of 890 enjoy high reputation in this line.According to the demand of Chinese customers, constant tracking the development of rim, and keep studying, the enhanced parts perfectly show its strength. Stability, durability and comfort is the constant pursuit of this product.
Specs and dimensions
Outside Clamping Range
11" - 24"
Inside Clamping Range
13" - 26"
Rim Width
3" - 13"
Max Wheel Diameter
1250 mm
Working Pressure
8 - 10 bar
Bead Breaking Force
2500 kg
Power Supply
110V/220V/380V
Motor Power
0.75/1.1 kW
Rotation per Minute
6.5 rpm
Noise
<70 dB
Machine Dimensions
1350 × 1300 × 1950 mm
Packing Dimensions
1150 × 920 × 1050 mm
Net Weight
239 kg
Gross Weight
269 kg
Loading in 40 Ft. Container
48 sets
