Scissor Lifts
1 1

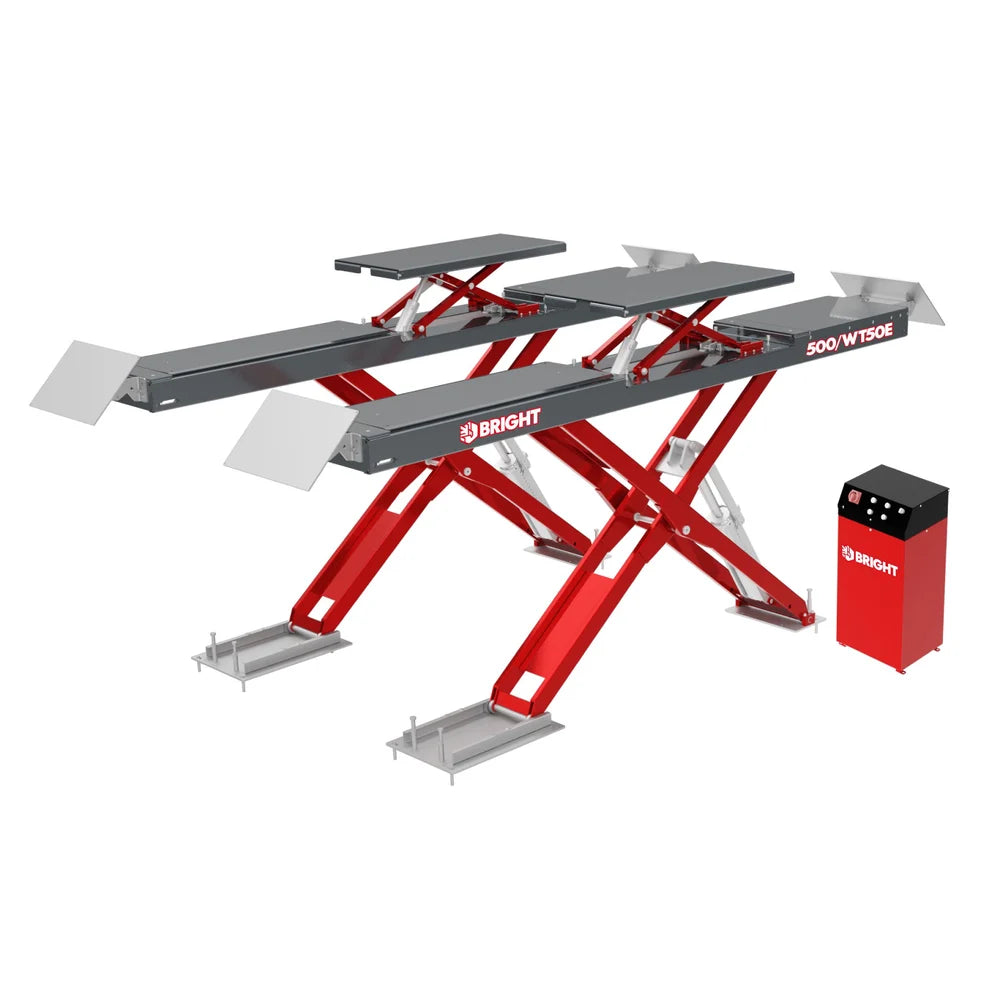

Bright Lambda 500/W50E

Bright Lambda 500/W50E

Underground 5-ton wheel alignment scissor lift with jacking beam, intelligent controls, and stable professional performance.

SKU:

$11,995
$11,995
IN STOCK

Need Help Deciding?

Specs can only tell you so much. Call or text our team for a straight answer on fit, install, and what actually works for your space and your vehicle.

Call 765-544-3838 Text 765-544-3838
See it in Person
We also offer Nationwide Shipping — shipping cost calculated at checkout.
We also offer Nationwide Shipping

shipping cost calculated at checkout.

How you can receive this equipment

Two ways to get your order, plus help finding an installer

Free

Pickup at our showroom

Free pickup at our Daleville, IN showroom. We've got forklifts and an experienced warehouse team ready to load you up and get you back on the road.

  • 9175 S. Innovation Drive, Daleville IN
  • Most items ready same day
  • Bring a trailer rated for the load
Nationwide

Freight to your door

Curbside freight delivery across the lower 48. You unload with your own forklift, tractor, or skid steer. Liftgate service available on smaller items for an added fee.

  • Shipping calculated at checkout
  • Typical transit: 5-10 business days
  • Appointment call before delivery
Optional

Need help finding an installer?

Most customers install these themselves. If you'd rather hire it out, we don't do installs, but we're happy to point you in the right direction.

  • No cost, no commitment
  • You hire and pay the installer direct
  • Call or text 765-399-2598
  • Largest Showroom in the Midwest
  • Our Team has 100+ Years of Experience
  • Fast Nationwide Shipping
  • Real People Ready to Help
View full details

At a Glance

5,000 KG
Main Lifting Capacity
2,050 MM
Lifting Height
3,000 KG
Jacking Beam Capacity
5,000 MM
Platform Length

Product Description

The BRIGHT Lambda 500/W50E is an underground 5-ton wheel alignment scissor lift designed for professional vehicle servicing and four-wheel alignment applications. Its underground installation provides a clean and practical workshop setup, while the 5,000 kg main lifting capacity and 3,000 kg lift table capacity provide reliable support for a wide range of vehicles.

The lift features a reinforced 16Mn support arm pipe for stable lifting and a widened 680 mm platform with a full-plane upper surface for improved vehicle stability. With a maximum lifting height of 2,050 mm, it provides generous working clearance for technicians.

An intelligent computer control system and patented one-key leveling function make operation convenient and precise. The extended 16Mn side sliding plates enable four-wheel alignment functionality, while the standard height-limit switch, emergency manual unlocking, and 24V safety operating voltage provide additional safety. The platform also offers an optional secondary descent function and has passed 120% dynamic and 150% static load tests.

Specs and dimensions

Main Lifting Capacity
5,000 kg
Lift Table Lifting Capacity
3,000 kg
Lifting Height
2,050 mm
Minimum Height
300 mm
Lifting Height of Lift Table
400 mm
Platform Length
5,000 mm
Platform Width
680 mm
Platform Spacing
900 mm
Gross Weight
2,930 kg
Installation
Underground installation
Motor Power
3.5 kW
System Pressure
250 Pa
Support Arm Material
16Mn thickened pipe
Leveling System
One-key hydraulic leveling
Control System
Intelligent computer control
Wheel Alignment
Four-wheel positioning with extended 16Mn side sliding plates
Height Limit Switch
Standard
Emergency Unlocking
Manual emergency unlocking
Operating Voltage
24V
Secondary Descent
Optional
Load Testing
120% dynamic load test and 150% static load test
