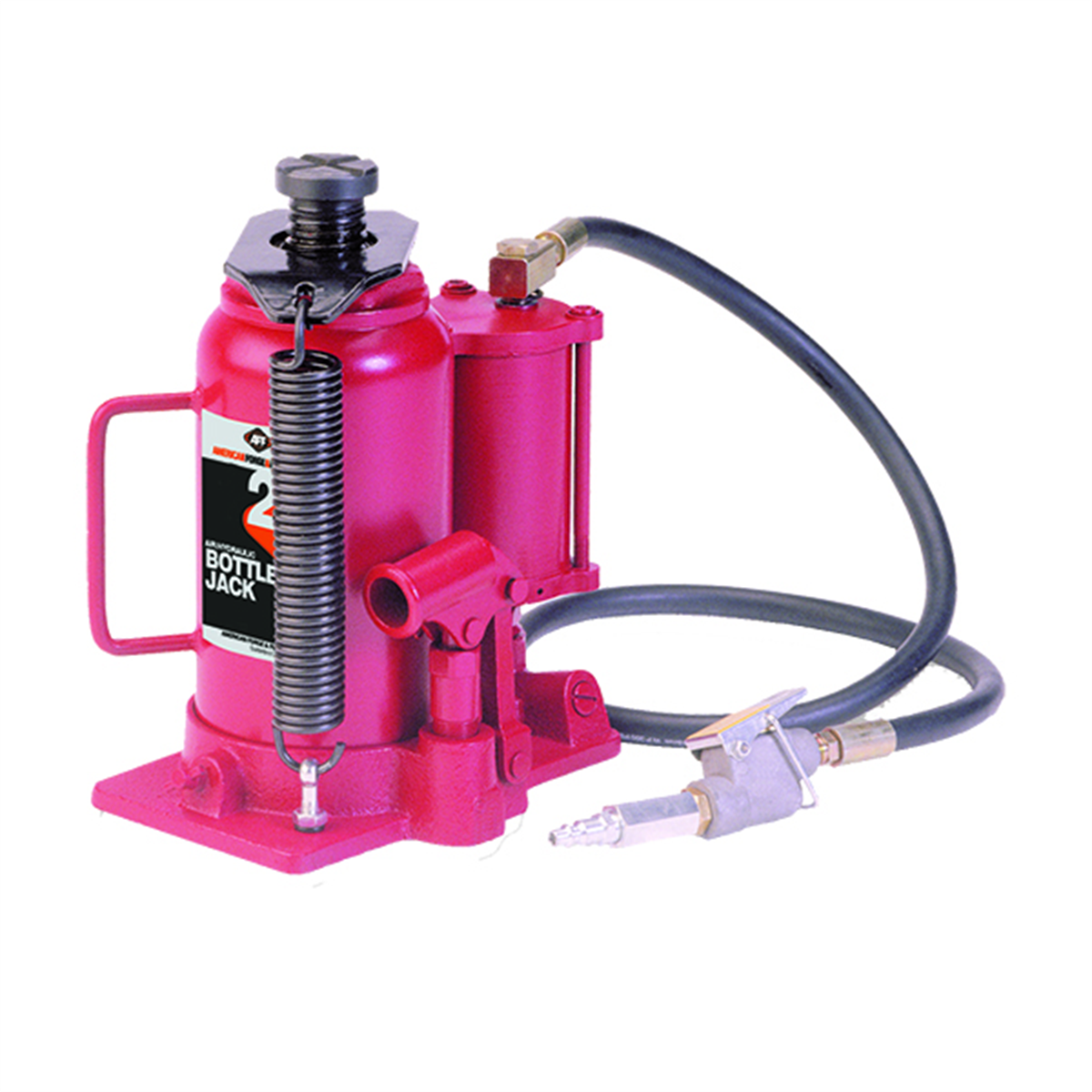

Product Description
American Forge & Foundry's Bottle Jacks include some of the most advanced features available today and provide countless solutions even in the toughest working conditions. Choose from our Heavy-Duty series for standard use or from our Super Duty series for more rigorous applications.
Features
- The AFF Heavy-Duty bottle jacks are heat treated in critical stress areas to ensure long life and performance. They are ideal for use in automotive, truck, farming, mining, and much more.
- Drop forged alloy steel construction for reliable strength.
- Made with centered pumps and rams with heat treated pistons
- Saddles are made of machine hardened steel for unsurpassed strength.
- Built-in bypass system prevents accidental overload and provides added operator safety.
- Longer wear life due to internally machined oil passages, smooth bearing surfaces and tighter tolerances
- Operating pressure at 90-180 PSI
- Dual cylinder return springs.
- Comes with carrying handle.
Specifications
| Color | Red/Black |
| Product Type | Bottle Jack |
| Capacity (T) | 20 Ton |
| Power Type | Hydraulic |
| Operation Type | Air/Manual |
| Minimum Height (in.) | 10.5" |
| Maximum Height (in.) | 20" |
| Ram Lift (in.) | 6.5" |
| Extension (in.) | 3.15" |
| Saddle Diameter | 1.8" |
| Base Length (in.) | 8.6" |
| Base Width (in.) | 6.3" |
| Handle Length (in.) | 16.5" |
| Number of Handle Pieces | 2 |
| Oil Reservoir Assembly | Crush Fit |
| Base Type | Drop Forge |
| Release Type | Cross Head Valve |
| Working Air Pressure | 90-150 PSI |
| Duty Level | Heavy Duty |
| Weight (lb.) | 35 Lbs. |
| Certification | ASME/PASE 2019 |
