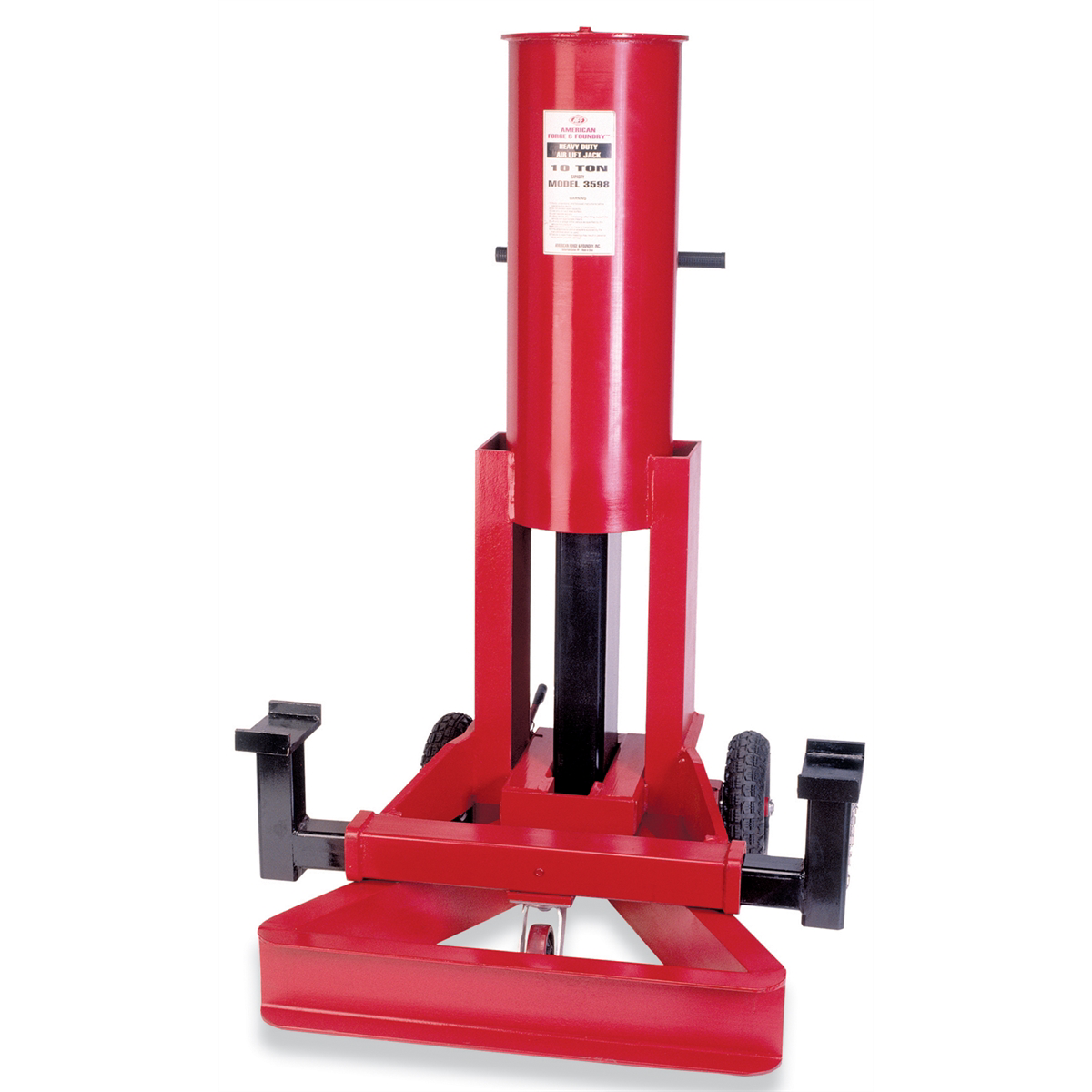

American Forge & Foundry End Lift - 10 Ton Capacity - Air Operated
American Forge & Foundry End Lift - 10 Ton Capacity - Air Operated
Regular price
$3,799.99
Sale price
$3,799.99
Regular price
SKU: INT3598
Same-day pickup at our Daleville, IN showroom. See it in person, and we'll load it for you. Open Mon–Sat.
Included free with this product
Quantity
Why buy from Truman
Free pickup
Daleville, IN
Nationwide
Fast shipping
Local installer
Referrals
Largest showroomShowroom
In the countryLargest in the US
100+ years
Of experience
Real people
Ready to help
Product Description
American Forge & Foundry features a wide range of specialty jacks for the trucking, agriculture, fleet, and military sectors. Each is designed for applications where extra capacity, added reach, or height may be required.
Features
- The AFF Air End Lift is designed with an extra-wide stance to lift the entire front or rear of large trucks, buses, industrial, heavy-duty construction equipment, and large farm vehicles.
- 10-Ton capacity achieved at 200-PSI air supply.
- Three-way air valve for fine lifting and lowering control.
- 4" x 6" steel saddles adjust between 36" and 50" widths.
- Saddle arms reversible for low height loads.
- 13" Forward reach (distance from cylinder to saddles).
- Automatic mechanical safety lock engages at five lift heights from 17-1/2" to 50".
- Two air control valve fittings ‐ one for shop air supply and one for a Schrader valve.
- Front swivel caster and two pneumatic rear tires for easy maneuverability.
Specifications
| Color | Red/Black |
| Capacity | 10 Ton |
| Product Type | Air Lift Jack |
| Power Type | Air |
| Operation | Air Valve |
| Minimum Height | 12.4" |
| Maximum Height | 49.6" |
| Chassis Length (in.) | 35.5" |
| Chassis Width | 47.3" |
| Reach (in.) | 50.6 |
| Lift | 37.2" |
| Saddle Diameter | 4" x 6" |
| Saddle Spread (in.) | 36" - 50" |
| Handle Length (in.) | 18.9" |
| Working Air Pressure | 200 PSI |
| Weight | 682 Lbs. |
| Wheels | Qty 2 - 8" Pneumatic Wheels, Qty 1 - Front Swivel Caster |
| Certification | ASME/PASE 2019 |
| Warranty | 1 Year |
| Adapters Included | Qty2 - 4" x 6" Saddles |
| Special Features | 3 Way Air Valve| Automatic Safety Lock |
