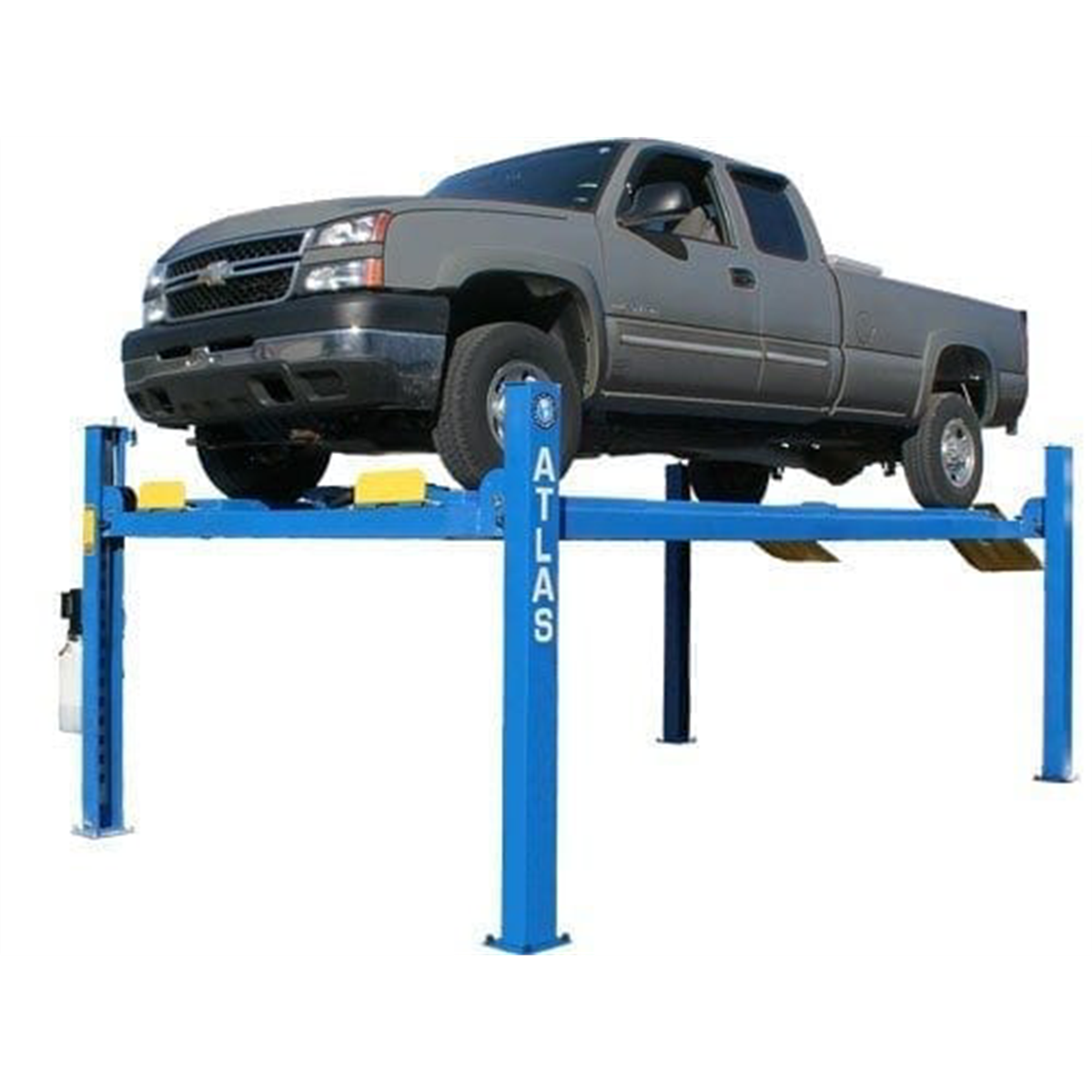

Atlas 412 12,000 lb Commercial 4-Post Lift
Atlas 412 12,000 lb Commercial 4-Post Lift
Heavy-duty 12,000 lb. 4-post lift with an extra-long commercial design and rolling jack compatibility.
Regular price
$6,899
Sale price
$6,899
Regular price
SKU: ATEATTD-412
Talk to an expert before you buy
Questions on fit, ceiling height or install? We'll help you pick the right one.
Same-day pickup at our Indiana showroom. See it in person, and we'll load it for you. Open Mon–Sat.
Included free with this product
Quantity
Couldn't load pickup availability
Why buy from Truman
Free pickup
Indiana
Nationwide
Fast shipping
Local installer
Referrals
Largest showroomShowroom
In the countryLargest in the US
100+ years
Of experience
Real people
Ready to help
Why This Lift
- 12,000 lb. capacityTrucks, vans, and fleet vehicles
- Extra-long runwaysRoom for long-wheelbase vehicles
- Rolling jack readyPairs with the Atlas RJ6BK or RJ8000
- Commercial gradeBuilt for daily shop use
Product Description
The Atlas 412 incorporates many structural and cosmetic features that are found on lifts costing thousands of dollars more money. The Atlas 412 is tested to ensure that this lift system will perform flawlessly at its rated capacity. The Atlas 412 has been manufactured to the same exacting specifications for many years. The Atlas 412 uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an "old style" chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to "level" properly and the exposed hydraulic cylinder is responsible for numerous "door dings". Finally, the Atlas 412 features "tracks" between the runways to allow the use of a rolling bridge jack (such as the Atlas RJ6BK ) on the lift. Rolling jacks sold separately.
Specs and Dimensions
Capacity
12,000 lbs.
Lifting Height
77 3/4" (6' 5 3/4")
Overall Width (Without Motor)
126 1/4" (10' 6 1/4")
Overall Width (With Motor)
135 1/4" (11' 3 1/4")
Overall Length With Approach Ramp
236 1/2" (19' 8 1/2")
Height Of Columns
89 3/4" (7' 5 3/4")
Shipping Weight
2,800 lbs.
Runway Length
194 1/2" (16' 2 1/2")
Runway Width
20"
Runway Thickness
7 1/2"
Width Between Runways
43 1/4" (39 3/4" with rails)
Outside Runway To Outside Runway
83 1/4" (6' 11 1/4")
Clearance Under Runways
70 1/4" (5' 10 1/4")
Length Between Columns
183 1/4" (15' 3 1/4")
Clearance Between Columns
112 5/8" (9' 4 5/8")
Maximum Wheel Base
185" (15' 5")
Drive Thru Width
98" (8' 2")
Air Requirement
85-115 PSI (External Air Supply Required)
Motor / Electrical Requirement
220 Volt Single Phase (30 AMP Breaker Recommended)
Oil Requirement
3-5 Gallons AW32/AW46 (Not Included)
Concrete Requirement
Minimum 6" Thick, 3000 PSI Concrete
Bridge Jacks That Fit This Lift
Add a bridge jack to lift the wheels free for tire, brake, and suspension work.
Atlas RJ6BK 6,000 lb. Air/Hydraulic Rolling Bridge Jack
6,000 lb. air/hydraulic rolling bridge jack for the Atlas 412, 412A, 414, and 414A four-post lifts.
$1,799.00
View details
Atlas RJ8000 8,000 lb. Air/Hydraulic Rolling Jack
8,000 lb. air/hydraulic rolling jack with telescoping arms and truck adapters.
$2,149.00
View details
Atlas RJ8A 8,000 lb. Rolling Jack
8,000 lb. air/hydraulic rolling bridge jack for wheel and brake work on four-post and scissor lifts.
$2,149.00
View details
