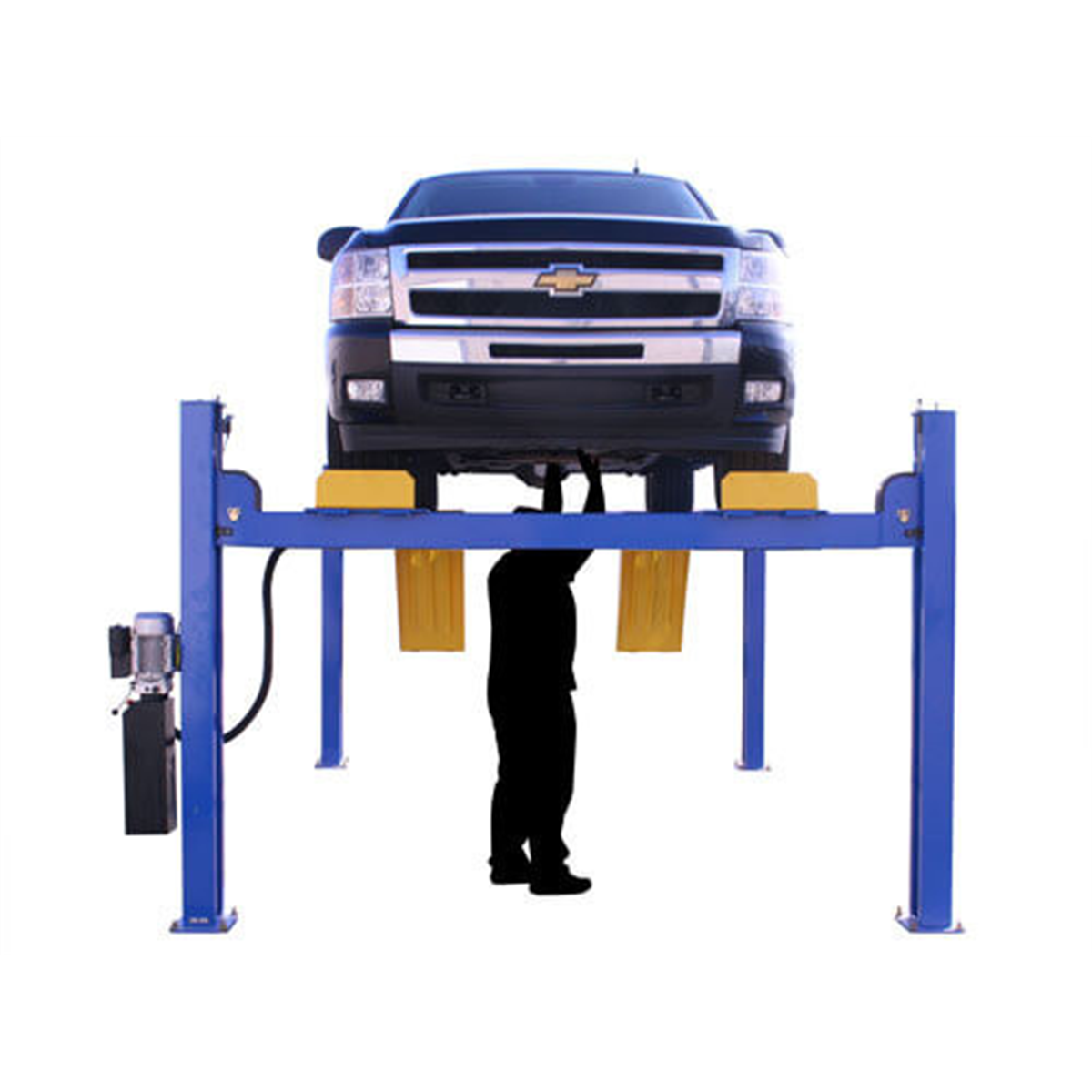

Atlas 414 14,000 lb Commercial 4-Post Lift
Atlas 414 14,000 lb Commercial 4-Post Lift
Heavy-duty 14,000 lb 4-post lift — extra-long, extra-wide & built for commercial truck service
SKU: ATEATTD-414
Regular price
$7,849
Sale price
$7,849
Regular price
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Talk to a Pro
3 experts online now · avg. reply <2 min
Largest Showroom in the Midwest
Our Team has 100+ Years of Experience
Fast Nationwide Shipping
Real People Ready to Help
Key Highlights
14,000 lb Capacity
Heavy-Duty Lifting
Commercial Grade
Designed for daily use
Extra Long Runways
Accommodates long wheelbase vehicles
Air Lock Release
Fast and convenient operation
Diamond-Plated Runways
Enhanced Vehicle Grip
Extra Wide Design
Fits Larger Vehicles
The Atlas 414 14,000 pound capacity heavy duty four post lift is designed and built to commercial grade standards and will provide many years of service. Our Atlas lifts offer many exclusive features not found on many other competitor's lifts. The Atlas 414 incorporates many structural and cosmetic features that are found on lifts costing thousands of dollars more money. The Atlas 414 is tested to ensure that this lift system will perform flawlessly at its rated capacity. The Atlas 414 has been manufactured to the same exacting specifications for many years. The Atlas 414 uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an "old style" chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to "level" properly and the exposed hydraulic cylinder is responsible for numerous "door dings". Finally, the Atlas 414 features "tracks" between the runways to allow the use of a rolling bridge jack (such as the Atlas RJ8000BK ) on the lift. Rolling jacks sold separately.
- 14,000 lb lifting capacity
- Heavy-duty commercial-grade construction
- Extra-tall, extra-wide and extra-long design
- Diamond-plated runways
- Air-operated single-point lock release
- Lock ladder safety design
- Double lock safety system
- Durable powder-coated finish
- Steel approach ramps included
- Runway extensions available
- Additional drive-off ramps available
- Mounting hardware included
- 220V single-phase power operation
- Shipping weight: 3,100 lbs.
- 5-year structural warranty
- 2-year hydraulic warranty
Capacity & Dimensions
| Capacity | 14,000 lbs. |
| Lifting Height | 80 in. |
| Overall Length With Approach Ramp | 255 in. |
| Runway Length | 208 5/8 in. |
| Runway Width | 20 in. |
| Maximum Wheel Base | 197 in. |
| Shipping Weight | 3,100 lbs. |
Width & Clearance
| Overall Width (Without Motor) | 130 7/8 in. |
| Overall Width (With Motor) | 138 7/8 in. |
| Width Between Runways | 46 7/8 in. |
| Outside Runway Width | 86 7/8 in. |
| Clearance Under Runways | 71 1/4 in. |
| Clearance Between Columns | 116 in. |
| Drive Thru Width | 102 1/8 in. |
Power & Installation
| Motor Requirement | 220 Volt Single Phase (30 AMP Breaker Recommended) |
| Air Requirement | 85-115 PSI External Air Supply Required |
| Oil Requirement | 3-5 Gallons AW32/AW46 (Not Included) |
| Concrete Requirement | Minimum 6 in. Thick, 3000 PSI Concrete |
| Lock System | Air-Operated Single Point Lock Release |
