Atlas 6,000 lb Portable Single Post Lift
Atlas 6,000 lb Portable Single Post Lift
Portable 6,000 lb single-post lift — space-saving design with drive-over access & full vehicle service capability
SKU: ATEXH-PSP-6000
Regular price
$5,149
Sale price
$5,149
Regular price
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Talk to a Pro
3 experts online now · avg. reply <2 min
Largest Showroom in the Midwest
Our Team has 100+ Years of Experience
Fast Nationwide Shipping
Real People Ready to Help
Key Highlights
6,000 lb Capacity
Commercial-grade lifting power
Portable Design
Caster kit with poly wheels
Drive-Over Ramps
Maximizes valuable garage space
71" Lift Height
Comfortable under-vehicle access
Single-Point Lock Release
Simple and convenient operation
Locking Arm Restraints
Enhanced lifting stability

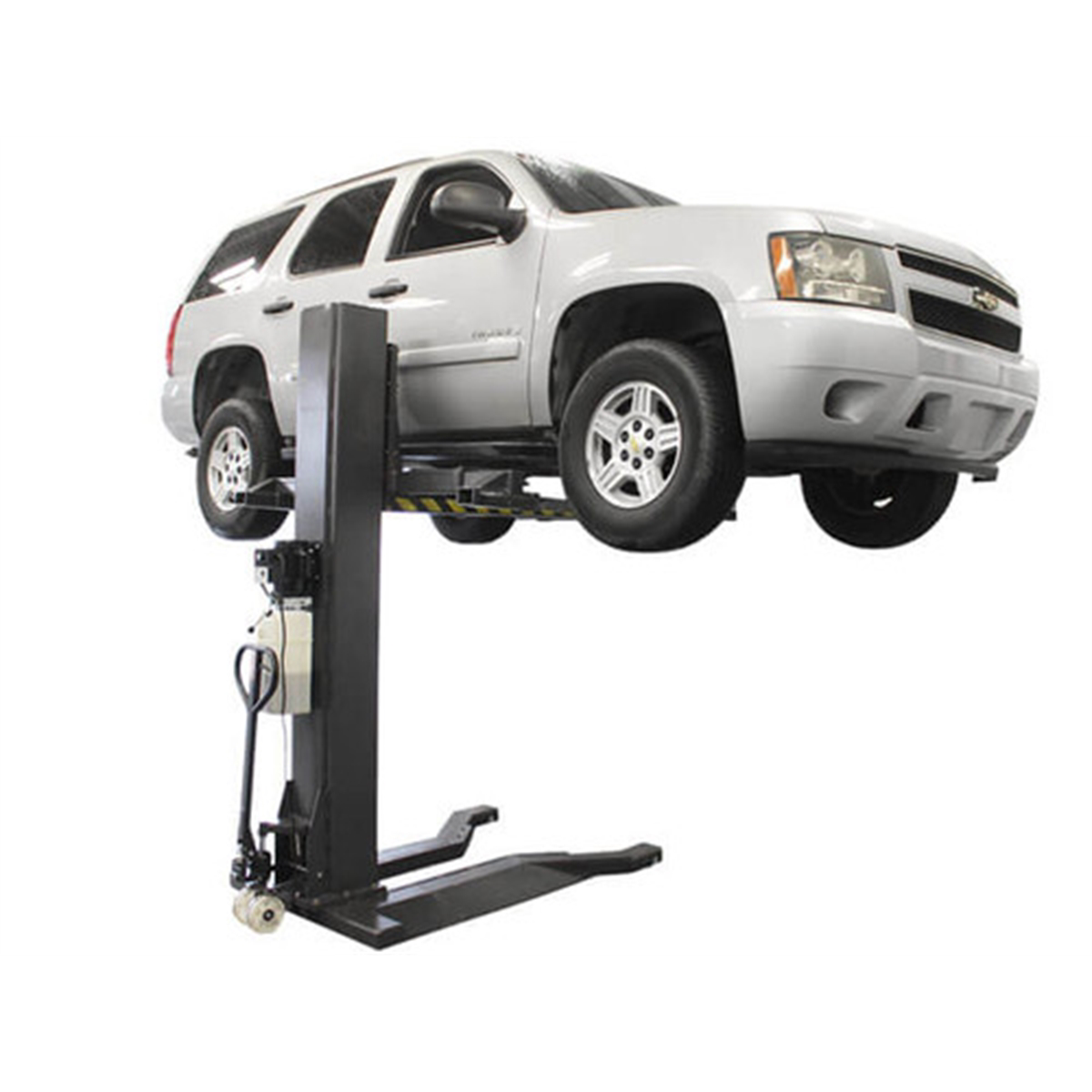

The Atlas® PSP-6000 portable single post lift is the perfect choice for the commercial service shop or the Mr. Homeowner who does not want to tie up a bay space with a permanently mounted above ground lift. This portable vehicle lift allows the operator to walk under the vehicle or move around the vehicle to perform wheel service. When the Atlas PSP-6000 is not in use, it may be rolled out of the way into a corner. The PSP-6000 also has a built-in ramp allowing vehicles to drive over it, further maximizing garage space.
The Portable Single Post Lift rolls easily on a level concrete surface and can be used either inside or outside of your garage. The column fits under a 9 foot (108 inch) ceiling and allows the operator to raise most vehicles high enough to access many parts of the vehicle that would not be accessible with a mid-rise lift.
The Atlas® PSP-6000 column is equipped with the chain break mechanism that automatically locks the carriage into place in the unlikely event of a chain failure.
- 6,000 lb lifting capacity
- Portable single-post design
- Low-profile rigid base construction
- Built-in drive-over ramps
- Single-point lock release system
- Two-stage telescoping swing arms
- Locking arm restraints
- 71 2/3" maximum lifting height
- 110V electric operation
- 8-piece truck adapter set included
- Double screw-up adapters included
- Shipping weight: 1,900 lbs.
- 2-year structural warranty
- 1-year hydraulic warranty (parts only)
Capacity & Dimensions
| Capacity | 6,000 lbs. |
| Overall Height | 102 3/4" (8' 6 3/4") |
| Max Lifting Height | 71 2/3" (5' 11 2/3") |
| Maximum Clearance | 68" (5' 8") |
| Minimum Height | 5" |
| Overall Dimensions | 111 1/2" L x 96" W x 102 3/4" H |
| Shipping Weight | 1,900 lbs. |
Lift Configuration
| Column Size | 10 1/2" x 12 1/2" |
| Lifting Pad Distance (Column to Offside) | 39 1/2" to 81" |
| Lifting Pad Distance (Column to Column) | 53" to 73" |
| Lifting Pad Distance (Offside to Offside) | 54 1/3" to 91 1/2" |
Power & Installation
| Motor / Electrical Requirement | 110 Volt, 30 AMP Breaker Required |
| Oil Requirement | 3-5 Gallons AW32 or AW46 (Not Included) |
| Adapter Heights | 4 Each 2.75", 6" |
| Arm Hole / Adapter Peg Size | 2" |
