Mobile Column Lifts

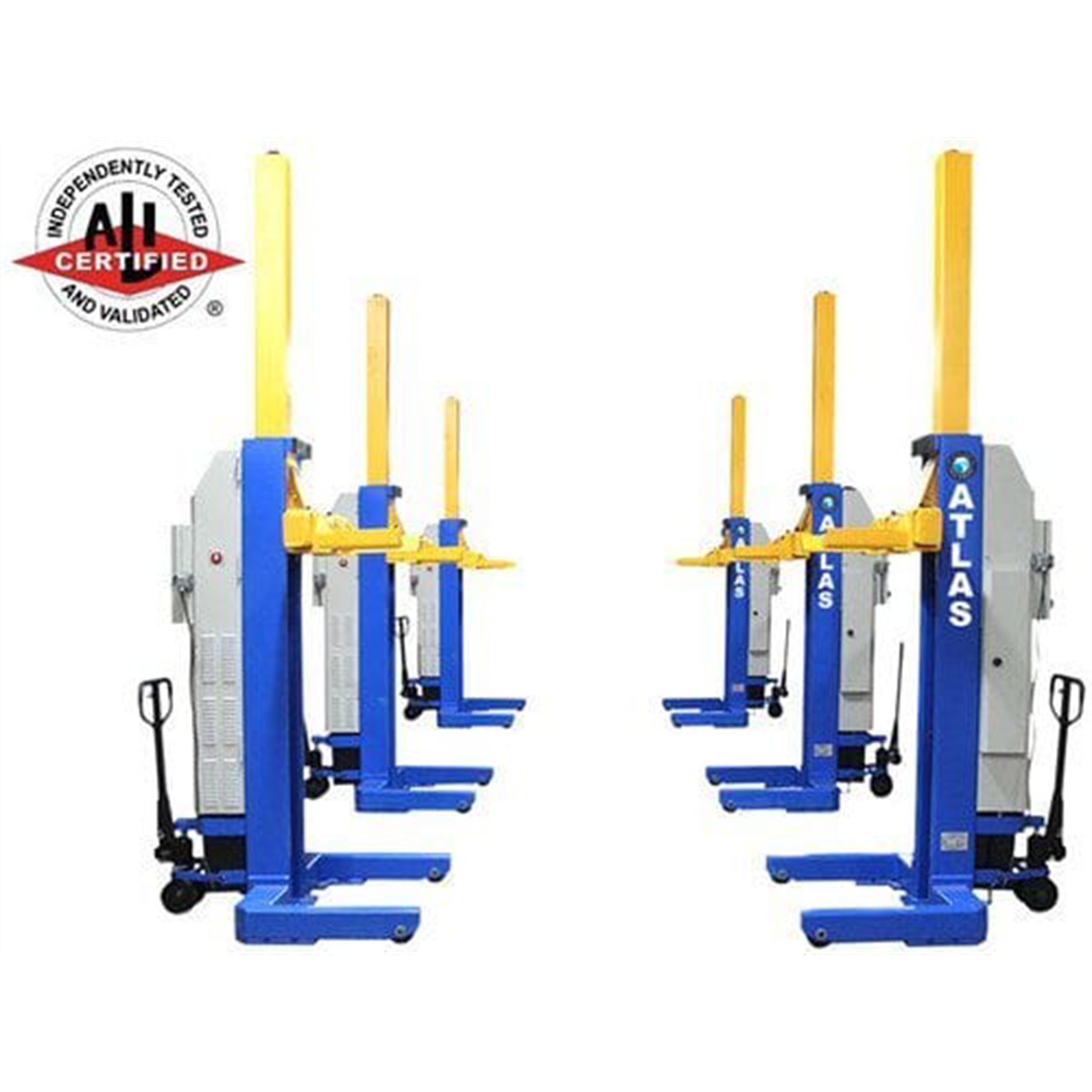

Atlas 6045BC 99,000 lb ALI Certified Mobile Column Lift
Atlas 6045BC 99,000 lb ALI Certified Mobile Column Lift
ALI certified battery-powered six-column mobile lift system for heavy-duty vehicle lifting
SKU: ATEML-6045BC
Regular price
$42,899
Sale price
$42,899
Regular price
Have Questions? We're Here to Help
Quantity
Couldn't load pickup availability
Largest Showroom in the USA
Our Team has 100+ Years of Experience
Fast Nationwide Shipping
Real People Ready to Help
Key Highlights
ALI Certified
Professional-grade safety and compliance
18,500 Lb Capacity
Heavy Duty Lifting
Six Column System
Maximum Vehicle Coverage
Battery Powered
Cordless shop mobility
Electronic Synchronization
Keeps all columns lifting evenly
Portable Mobile Columns
Easy positioning and storage
The ALI Certified Maxima® mobile column lift system is the perfect choice for any repair shop that needs to safely raise those heavier trucks but has limited bay space. Each heavy duty mobile column is DC motor powered and equipped with a pair of rechargeable batteries. This, coupled with the hydraulic pallet jack system on each column, allows for unparalleled freedom of movement. The columns may even be moved outside for use on a level concrete surface with a minimum thickness of six (6) inches. The mobile columns can be easily stored out of the way when not in use.The Maxima® ML6045BC mobile column set offers you full lifting capacity for both short and long wheel base vehicles. Easily adjustable forks can accommodate tire diameters from 19 inches to 44 inches. Each column is equipped with an LCD screen, an emergency stop button, and has a lifting capacity of 16,500 lbs.Battery power lasts 10-20 lifts depending on load and is recharged with attached 110V Single (1) phase cord.Optional Maxima® Tripod Support Stands can be used to support vehicles for wheel service.THIS PRODUCT DROP SHIPS FROM THE MANUFACTURER
- ALI certified mobile column lift system
- Simultaneous operation of all columns
- LCD screen displays exact lifting height
- Electronic synchronization system
- Hydraulic flow control and mechanical safety locks
- Portable column design
- Adjustable forks fit tire diameters from 19 in. to 44 in.
- Emergency stop button on every column
- Six 32 ft. column connecting cables included
- 2.2 kW 24V DC motor with dual batteries per column
- Battery powered operation
- Suitable for indoor or outdoor use on approved concrete surfaces
- 2 year limited warranty
Lifting Capacity
| Capacity per Column | 18,500 lbs. |
| Maximum Lifting Height | 67 in. |
| Supported Tire Diameter | 19 in. - 44 in. |
Power System
| Motor | 2.2 kW 24V DC |
| Battery Configuration | Two Batteries per Column |
| Charging Power | 110V Single Phase |
Dimensions
| Overall Height | 145 in. |
| Resting Height | 88 1/2 in. |
| Width | 43 1/2 in. |
| Length | 55 1/2 in. |
| Column Width | 13 1/4 in. |
Warranty & Shipping
| Warranty | 2 Year Limited |
| Weight per Column | 1,600 lbs. |
| Shipping Weight (6 Columns) | 9,600 lbs. |
