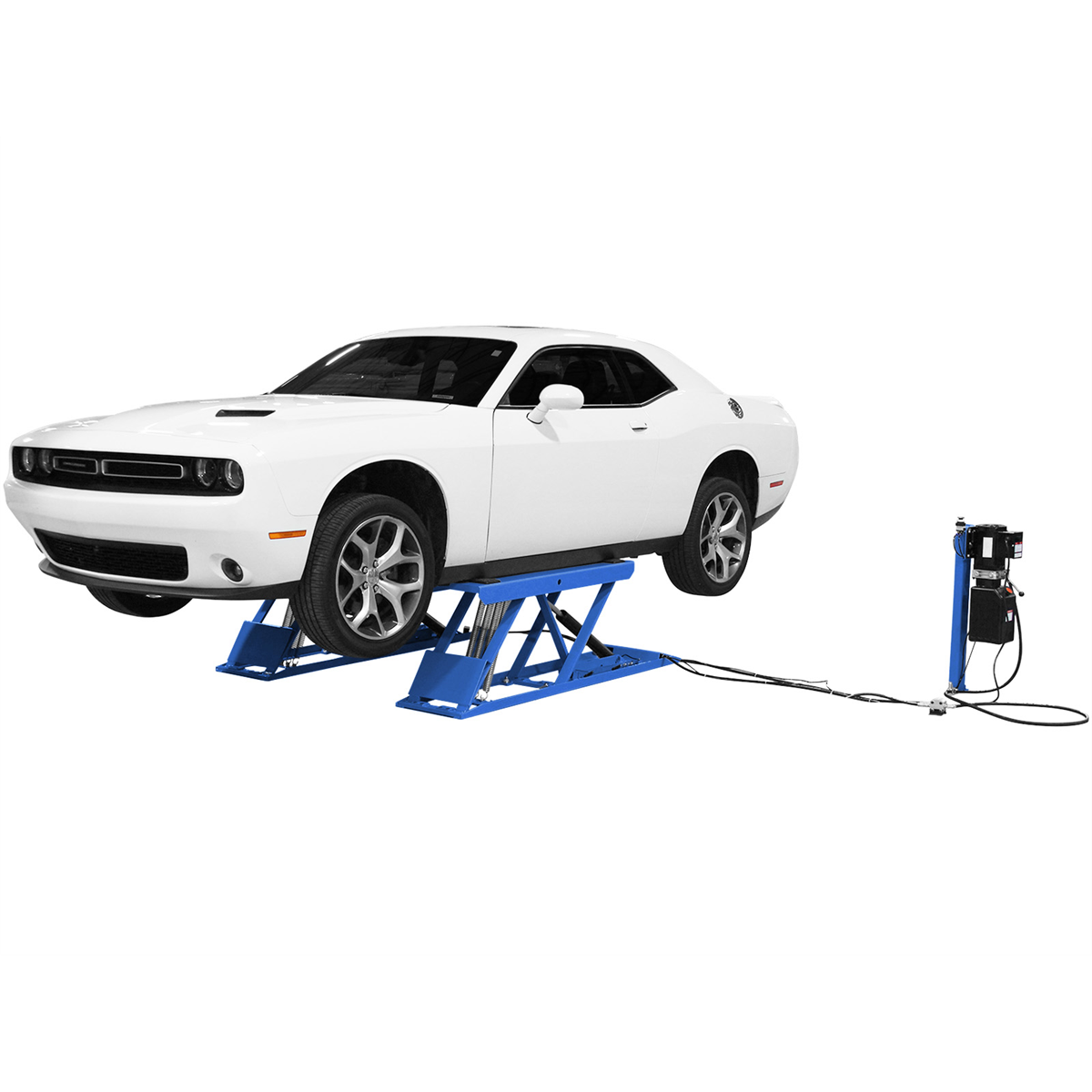

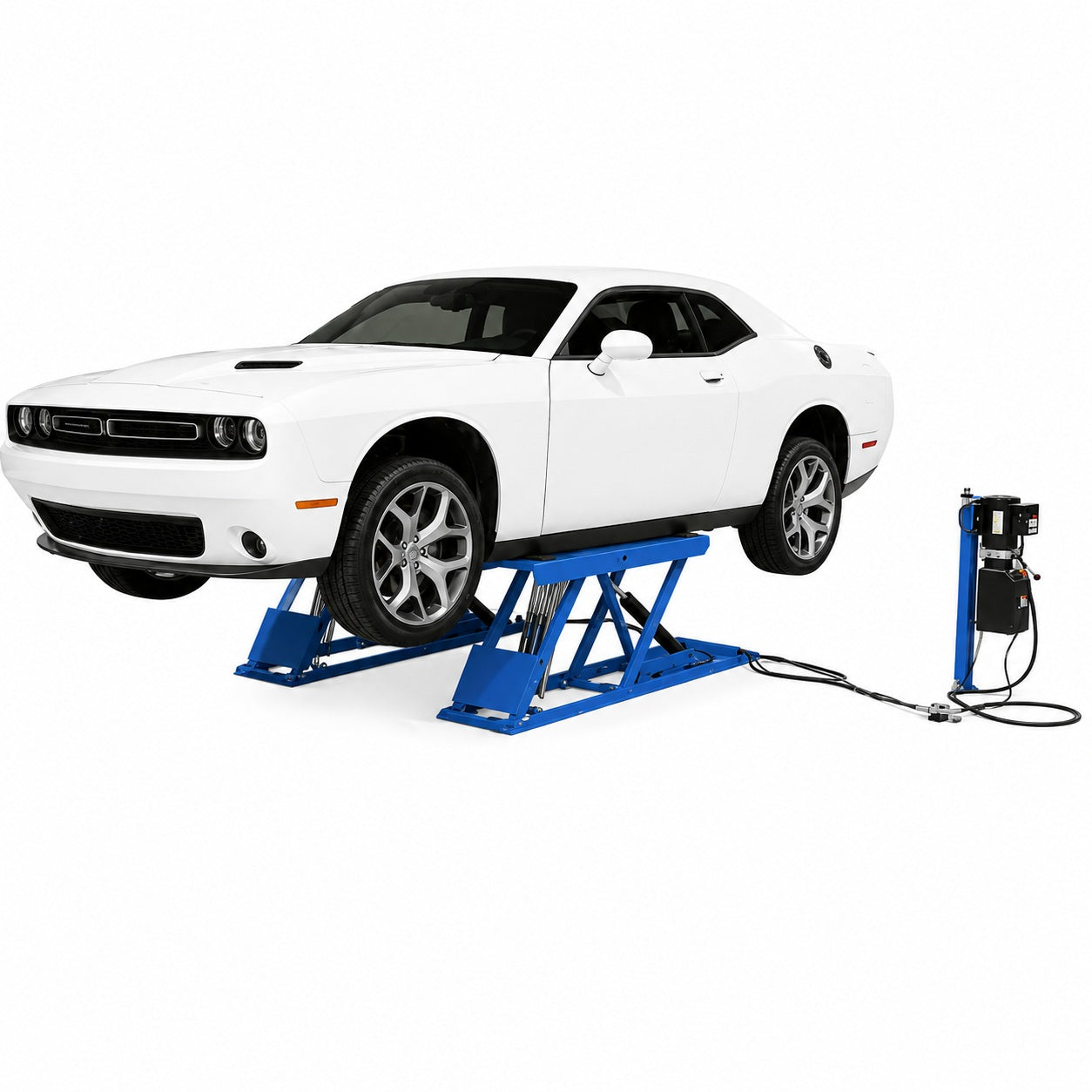

Atlas 6PL Open Center Low Rise Scissor Lift 6000 lb. Capacity
Atlas 6PL Open Center Low Rise Scissor Lift 6000 lb. Capacity
Commercial-grade 6,000 lb low-rise lift with open-center access for tire, brake, and quick service work
SKU: ATEATTD-6PL
Regular price
$3,149
Sale price
$3,149
Regular price
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Talk to a Pro
3 experts online now · avg. reply <2 min
Largest Showroom in the Midwest
Our Team has 100+ Years of Experience
Fast Nationwide Shipping
Real People Ready to Help
Key Highlights
6,000 lb Capacity
Commercial-grade lifting power
Open Center Design
Easy under-vehicle access
Quick Service Ready
Ideal for tire and brake work
Low Profile Lift
Easy vehicle positioning
Air Lock Release
Fast and convenient operation
Commercial Grade
Designed for daily use
The Atlas 6PL 6,000 lb. capacity low rise lift is ideal for quick service work situations involving tire and brake work.The open center design of the 6PL low rise lift also allows easier access to the underside of any vehicle being lifted. The 6PL comes with non-slip pads that provide a great contact surface and a set of four high density rubber blocks that help protect lifting points on most vehicles. Simply drive the car over the Atlas 6PL and position the rubber blocks (if needed) under the correct lifting points of the vehicle. Press the button the power unit and lift the vehicle to the desired height. Depress the "dump valve lever" on the power unit and lower the lift to the closest locking position. Due to the horizontal cylinder configuration of the 6PL it is important to allow some space (2-6 inches) between the lifting surface of the lift and the vehicle's lifting points. ATTENTION CUSTOMER: THE COLOR OF THIS LIFT IS BLUE
- 6,000 lb lifting capacity
- Commercial-grade construction
- Open center service design
- 4 non-slip rubber lifting pads
- Drive-over ramp system
- Heavy-duty rubber lifting blocks included
- Ideal for tire and brake service
- Easy underside vehicle access
- Air-operated single point lock release
- Multiple mechanical lock positions
- Compact low-rise configuration
- Mounting hardware included
- 110V electric power operation
- Shipping weight: 850 lbs.
- 2-year structural warranty
- 1-year hydraulic warranty
Capacity & Dimensions
| Capacity | 6,000 lbs. |
| Maximum Lift Height | 26" (2' 2") With Blocks |
| Lowered Height | 4 1/2" |
| Platform Dimensions | 53" x 18" |
| Overall Width | 71" (5' 11") |
| Shipping Weight | 850 lbs. |
Platform Features
| Lift Design | Open Center Low-Rise Lift |
| Lifting Pads | 4 Non-Slip Rubber Pads |
| Rubber Blocks | Heavy-Duty Rubber Blocks Included |
| Ramp Type | Drive Over Ramps |
Power & Installation
| Air Requirement | 90-125 PSI |
| Power Requirement | 110 Volt |
| Oil Requirement | 1.5-2 Gallons AW32/AW46 (Not Included) |
| Mounting Hardware | Included |
