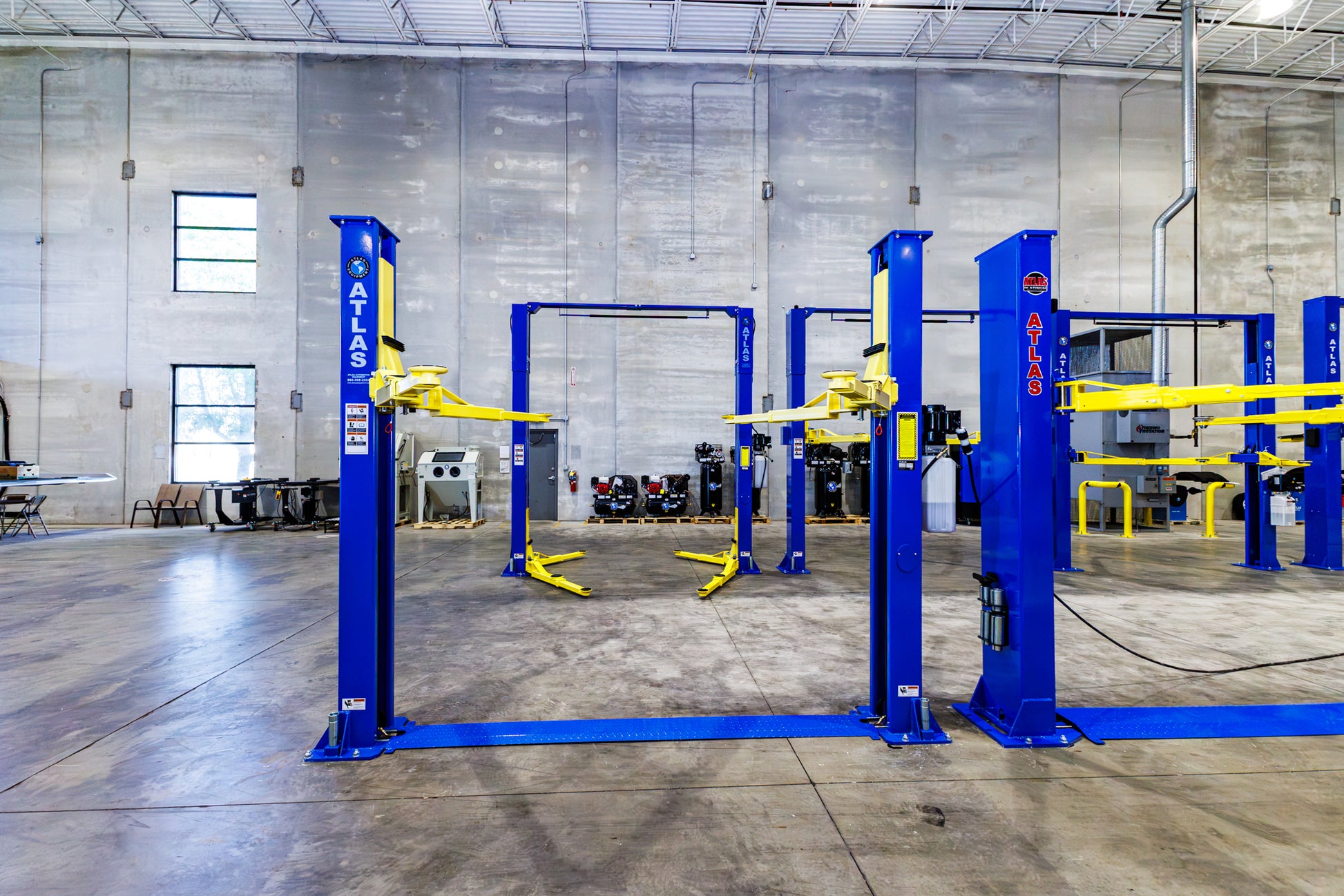

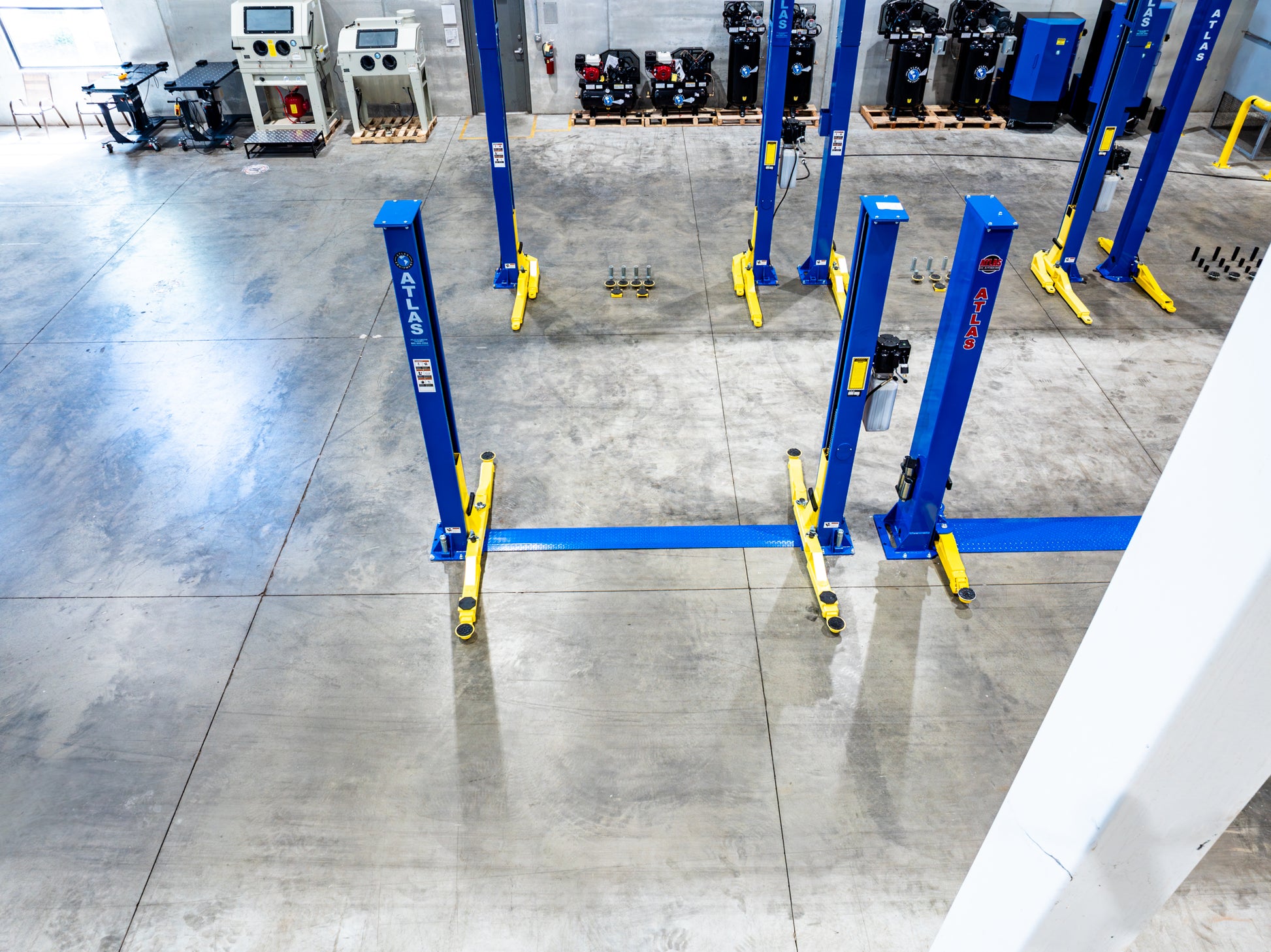

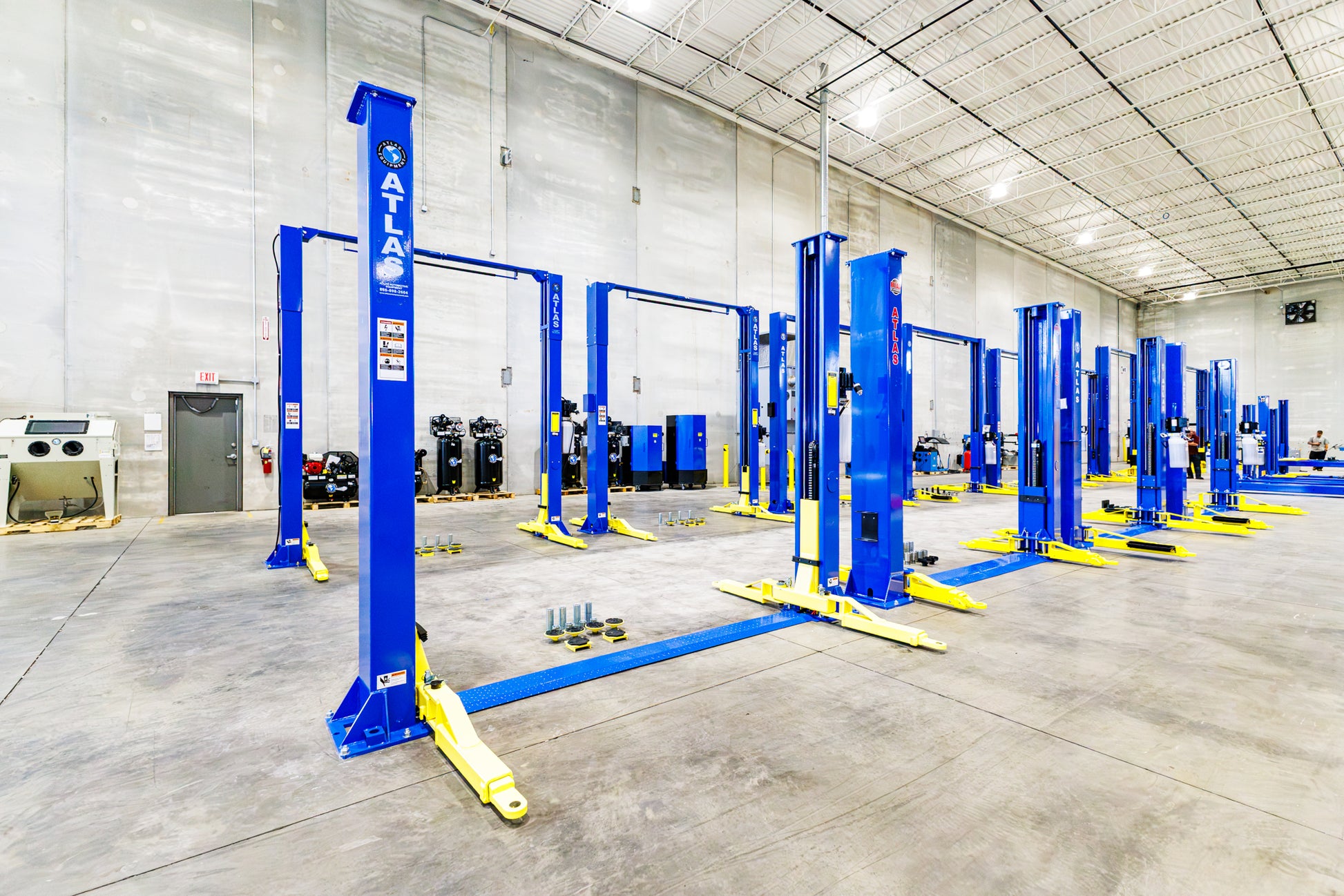

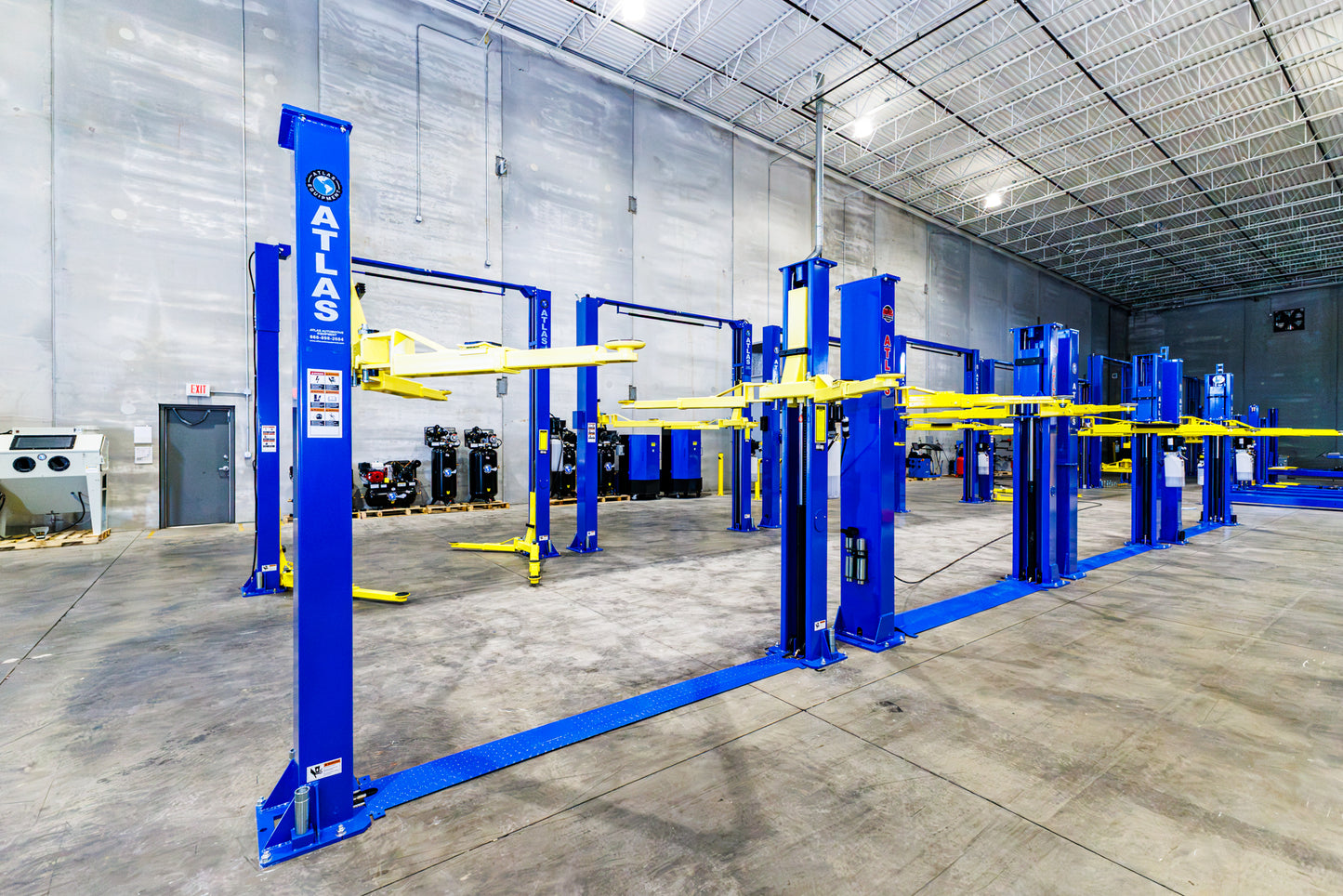

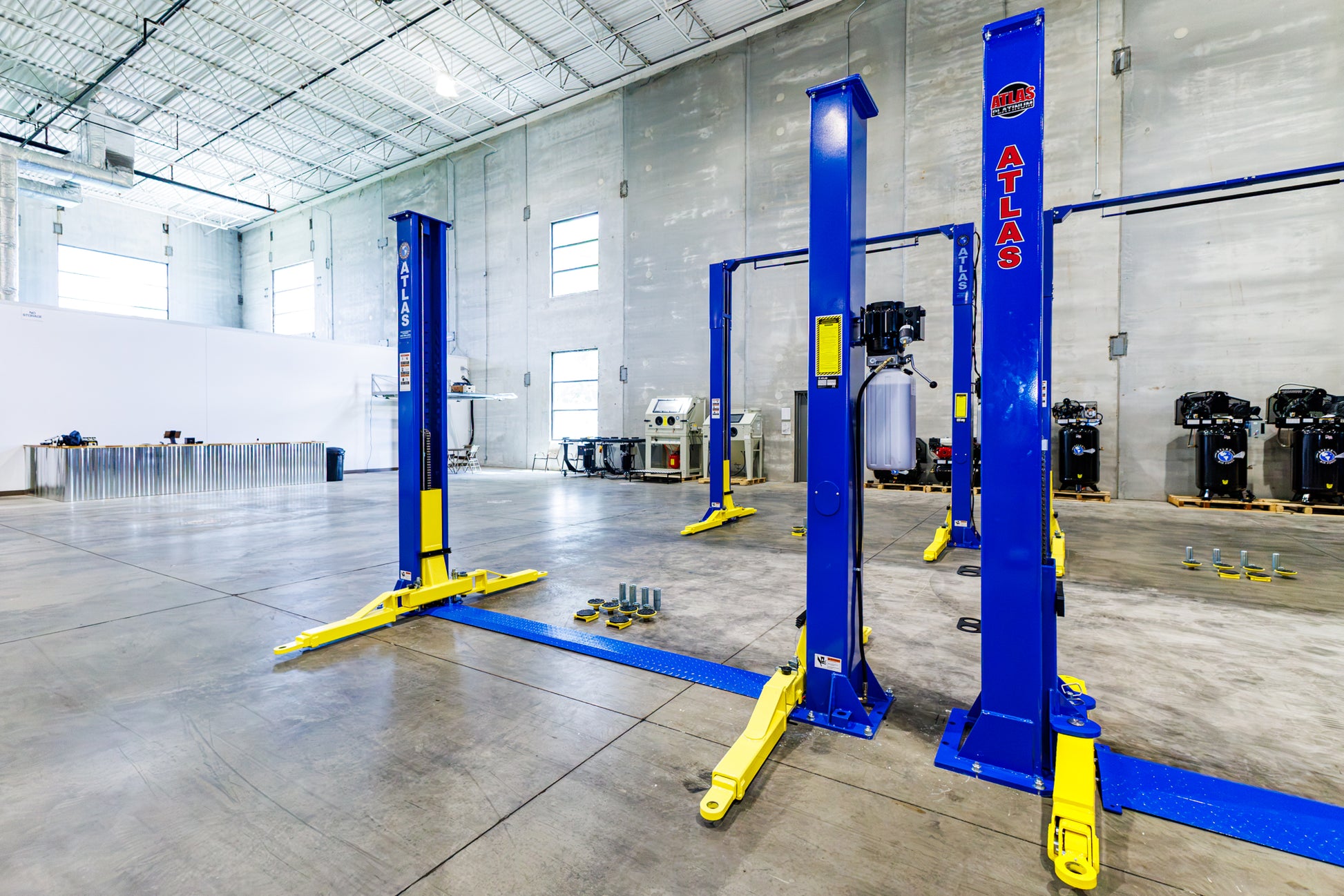

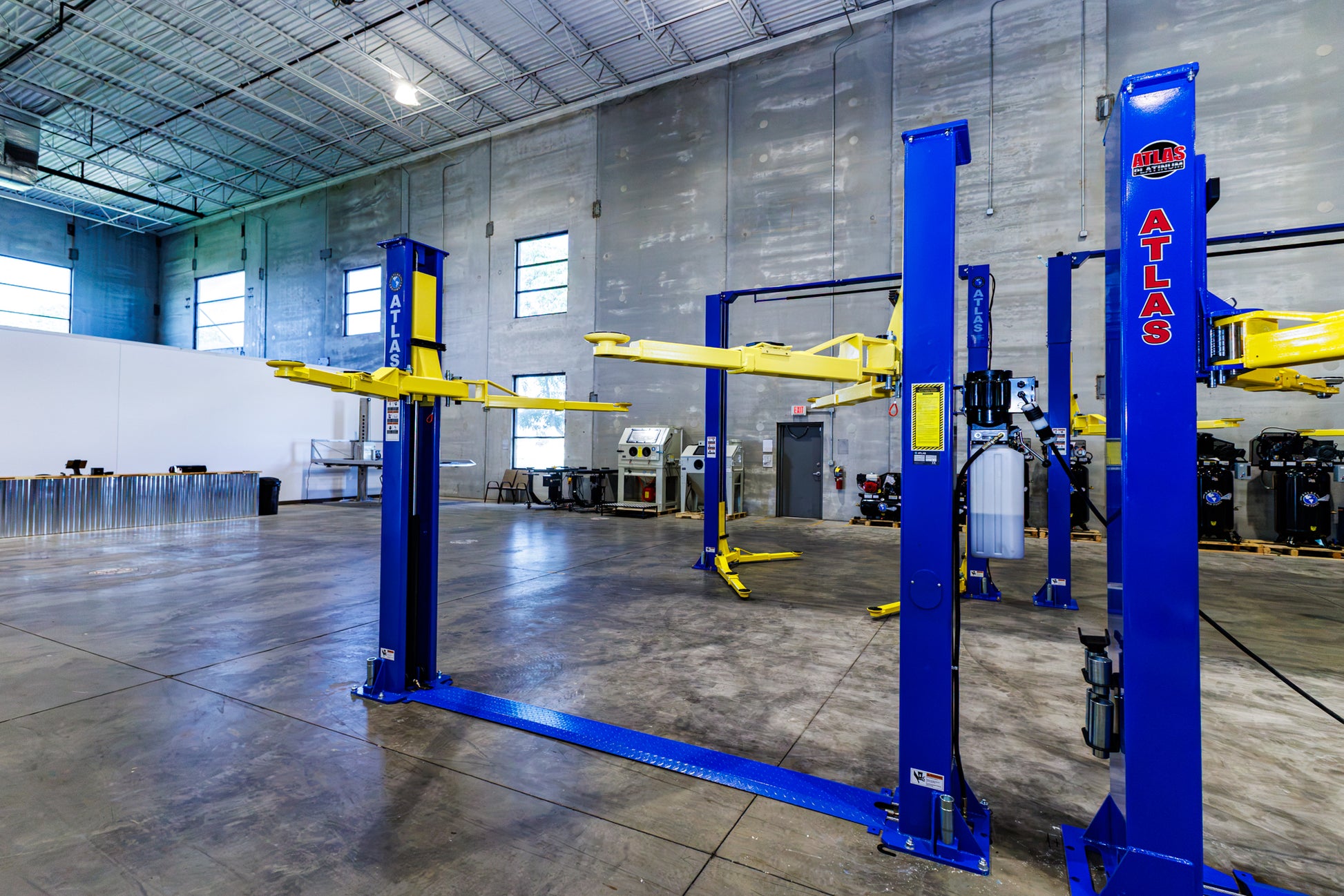

Atlas 9KBPX 9,000 lb Baseplate Lift
Atlas 9KBPX 9,000 lb Baseplate Lift

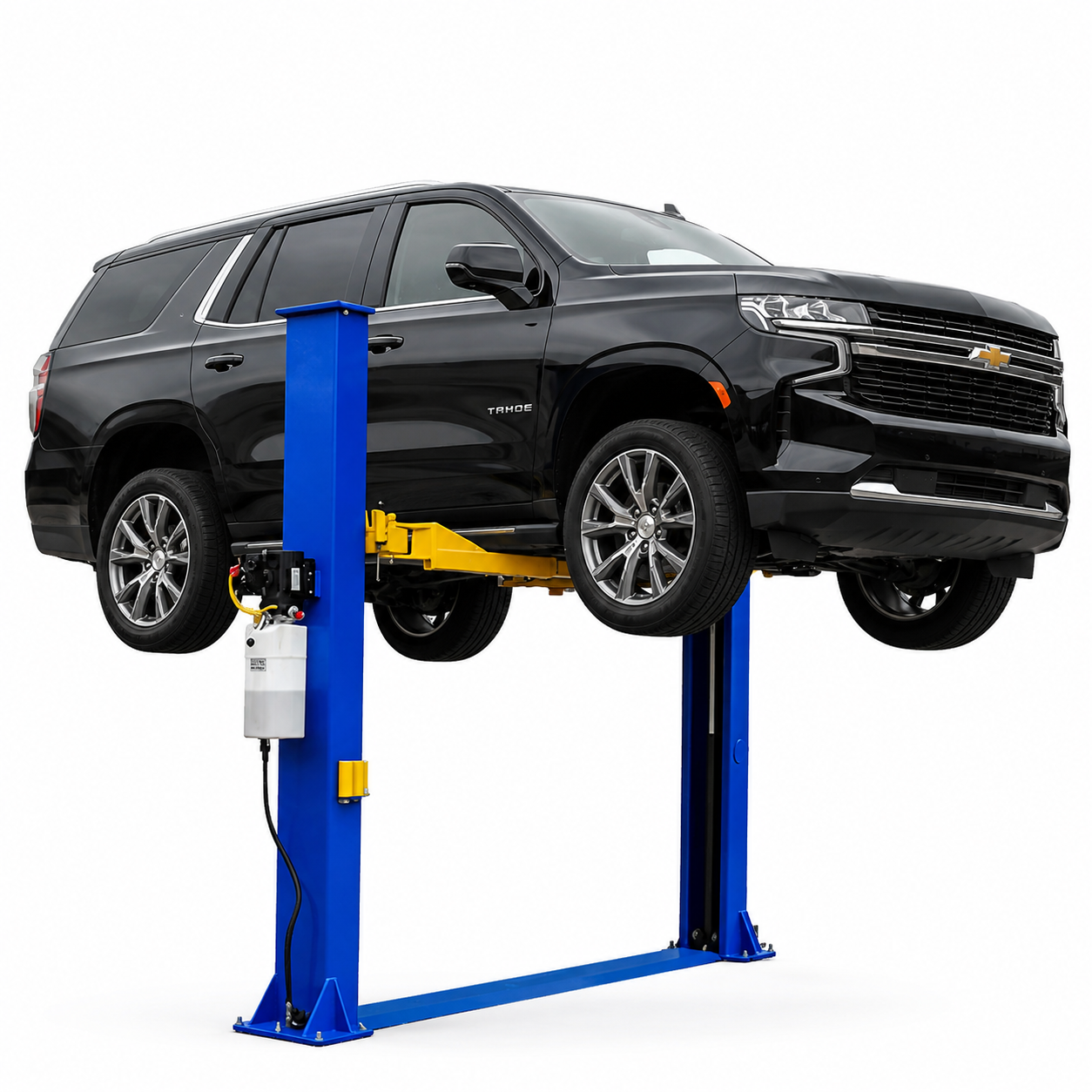

9,000 lb. baseplate two-post lift only 9' 3 1/2" tall, made for low-ceiling garages.
Regular price
$2,499
Sale price
$2,499
Regular price
SKU: ATEXH-9KBPX
Included free:Free:
Talk to an expert before you buy
Questions on fit, ceiling height or install? We'll help you pick the right one.

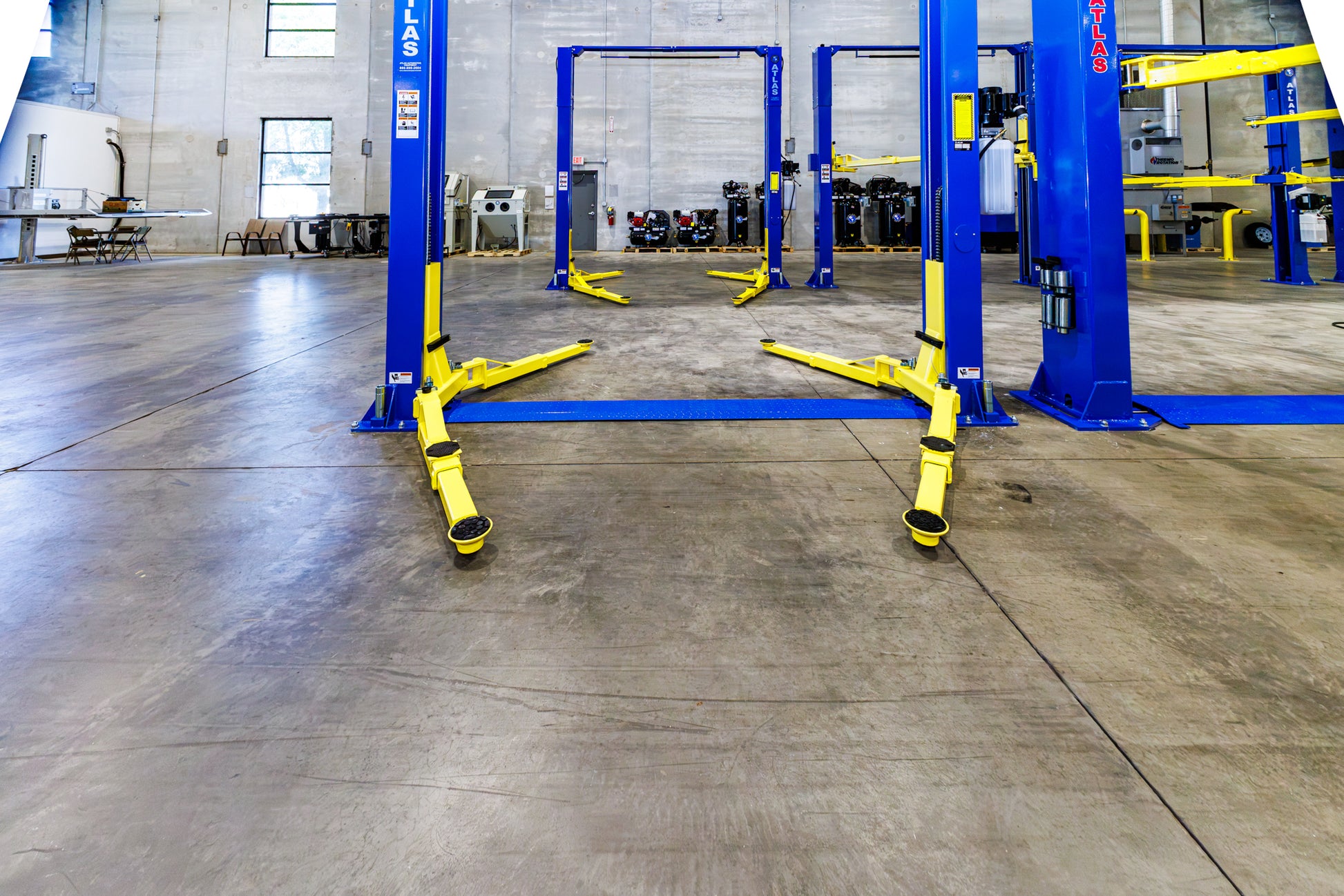

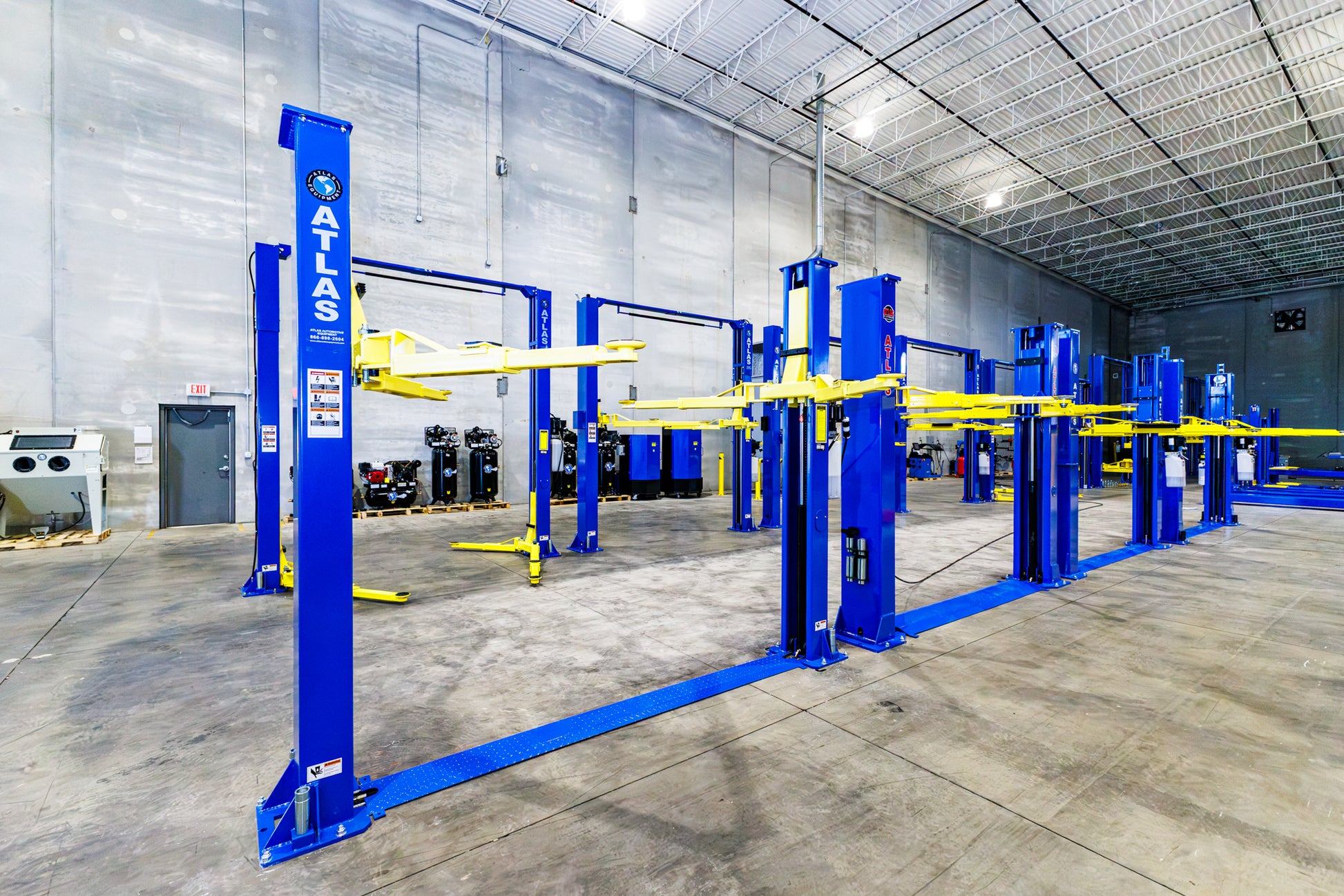

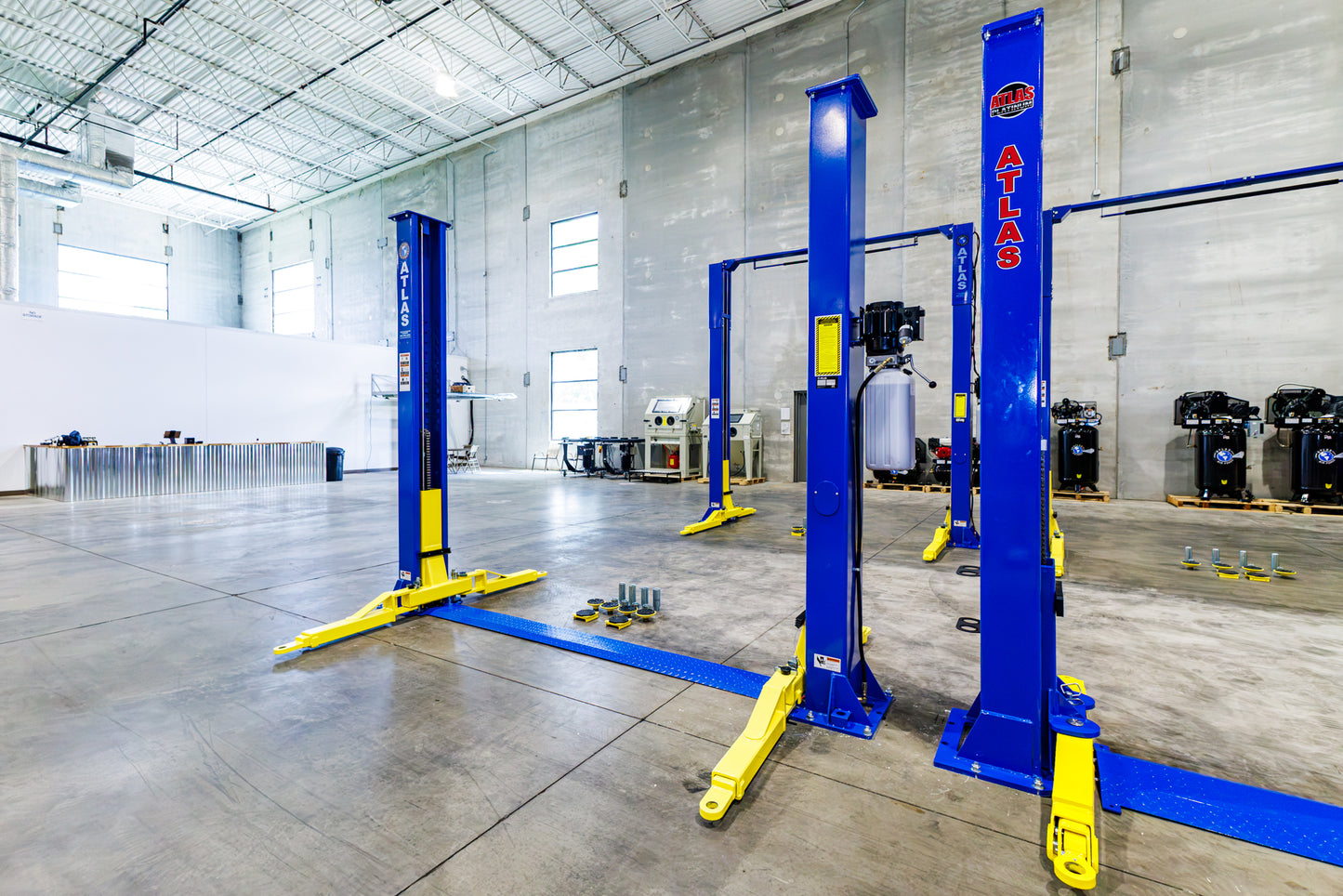

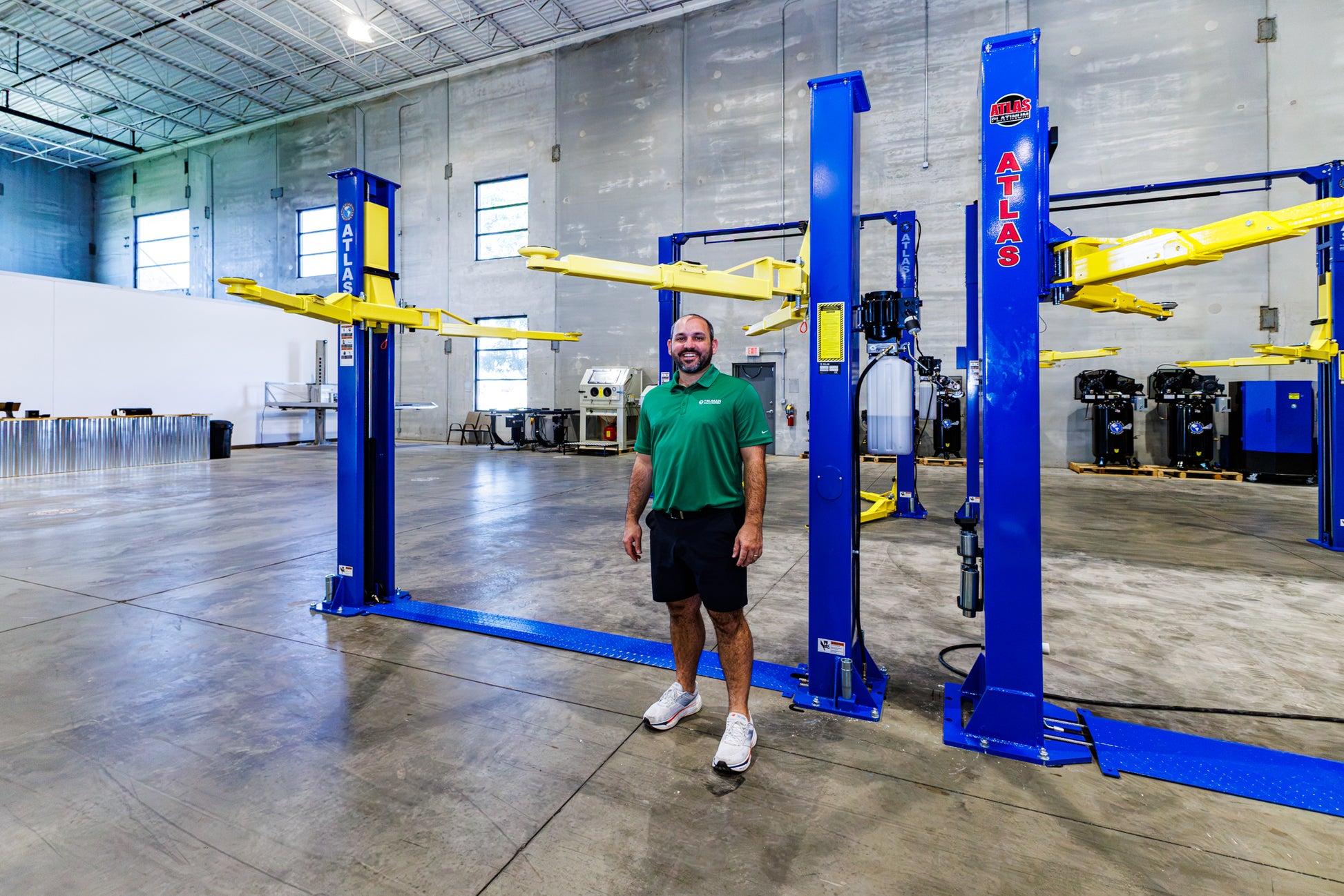

On display in our Indiana showroom. See it run, then take it home today. We'll load it for you. Open Mon–Sat.
Included free with this product
Quantity
Couldn't load pickup availability
Why buy from Truman
Free pickup
Indiana
Nationwide
Fast shipping
Local installer
Referrals
Largest showroomShowroom
In the countryLargest in the US
100+ years
Of experience
Real people
Ready to help
Why This Lift
- 9,000 lb. capacityCars, SUVs, and light trucks
- Baseplate designOnly 9' 3 1/2" tall for lower ceilings
- 74 1/2" max lift heightPlenty of room to work underneath

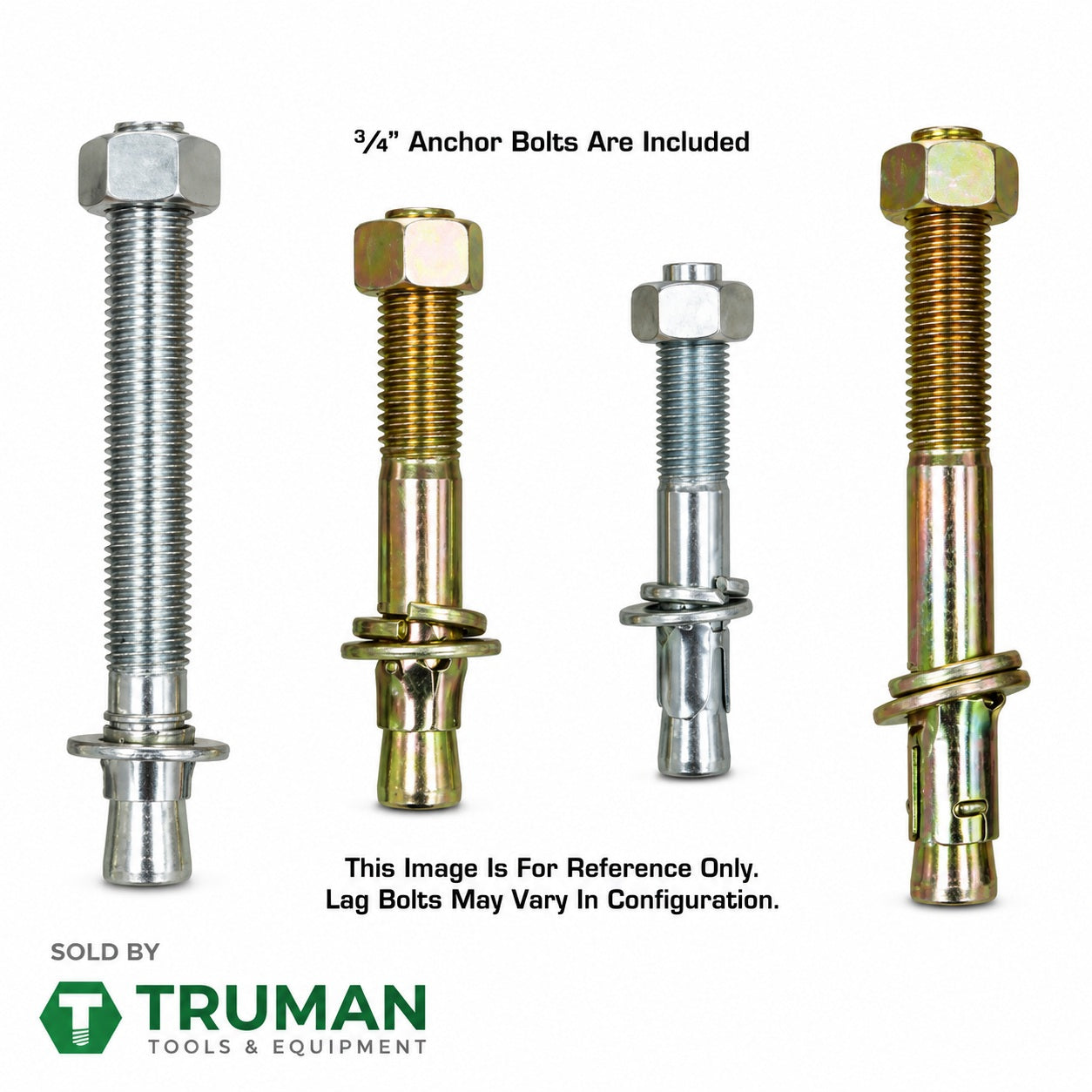

- Floor-anchoredStable and solid
Explore this lift
Explore the Atlas 9KBPX
Tap a number to see what each part does.
Product Description
The Atlas 9KBPX is an economically designed baseplate two-post lift and one of the smartest solutions on the market for low ceiling garages. If limited overhead clearance has been standing between you and a quality above ground lift, the 9KBPX was engineered specifically to solve that problem without sacrificing the performance and reliability you expect from Atlas.
The total column height of 111 1/2" (9 feet 3 1/2 inches) allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 feet 6 inches. That opens up professional grade vehicle service to homeowners and shop owners who thought their ceiling height ruled out a two-post lift.
Safety is built into the foundation of the 9KBPX design. Its chain-over-roller system features a spring-loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain, protecting both the operator and the vehicle every time the lift goes up.
Dual chain-drive cylinders, symmetric arms and automatic arm restraints make the 9KBPX a great fit for home garages and small commercial shops servicing cars, SUVs and light-duty trucks. It is not recommended for diesel dually trucks or other large heavy-duty vehicles; for those, see our heavier duty Atlas lifts.
Questions? Call 765-544-3838.

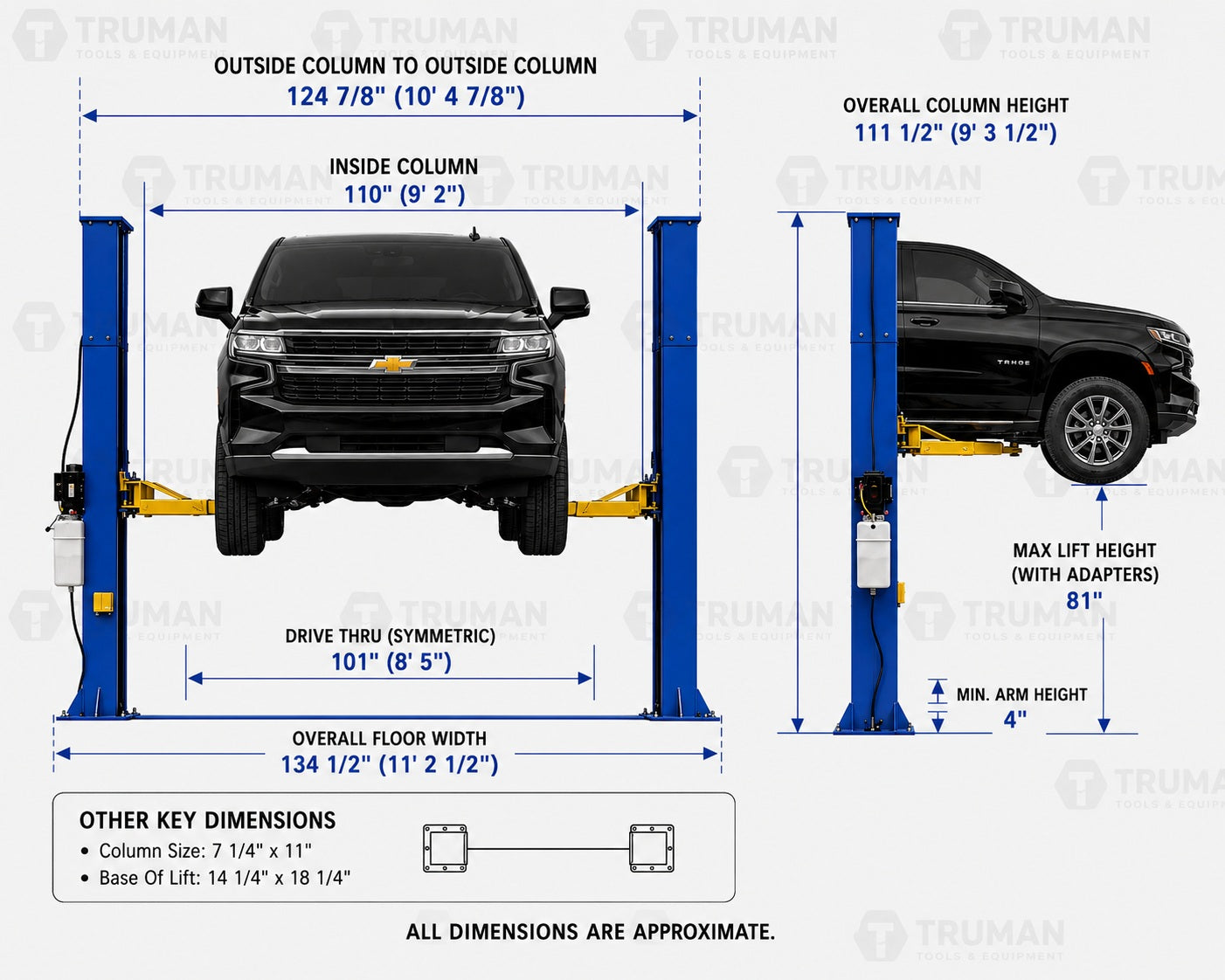

Specs and Dimensions
Capacity
9,000 lbs.
Overall Height
111 1/2" (9' 3 1/2")
Overall Floor Width
134 1/2" (11' 2 1/2")
Outside Column to Outside Column
124 7/8" (10' 4 7/8")

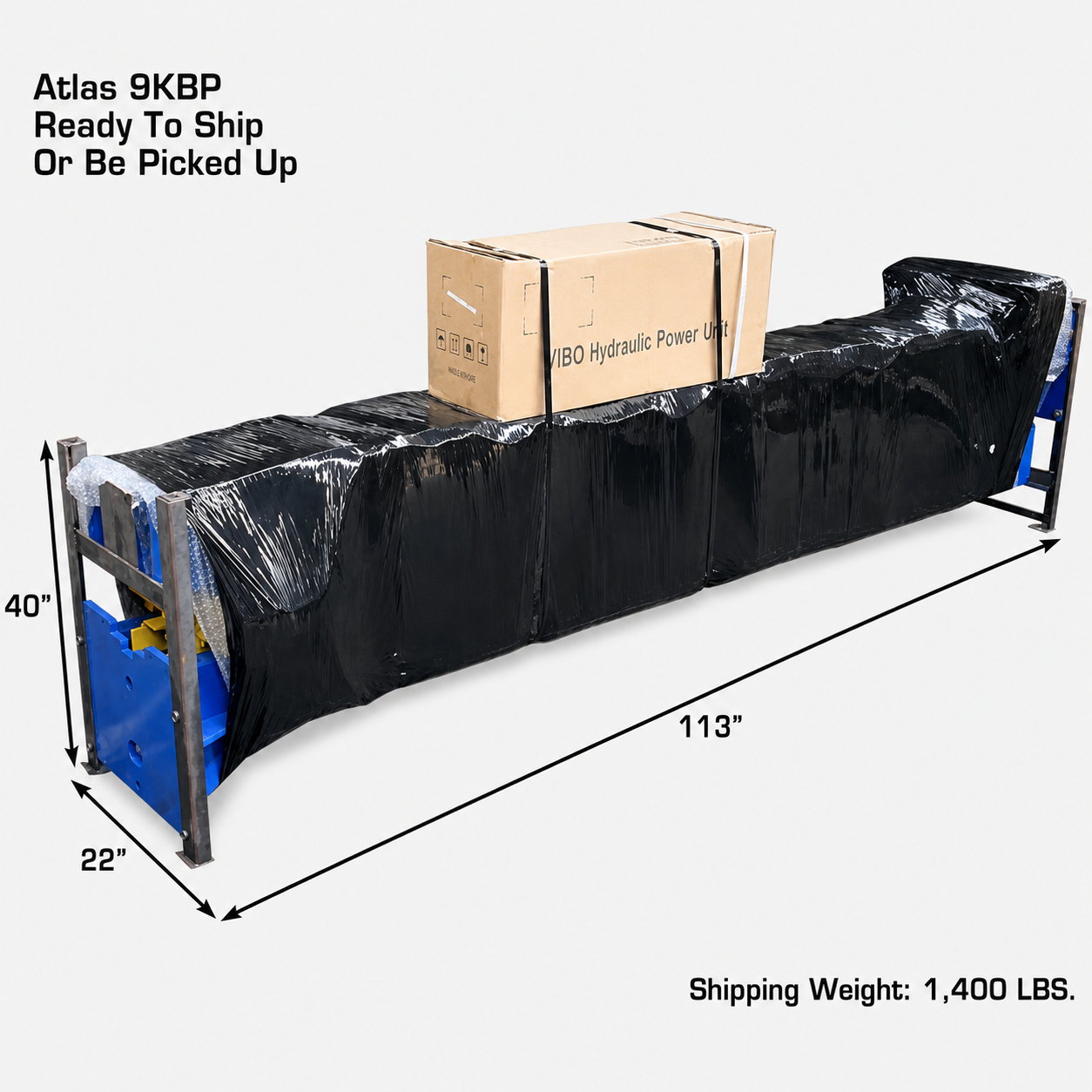

Shipping Weight
1,400 lbs.
Maximum Lift Height (Without Adapters)
74 1/2"
Maximum Lift Height (With Adapters)
81"
Minimum Arm Height
4"

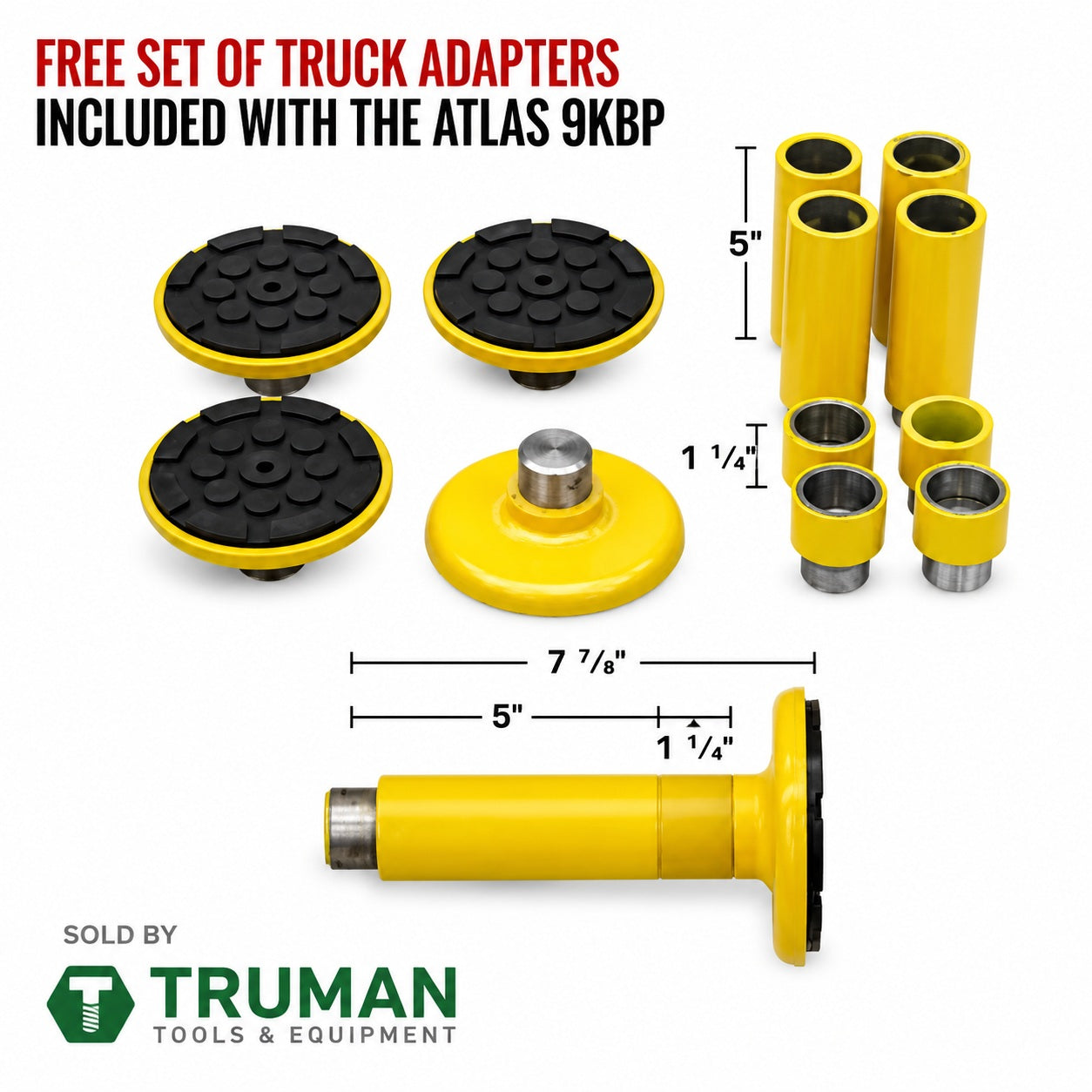

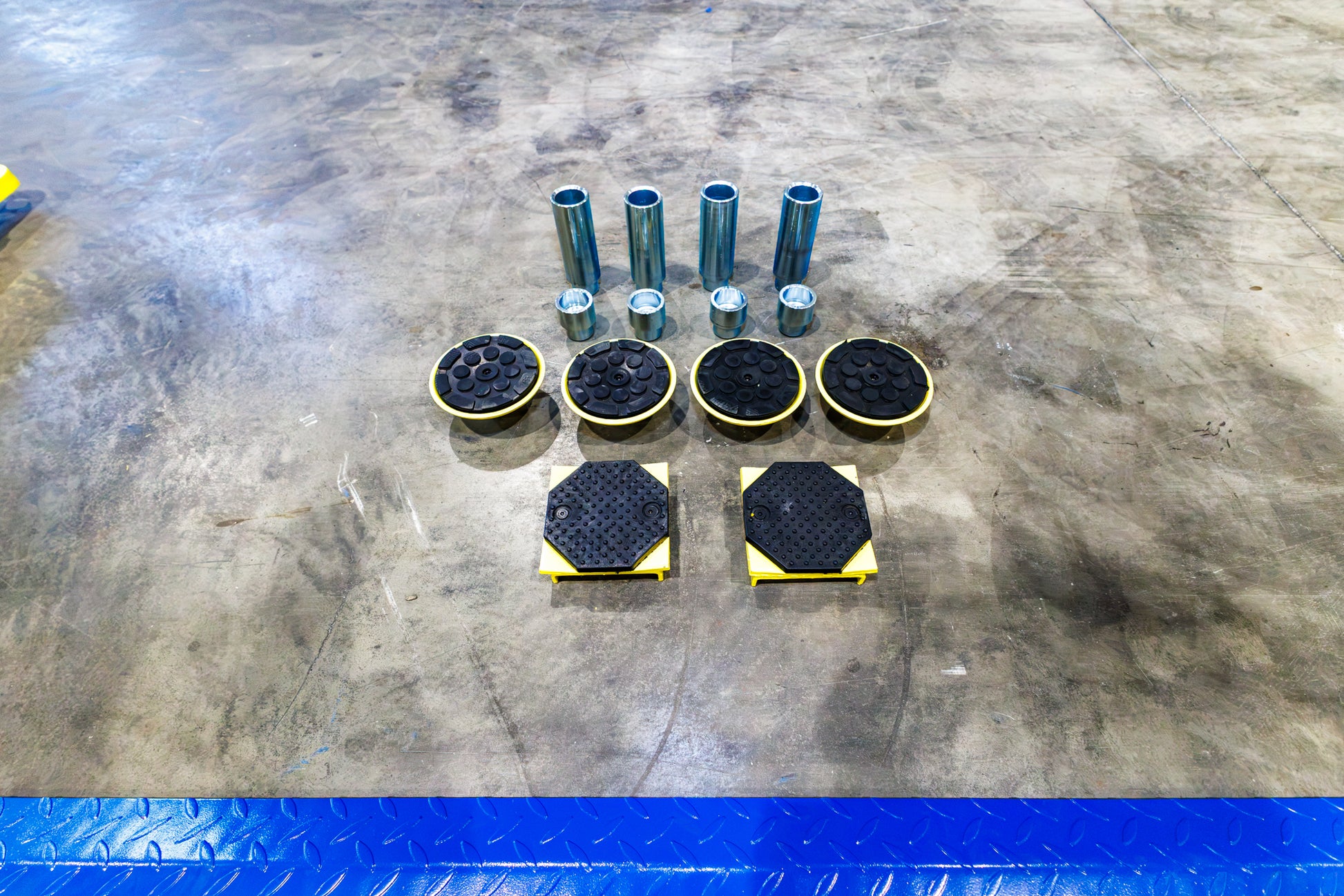

Adapter Heights
4 Each 1.5", 5"
Arm Hole / Adapter Peg Size
1.5"
Inside Column
110" (9' 2")
Drive Thru
101" (8' 5")
Column Size
7 1/4" x 11"
Base of Lift
14 1/4" x 18 1/4"

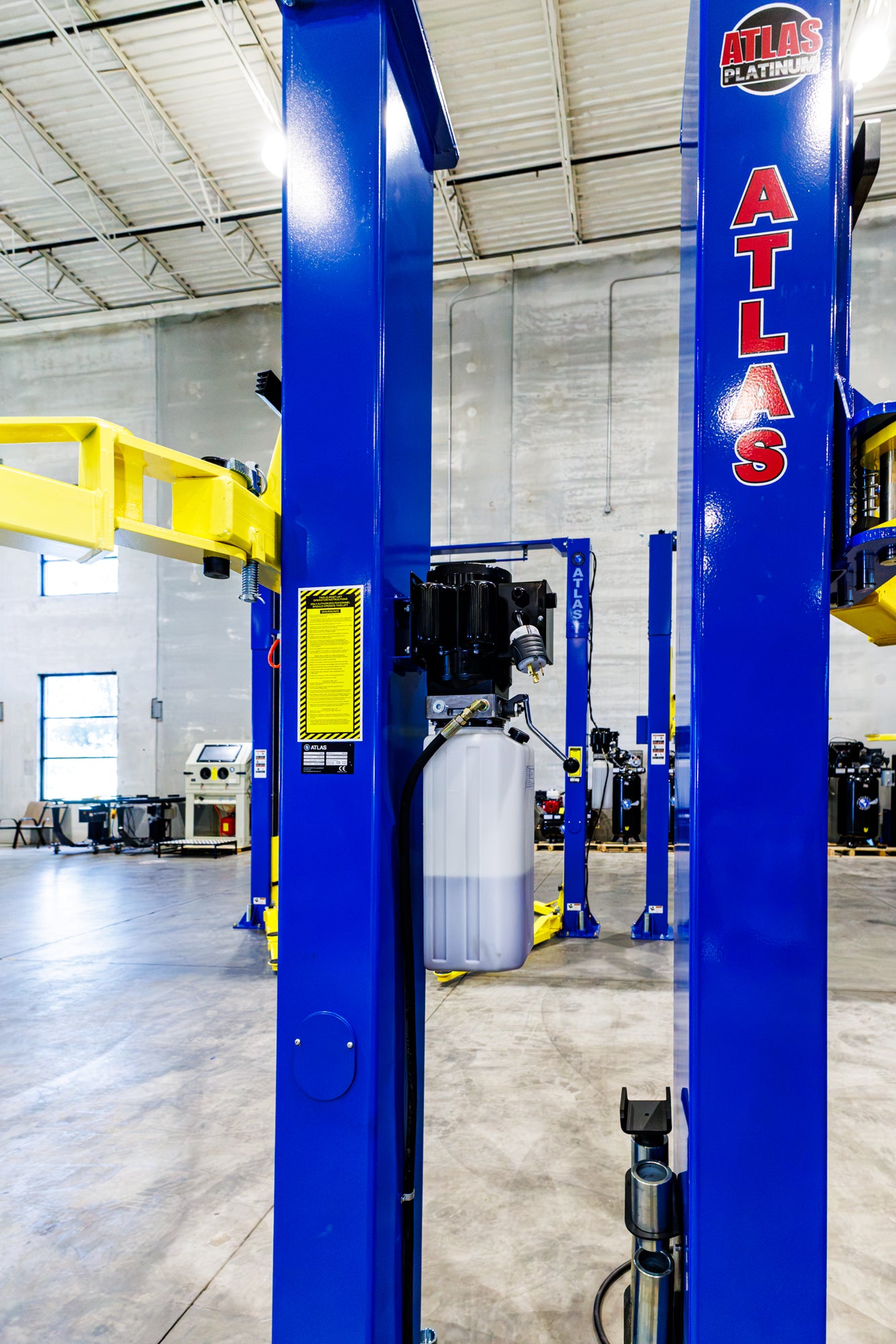

Motor / Electrical Requirement
220 volt single-phase (30 amp breaker recommended)
Oil Requirement
3-5 Gallons AW32/AW46 (Not Included)
Concrete Requirement
Minimum 4" thickness with 3000 PSI rating
Largest Automotive Equipment Showroom
Visit Our Showroom
See It Before You Buy It
See it before you buy it

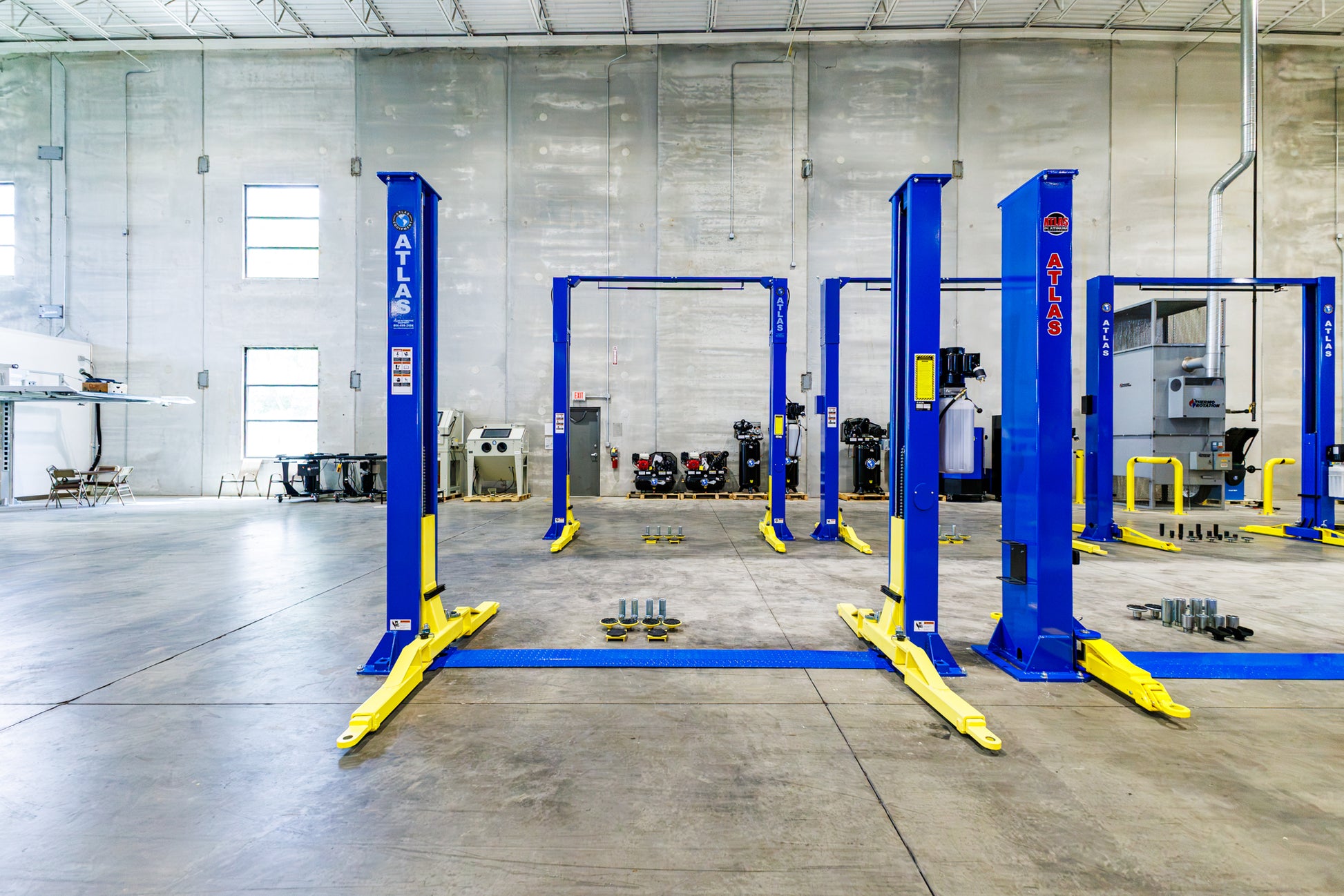

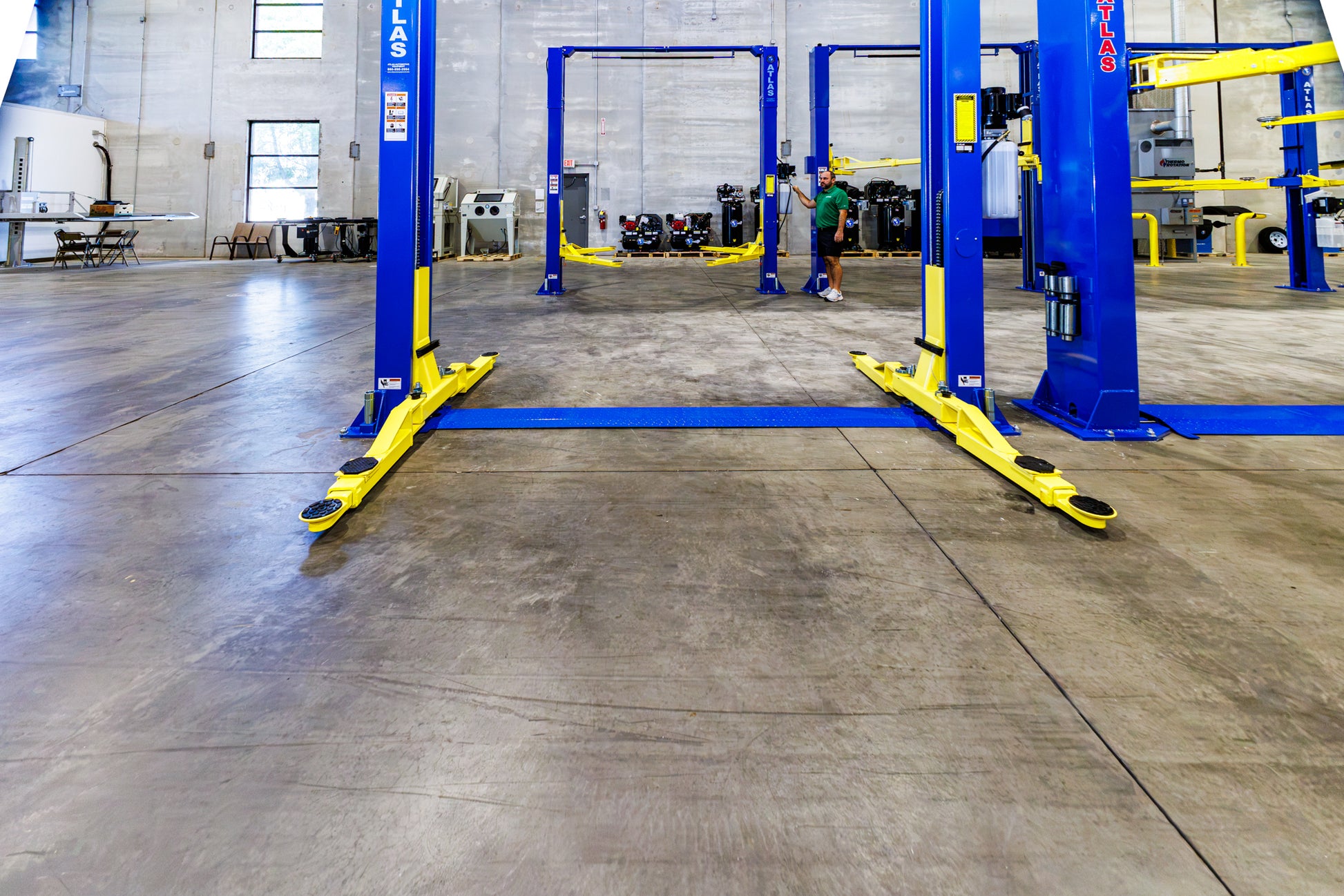

Most products shown on our website can be seen in person at our huge showroom in Indiana. It's the largest showroom in the region, and there's nothing quite like seeing our products up close. Whether you're browsing or ready to buy, we make it easy and enjoyable. Bring a trailer and come visit us!
