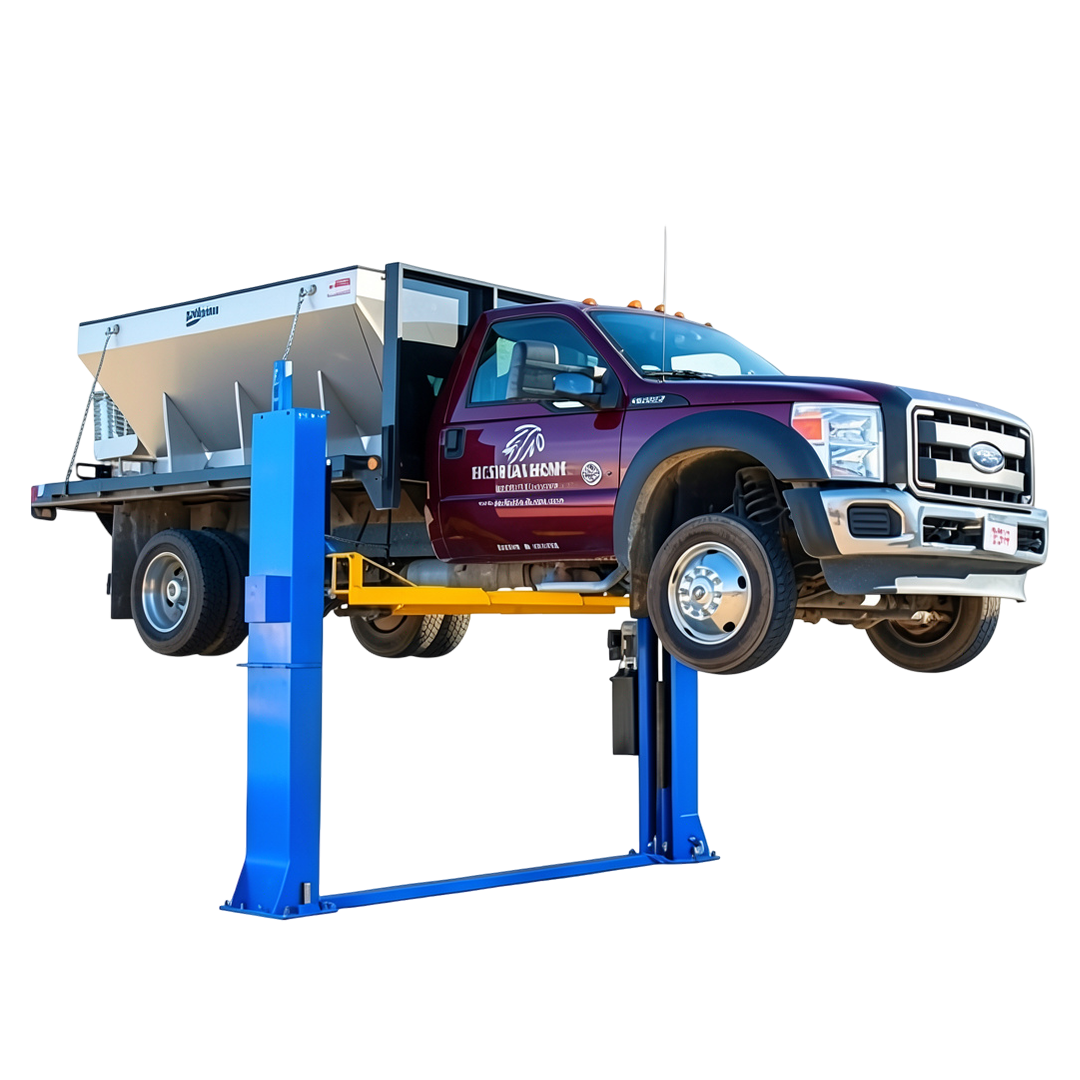

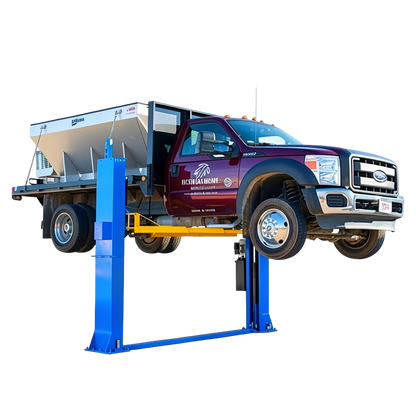

Atlas BP12000X 12,000 lb Baseplate Lift
Atlas BP12000X 12,000 lb Baseplate Lift
Heavy-duty 12,000 lb. 2-post baseplate lift. Low-ceiling friendly, adjustable width, and built for commercial shops.
Regular price
$5,299
Sale price
$5,299
Regular price
SKU: ATEATTD-BP12000X
Included free:Free:
Talk to an expert before you buy
Questions on fit, ceiling height or install? We'll help you pick the right one.

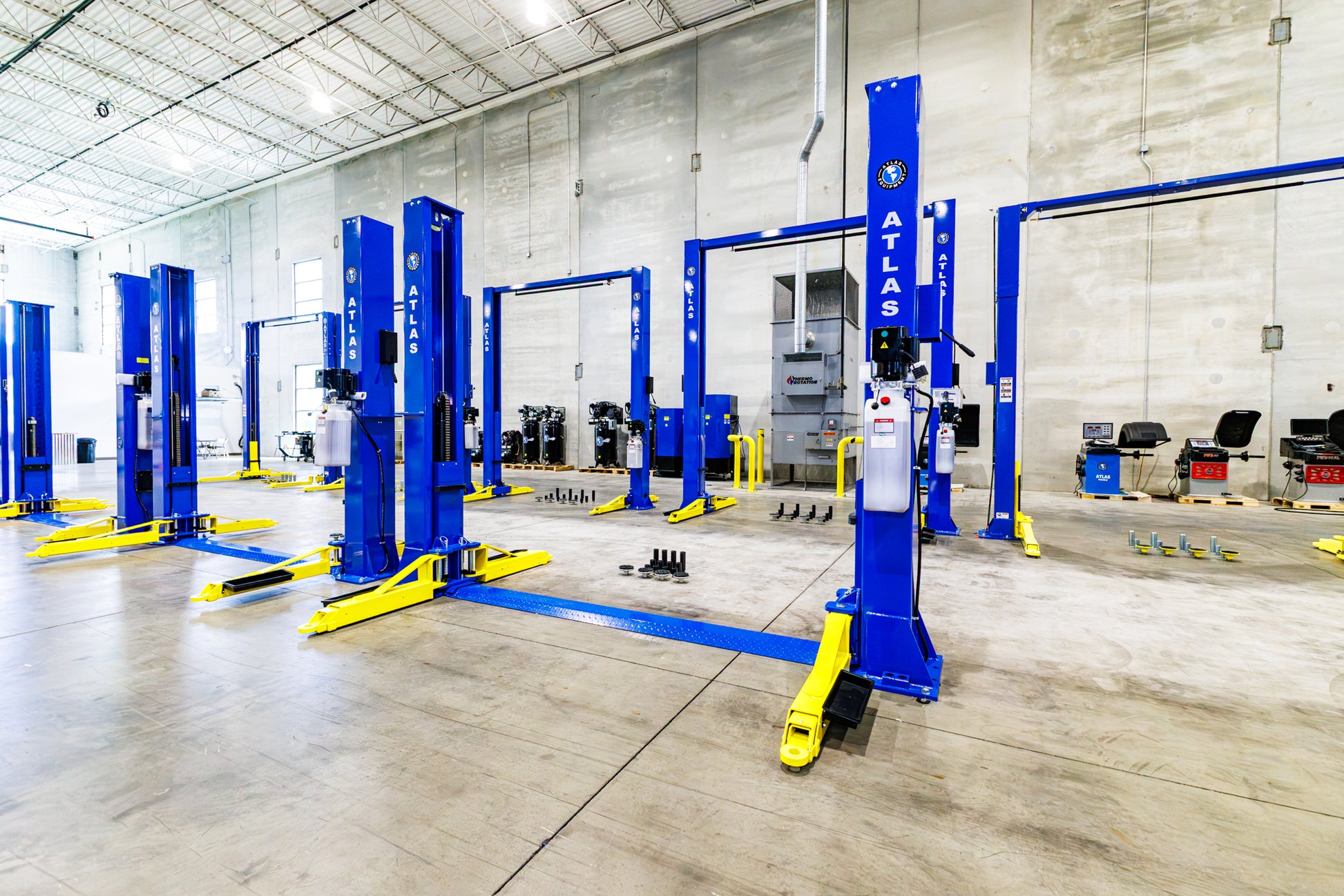

On display in our Indiana showroom. See it run, then take it home today. We'll load it for you. Open Mon–Sat.
Included free with this product
Quantity
Couldn't load pickup availability
Why buy from Truman
Free pickup
Indiana
Nationwide
Fast shipping
Local installer
Referrals
Largest showroomShowroom
In the countryLargest in the US
100+ years
Of experience
Real people
Ready to help
Why This Lift
- 12,000 lb. capacityHeavy trucks, vans, and commercial vehicles

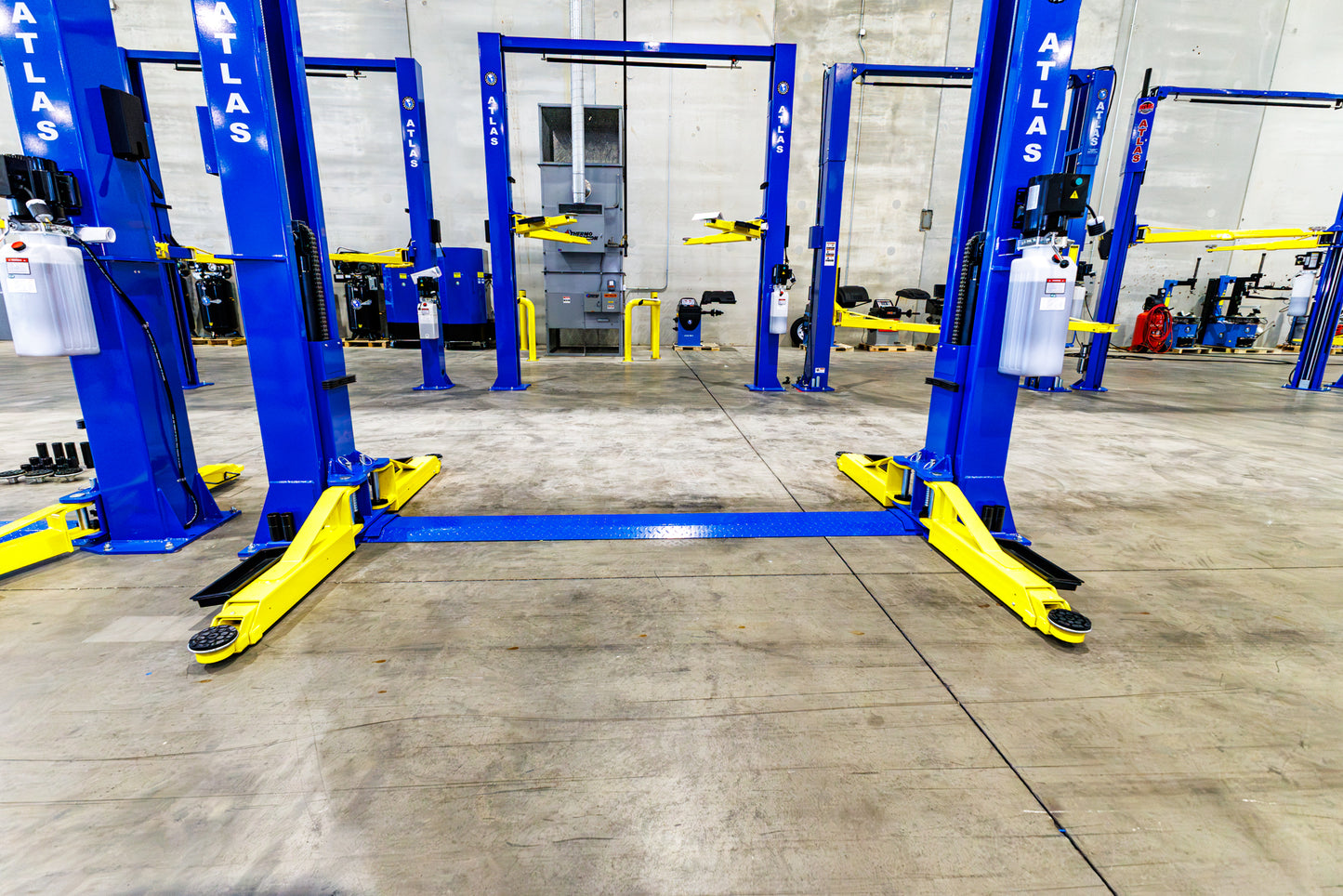

- Baseplate designNo overhead bar, low-ceiling friendly
- Adjustable widthFits a range of vehicle sizes
- Commercial gradeBuilt for demanding shops
Explore this lift

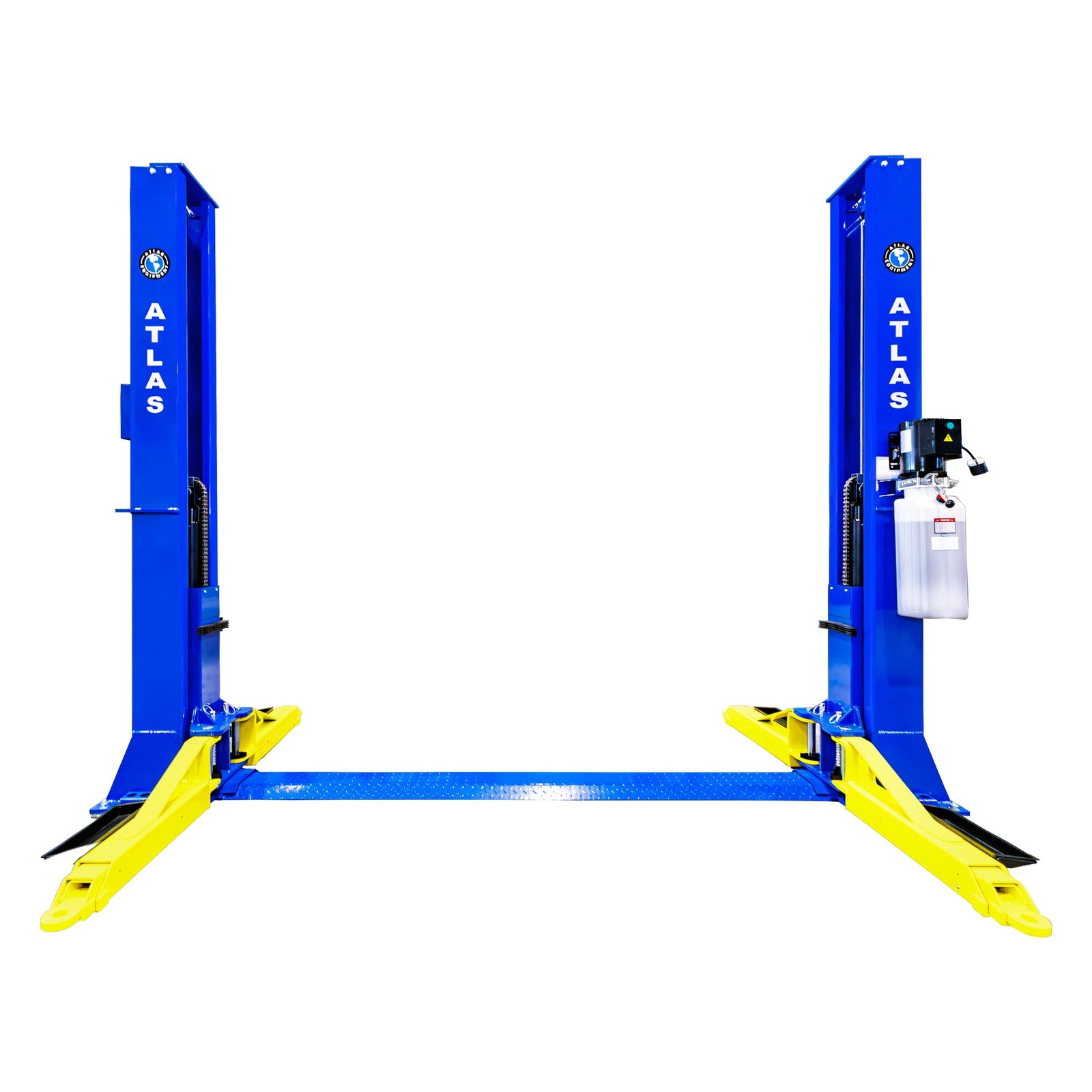

Explore the Atlas BP12000X
Tap a number to see what each part does.
Product Description

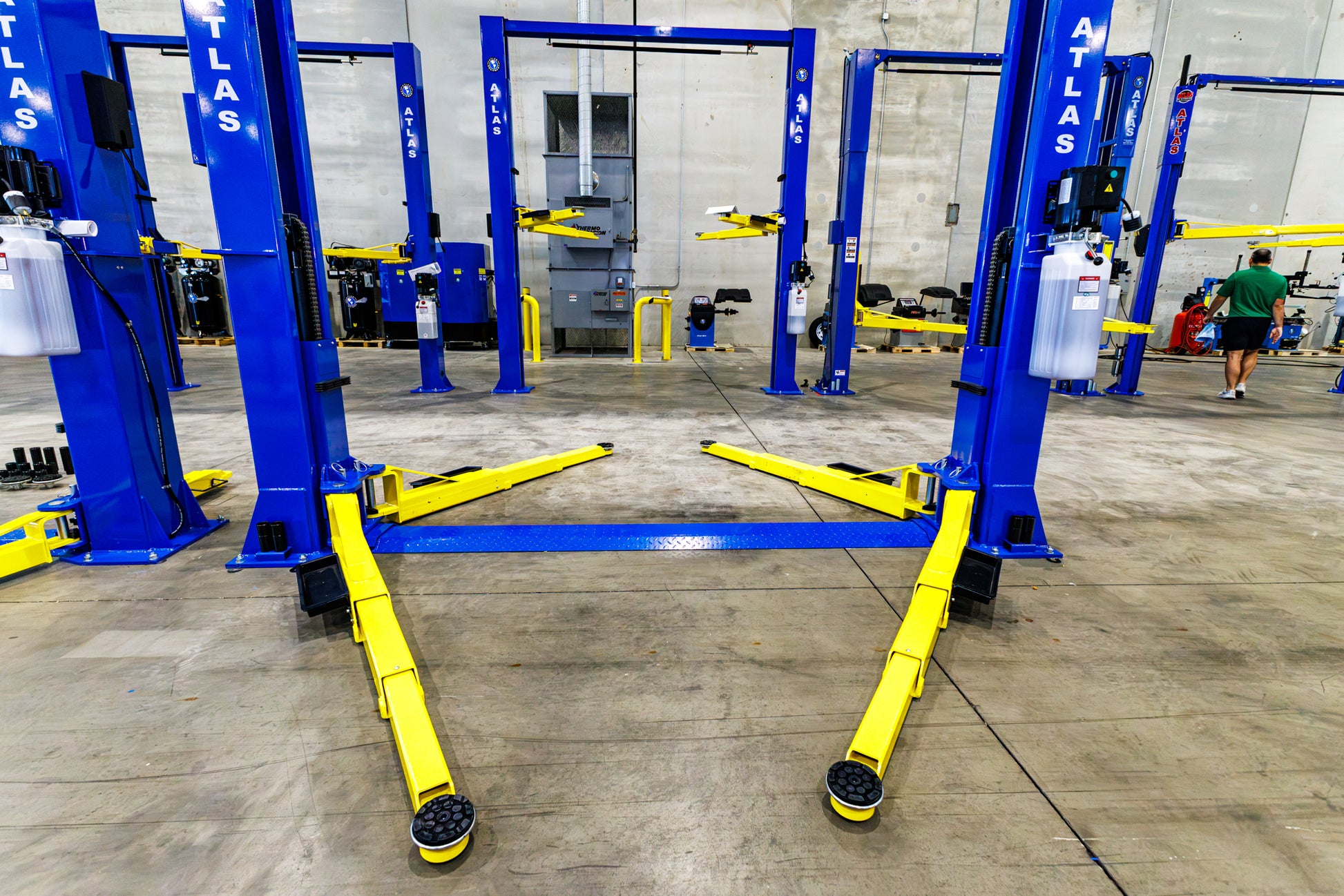

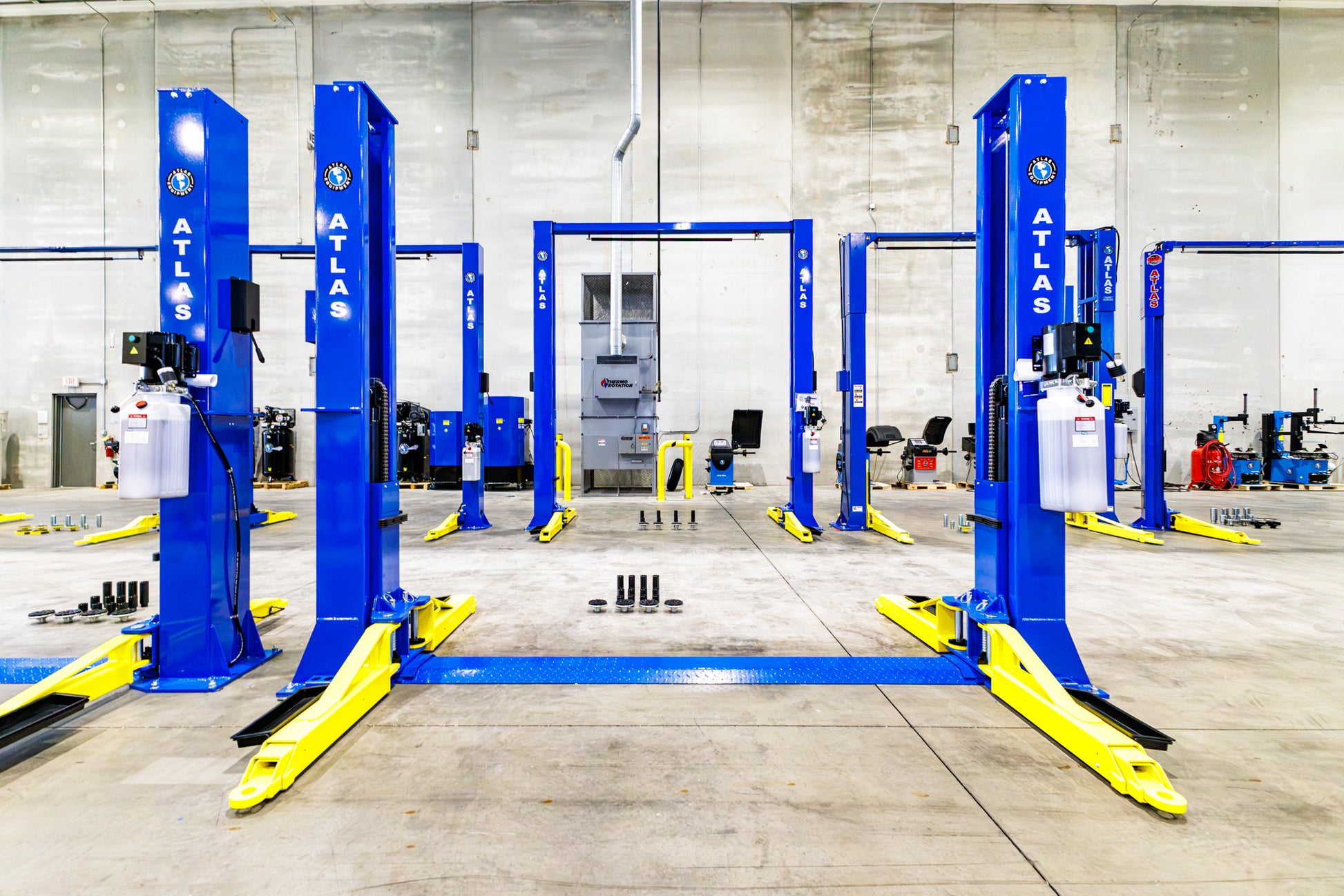

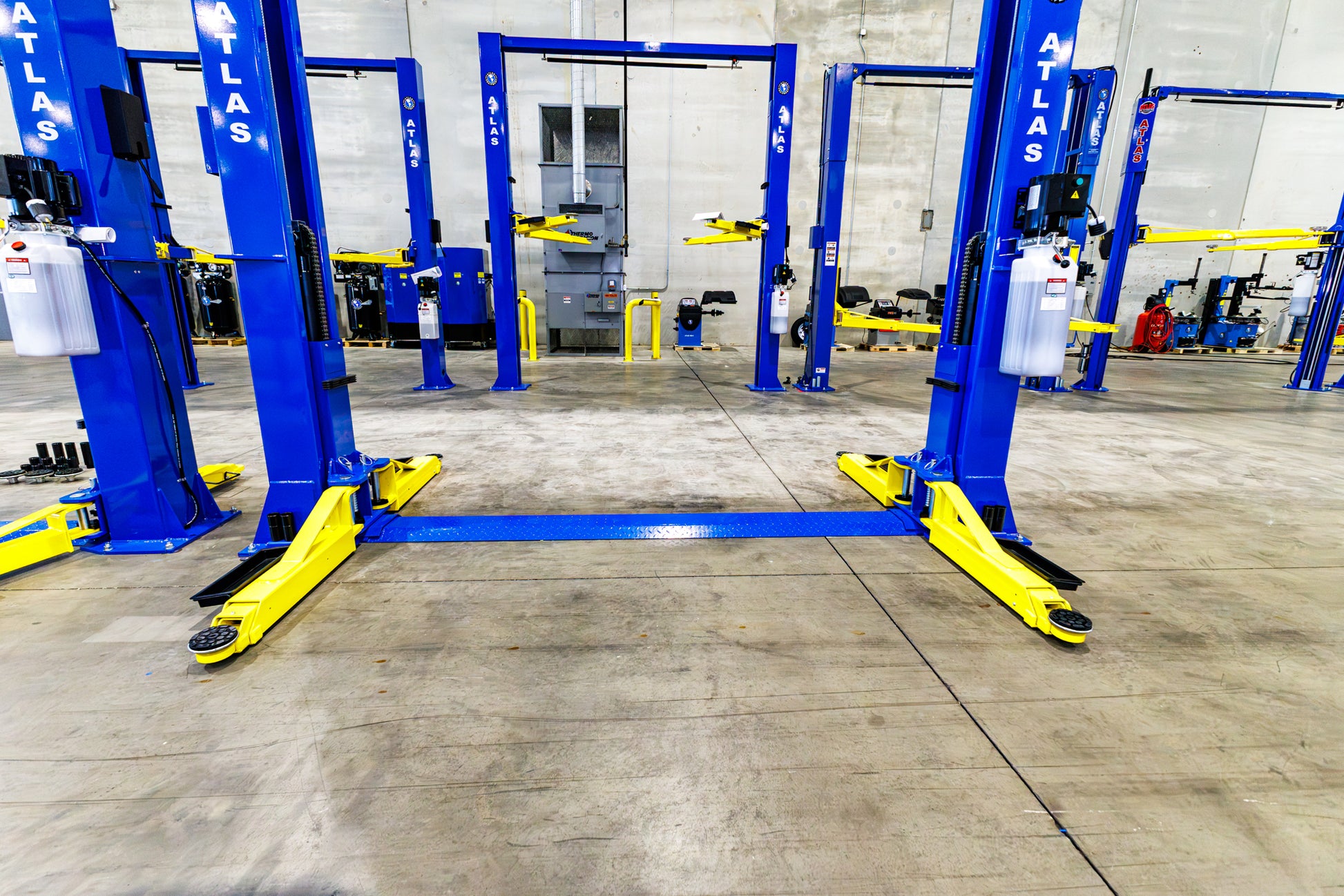

The Atlas BP12000X is a 12,000 lb. two-post baseplate lift for commercial shops that need to lift heavier trucks and vans but don't have the ceiling height for an overhead lift. With no overhead beam, its overall height is just 122 1/2".

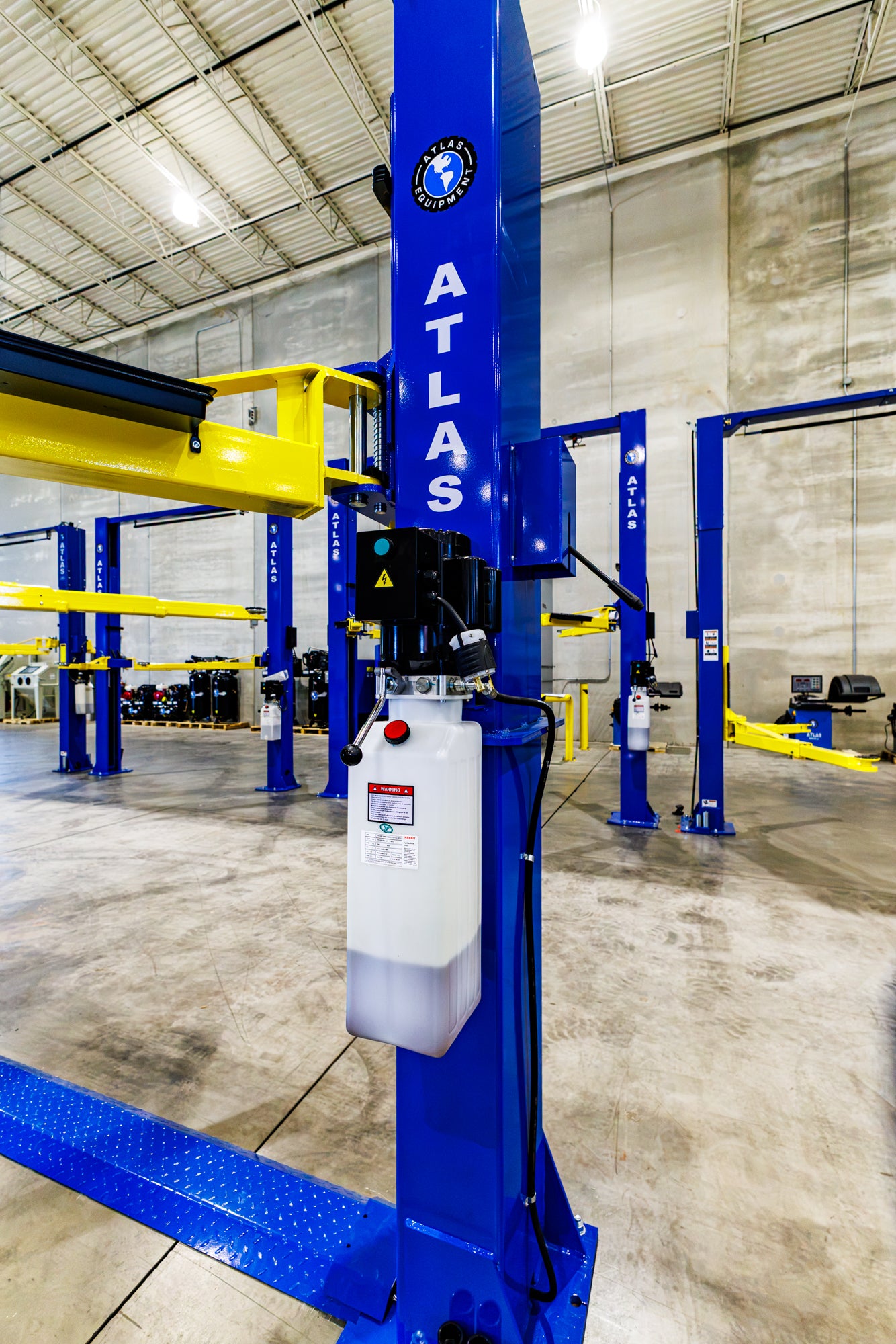

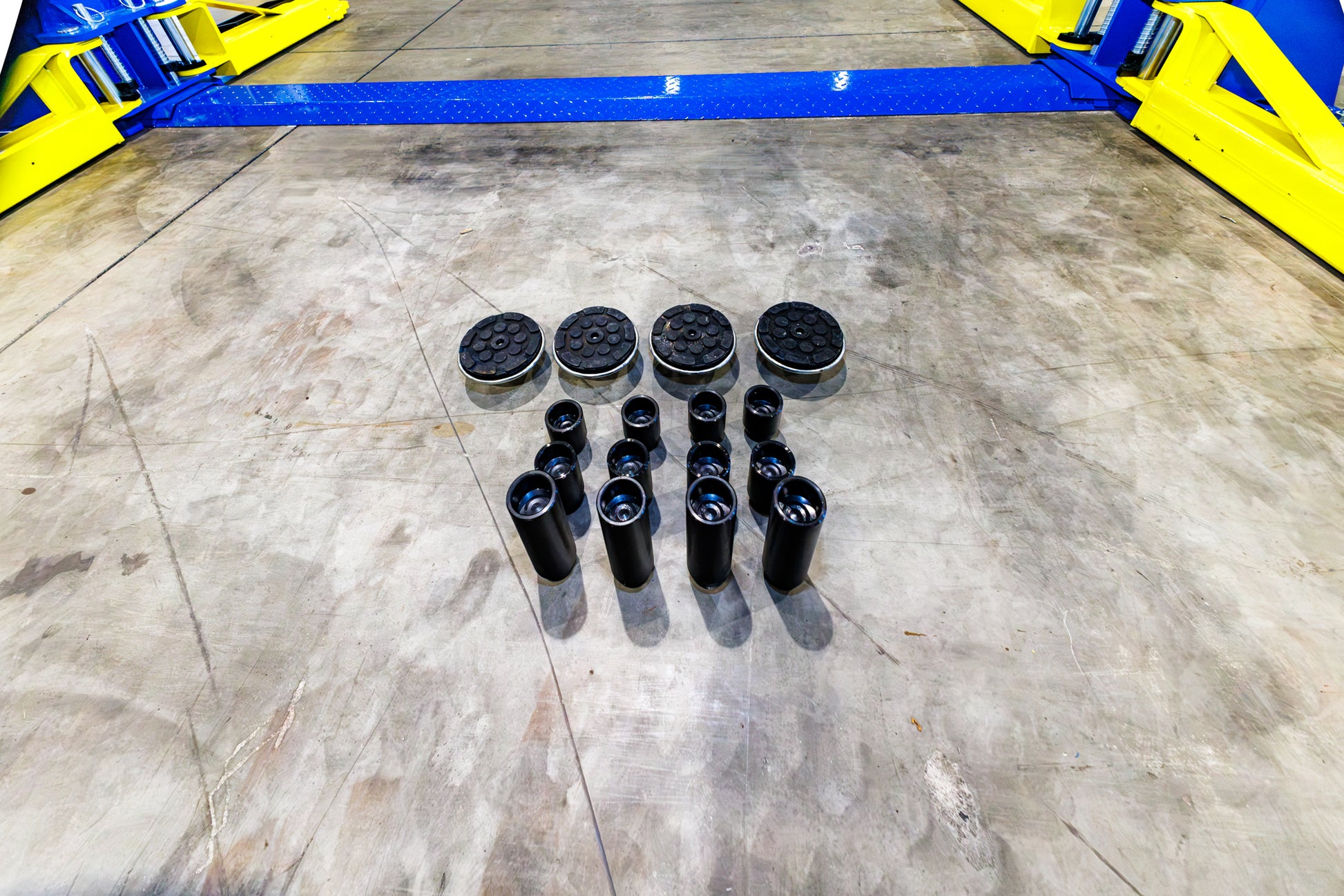

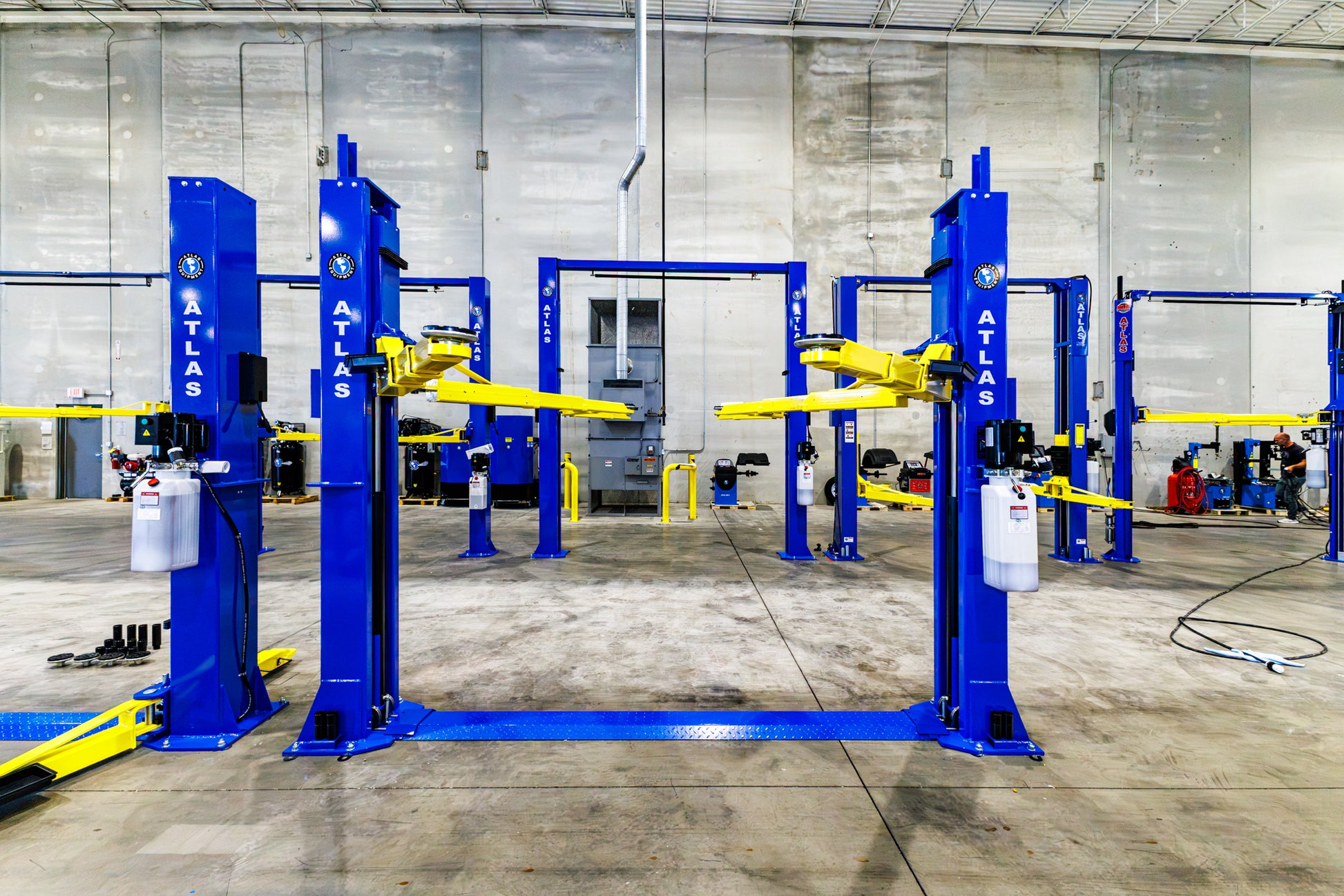

The columns install at two width settings, so you can fit wider trucks and trailers or drive through between the columns. Oversized columns, symmetric three-stage arms with automatic restraints, rubber carriage guards, and a single-point lock release make it a solid lift for daily use. A 12-piece truck adapter set and mounting hardware are included.
It's backed by a 5-year structural warranty and a 2-year hydraulic warranty (parts only). See the BP12000X in our Daleville, Indiana showroom, or call 765-723-6523 to talk with a lift specialist.
Specs and Dimensions
Capacity
12,000 lbs.
Overall Height
122 1/2" (10' 2 1/2")
Overall Floor Width
149 3/8" or 154 1/2"
Outside Column to Outside Column
135 7/8" or 141 1/4"
Maximum Lift Height (Without Adapters)
77 1/2"
Maximum Lift Height (With Adapters)
88 1/2"
Minimum Arm Height
4"
Shipping Weight
2,130 lbs.
Inside Column Width
118 1/8" or 123 1/2"
Drive Thru Width
103 5/8" or 109"
Column Size
8 3/4" x 14"
Base of Lift
18 1/2" x 21 1/2"
Motor / Electrical Requirement
220 Volt Single Phase (30 AMP Breaker Recommended)
Oil Requirement
3-5 Gallons AW32/AW46 (Not Included)
Adapter Heights
4 Each 2", 3", 6"
Arm Hole / Adapter Peg Size
1.5"
Concrete Requirement
Minimum 6" Thick, 3000 PSI Concrete
