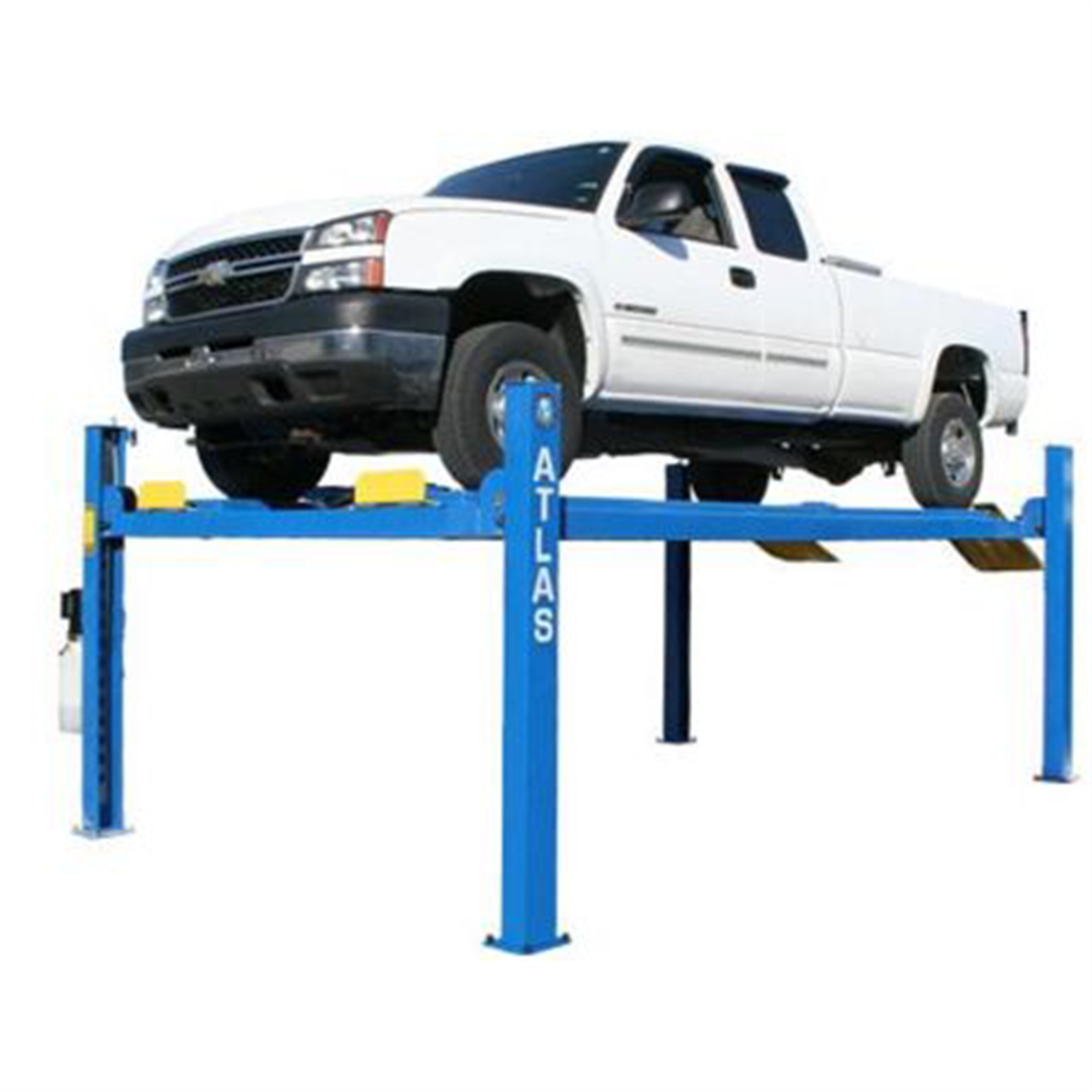

Atlas 412A 12,000 lb 4-Post Alignment Lift with Turntables
Atlas 412A 12,000 lb 4-Post Alignment Lift with Turntables
12,000 lb alignment lift — commercial-grade 4-post design with built-in turntables & slip plates
SKU: ATEATTD-412AT
Regular price
$8,699
Sale price
$8,699
Regular price
Have Questions? We're Here to Help
Quantity
Couldn't load pickup availability
Wheel service ready
Add a bridge jack for easy wheel service.
See compatible options for your Atlas 412A 12,000 lb 4-Post Alignment Lift with Turntables.
Bridge jacks that fit your Atlas 412A 12,000 lb 4-Post Alignment Lift with Turntables
Filtered by runway width & capacity · 2 compatible
Atlas 6,000 lb Rolling Jack
Fits your lift
Atlas 6,000 lb. Rolling Bridge Jack
Fits your lift
Largest Showroom in the USA
Our Team has 100+ Years of Experience
Fast Nationwide Shipping
Real People Ready to Help
Key Highlights
12,000 lb Capacity
Handles heavy-duty trucks and vehicles
Alignment Ready
Built-In Turntables Included
Slip Plate System
Precision Wheel Alignment
Extra Long Runways
Accommodates long wheelbase vehicles
Air Lock Release
Fast and convenient operation
Commercial Grade
Designed for daily use
The Atlas® 412A 12,000 pound capacity four post alignment lift is designed and built to commercial grade standards and will provide many years of service. Our Atlas® lifts offer many exclusive features not found on many other competitor's lifts.
The Atlas® 412A incorporates many structural and cosmetic features that are found on lifts costing thousands of dollars more money. The 412A is tested to ensure that this lift system will perform flawlessly at its rated capacity.
The Atlas® 412A uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an "old style" chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to "level" properly and the exposed hydraulic cylinder is responsible for numerous "door dings".
Besides having all the heavy duty features of the Atlas® 412, such as "tracks" between the runways to allow the use of a rolling bridge jack (the or ) on the lift (rolling jacks sold separately) the 412A features slip plates and alignment turntables. The slip plates are built in and are assured to be level with the turntables. The turntables can be set in different positions on the runway to accomdate a wide variety of wheelbases. The 412A also features metal cover plates to replace the turntables when not in use and so the lift can be used for more than just alignments.
Accessories Available
- 12,000 lb lifting capacity
- Heavy-duty commercial-grade construction
- Extra-tall, extra-wide and extra-long design
- Built-in slip plates included
- Built-in alignment turntables included
- Multiple turntable positioning options
- Runway cover plates included
- Air-operated single-point lock release
- Lock ladder design
- Double lock safety system
- Durable powder-coated finish
- Steel approach ramps included
- Compatible with rolling bridge jacks
- Mounting hardware included
- 220V single-phase operation
- Shipping weight: 2,900 lbs.
- 5-year structural warranty
- 2-year hydraulic warranty
Capacity & Dimensions
| Capacity | 12,000 lbs. |
| Lifting Height | 77 3/4 in. |
| Overall Length With Ramps | 236 1/2 in. |
| Runway Length | 194 1/2 in. |
| Runway Width | 20 in. |
| Maximum Wheelbase Support | 183 1/4 in. |
| Shipping Weight | 2,900 lbs. |
Width & Clearance
| Overall Width | 126 1/4 in. (135 1/4 in. with motor) |
| Width Between Runways | 43 1/4 in. |
| Outside Runway Width | 83 1/4 in. |
| Clearance Under Runways | 70 1/4 in. |
| Clearance Between Columns | 112 5/8 in. |
| Column Height | 89 3/4 in. |
| Drive Thru Width | 98 in. |
Power & Installation
| Motor Requirement | 220V Single Phase (30 AMP Breaker Required) |
| Air Requirement | 85-115 PSI |
| Oil Requirement | 3-5 Gallons AW32/AW46 (Not Included) |
| Lock Release | Air-Operated Single Point Lock Release |
| Concrete Requirement | Minimum 6 in. Thick, 3000 PSI Concrete |
