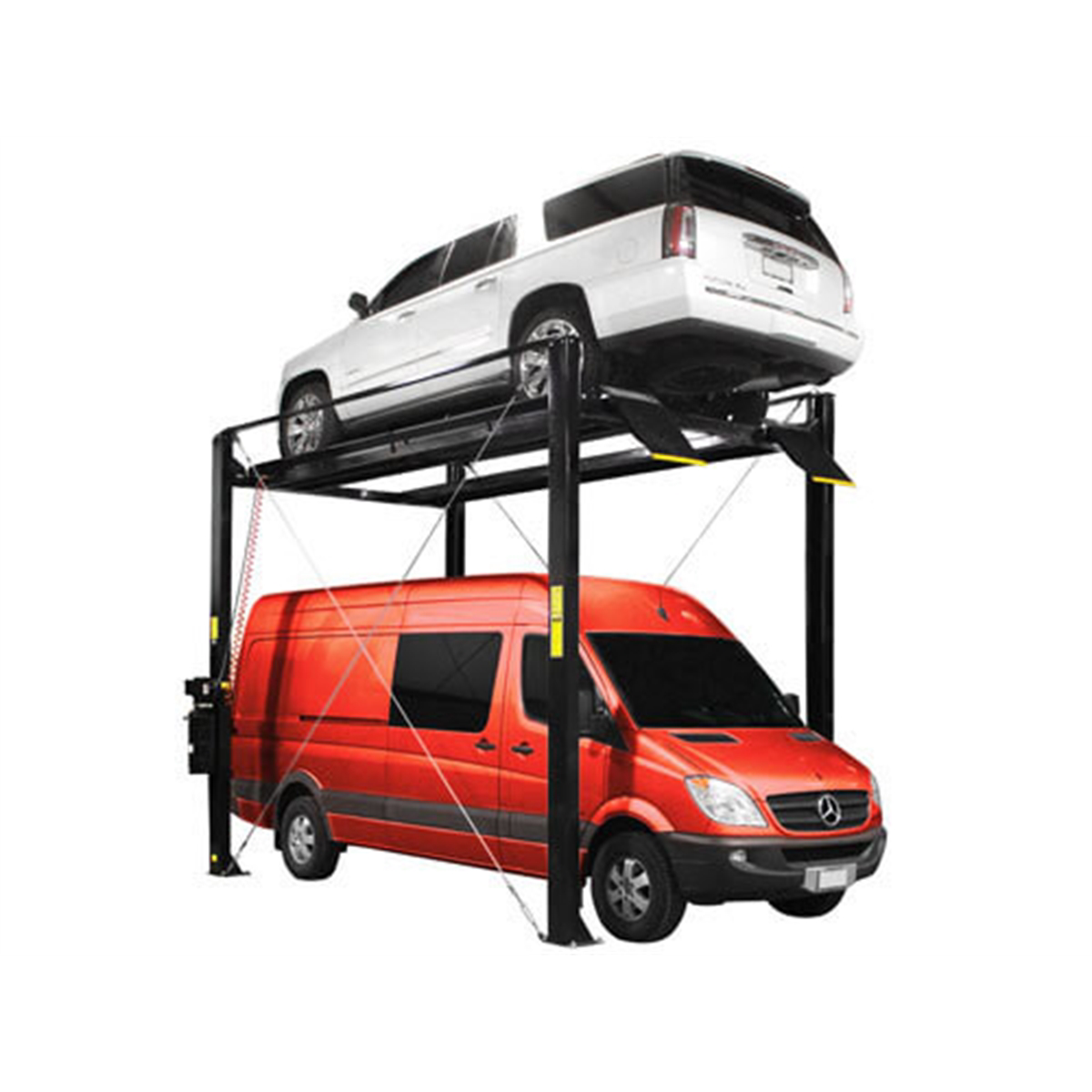

Atlas Garage PRO7000ST 7,000 lb Super Tall 4-Post Lift
Atlas Garage PRO7000ST 7,000 lb Super Tall 4-Post Lift
Super tall 7,000 lb. storage lift with 142" of clearance under the runways for high-ceiling garages.
Regular price
$7,499
Sale price
$7,499
Regular price
SKU: ATEXH-PRO7000ST
Talk to an expert before you buy
Questions on fit, ceiling height or install? We'll help you pick the right one.
Same-day pickup at our Indiana showroom. See it in person, and we'll load it for you. Open Mon–Sat.
Included free with this product
Quantity
Couldn't load pickup availability
Why buy from Truman
Free pickup
Indiana
Nationwide
Fast shipping
Local installer
Referrals
Largest showroomShowroom
In the countryLargest in the US
100+ years
Of experience
Real people
Ready to help
Why This Lift
- 7,000 lb. capacityCars and light trucks
- Super tallPark a taller vehicle underneath
- Made for high ceilingsStore one vehicle above another
- Garage PRO seriesDesigned for home garages
Product Description
The Atlas Garage PRO7000ST is built for car enthusiasts with extra tall ceilings who want to store one vehicle on top of another, even when the vehicle underneath is a tall truck or van. It raises up to 7,000 lbs. to 142" of clearance under the runways, nearly 12 feet.
It uses the same heavy-duty diamond-plated runways as the Atlas Garage PRO9000, with welded tracks for a rolling bridge jack such as the Atlas RJ6BK. A lock ladder with 21 locking positions lets you park at almost any height, and a single-point release next to the power unit unlocks all four spring-loaded air locks at once (compressed air required, not included).
An emergency slack cable secondary lock is always on standby and engages automatically if a cable is ever compromised. Steel approach ramps and mounting hardware are included.
Want to see one in person? Visit our Daleville, Indiana showroom or call 765-544-3838.
Specs and Dimensions
Capacity
7,000 lbs.
Lifting Height to Top of Runway
147 in. (12' 3")
Clearance Under Runways
142 in. (11' 10")
Height of Columns
162 in. (13' 6")
Locking Positions
21, from 23 in. to 142 in.
Overall Length With Approach Ramp
227 1/2 in.
Runway Length
194 in.
Runway Width
21 in. (w/ Rails) / 20 in. (Driving Surface)
Runway Thickness
4 3/4 in.
Approach Ramp
31 in.
Maximum Wheel Base
182 in.
Overall Width (Without Motor)
110 1/2 in.
Overall Width (With Motor)
123 in.
Width Between Runways
45 in.
Width Between Runway Rails
41 3/4 in.
Outside Runway to Outside Runway
83 in.
Clearance Between Columns
100 in.
Length Between Columns
185 in.
Drive Thru
82 1/2 in.
Electrical
220 Volt, 1 Phase, 30 AMP Breaker Required
Locks
Single-point pneumatic release (air supply required)
Shipping Weight
2,866 lbs.
Warranty
2 yr structural, 1 yr hydraulic (parts only)
