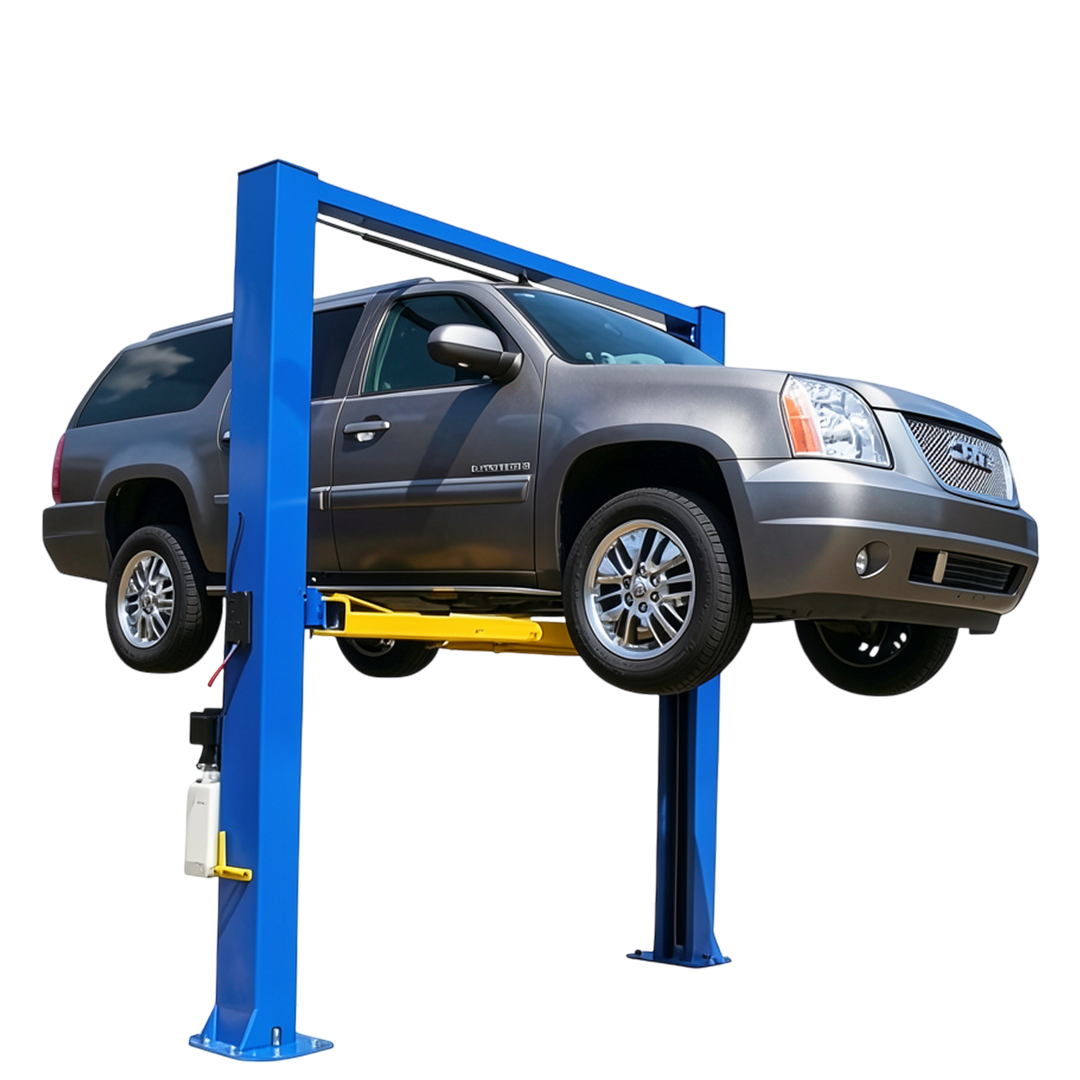

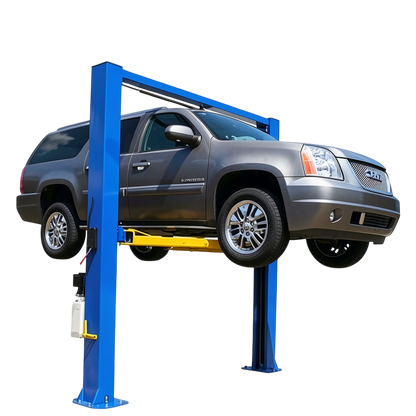

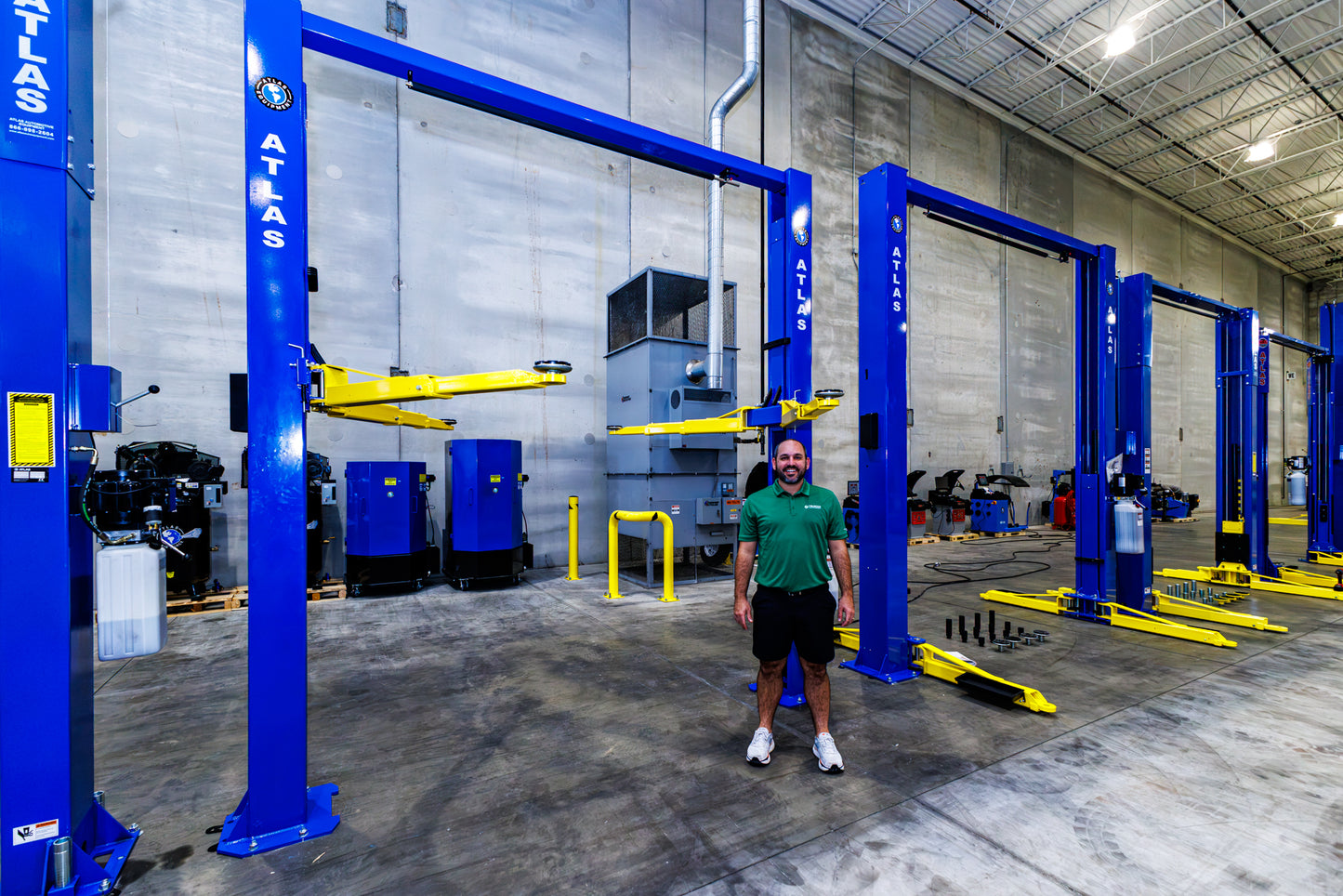

Atlas OHX10000X 10,000 lb Extra Tall/Extra Wide 2-Post Lift
Atlas OHX10000X 10,000 lb Extra Tall/Extra Wide 2-Post Lift
Extra-tall, extra-wide 10,000 lb. 2-post lift. Commercial grade and built for larger vehicles.
Regular price
$3,949
Sale price
$3,949
Regular price
SKU: ATEATTD-OHX10000X
Included free:Free:
Talk to an expert before you buy
Questions on fit, ceiling height or install? We'll help you pick the right one.

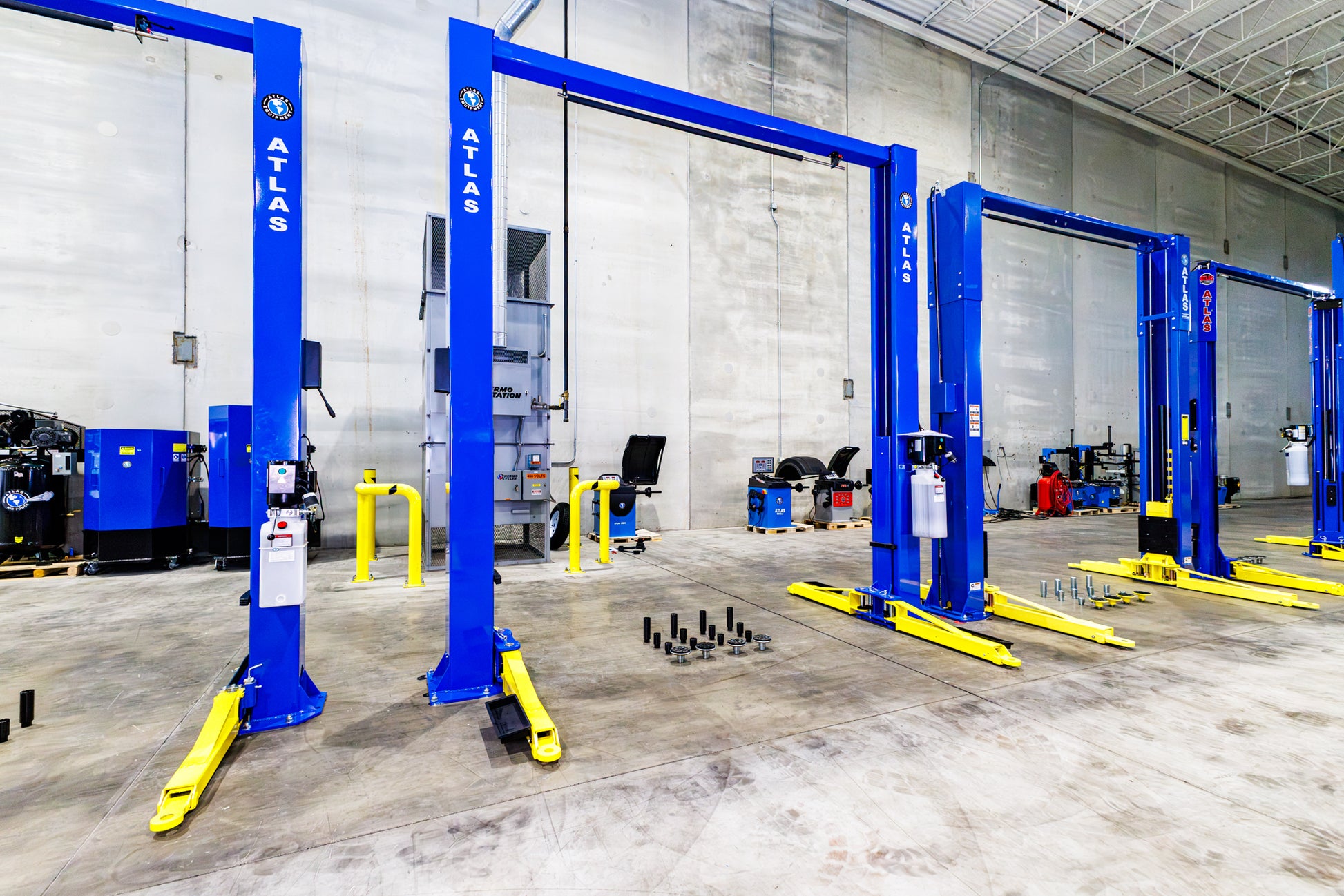

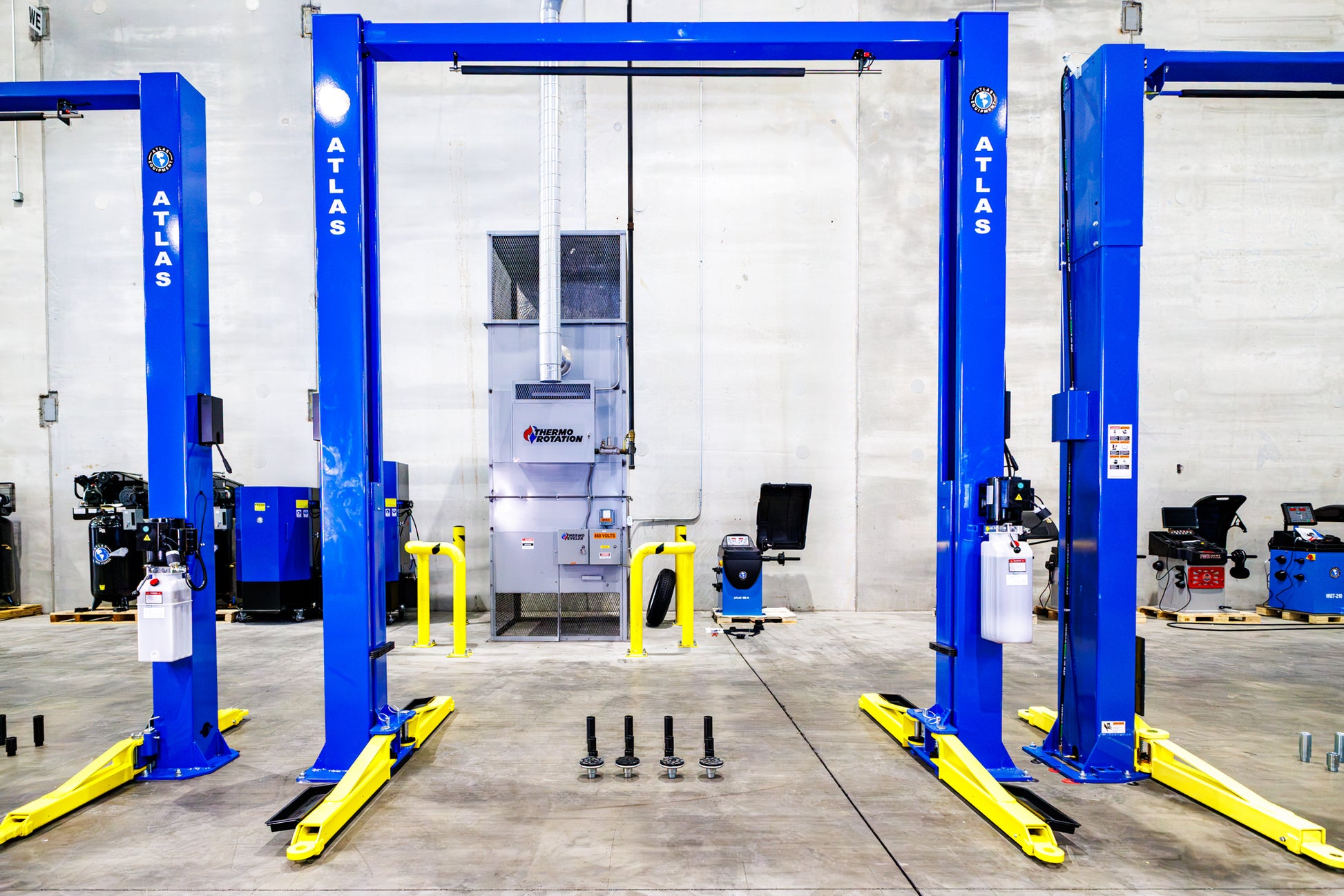

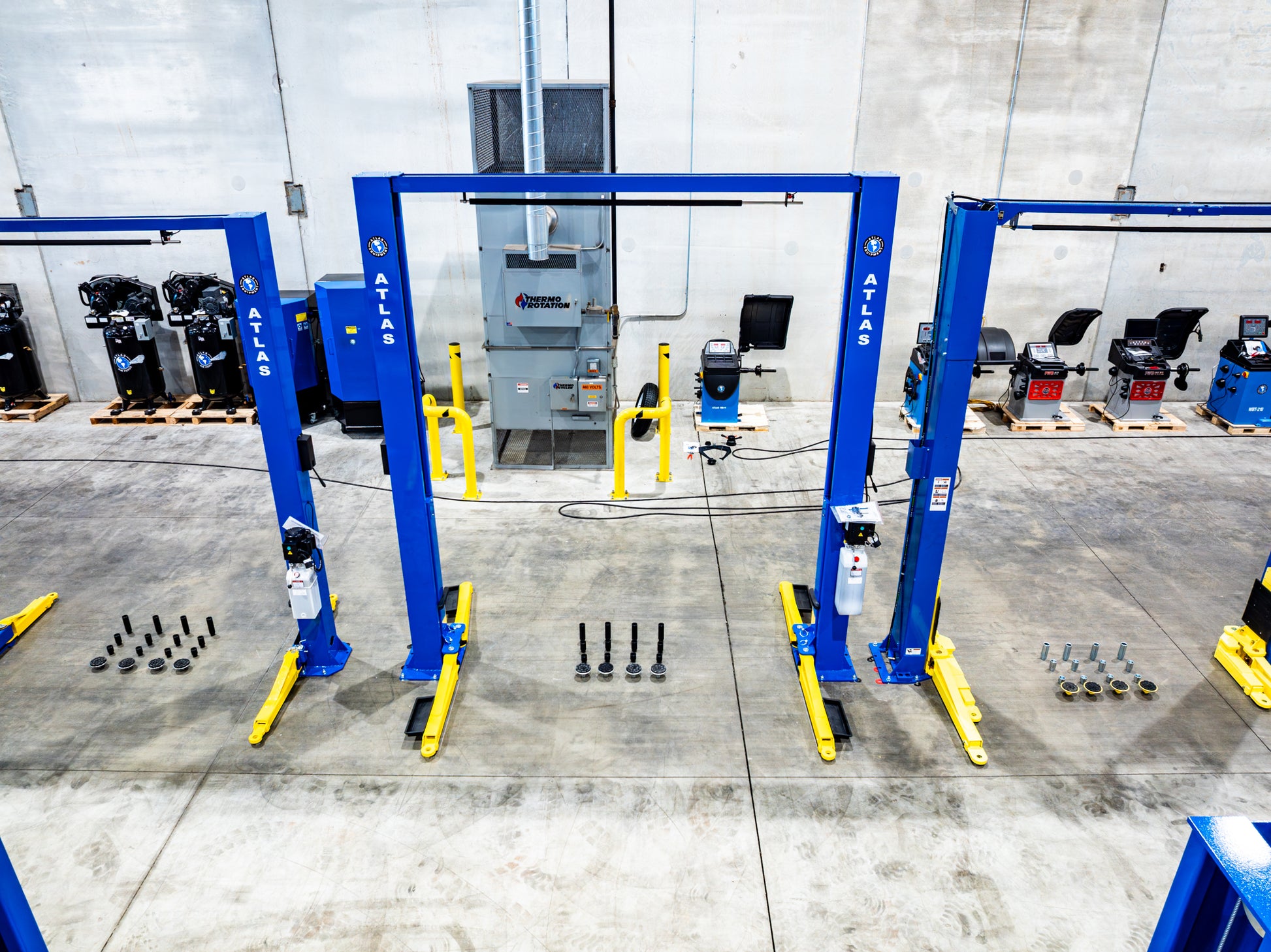

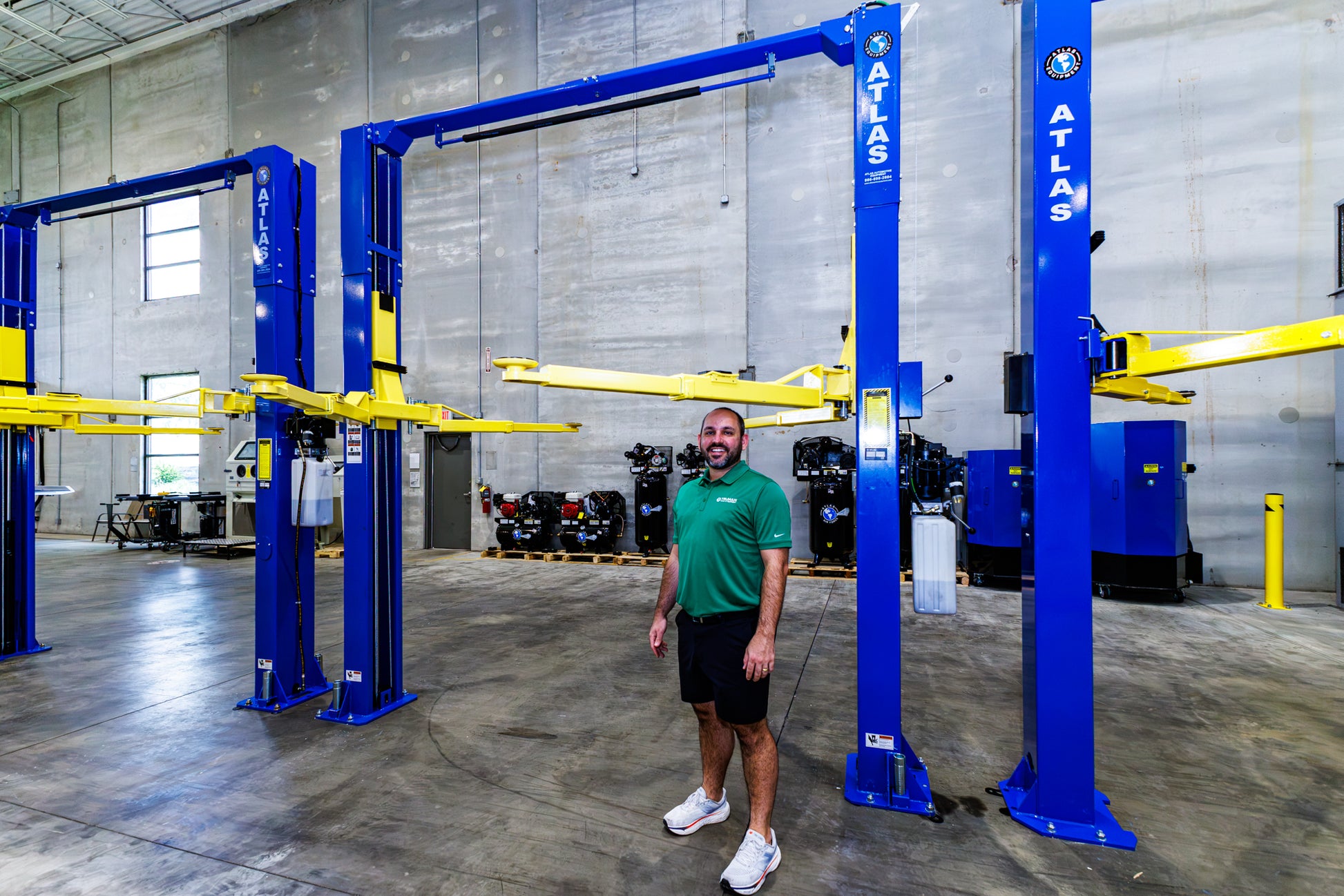

On display in our Indiana showroom. See it run, then take it home today. We'll load it for you. Open Mon–Sat.
Included free with this product
Quantity
Couldn't load pickup availability
Why buy from Truman
Free pickup
Indiana
Nationwide
Fast shipping
Local installer
Referrals
Largest showroomShowroom
In the countryLargest in the US
100+ years
Of experience
Real people
Ready to help
Why This Lift
- 10,000 lb. capacityLifted trucks, vans, and taller vehicles
- Extra tallMore room under the overhead bar
- Extra wideSpace for wider vehicles
- Commercial gradeBuilt for professional shops
Explore this lift

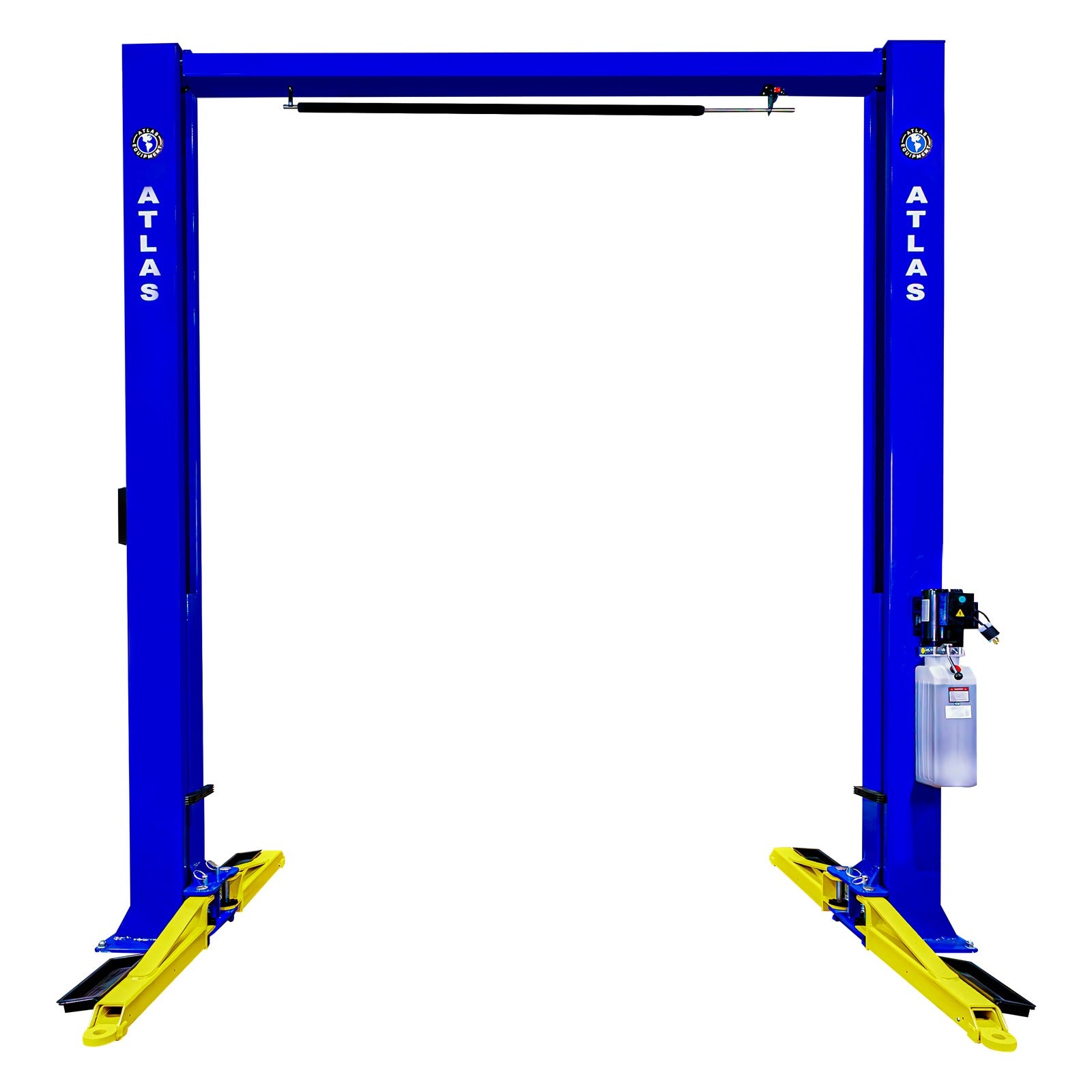

Explore the Atlas OHX10000X
Tap a number to see what each part does.
Product Description
The Atlas OHX10000X is an extra-tall, extra-wide 10,000 lb. two-post lift built for long-wheelbase vehicles like one-ton diesel duallys, vans, and ladder trucks. The extra width between the columns gives you about 6" more room when driving through or lifting wide vehicles, and longer cylinders lift about 3" higher than many lifts, a real plus for taller technicians.

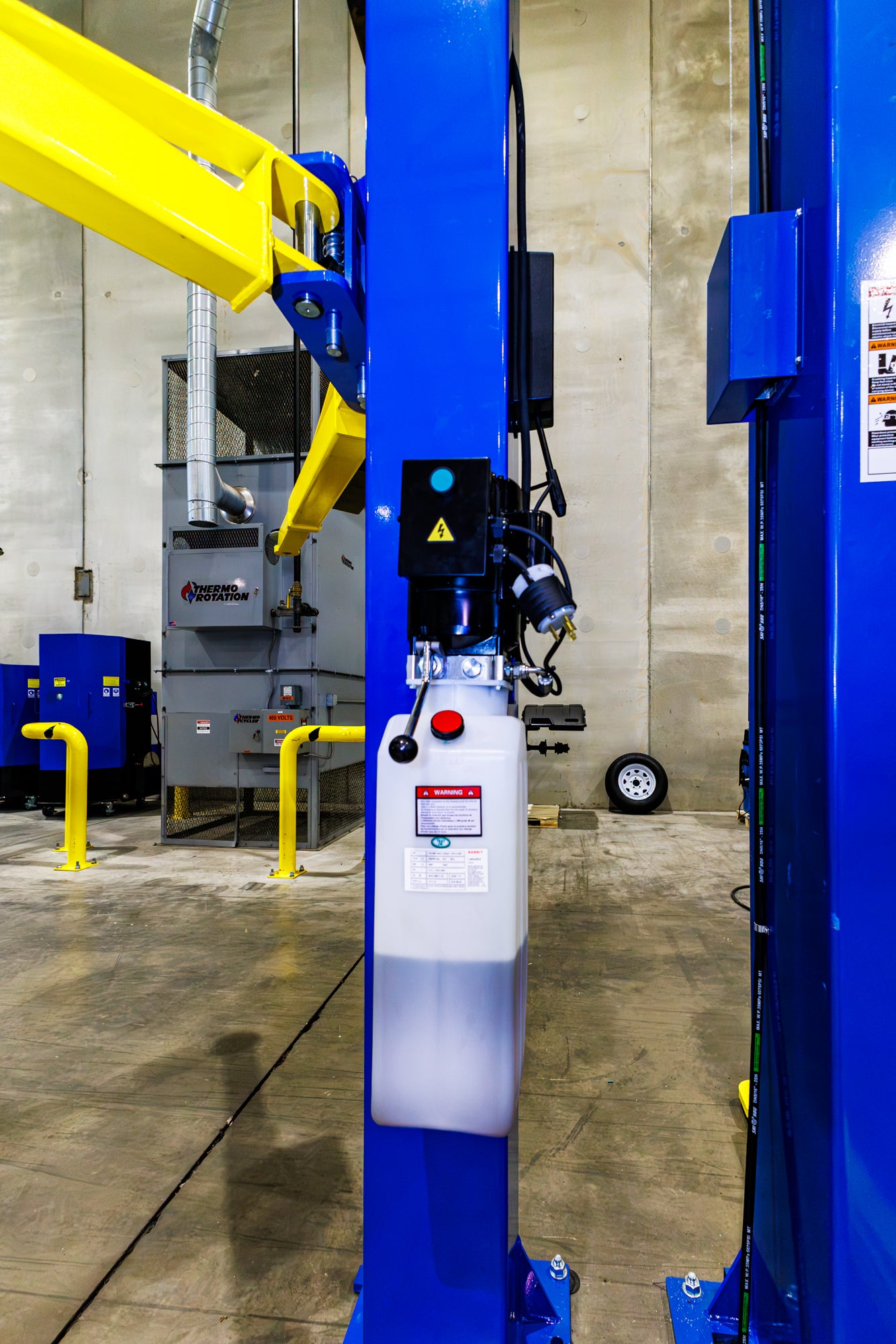

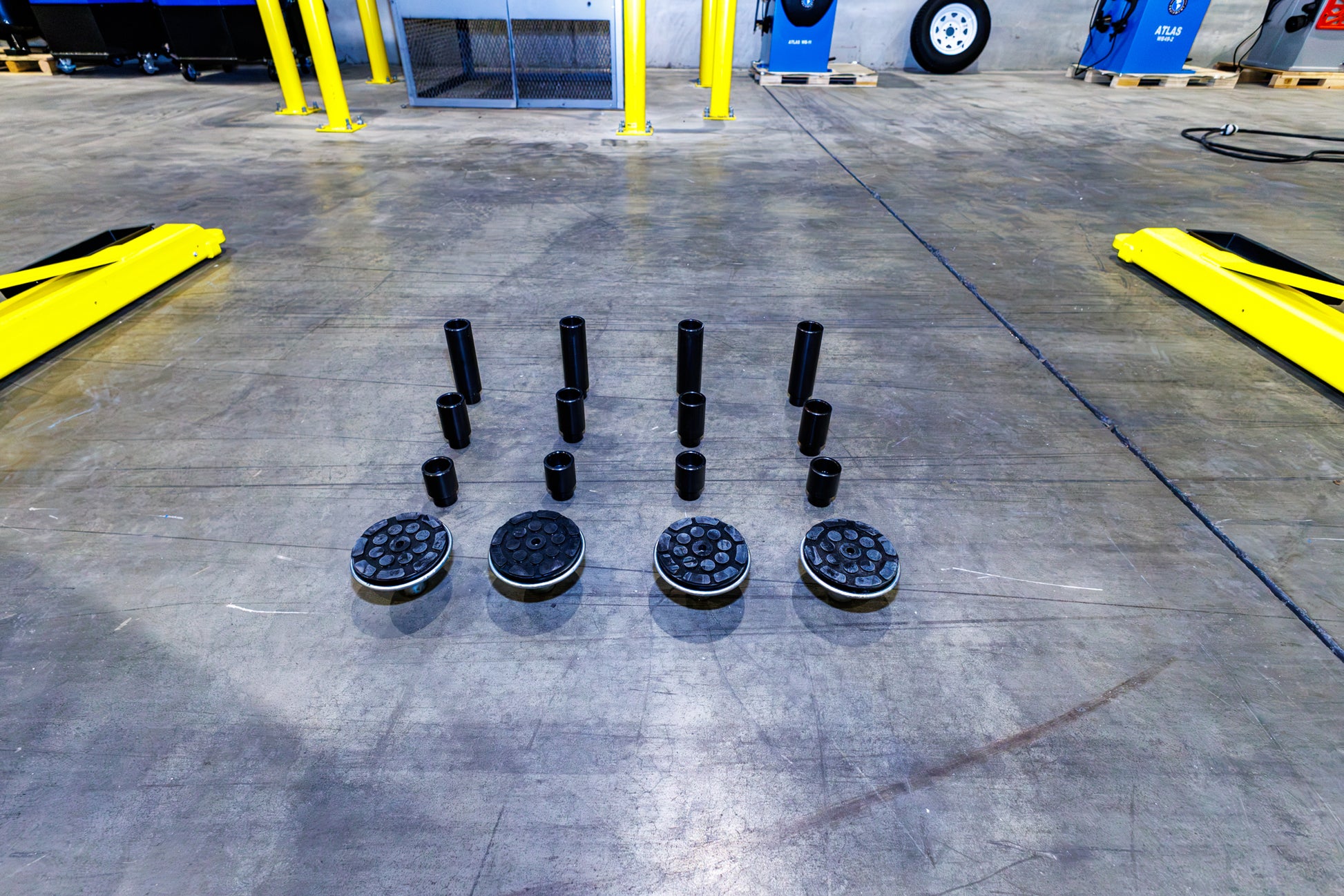

Each column is a single formed piece, 12' 7" tall, with an extra-long carriage for strength. Dual direct-drive cylinders, symmetric arms with automatic restraints, a padded overhead shut-off bar, rubber carriage guards, and a single-point lock release come standard, along with a 12-piece truck adapter set.
Good to know: the overall height is 152", and you'll need a ceiling of at least 13 feet to stand the one-piece columns during installation.
It's backed by a 5-year structural warranty and a 2-year hydraulic warranty (parts only). See the OHX10000X in our Daleville, Indiana showroom, or call 765-723-6523 to talk with a lift specialist.
Specs and Dimensions
Capacity
10,000 lbs.
Overall Height
152" (12' 8")
Overall Floor Width
144 3/8" (12' 3/8")
Outside Column to Outside Column
136" (11' 4")
Maximum Lift Height (Without Adapters)
74 3/4"
Maximum Lift Height (With Adapters)
85 3/4"
Minimum Arm Height
4 1/2"
Shipping Weight
1,665 lbs.
Inside Column Width
118 1/4" (9' 10 1/4")
Drive Thru Width
106 7/8" (8' 10 7/8")
Column Size
9 1/8" x 11"
Base of Lift
18 1/2" x 21 1/2"
Motor / Electrical Requirement
220 Volt Single Phase (30 AMP Breaker Recommended)
Oil Requirement
3-5 Gallons AW32/AW46 (Not Included)
Adapter Heights
2", 3", 6" (4 Each)
Arm Hole / Adapter Peg Size
1.5"
Concrete Requirement
Minimum 4" Thick, 3000 PSI Concrete
Largest Automotive Equipment Showroom
Visit Our Showroom
See It Before You Buy It
See it before you buy it
Most products shown on our website can be seen in person at our huge showroom in Indiana. It's the largest showroom in the region, and there's nothing quite like seeing our products up close. Whether you're browsing or ready to buy, we make it easy and enjoyable. Bring a trailer and come visit us!
50,000+
Sq ft of equipment
sq ft
50+
Products on display
on display
100+
Years of industry experience
yrs experience
9175 S. Innovation Drive, Daleville, IN 47334
· Open in Maps →
No pressure
Browse at your own pace
Open 6 days a week
Mon–Fri 8am–5pm, Sat 8am–Noon
Expert staff on floor
Product demos available
Bring a trailer
Take your purchase home same day
50,000 SQ FT
Our showroom floor in Daleville, IN
J
Seems like a well built solid lift. Grant from Truman was great to deal with, Dallas the installer was very fast and knowledgeable. Gave 4 stars simply because of some scuffs and scratches and it doesn’t come with adjustable screw pads.
A

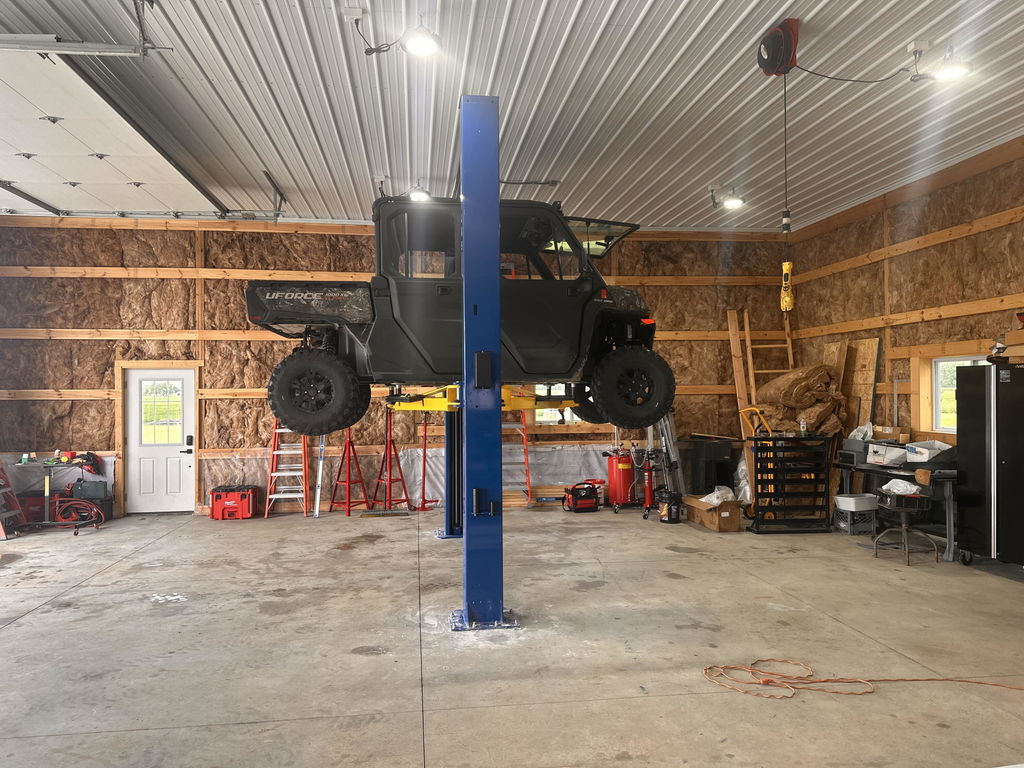

Placed my order on a Friday evening. Got a phone call from Grant Saturday morning confirming he had a lift in stock and to pick any time. 4 hours later they had my rental trailer (6x12 open end Uhaul) was loaded and I was headed home. Install took about 6 hours by myself. Harbor freight rotary hammer drill makes quick work of the anchors. Hardest part was getting the columns upright working alone. Would not hesitate to buy from Grant and Truman Tools again.
