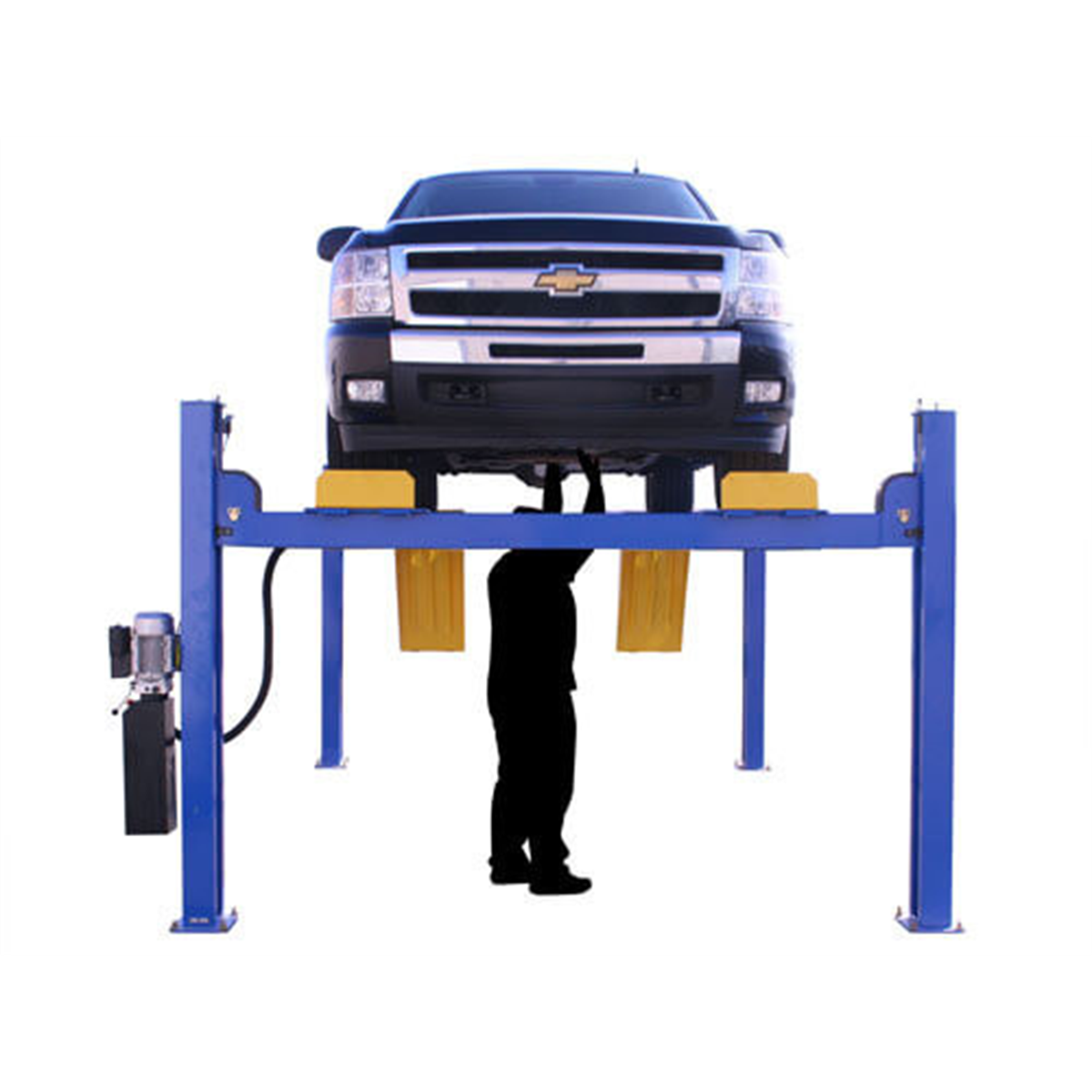

Atlas Pro14KCF-EXT 14,000 lb Extended Length Commercial 4-Post Lift
Atlas Pro14KCF-EXT 14,000 lb Extended Length Commercial 4-Post Lift
14,000 lb. commercial 4-post lift with extended 229.5" runways for long-wheelbase trucks and vans.
Regular price
$9,000
Sale price
$9,000
Regular price
SKU: ATEXH-PRO14KCF-EXT
Talk to an expert before you buy
Questions on fit, ceiling height or install? We'll help you pick the right one.
Same-day pickup at our Indiana showroom. See it in person, and we'll load it for you. Open Mon–Sat.
Included free with this product
Quantity
Couldn't load pickup availability
Why buy from Truman
Free pickup
Indiana
Nationwide
Fast shipping
Local installer
Referrals
Largest showroomShowroom
In the countryLargest in the US
100+ years
Of experience
Real people
Ready to help
Why This Lift
- 14,000 lb. capacityHeavy trucks and fleet vehicles
- Extended 229.5" runwaysFits long-wheelbase trucks and vans
- Rolling jack readyTracks for a bridge jack
- Commercial gradeBuilt for daily shop use
Product Description
The Atlas Pro14KCF-EXT is a 14,000 lb. commercial four-post lift with extended 229.5" runways, built for long-wheelbase trucks, crew cab long beds, cargo vans and fleet vehicles that won't fit on a standard length lift.
It uses a cable lift system powered by an oversized hydraulic cylinder mounted under the runway, so there's no exposed cylinder to ding doors. A lock ladder in each column and an air-operated single-point lock release keep the runways secure and make lowering simple from one spot.
Tracks between the runways let you add a rolling bridge jack for wheel and brake work. Steel approach ramps are included, and the 20" wide runways with adjustable spacing handle everything from half-ton pickups to heavy work trucks.
Requirements: 220V single phase power (30 amp breaker), an outside air supply at 90–120 PSI, and 3–5 gallons of AW32 or AW46 hydraulic oil (not included).
Want to see it in person? Visit our Daleville, Indiana showroom or call 765-544-3838.
Specs and Dimensions
Capacity
14,000 lbs.
Lifting Height (Top Lock)
68 1/2 in.
Clearance Under Runways (Top Lock)
62 in.
Height of Columns
89 in.
Overall Length With Ramps
277 in.
Overall Length Without Ramps
237 in.
Runway Length
229 1/2 in.
Approach Ramp Length
49 in.
Runway Width
20 in.
Runway Thickness
6 1/2 in.
Overall Width (With Motor)
139 3/4 in.
Overall Width (Without Motor)
130 3/4 in.
Width Between Runways
42 1/2 – 46 1/2 in.
Width Between Runway Rails
38 3/4 – 42 3/4 in.
Outside Runway to Outside Runway
82 1/2 – 86 1/2 in.
Clearance Between Columns
115 in.
Drive Thru Width
100 in.
Motor
220 Volt Single Phase (30 AMP Breaker)
Air Requirement
90–120 PSI (Outside Source Required)
Oil Requirement
3–5 Gallons AW32/AW46 (Not Included)
Concrete Requirement
Minimum 4 in. Thick, 3,000 PSI
Lock System
Air-Operated Single Point Lock Release
Bridge Jacks That Fit This Lift
Add a bridge jack to lift the wheels free for tire, brake, and suspension work.
Atlas RJ6BK 6,000 lb. Air/Hydraulic Rolling Bridge Jack
6,000 lb. air/hydraulic rolling bridge jack for the Atlas 412, 412A, 414, and 414A four-post lifts.
$1,799.00
View details
Atlas RJ8000 8,000 lb. Air/Hydraulic Rolling Jack
8,000 lb. air/hydraulic rolling jack with telescoping arms and truck adapters.
$2,149.00
View details
Atlas RJ8A 8,000 lb. Rolling Jack
8,000 lb. air/hydraulic rolling bridge jack for wheel and brake work on four-post and scissor lifts.
$2,149.00
View details
