Two-Post Lifts

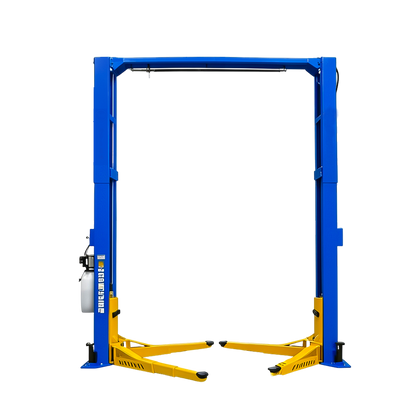

Atlas PVL12 ALI Certified 12,000 lb Overhead Lift
Atlas PVL12 ALI Certified 12,000 lb Overhead Lift
ALI-certified 12,000 lb 2-post lift — extra-tall, extra-wide & built for demanding commercial shops
SKU: ATEAP-PVL12
Regular price
$7,799
Sale price
$7,799
Regular price
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Talk to a Pro
3 experts online now · avg. reply <2 min
Largest Showroom in the Midwest
Our Team has 100+ Years of Experience
Fast Nationwide Shipping
Real People Ready to Help
Key Highlights
ALI Certified
Professional-grade safety and compliance
12,000 lb Capacity
Handles heavy-duty trucks and vehicles
Extra Tall & Wide
More clearance for larger vehicles
Direct-Drive Cylinders
Smooth and reliable lifting
Premium ALLY Power Unit
Reliable hydraulic performance
Commercial Grade
Designed for daily use

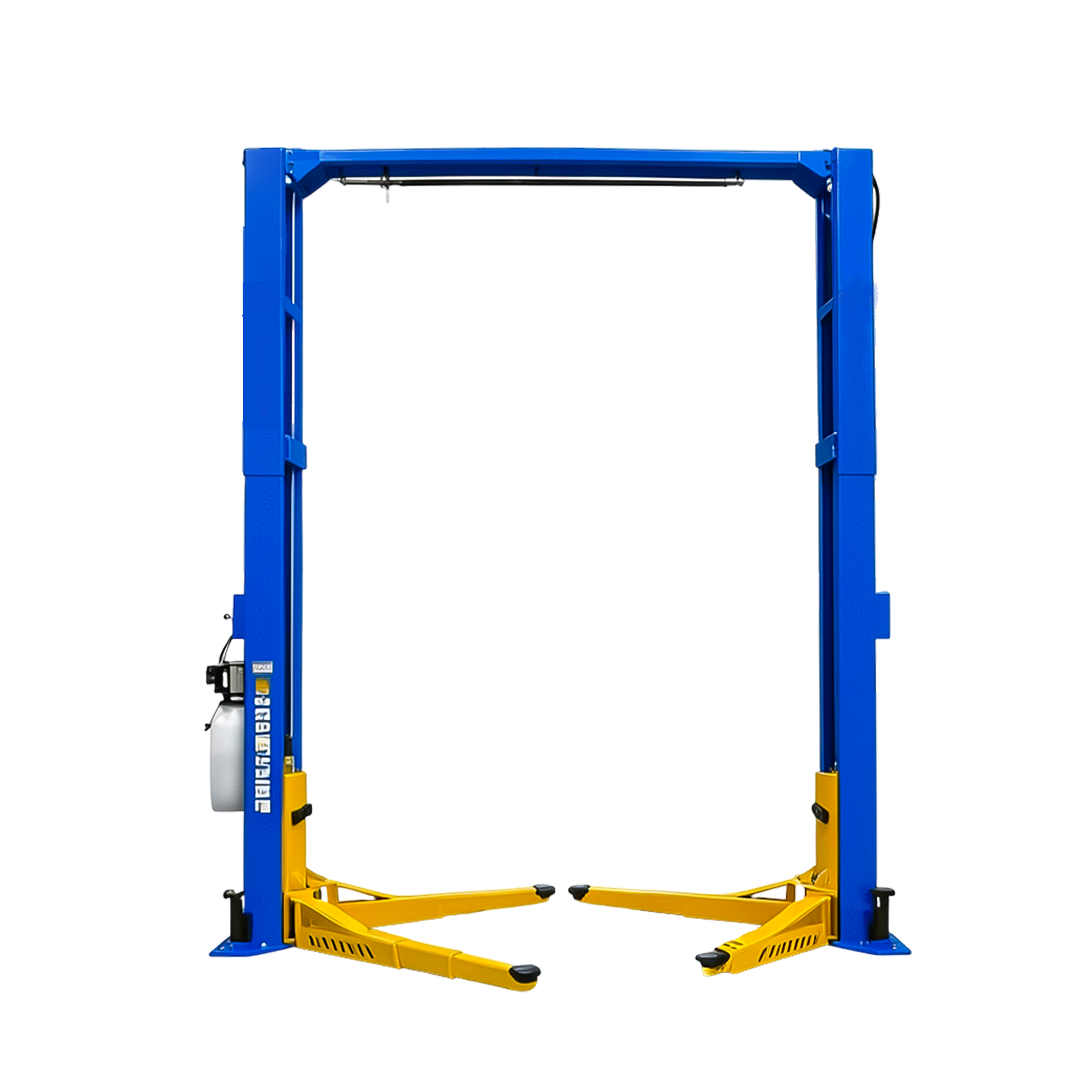

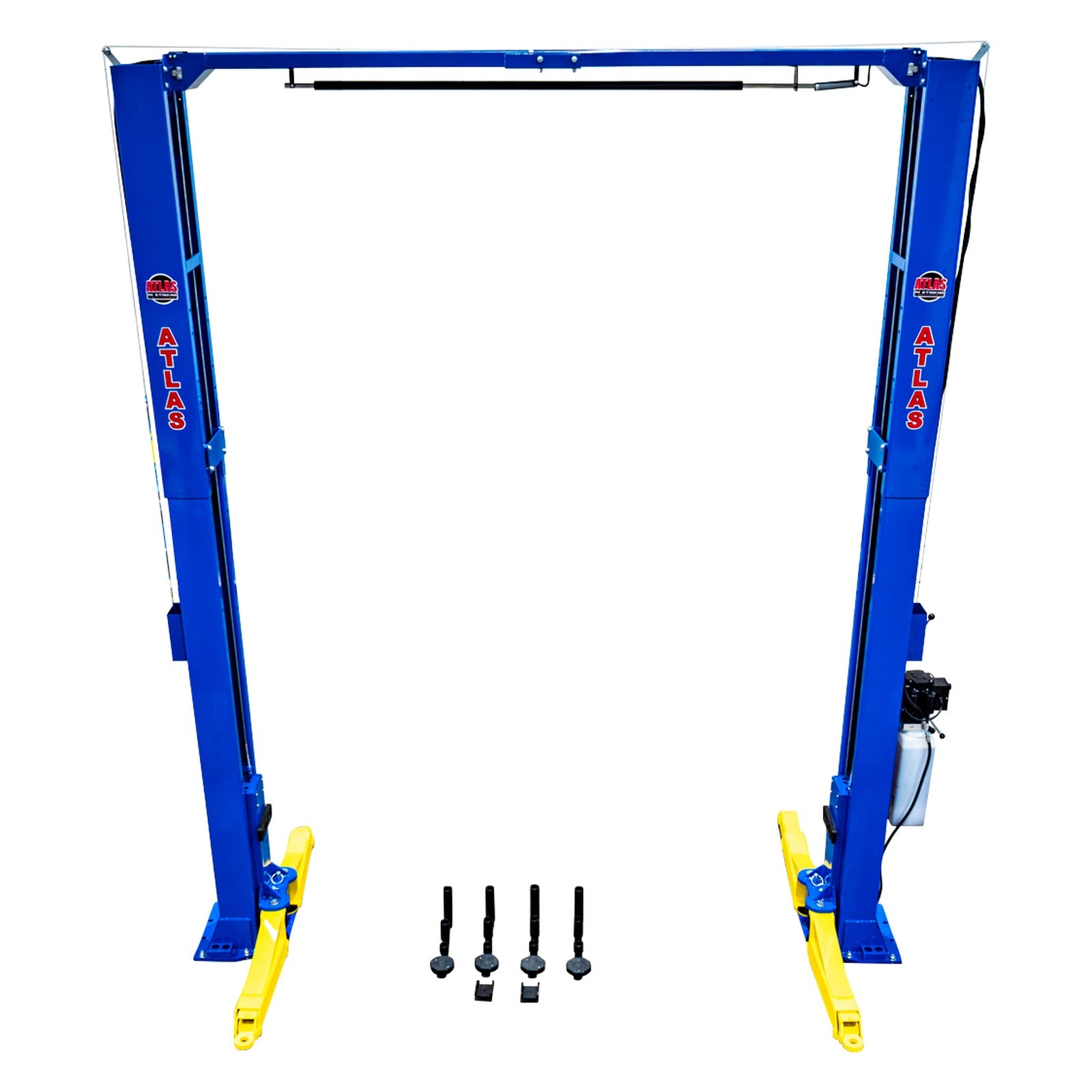

The Atlas Platinum PVL12 is an ALI Certified two post commercial grade 12,000 lb. capacity Heavy-Duty lift designed with the professional shop in mind. The low pad height allows this lift to accommodate both long wheel base trucks and passenger cars. The extra distance between the columns accommodates wider vehicles or vehicles with wide rearview mirrors. The extra height is perfect for tall vans and box trucks. The Platinum PVL12 is also ALI certified and backed by one of the industry's best warranties for an added peace of mind. The Atlas Platinum PVL12 features a premium ALLY power unit which is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.
- ALI certified lift
- 12,000 lb lifting capacity
- Heavy-duty commercial-grade construction
- Extra-tall and extra-wide design
- Adjustable height configuration
- 3-stage symmetric lifting arms
- Automatic arm restraint system
- Padded overhead shut-off bar
- Thick rubber door guards on carriages
- Single-point lock release
- Direct-drive hydraulic cylinders
- Durable powder-coated finish

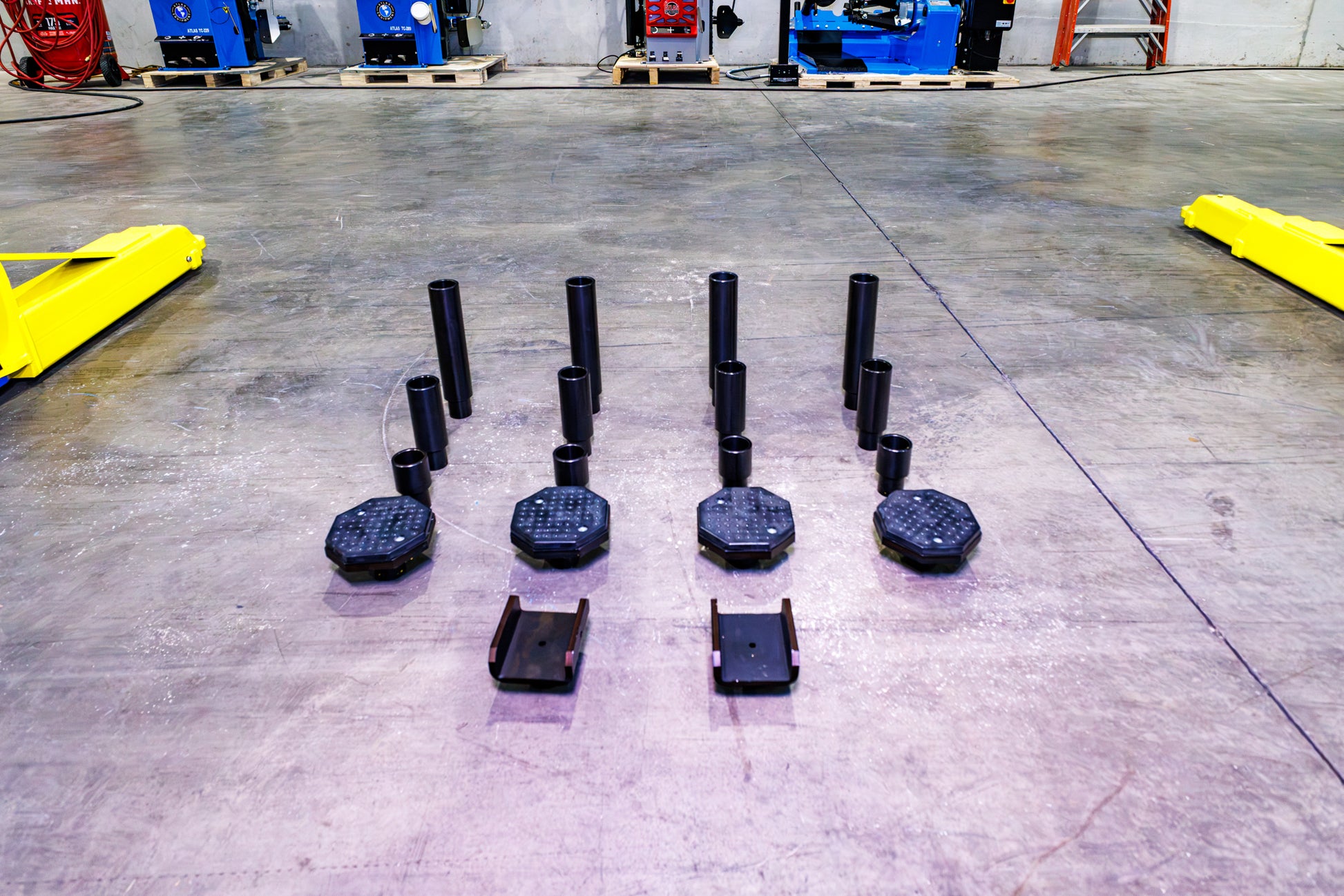

- 8-piece truck adapter set included
- Mounting hardware included
- Premium ALLY power unit included
- Shipping weight: 2,425 lbs.
- 5-year structural warranty
- 2-year hydraulic warranty
- 2-year power unit warranty
Capacity & Dimensions
| Capacity | 12,000 lbs. |
| Overall Height | 165" (13' 9") or 177" (14' 9") |
| Overall Floor Width | 150 3/8" (12' 6 3/8") |
| Outside Column to Outside Column | 139 1/8" (11' 7 1/8") |
| Maximum Lift Height (Without Adapters) | 73 5/8" |
| Maximum Lift Height (With Adapters) | 85 1/2" |
| Minimum Arm Height | 4 1/2" |
| Shipping Weight | 2,425 lbs. |
Column & Clearance
| Inside Column Width | 122 5/8" (10' 2 5/8") |
| Drive Thru Width | 109 1/2" (9' 1 1/2") |
| Column Size | 7 1/2" x 14 1/2" |
| Base of Lift | 17 1/2" x 20 1/2" |
Power & Installation
| Motor / Electrical Requirement | 220 Volt Single Phase (30 AMP Breaker Recommended) |
| Oil Requirement | 3-5 Gallons AW32/AW46 (Not Included) |
| Adapter Heights | 4 Each 4.5", 8.5" |
| Arm Hole / Adapter Peg Size | 1.57" |
| Concrete Requirement | Minimum 6" Thick, 3000 PSI Concrete |
