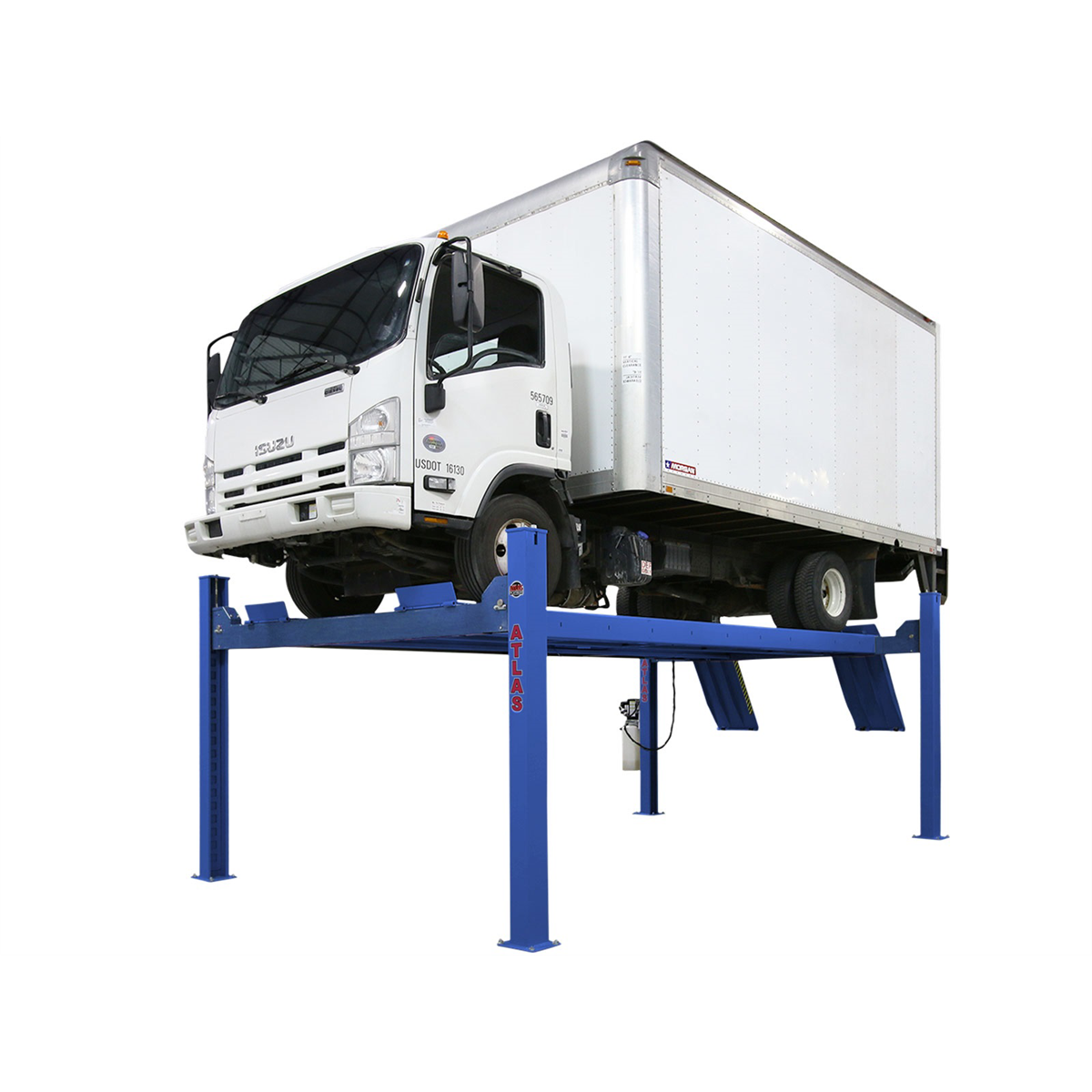

Atlas PVL14 14,000 lb ALI Certified 4-Post Lift

Atlas PVL14 14,000 lb ALI Certified 4-Post Lift

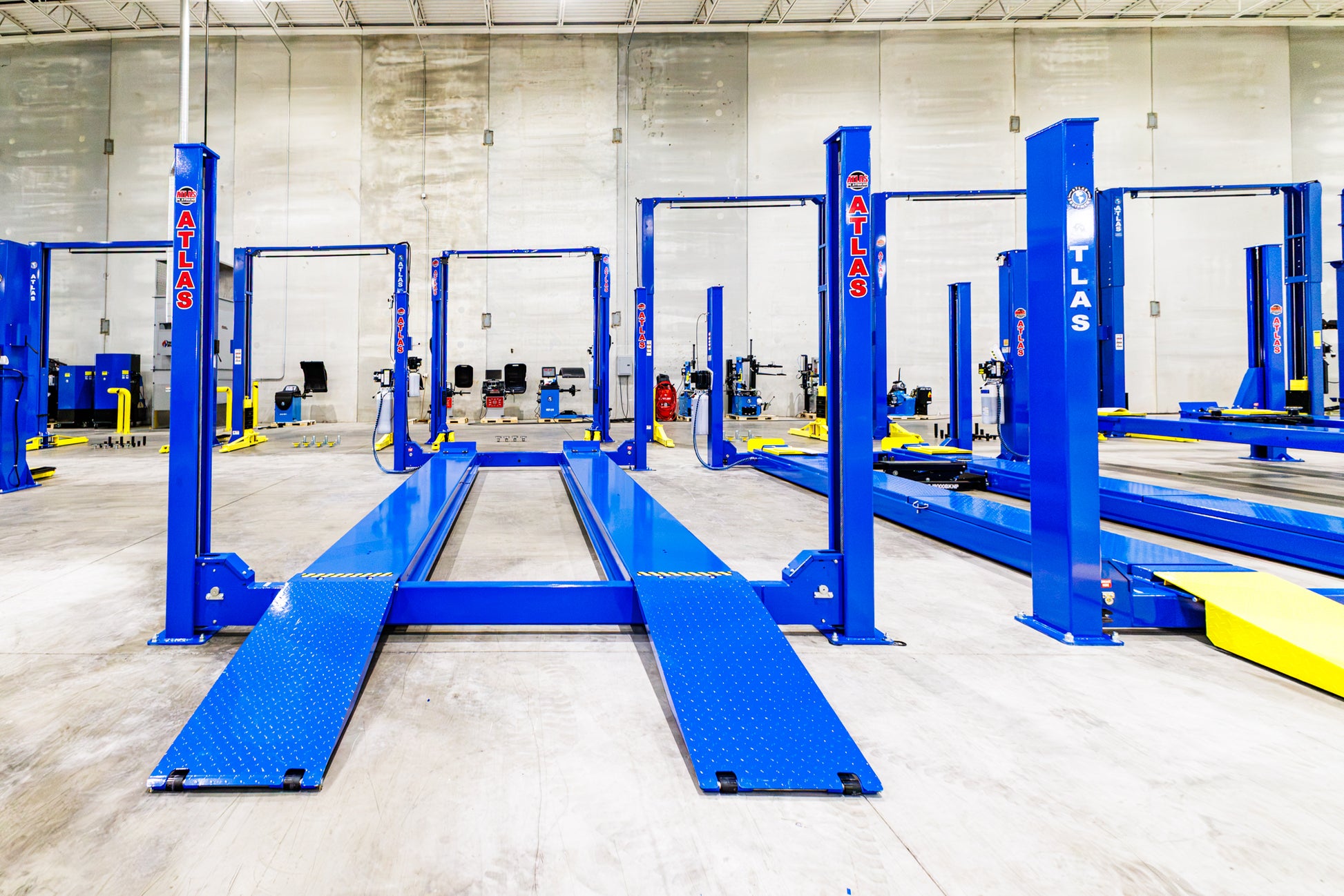

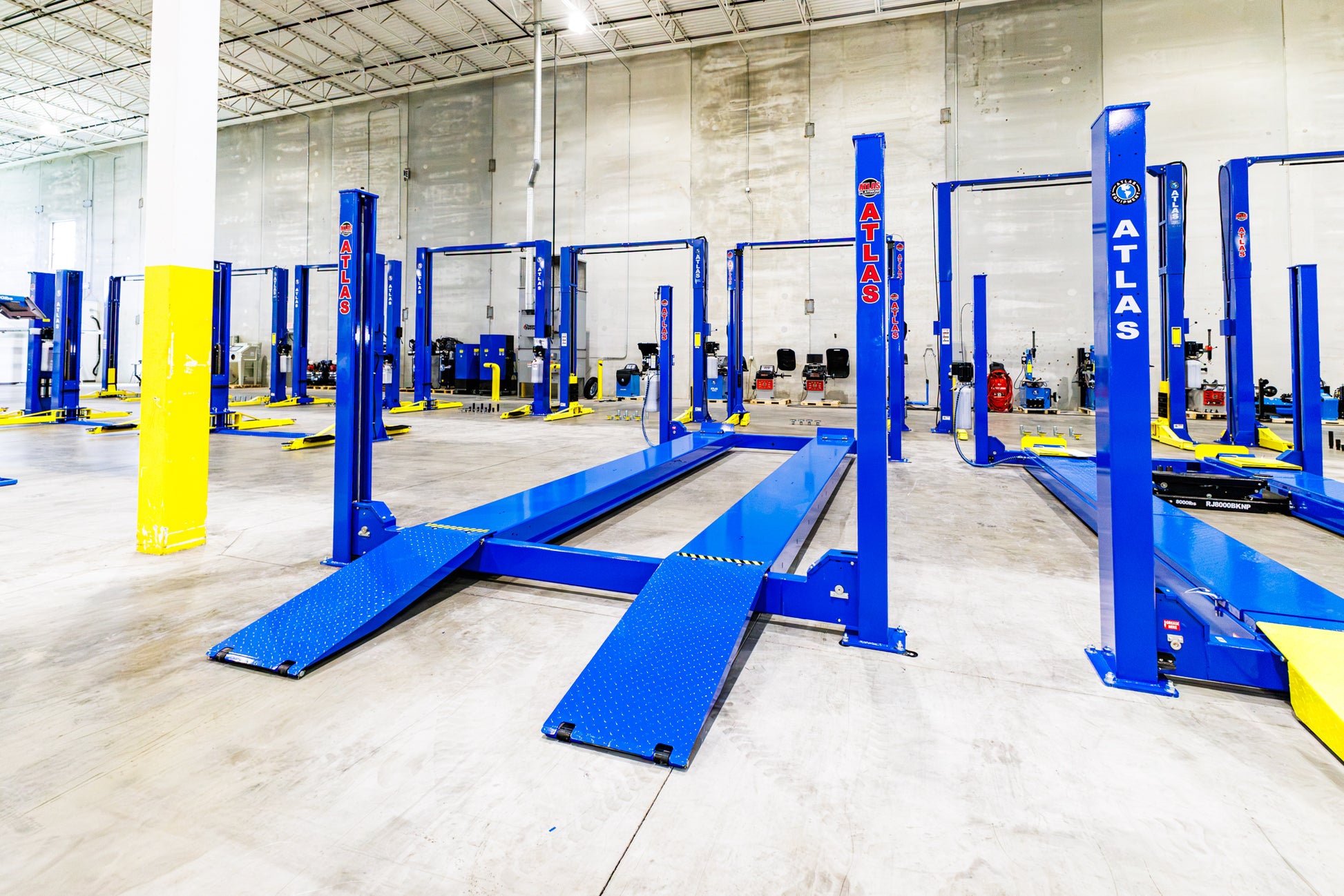

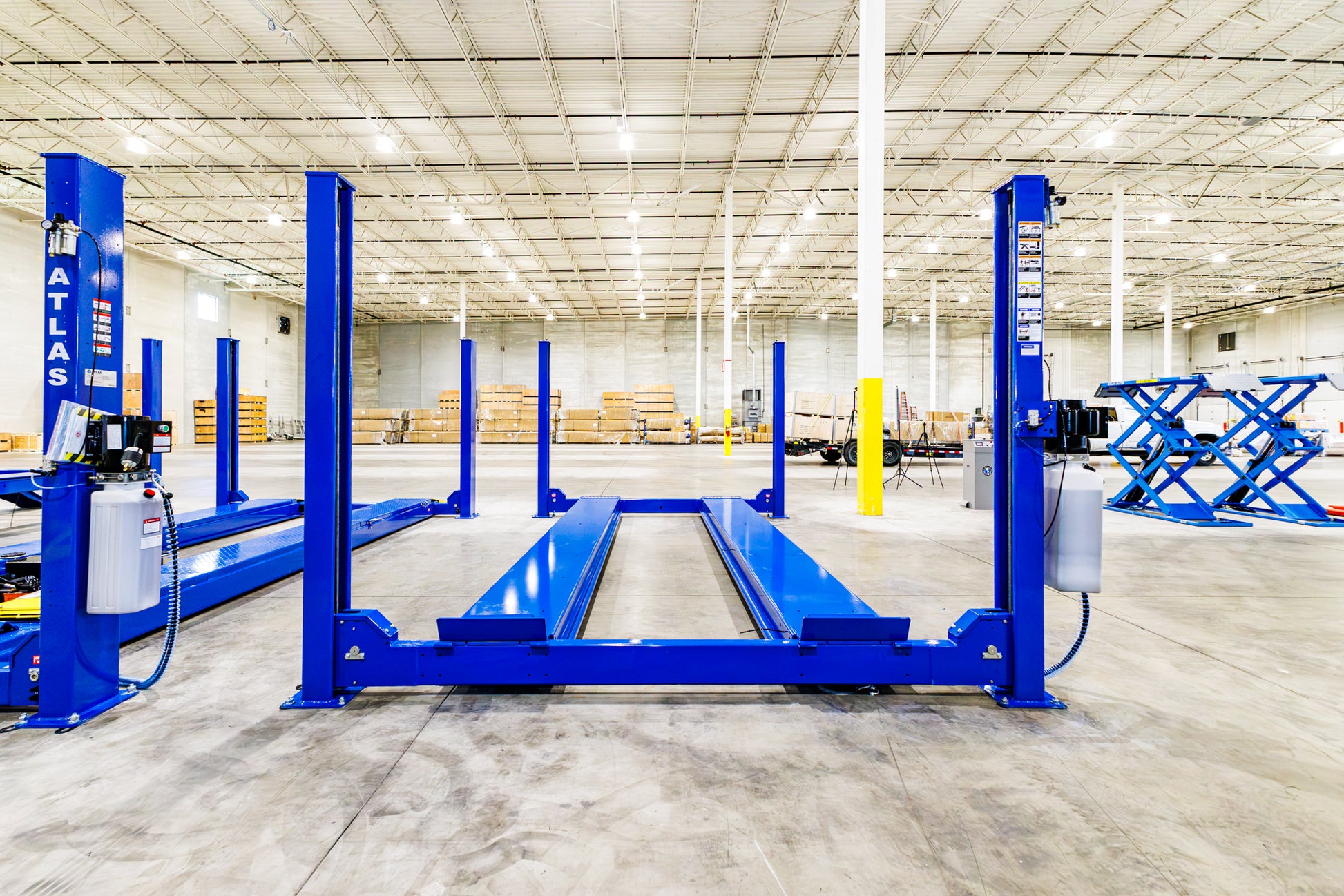

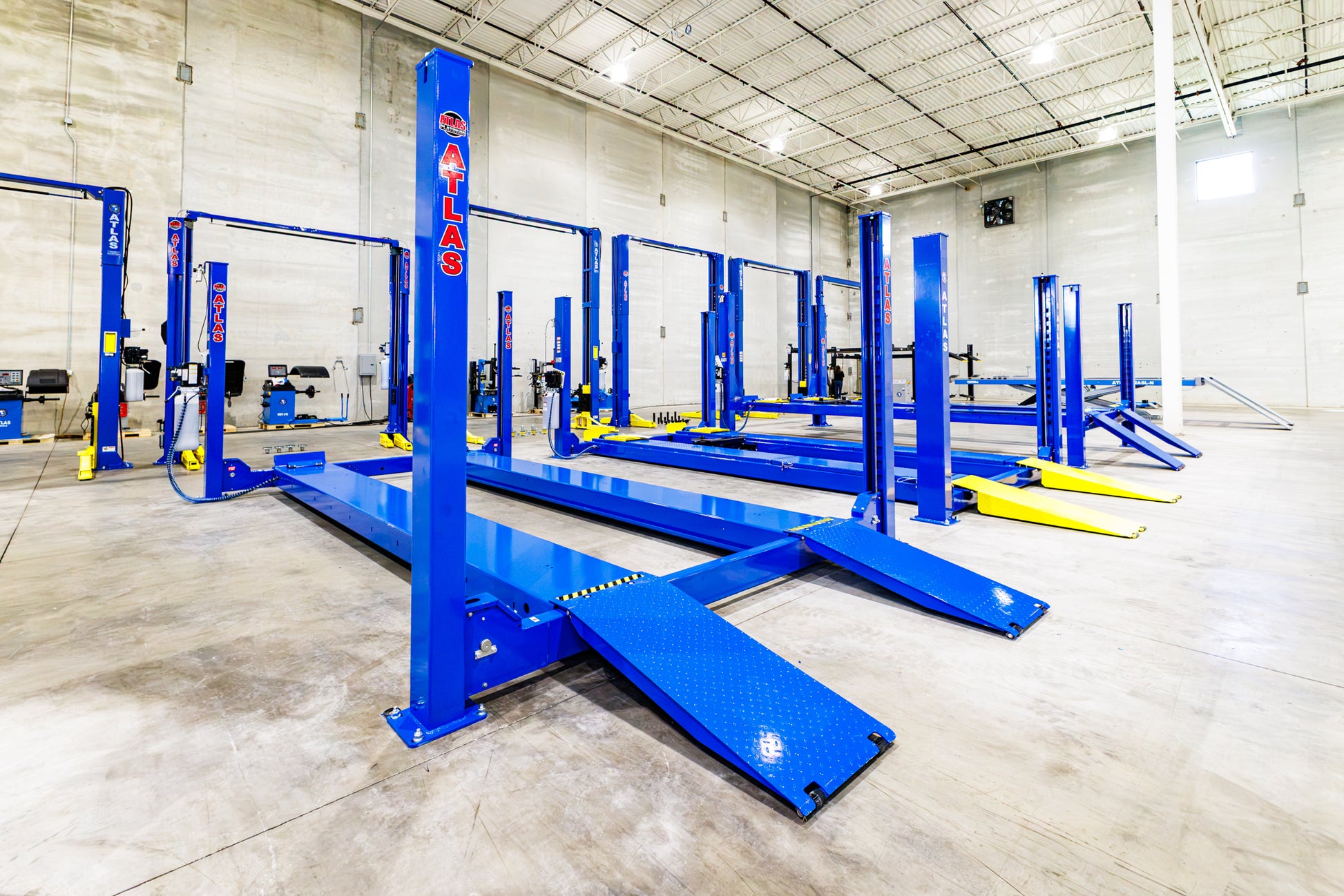

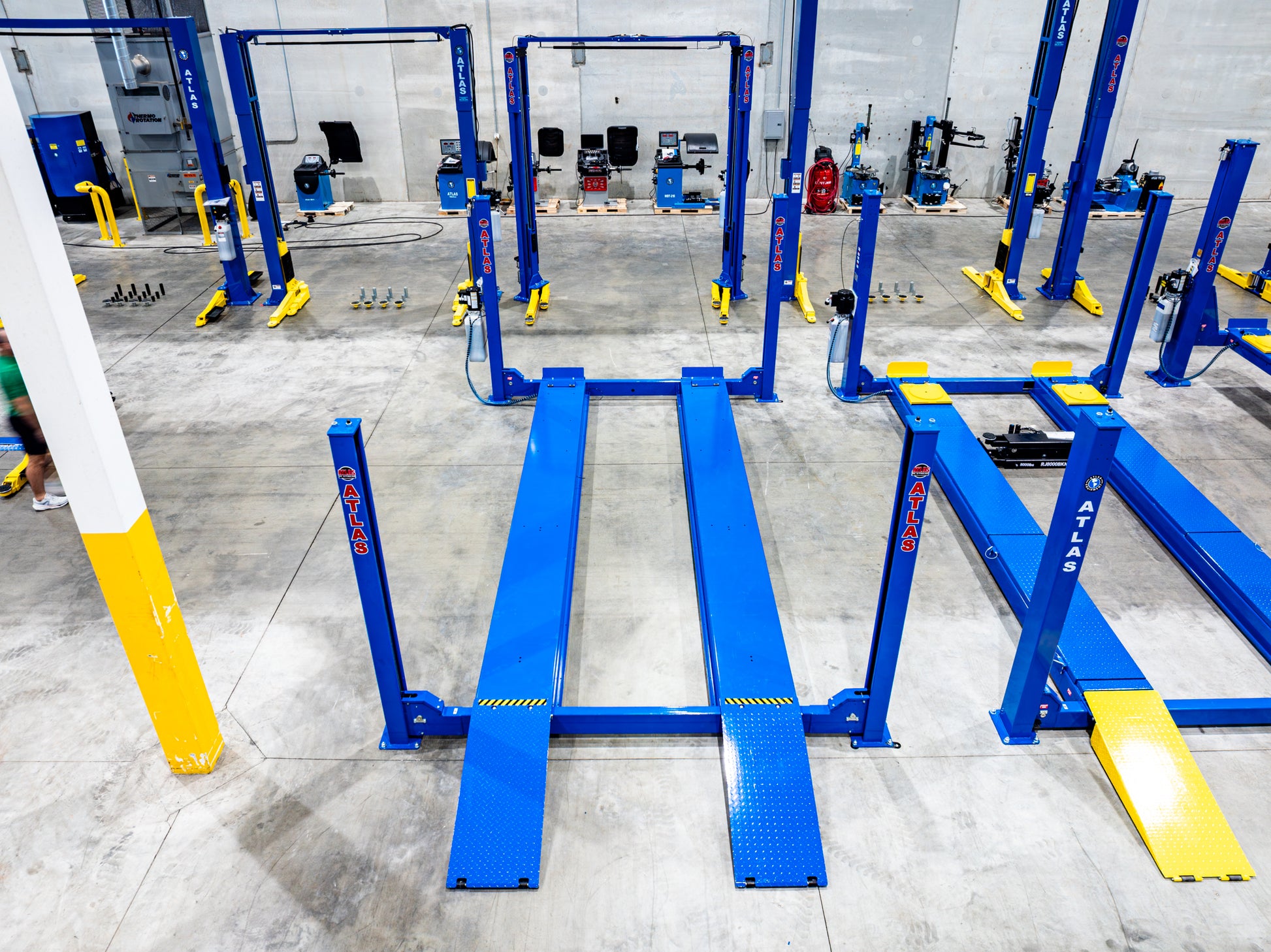

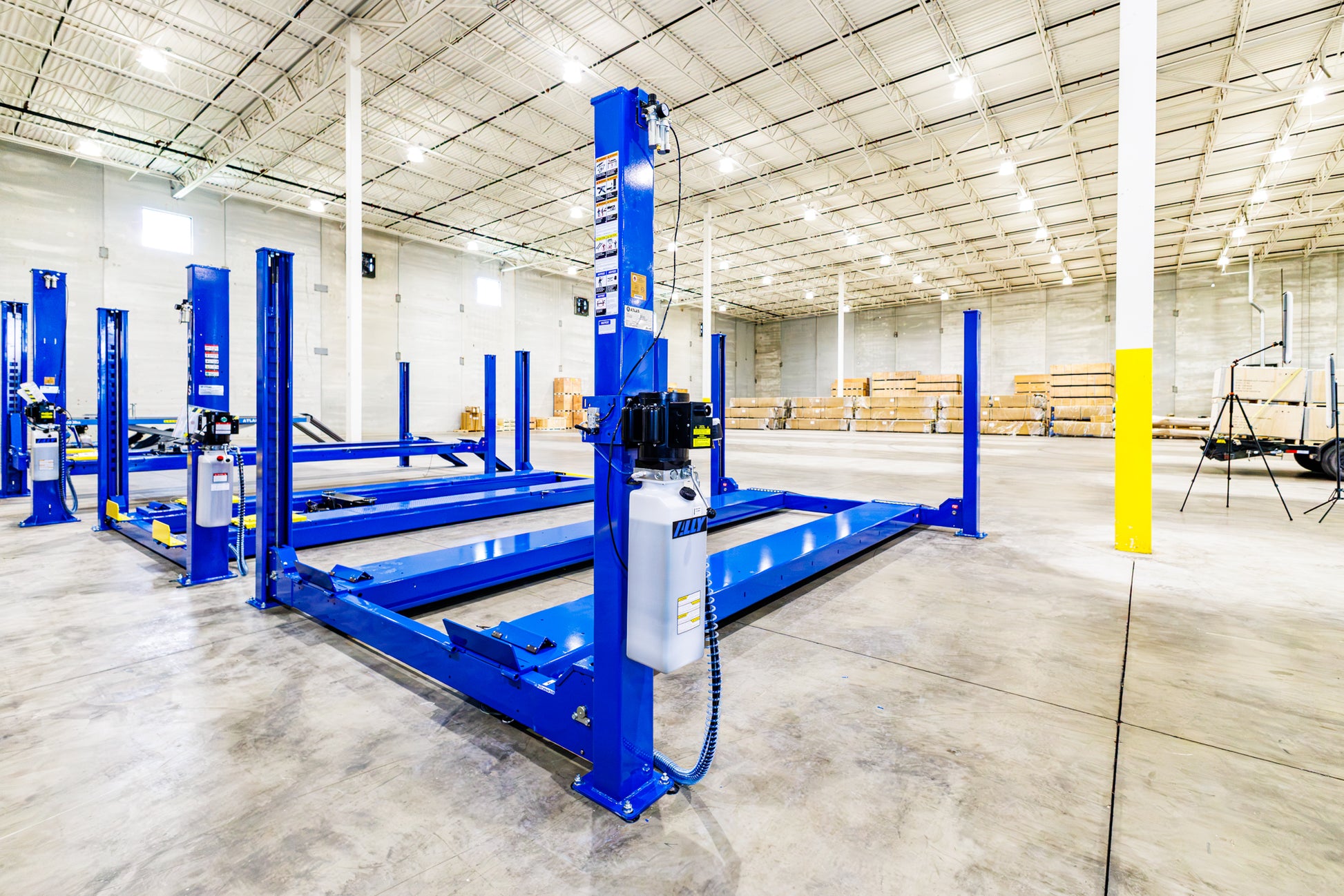

Lifts on display in the Truman showroom in Daleville, Indiana
Daleville, Indiana showroom

The largest Atlas display in the country

See this lift and the rest of the Atlas lineup set up side by side. Watch them run, compare models in person, and take yours home the same day.

  • Atlas lifts, tire changers and wheel balancers on display
  • Same-day pickup. We load it onto your truck or trailer.
  • Open Mon to Fri 8 to 5, Sat 8 to noon

ALI certified 14,000 lb. 4-post lift with a heavy-duty commercial design for trucks, vans, and fleet service.

Regular price $8,299
Sale price $8,299 Regular price
IN STOCK

SKU: ATEAP-PVL14

Talk to an expert before you buy Questions on fit, ceiling height or install? We'll help you pick the right one.
Choose how you get your order

On display in our Indiana showroom. See it run, then take it home today. We'll load it for you. Open Mon–Sat.

Quantity
See it in Person
We also offer Nationwide Shipping — shipping cost calculated at checkout.
We also offer Nationwide Shipping

shipping cost calculated at checkout.

Why buy from Truman

View full details

Why This Lift

  • ALI certifiedBuilt to industry safety standards
  • 14,000 lb. capacityHeavy trucks, vans, and fleet vehicles
  • Drive-on designWide runways, no arms to set
  • Rolling jack readyPairs with the Atlas RJ7000

Explore this lift

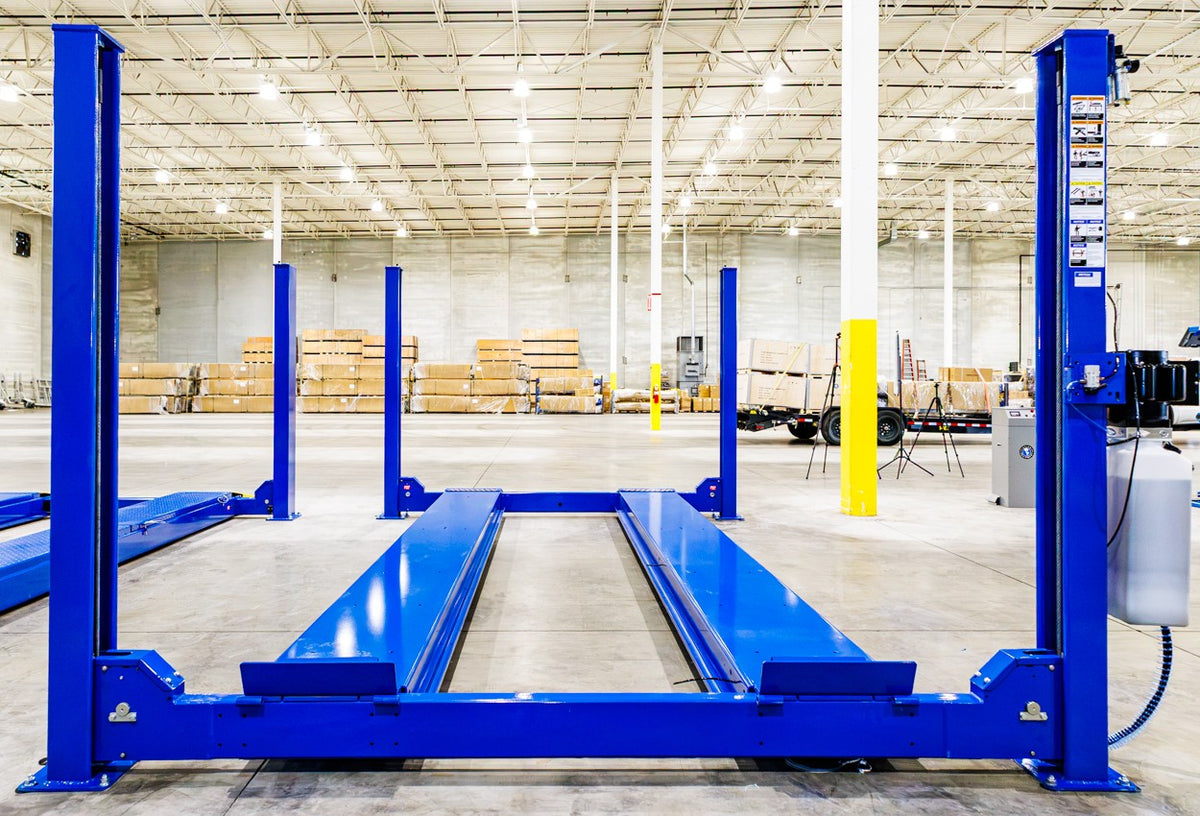

Explore the Atlas PVL14

Tap a number to see what each part does.

Atlas PVL14 14,000 lb ALI Certified 4-Post Lift See it in personIndiana showroom 94.5" drive-thru

Product Description

The Atlas Platinum PVL14 is a four post commercial grade Heavy-Duty lift designed with the professional shop in mind. This lift can accommodate a variety of cars, vans, SUVs, trucks, and even some light & medium duty commercial vehicles. The Platinum PVL14 uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an "old style" chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to "level" properly and the exposed hydraulic cylinder is responsible for numerous "door dings". The Atlas Platinum PVL14 features "tracks" between the runways to allow the use of a rolling bridge jack (recommended is the Atlas Platinum RJ7000 ) on the lift. Rolling jacks sold separately. The Atlas Platinum PVL14 is also ALI certified and backed by one of the industry's best warranties for an added peace of mind. This product features an ALLY Hydraulic AL2650 power unit. This premium power unit is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.

Specs and Dimensions

Capacity
14,000 lbs.
Lifting Height
76 1/2 in.
Overall Length With Approach Ramp
251 1/2 in.
Runway Length
205 1/2 in.
Runway Width
20 in.
Maximum Wheel Base
195 in.
Shipping Weight
2,800 lbs.
Overall Width (Without Motor)
131 3/4 in.
Overall Width (With Motor)
140 1/2 in.
Width Between Runways
42 3/4 in.
Outside Runway Width
83 1/8 in.
Clearance Under Runways
69 1/2 in.
Clearance Between Columns
116 3/8 in.
Drive Thru Width
94 1/2 in.
Motor Requirement
220 Volt Single Phase (30 AMP Breaker Recommended)
Air Requirement
85-115 PSI External Air Supply Required
Oil Requirement
3-5 Gallons AW32/AW46 (Not Included)
Power Unit
Premium ALLY AL2650 Power Unit
Concrete Requirement
Minimum 6 in. Thick, 3000 PSI Concrete

Bridge Jacks That Fit This Lift

Add a bridge jack to lift the wheels free for tire, brake, and suspension work.

Not sure which jack you need? Call 765-544-3838
