Key Highlights

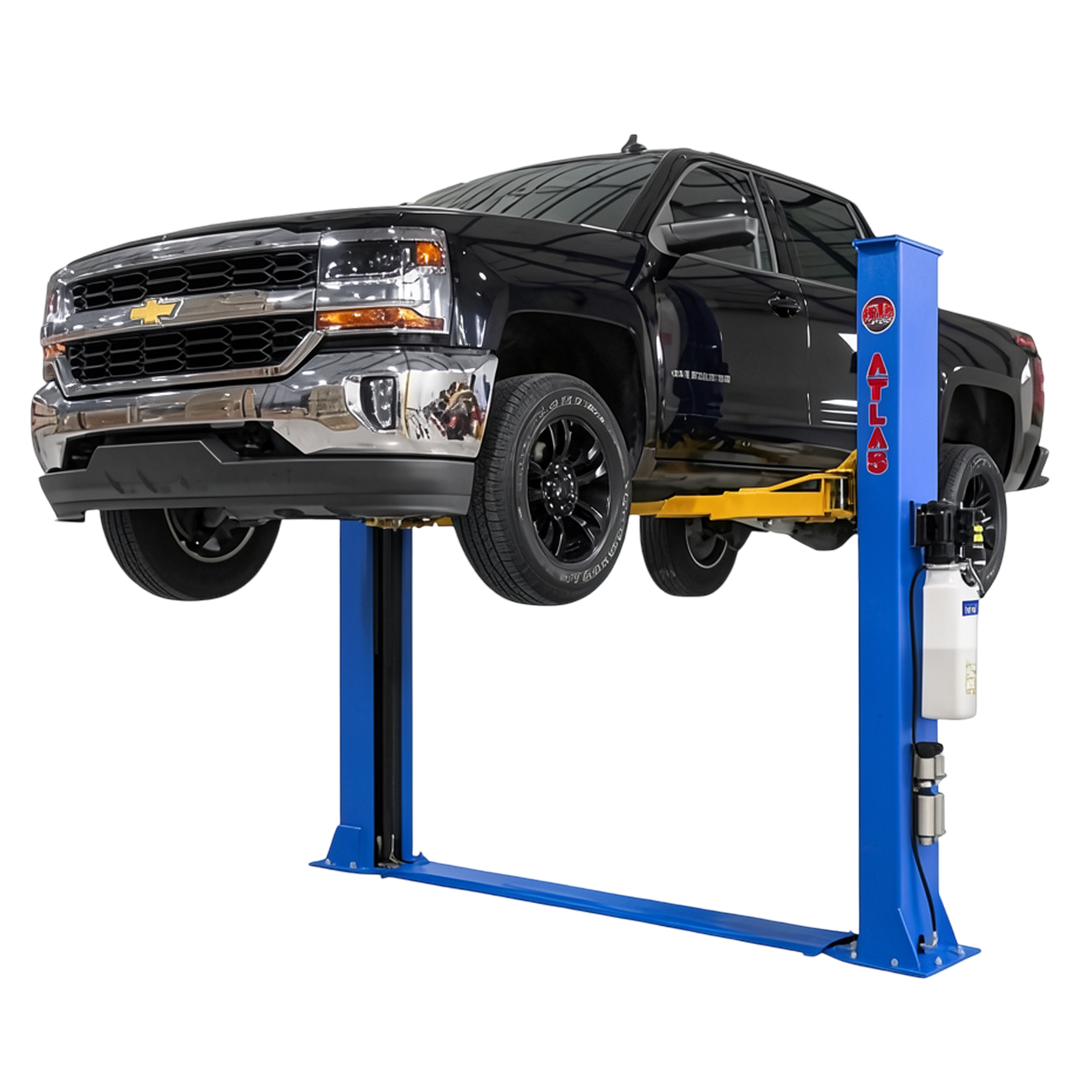

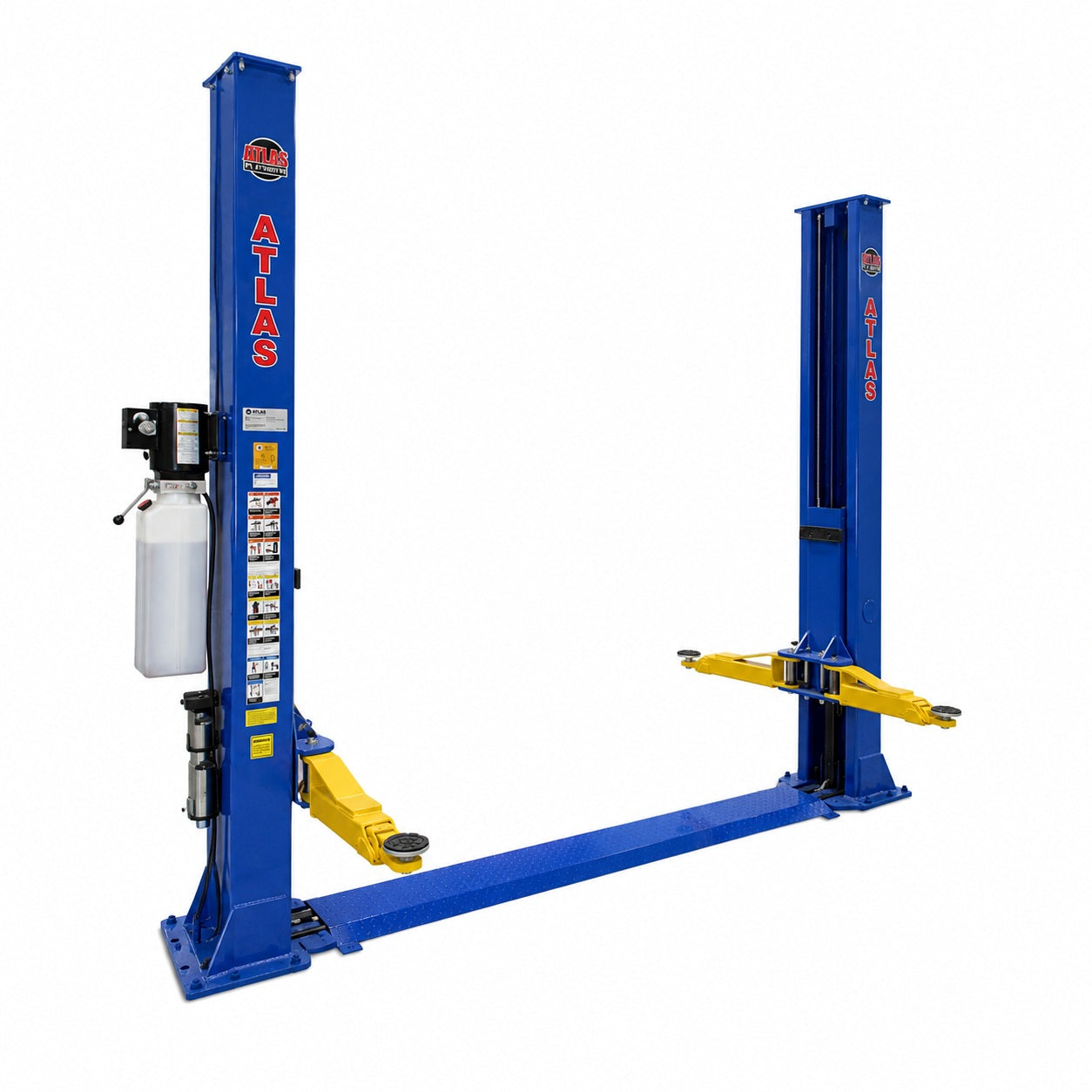

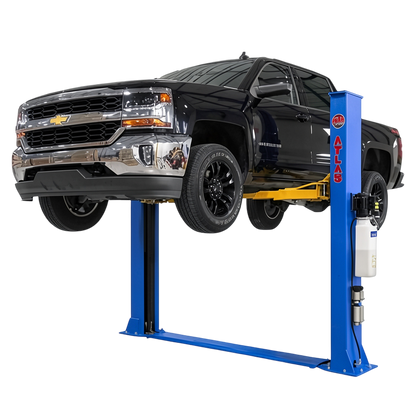

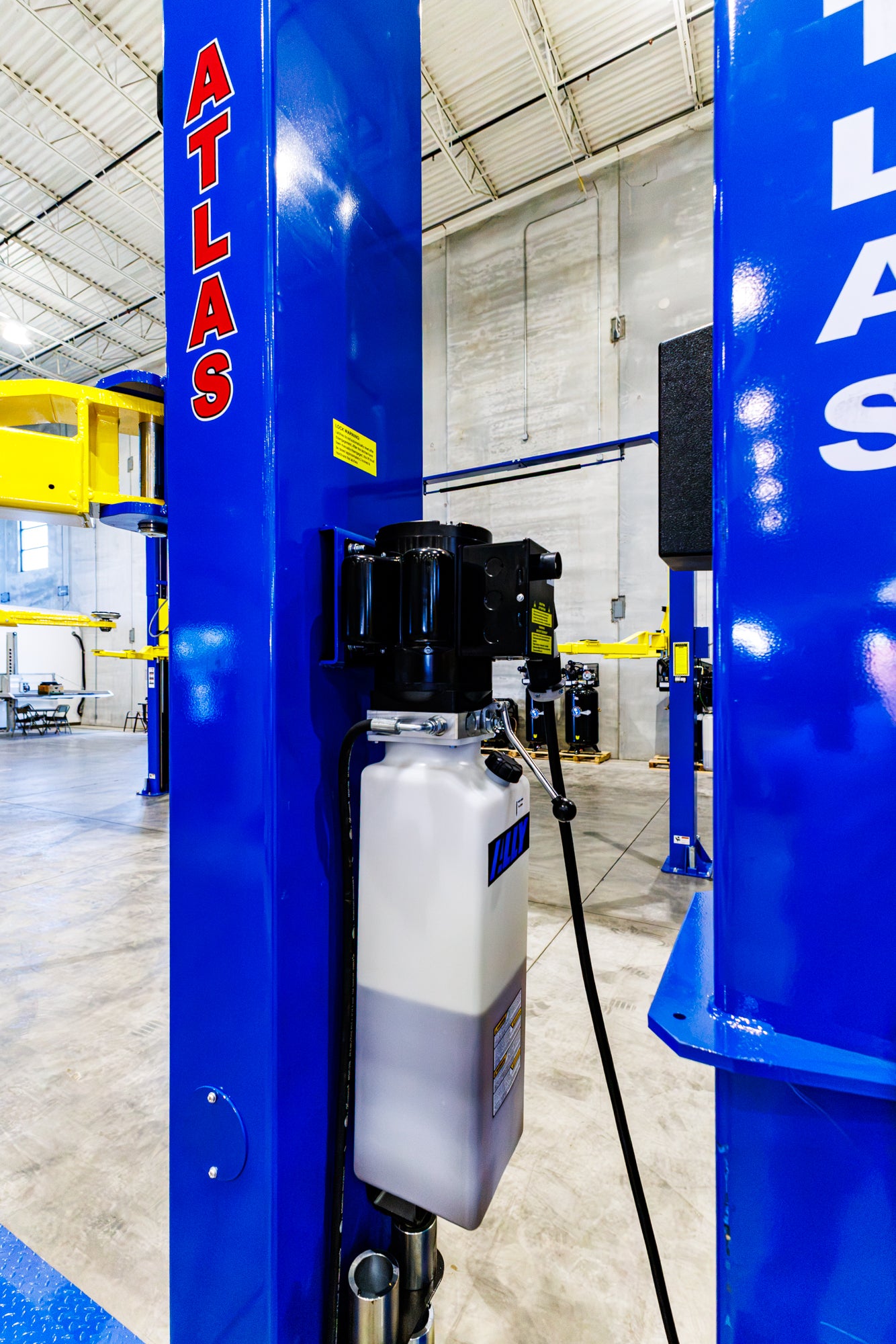

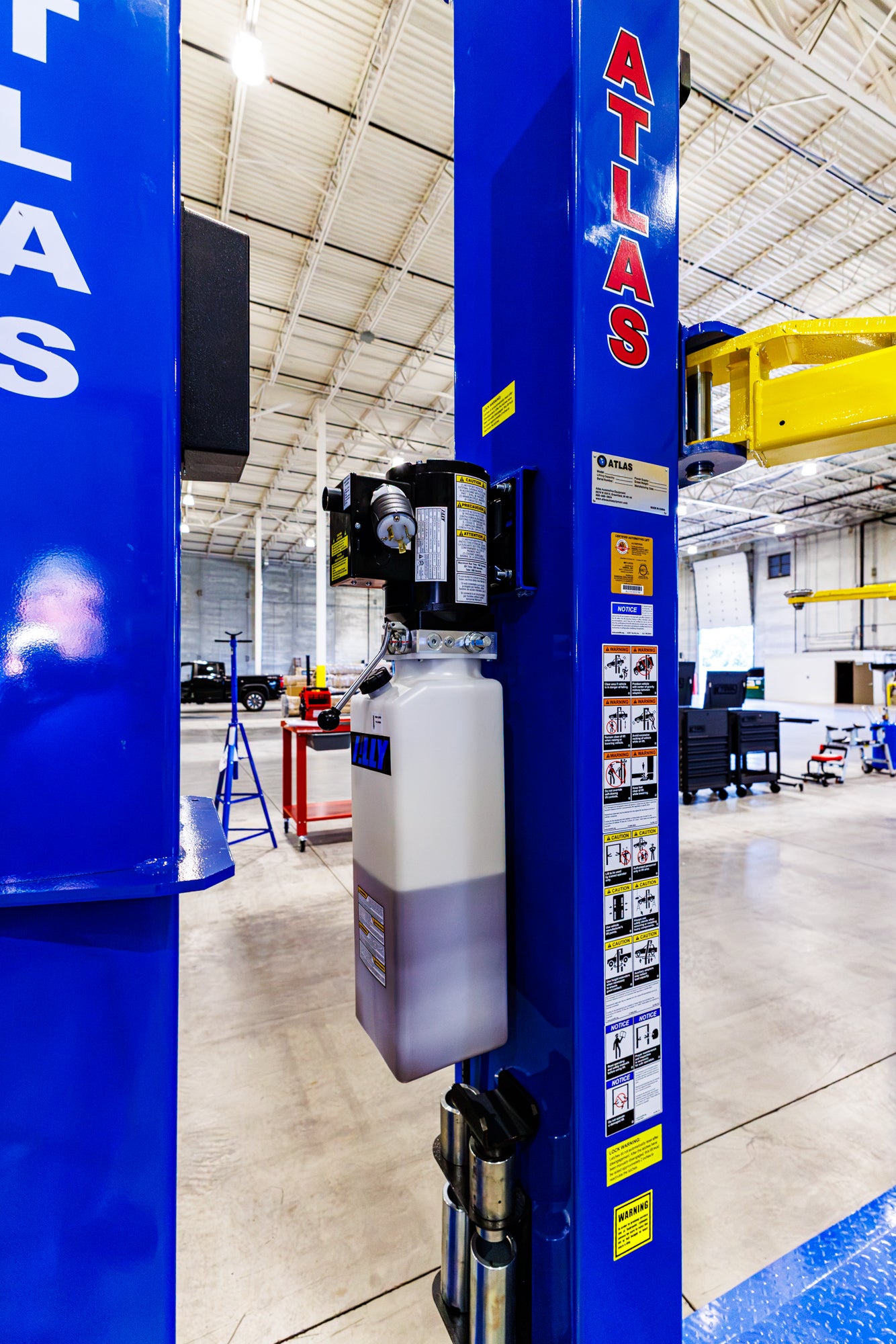

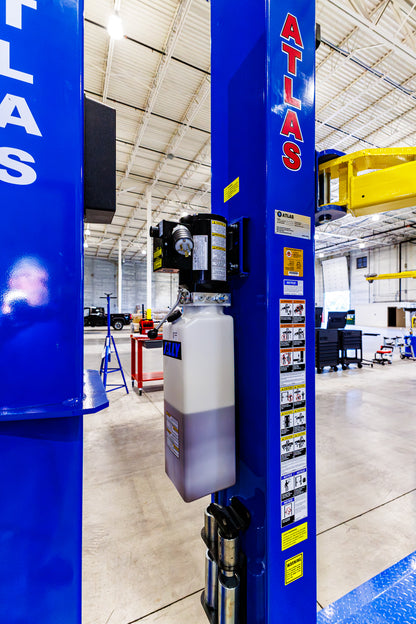

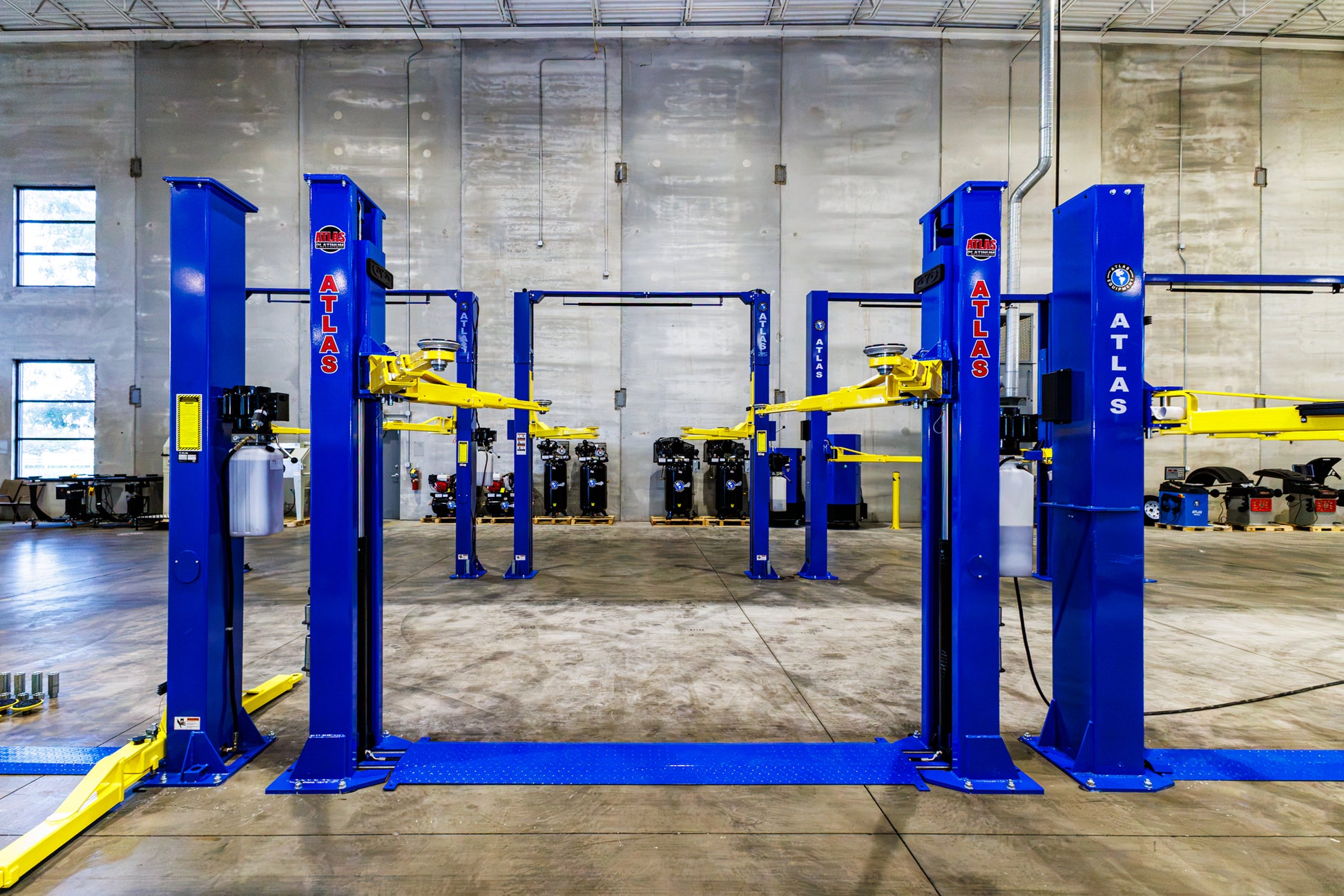

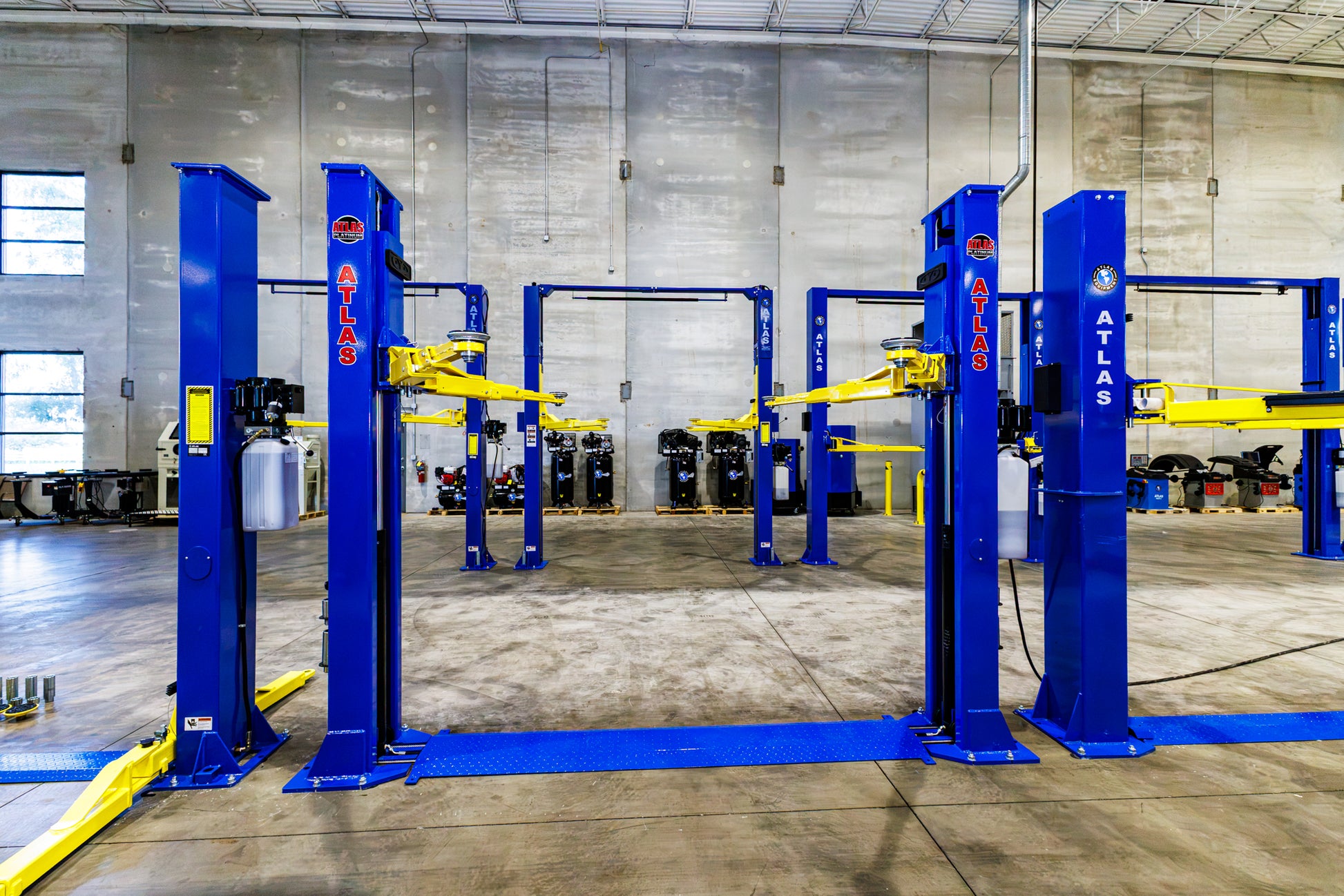

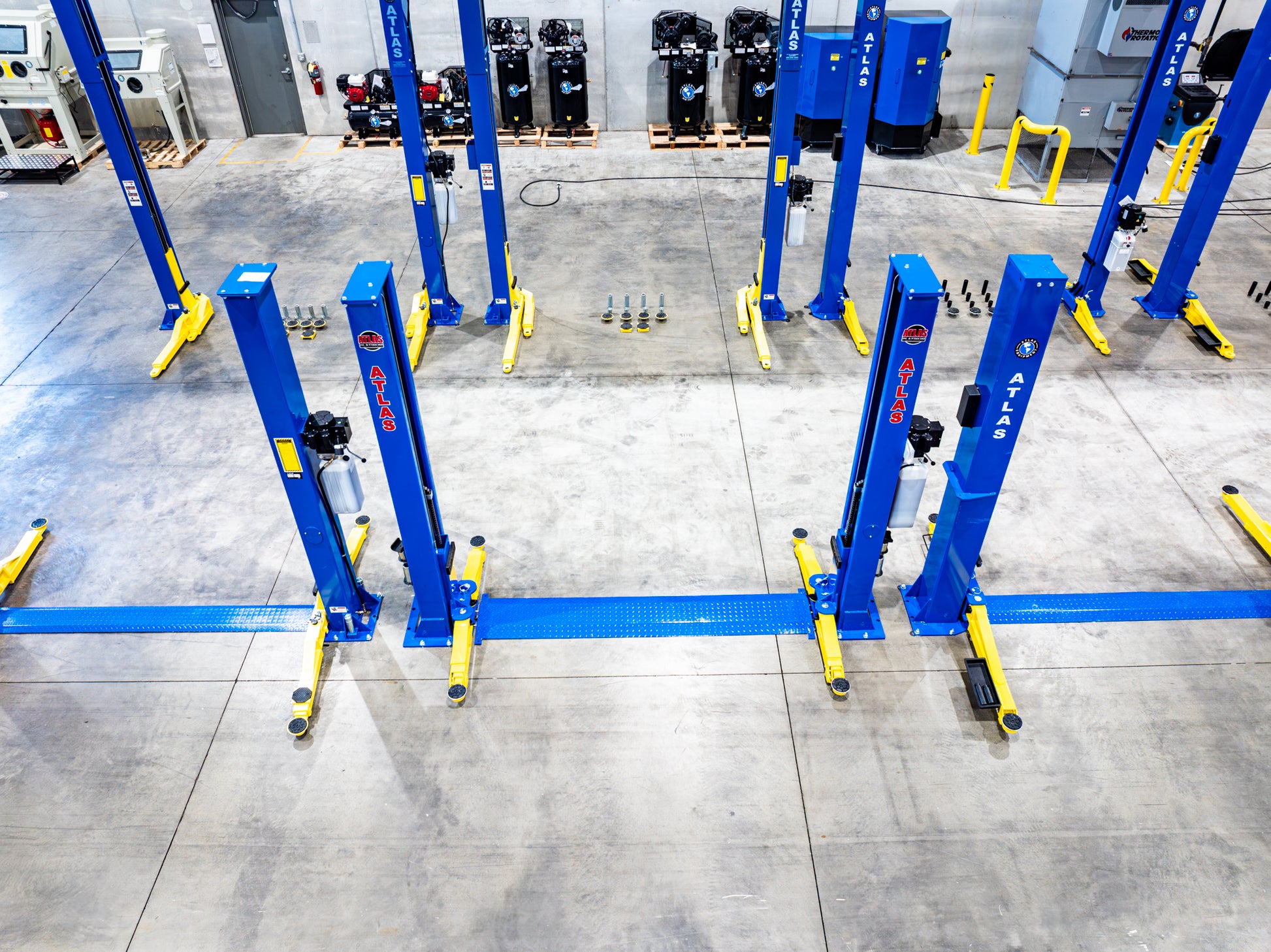

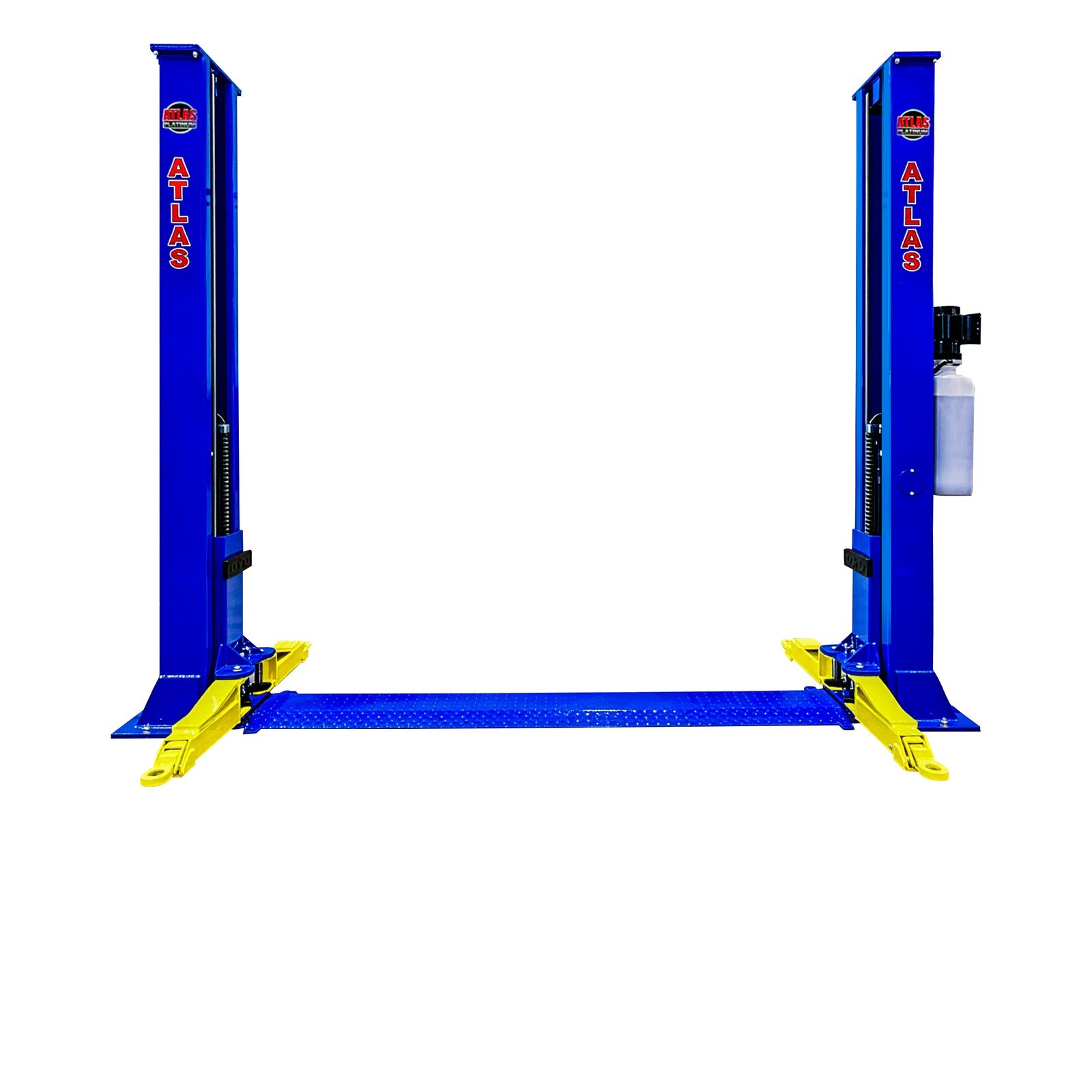

The Atlas Platinum PVL9BP is a 9000 LB capacity, base-plate two-post lift designed for professional service centers. The open-top design of this lift makes it ideal for garages with low ceilings or for customers who don't want to worry about the limitations of a top beam. The total column height is 111 1/8" (9? 3 1/8"). The Atlas Platinum PVL9BP can lift a range of the most common vehicles on the market, both foreign and domestic, while also having the capacity to handle both full-size pickups and commercial vehicles. The Atlas Platinum PVL9BP is ALI Certified and backed by one of the Industry's best warranties for an added piece of mind. The Atlas Platinum PVL9BP features a premium ALLY power unit which is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.
- ALI certified lift
- 9,000 lb lifting capacity
- Commercial-grade construction

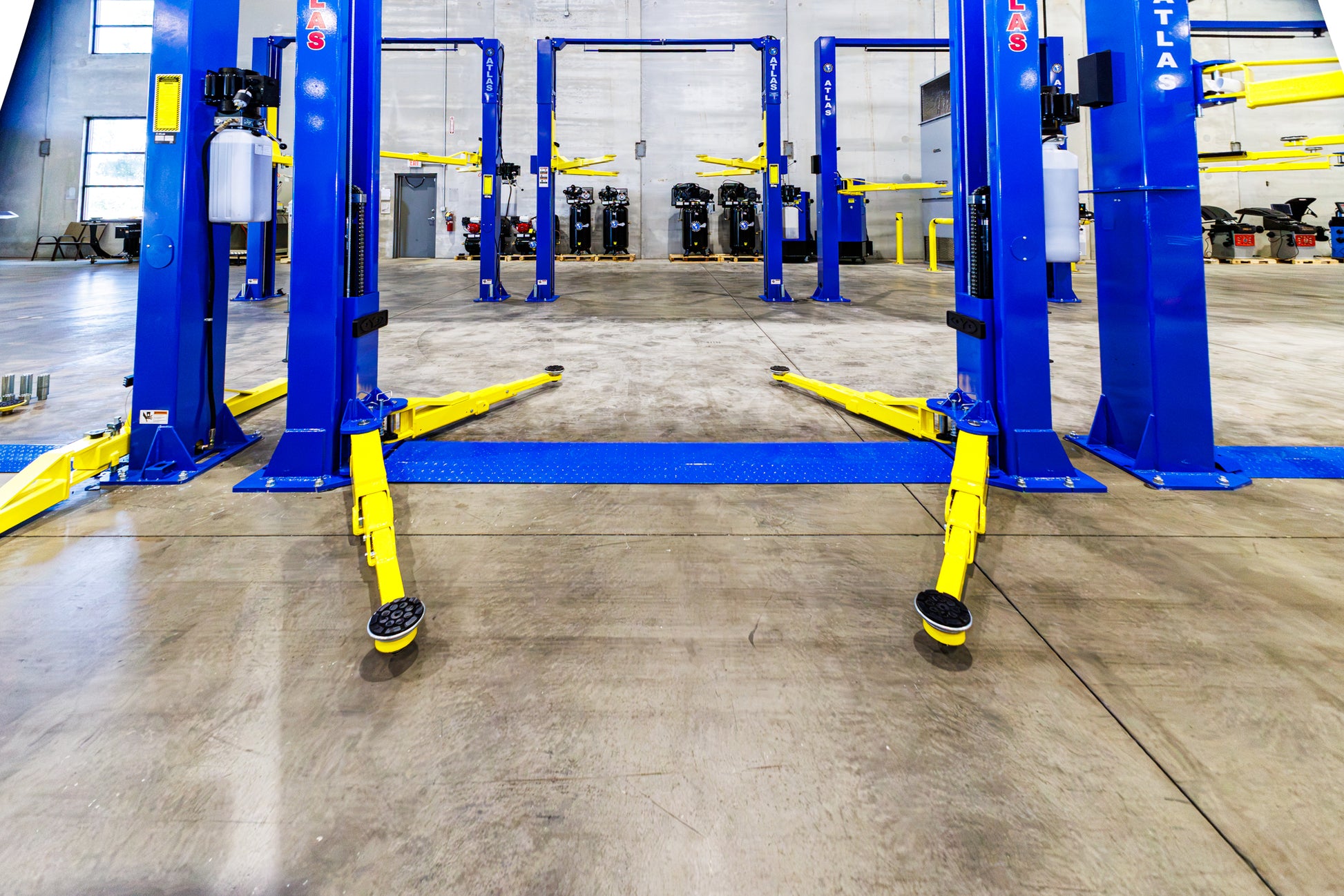

- 3-stage symmetric lifting arms

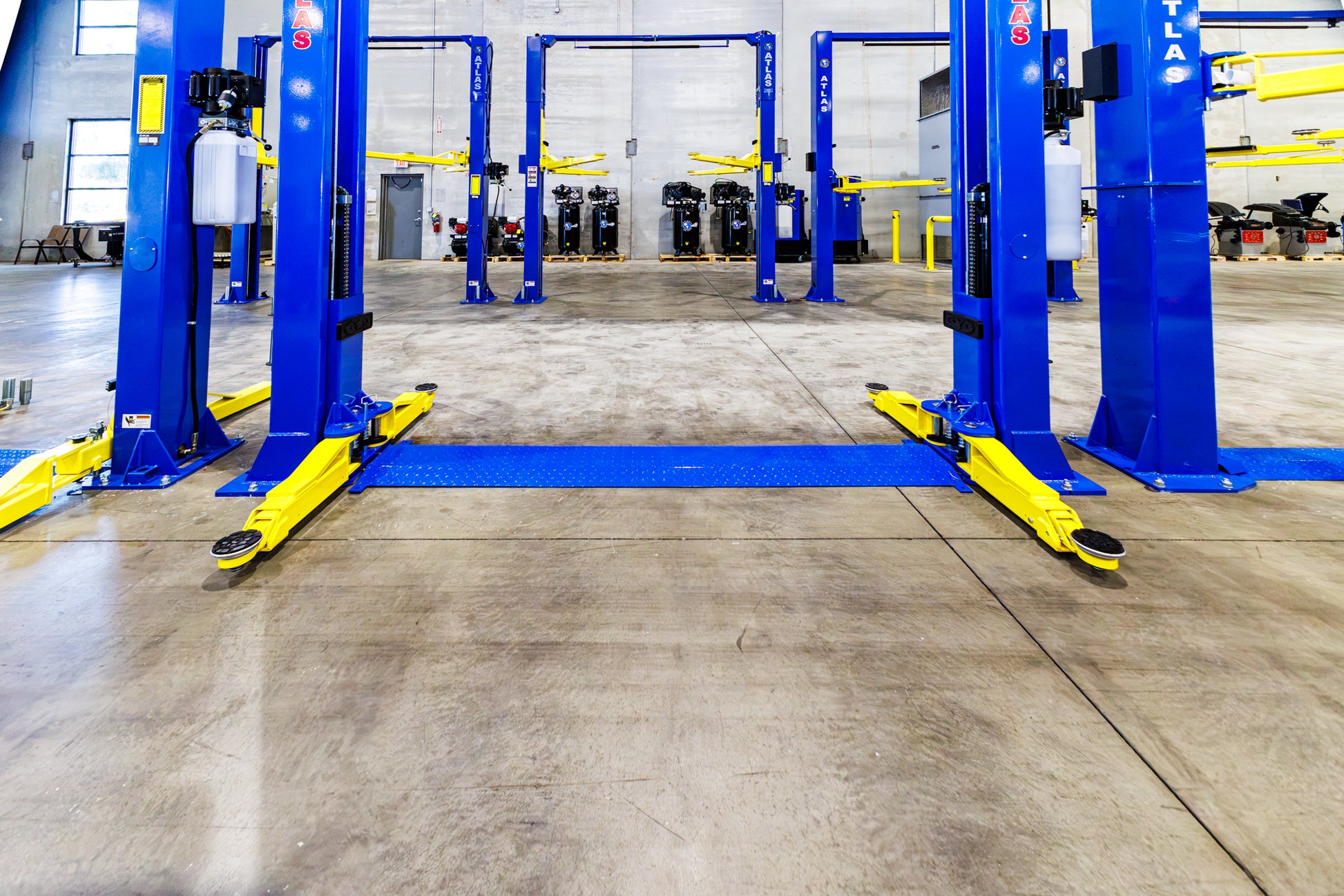

- Baseplate open-top design
- Designed for low-ceiling garages
- Dual hydraulic chain-drive cylinders
- Secondary Lock System (SLS)
- Automatic arm restraints
- Dual-point lock release
- Double screw-up adapters included

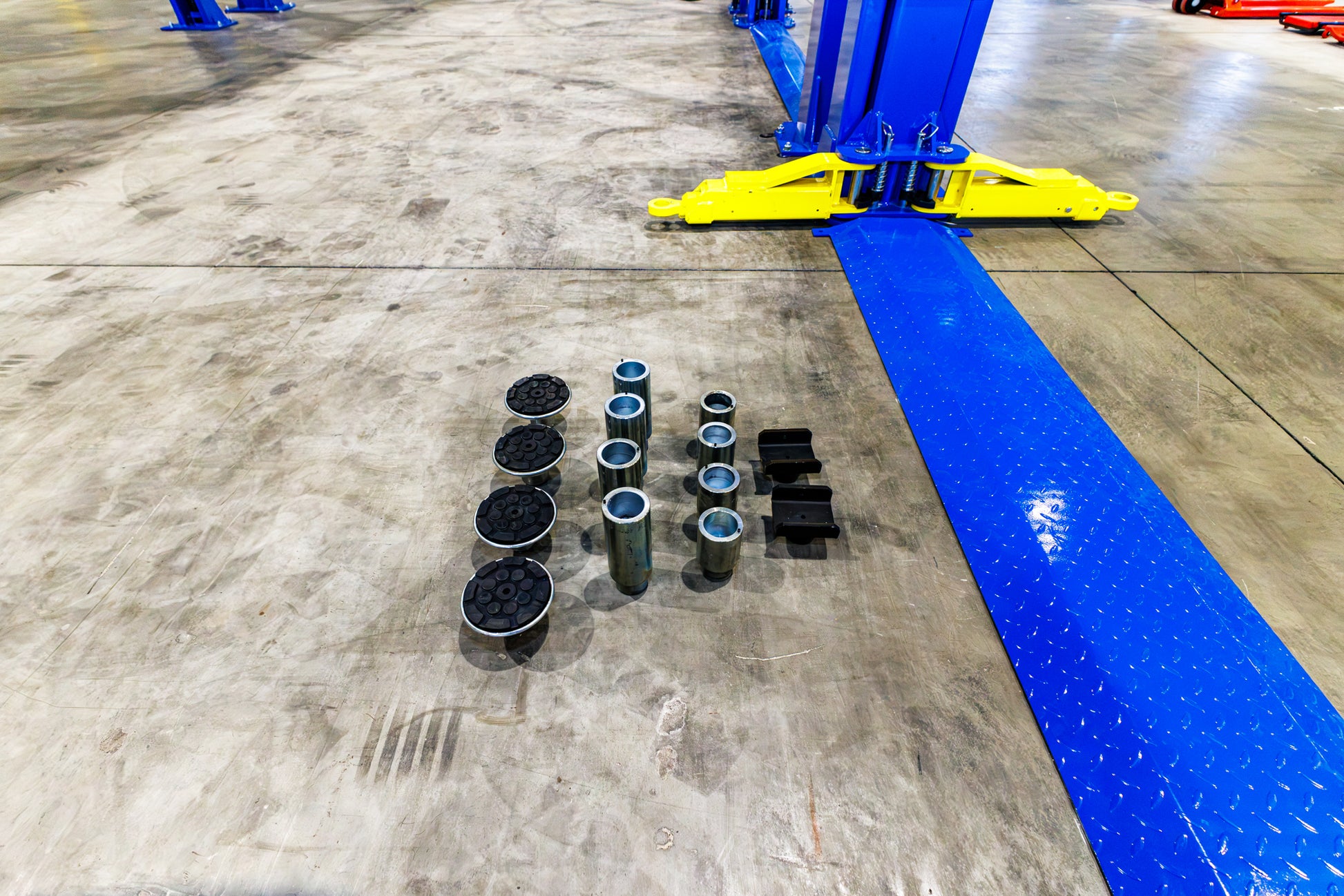

- 8-piece truck adapter set included
- Premium ALLY power unit included
- Mounting hardware included
- Shipping weight: 1,700 lbs.
- 5-year structural warranty
- 2-year hydraulic warranty
- 2-year power unit warranty

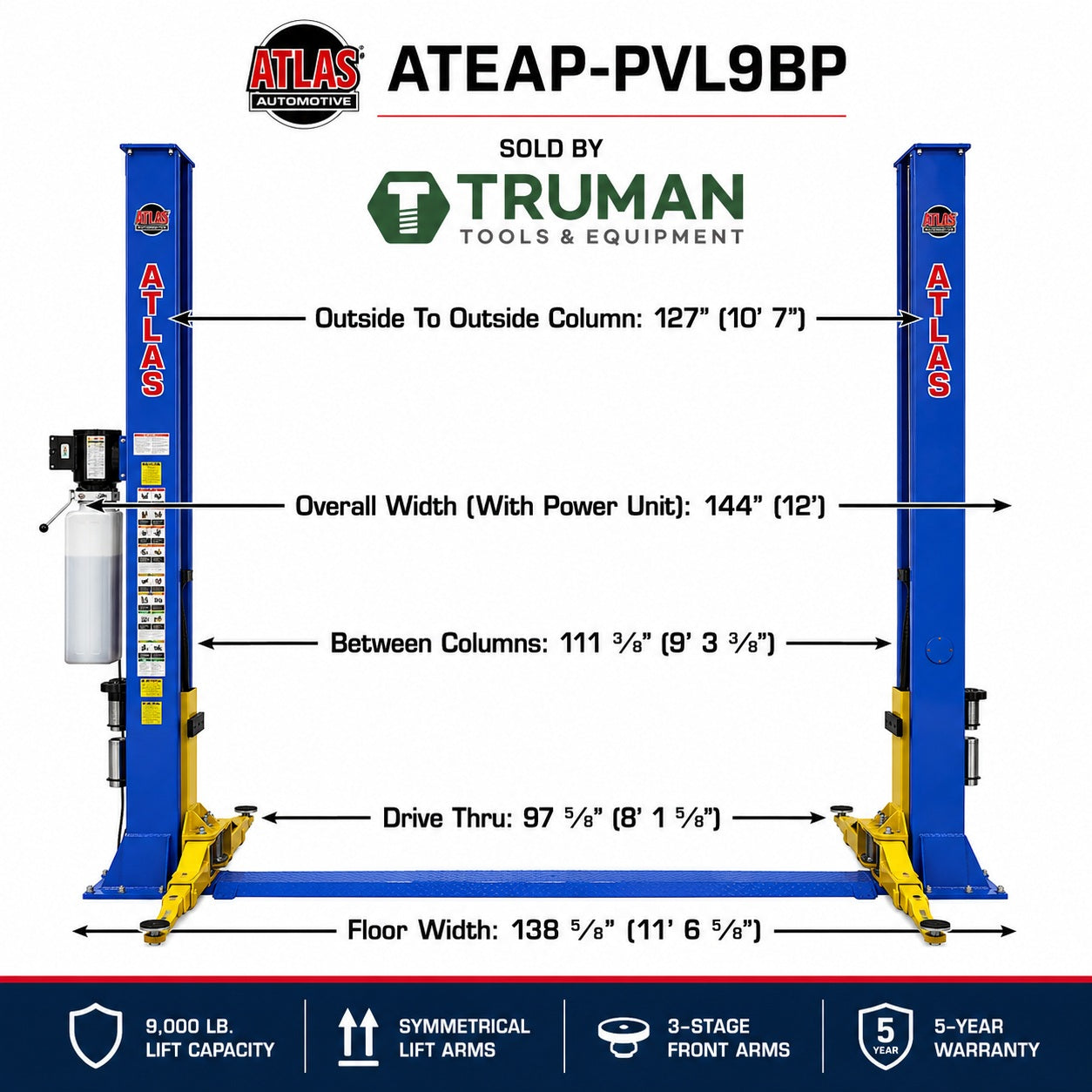

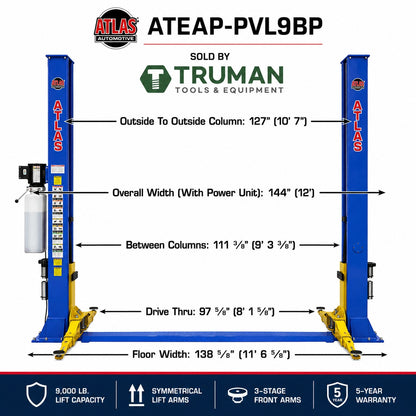

| Capacity | 9,000 lbs. |
| Overall Height | 111 1/8" (9' 3 1/8") |
| Overall Floor Width | 138 5/8" (11' 6 5/8") |
| Outside Column to Outside Column | 127 1/2" (10' 7 1/2") |
| Maximum Lift Height (Without Adapters) | 74 3/4" |
| Maximum Lift Height (With Adapters) | 83 3/4" |
| Minimum Arm Height | 4 1/2" |
| Shipping Weight | 1,700 lbs. |
| Inside Column Width | 111 3/8" (9' 3 3/8") |
| Drive Thru Width | 97 5/8" (8' 1 5/8") |
| Column Size | 7 5/8" x 14 1/4" |
| Base of Lift | 19 1/2" x 20 1/2" |
| Motor / Electrical Requirement | 220 Volt Single Phase (30 AMP Breaker Recommended) |
| Oil Requirement | 3-5 Gallons AW32/AW46 (Not Included) |
| Adapter Heights | 4 Each 3", 6" |
| Arm Hole / Adapter Peg Size | 2" |
| Concrete Requirement | Minimum 4" Thick, 3000 PSI Concrete |
