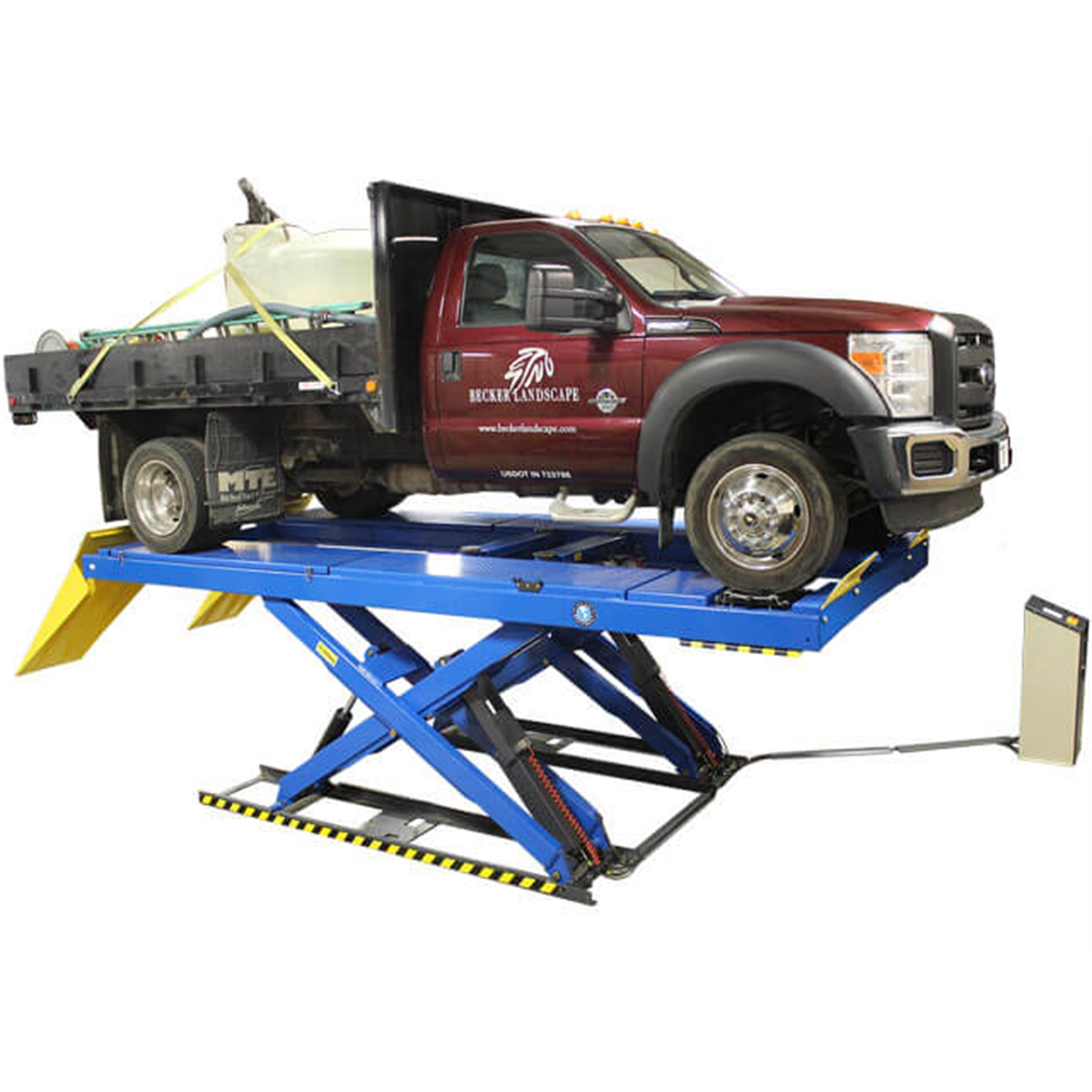

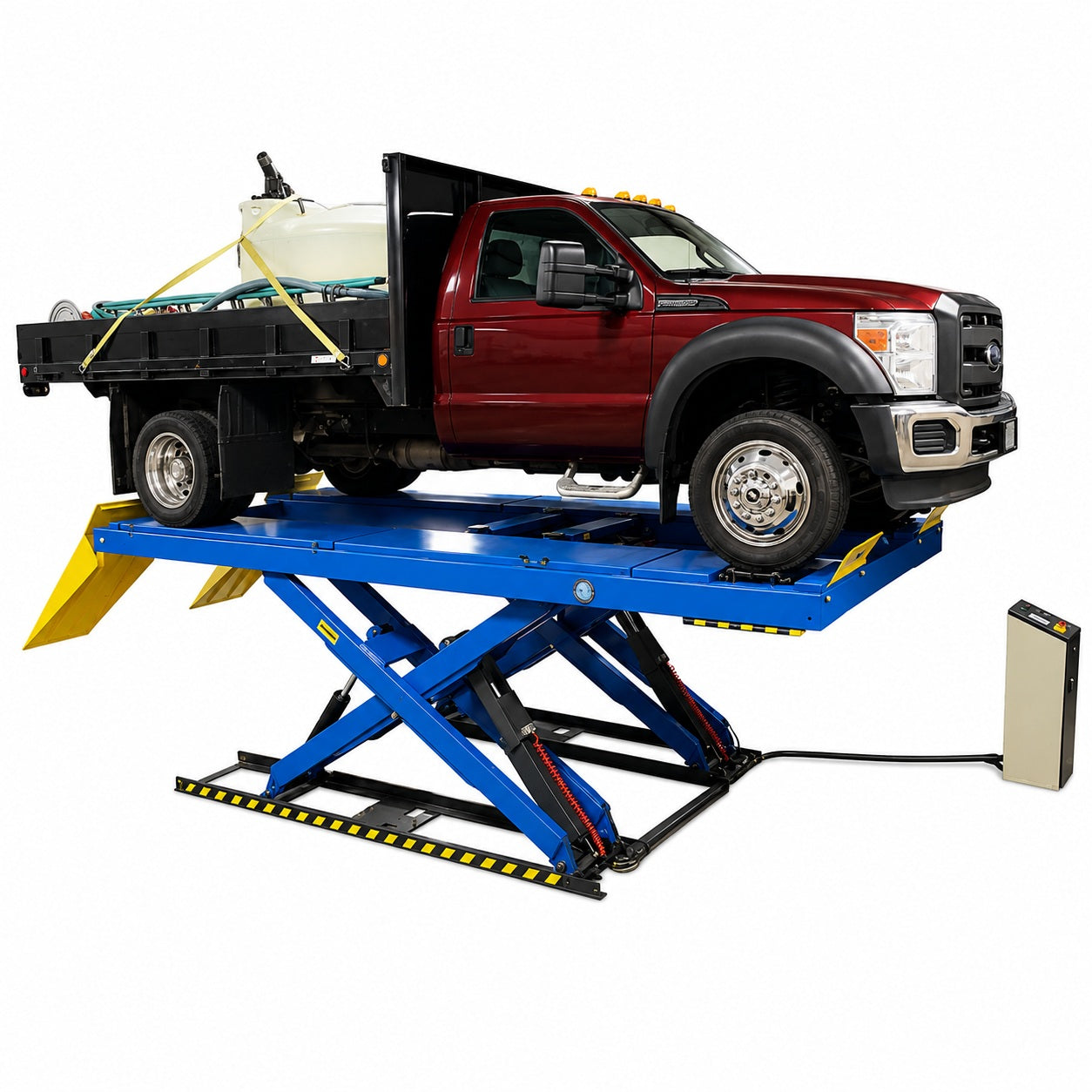

Atlas PX16A Scissor Alignment Scissor Lift 16000 lb. Capacity
Atlas PX16A Scissor Alignment Scissor Lift 16000 lb. Capacity
Heavy-duty 16,000 lb alignment scissor lift with precision leveling and long wheelbase support
SKU: ATEATPK-PX16A-CF-KIT
Regular price
$19,999
Sale price
$19,999
Regular price
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Talk to a Pro
3 experts online now · avg. reply <2 min
Largest Showroom in the Midwest
Our Team has 100+ Years of Experience
Fast Nationwide Shipping
Real People Ready to Help
Key Highlights
16,000 lb Capacity
Heavy-duty lifting power
Alignment Ready
Built-In Turntables Included
Precision Leveling
Accurate alignment results
Long Wheelbase Support
Fits vehicles up to 184"
Commercial Grade
Designed for daily use
Safety Lock System
Air-operated lock controls
The Atlas PX16A 16,000 lb. capacity scissor alignment lift is the perfect choice for those service shops that need a space saving (narrow width) alignment lift to accommodate most all passenger cars up to heavy-duty long wheel base trucks and vans. The Atlas PX16A allows the operator to perform 4-wheel alignments for vehicles with wheel base lengths from 96 inches to 184 inches. The Atlas PX16A includes a set of turntables, built in slip-plates, and runway jack rails designed to accommodate optional rolling jacks (like the Atlas RJ8000BK ). The lift is equipped with a semi enclosed air line kit routing system to accommodate the optional airline kit. This air line kit will provide air to the rolling jacks and prevent shop air hoses from cluttering the floor.
- 16,000 lb lifting capacity
- Heavy-duty commercial-grade construction
- Precision platform leveling system
- Wheel alignment ready design
- Recessed turntable positions
- Air-operated mechanical safety locks
- Emergency manual lowering pump
- Overload protection valve
- Controlled lowering speed valve
- Extra-long slip plates included
- Supports wheelbases from 96" to 184"
- Mounting hardware included
- 220V single-phase operation
- Shipping weight: 6,200 lbs.
- 2-year structural warranty
- 1-year hydraulic warranty
Capacity & Dimensions
| Capacity | 16,000 lbs. |
| Minimum Lift Height | 13 1/4" |
| Maximum Lift Height | 71 1/2" (5' 11 1/2") |
| Overall Width | 94" (7' 10") |
| Overall Length with Ramps | 271" (22' 7") |
| Overall Length without Ramps | 206 1/2" (17' 2 1/2") |
| Shipping Weight | 6,200 lbs. |
Alignment Specifications
| Supported Wheelbase Range | 96" - 184" |
| Runway Width | 23 3/4" |
| Width Between Runways (Top) | 44 7/8" |
| Width Between Runways (Rails) | 41 3/8" |
| Turntable Positions | Recessed Design |
Power & Installation
| Air Requirement | 85-120 PSI |
| Power Requirement | 220 Volt Single Phase (30 AMP Breaker Required) |
| Oil Requirement | 3-5 Gallons AW32/AW46 (Not Included) |
| Safety System | Air-Operated Mechanical Locks |
