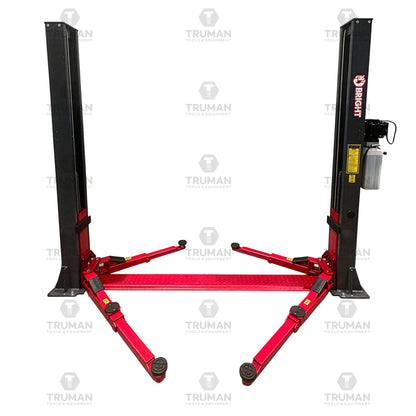

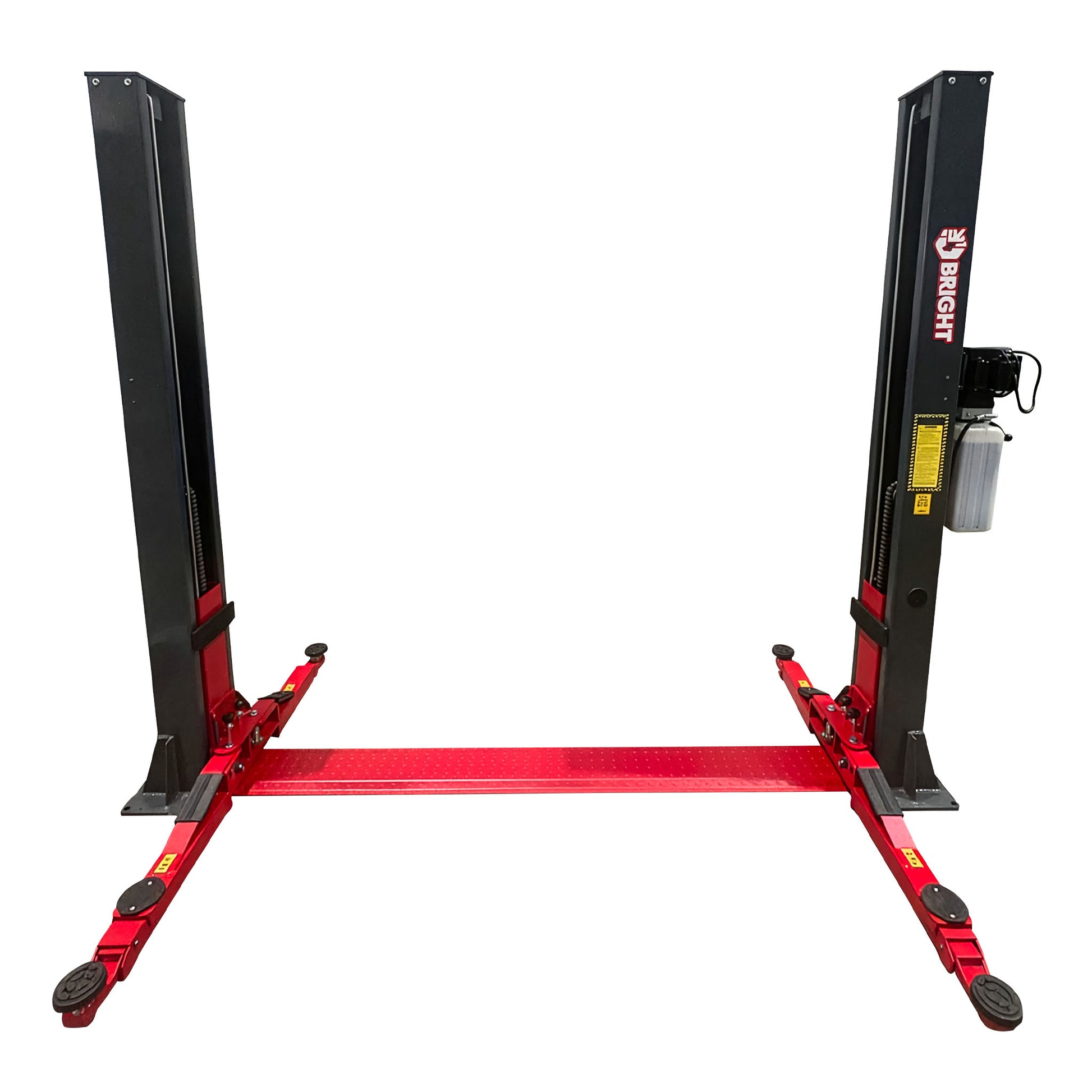

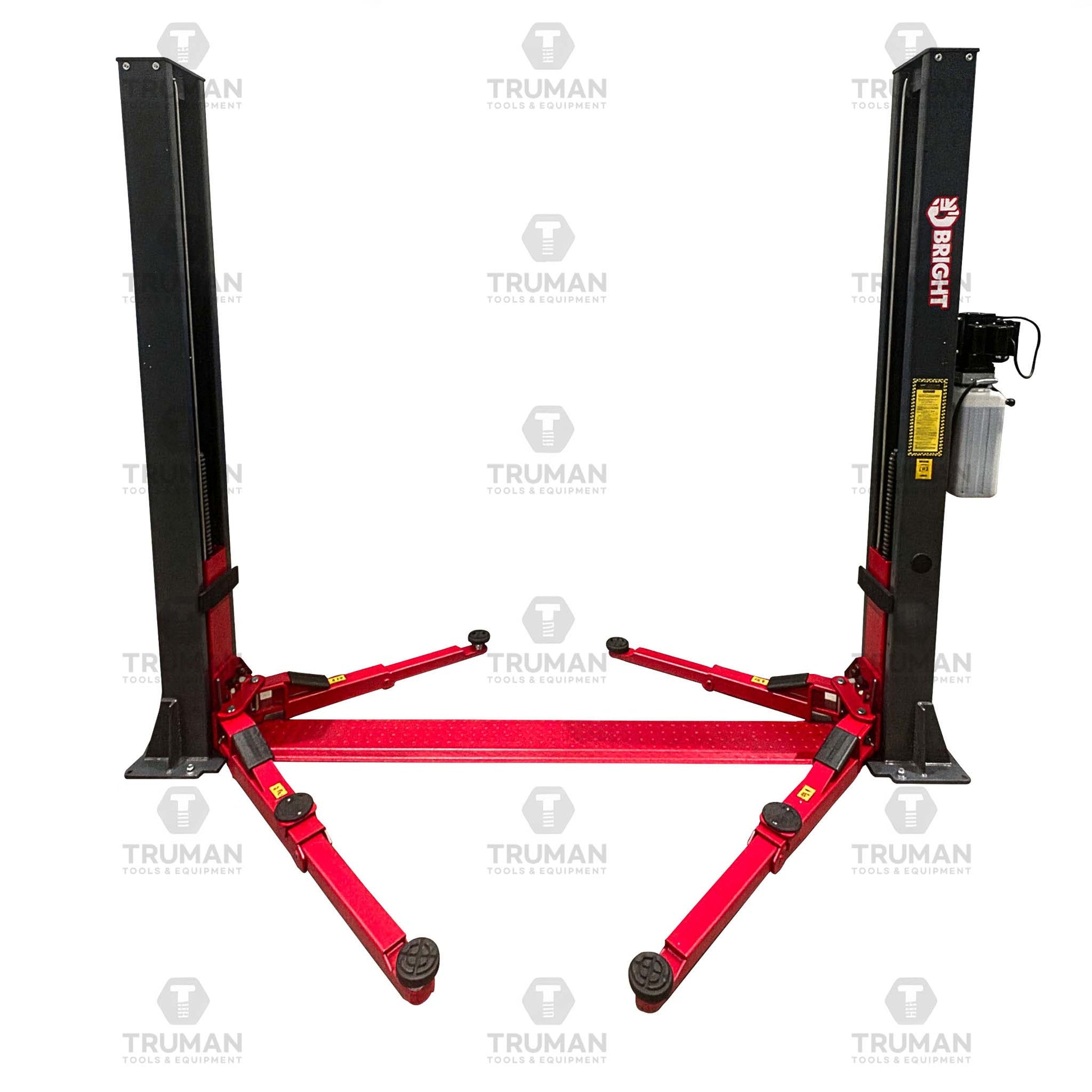

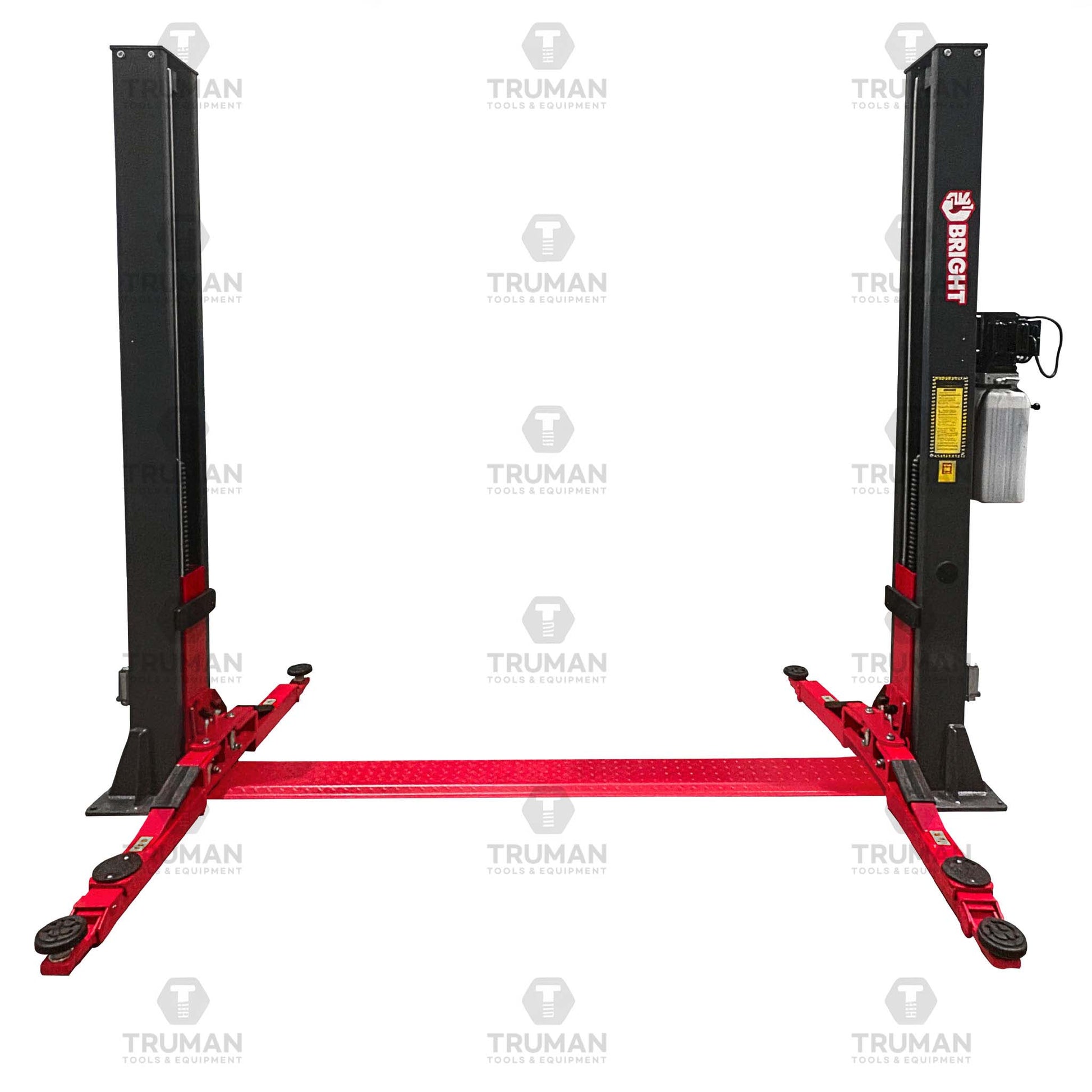

Bright Alpha 9F Two-Post 9,000 lb. Capacity Baseplate Lift

Bright Alpha 9F Two-Post 9,000 lb. Capacity Baseplate Lift

Heavy-duty 9,000 lb. 2-post lift engineered for strength, stability, and reliable professional vehicle service.

SKU: Alpha 9F

$2,495
$2,495
IN STOCK

Need Help Deciding?

Specs can only tell you so much. Call or text our team for a straight answer on fit, install, and what actually works for your space and your vehicle.

Call 765-544-3838 Text 765-544-3838
See it in Person
We also offer Nationwide Shipping — shipping cost calculated at checkout.
We also offer Nationwide Shipping

shipping cost calculated at checkout.

How you can receive this equipment

Two ways to get your order, plus help finding an installer

Free

Pickup at our showroom

Free pickup at our Daleville, IN showroom. We've got forklifts and an experienced warehouse team ready to load you up and get you back on the road.

  • 9175 S. Innovation Drive, Daleville IN
  • Most items ready same day
  • Bring a trailer rated for the load
Nationwide

Freight to your door

Curbside freight delivery across the lower 48. You unload with your own forklift, tractor, or skid steer. Liftgate service available on smaller items for an added fee.

  • Shipping calculated at checkout
  • Typical transit: 5-10 business days
  • Appointment call before delivery
Optional

Need help finding an installer?

Most customers install these themselves. If you'd rather hire it out, we don't do installs, but we're happy to point you in the right direction.

  • No cost, no commitment
  • You hire and pay the installer direct
  • Call or text 765-399-2598
  • Largest Showroom in the Midwest
  • Our Team has 100+ Years of Experience
  • Fast Nationwide Shipping
  • Real People Ready to Help
View full details

At a Glance

9,000 LBS
Lifting Capacity
74.8"
Max Lifting Height
134.25"
Total Width
50 sec
Lift Time

Product Description

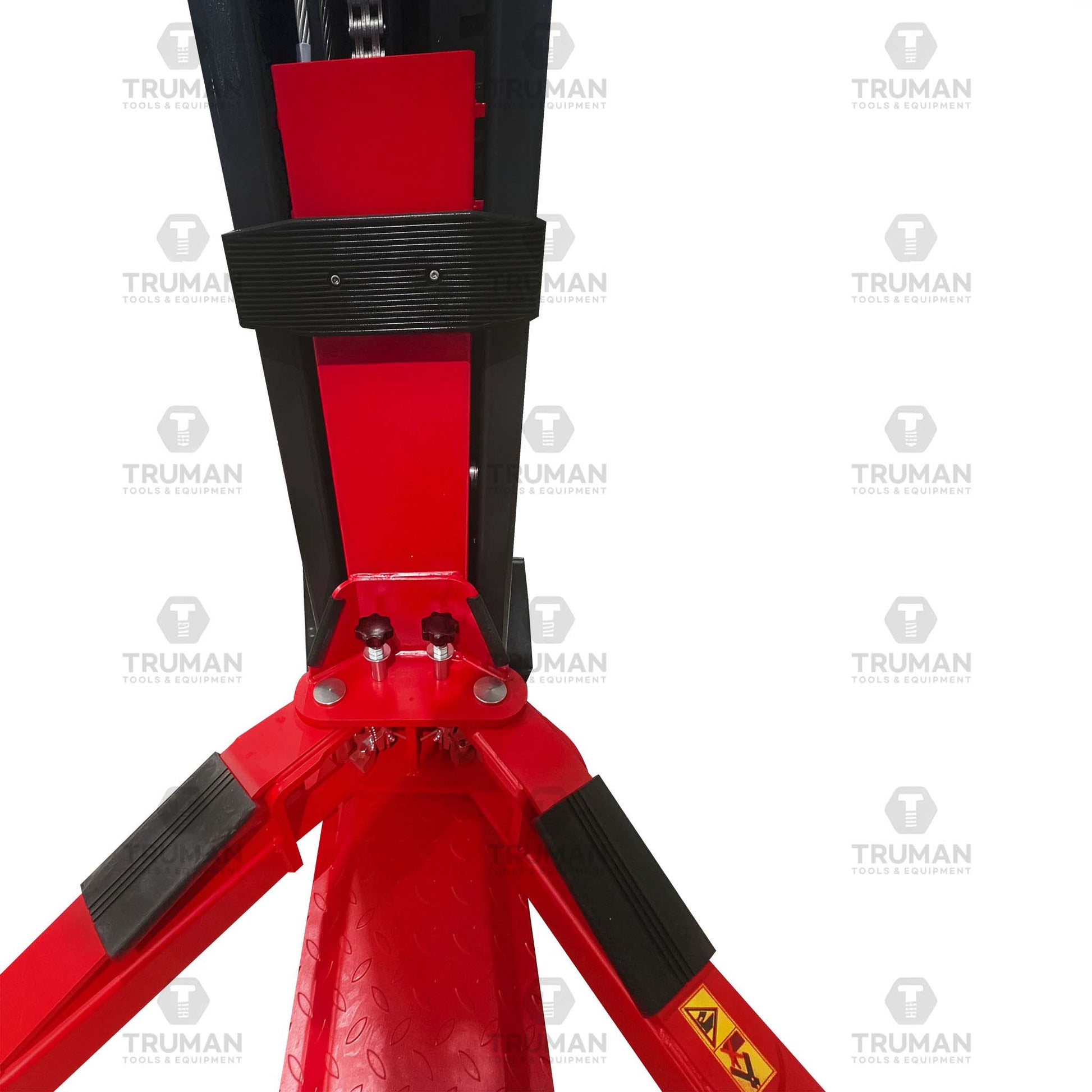

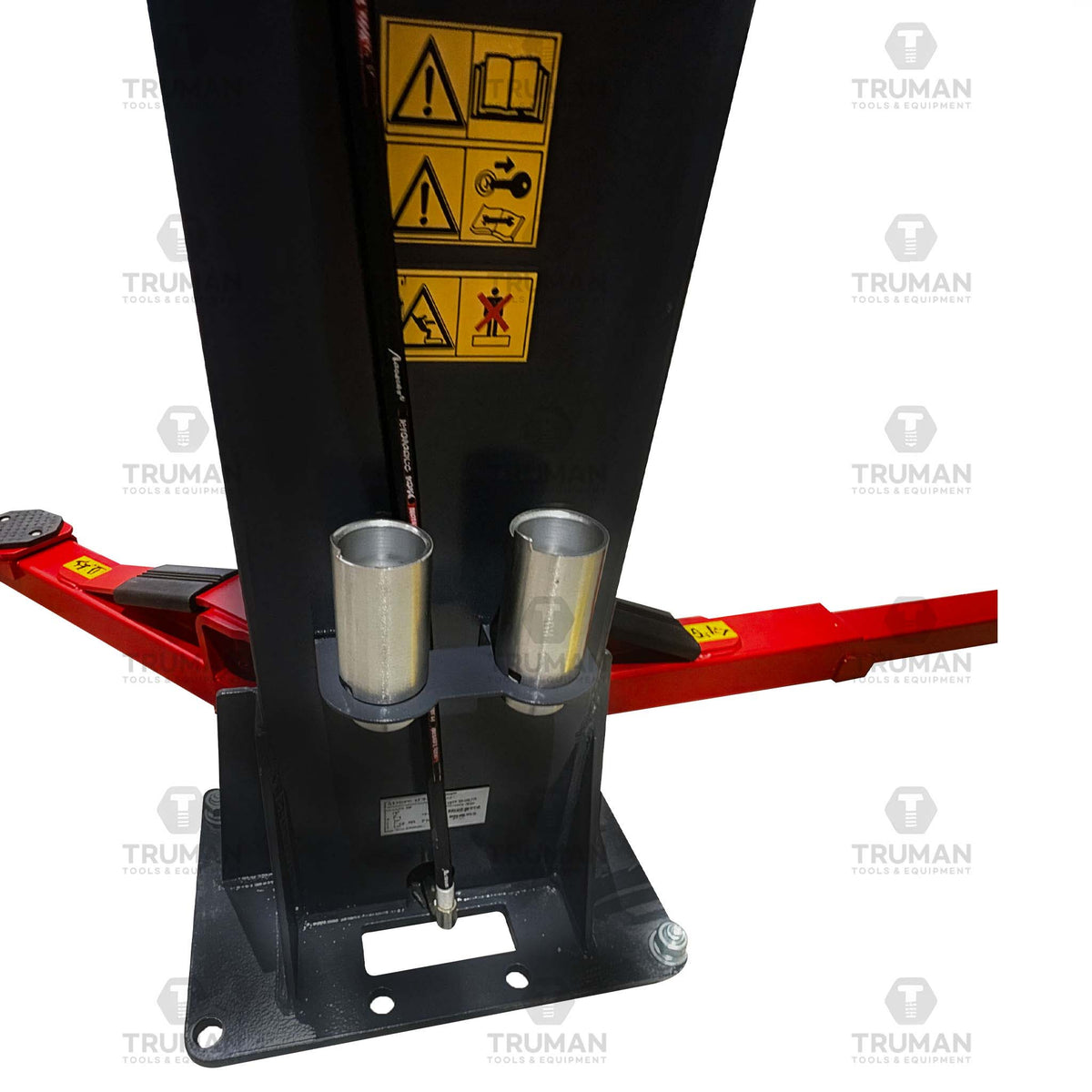

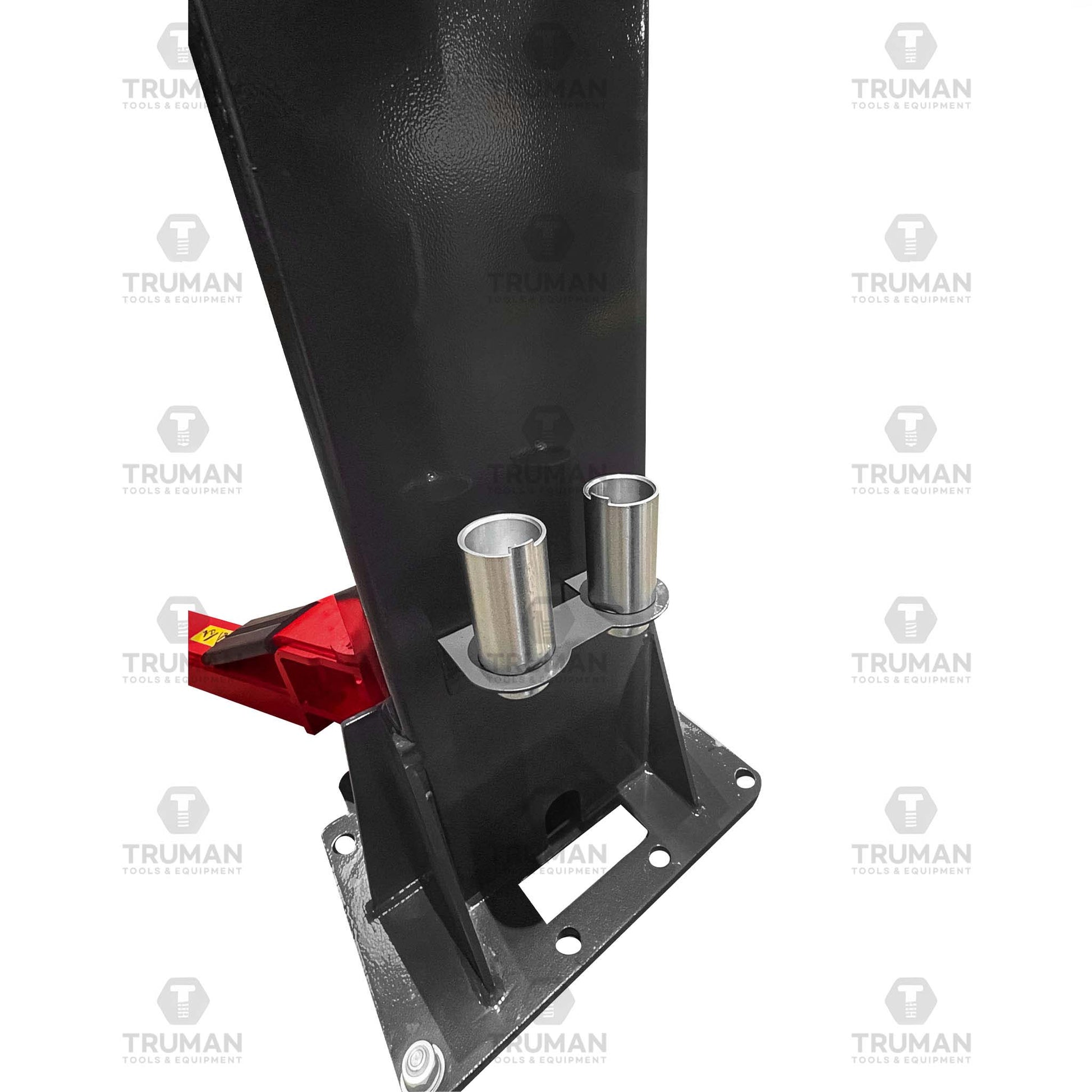

The 9000LB Manual Release 2-Post Lift is built for demanding professional applications, combining a high-strength structure with stable and reliable lifting performance. Its 5 mm thick steel posts, reinforced 16 mm base plates, and high-strength carriage with 14 mm plate bending provide excellent structural strength and stability.

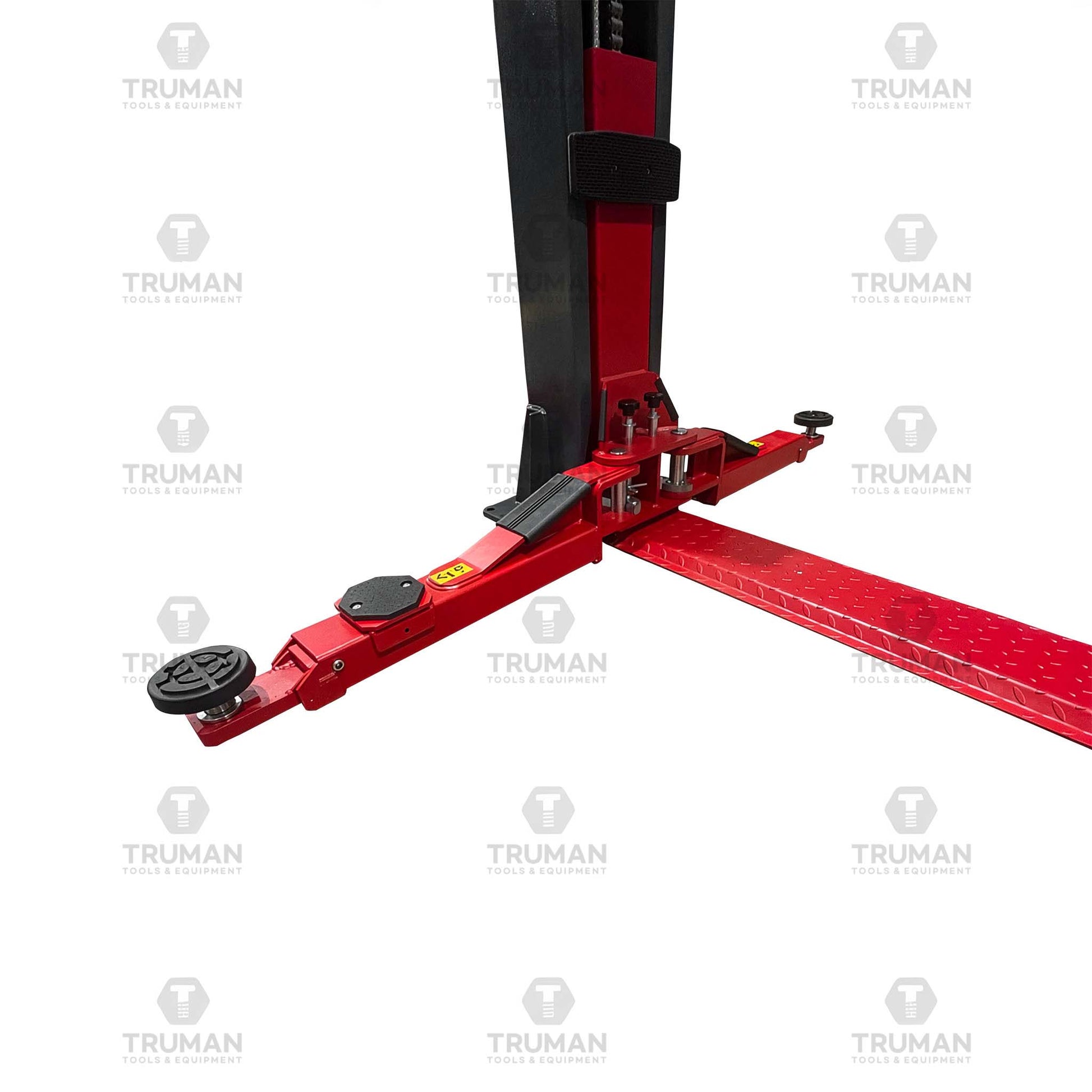

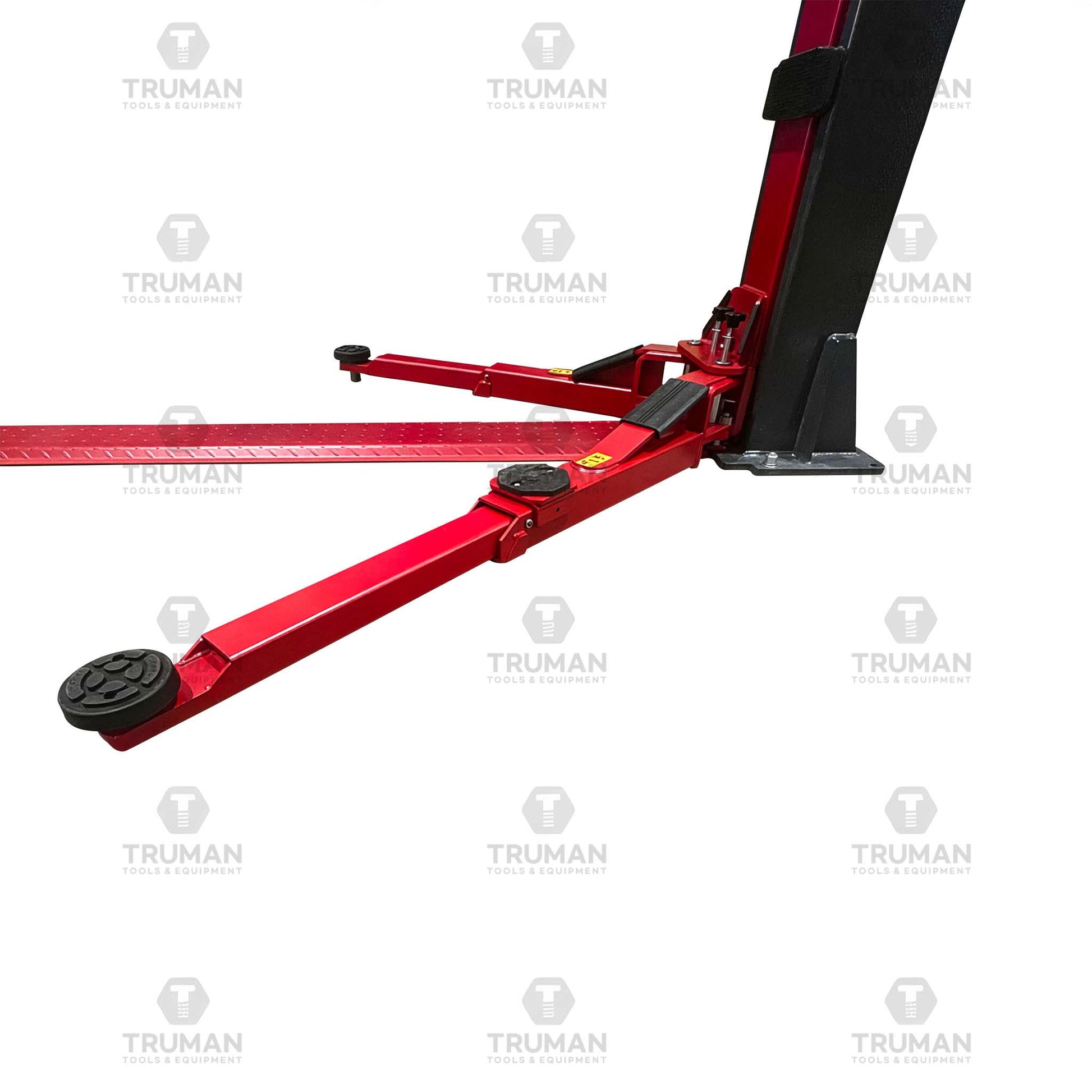

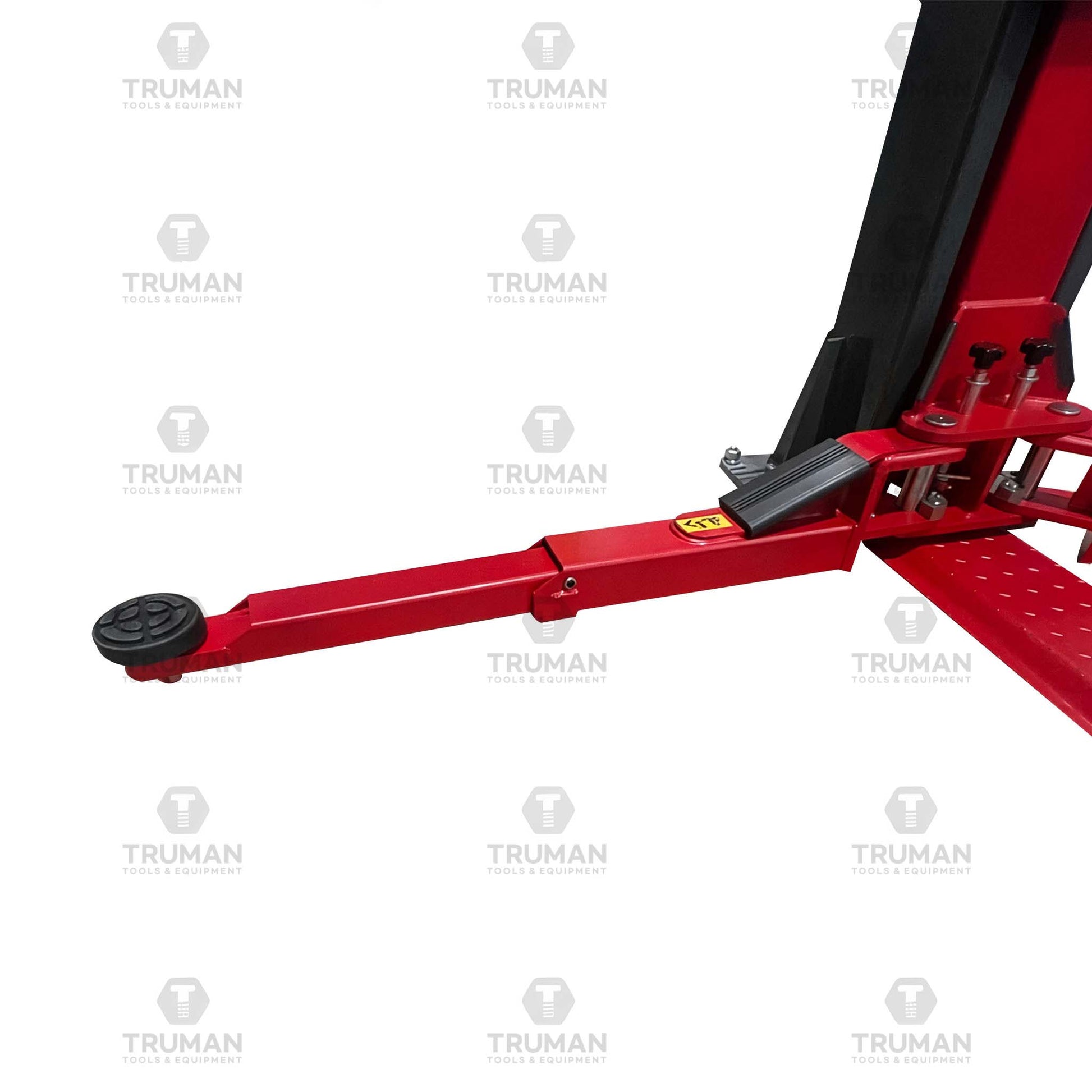

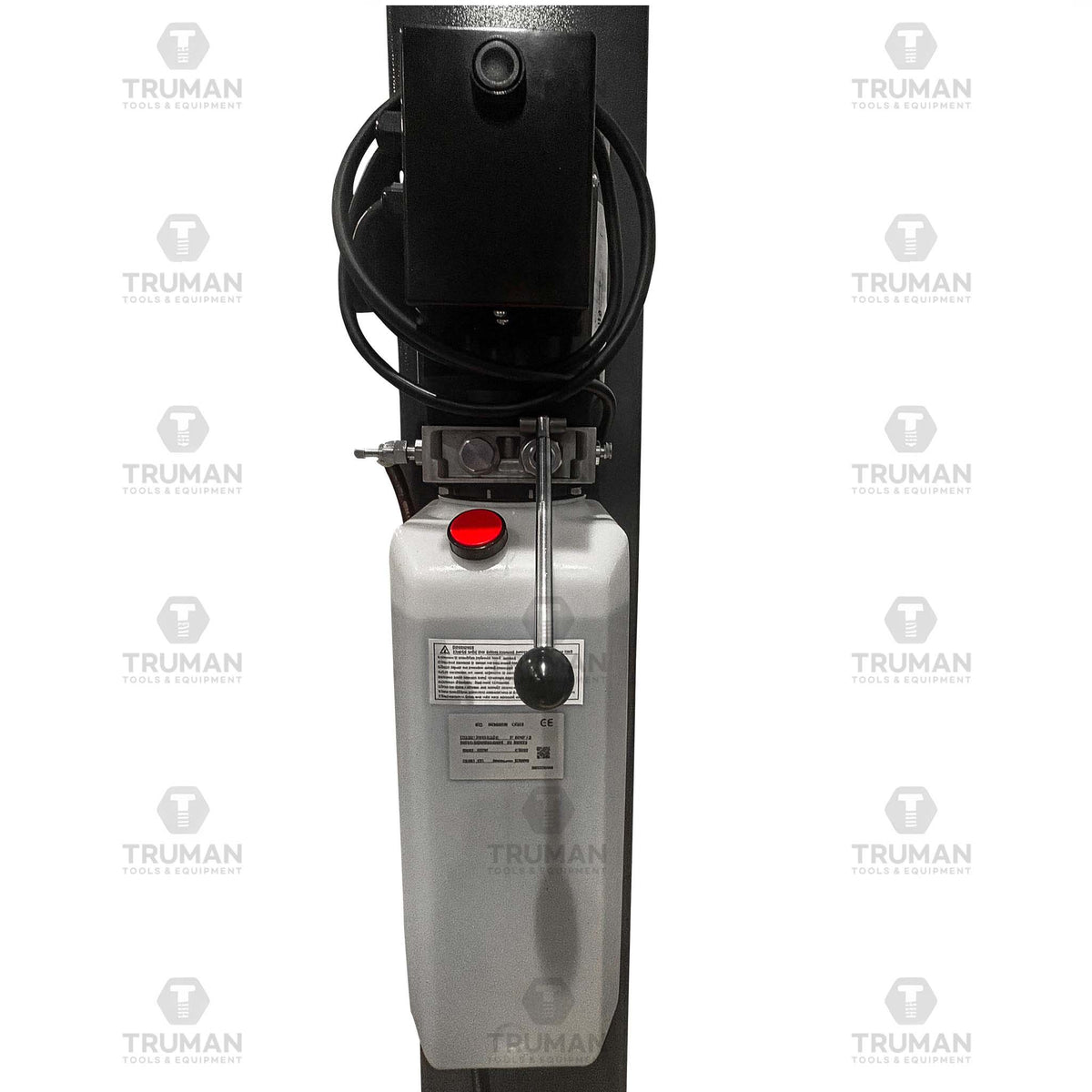

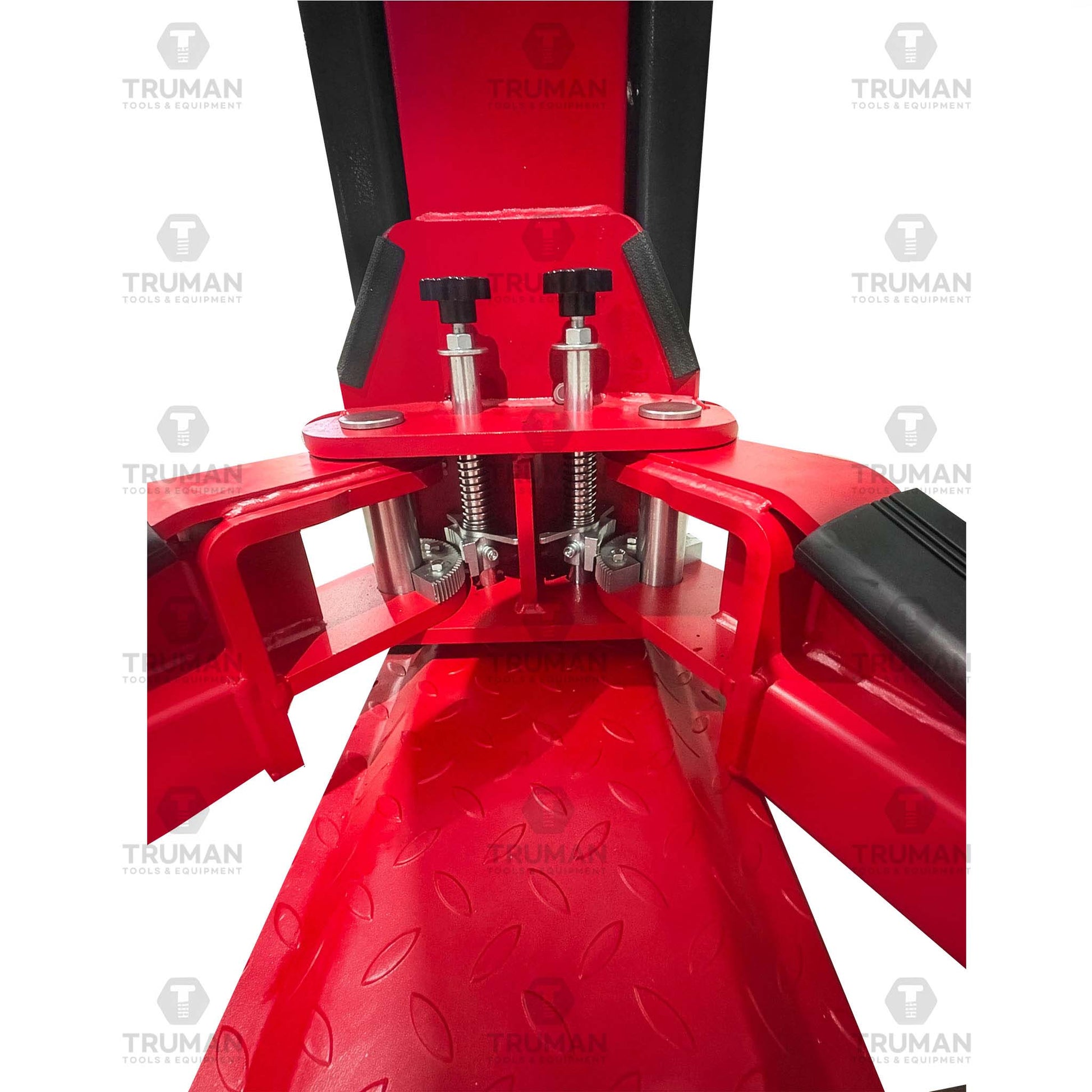

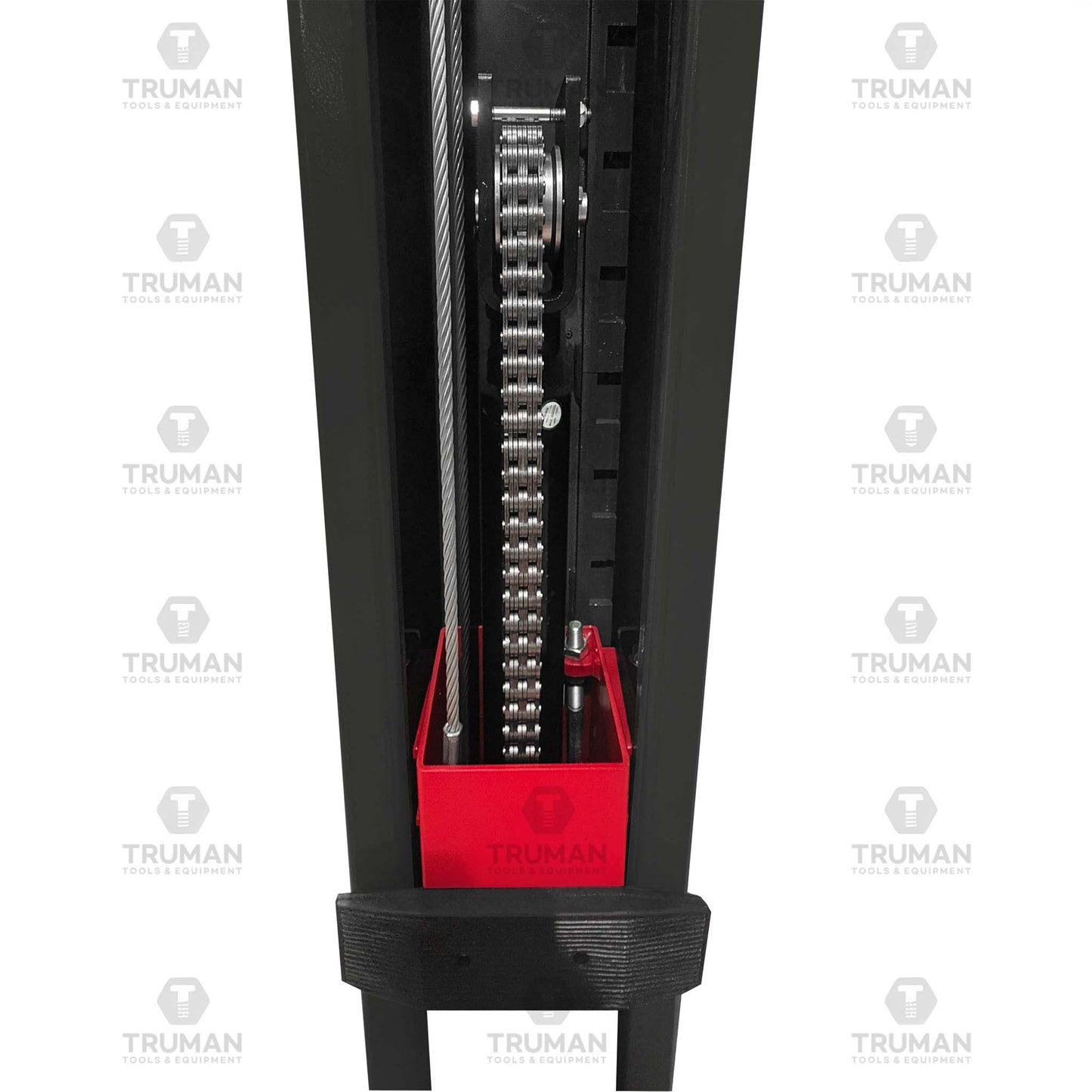

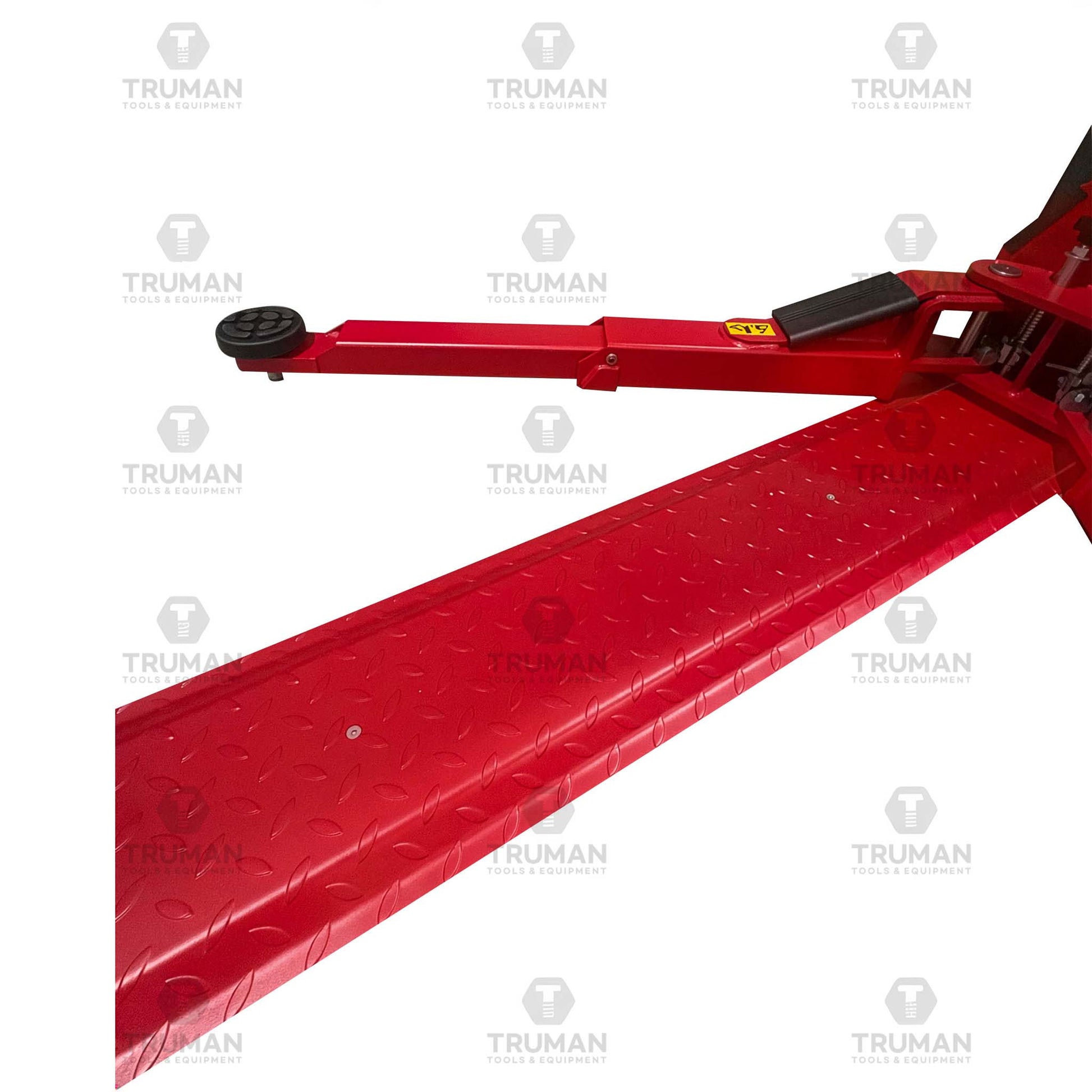

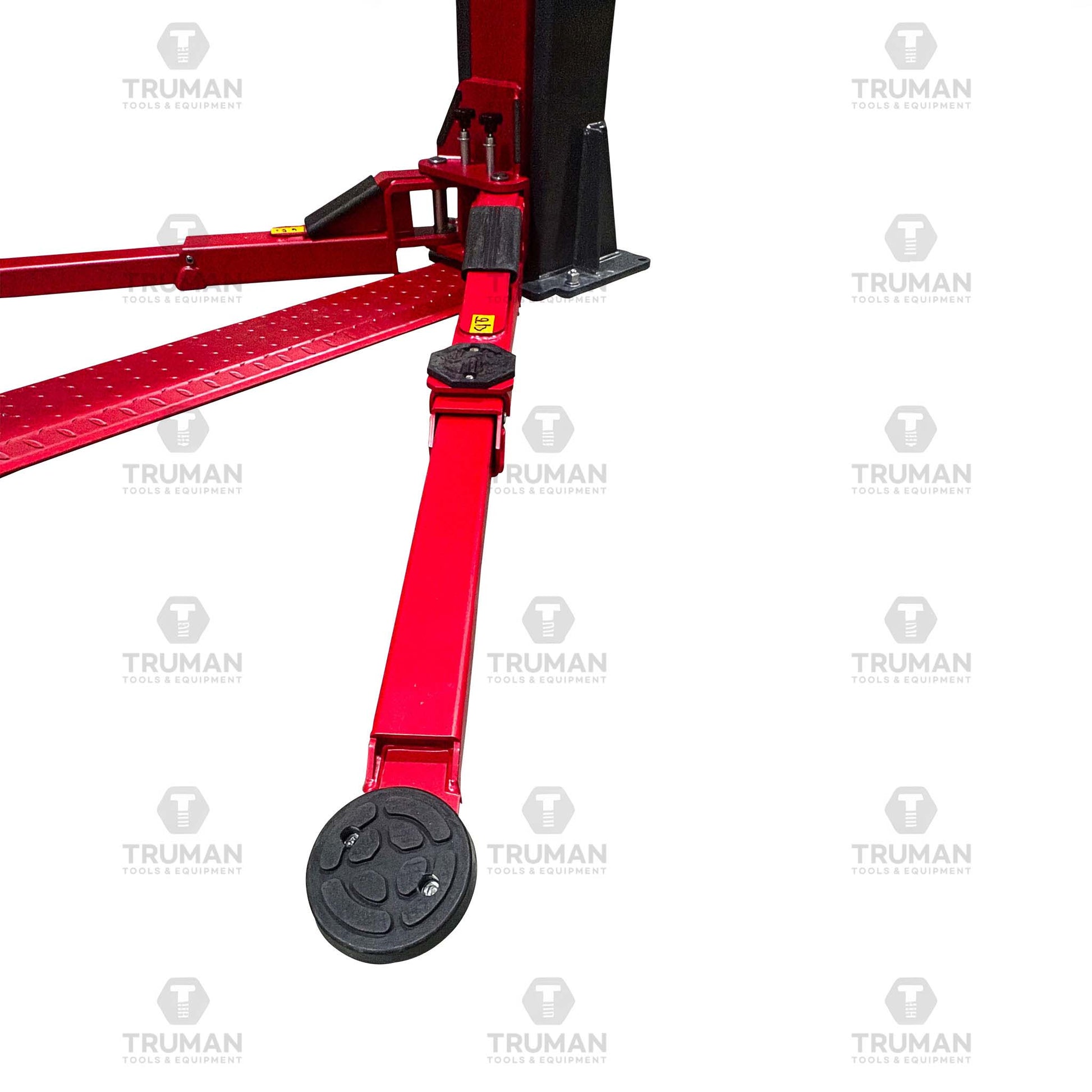

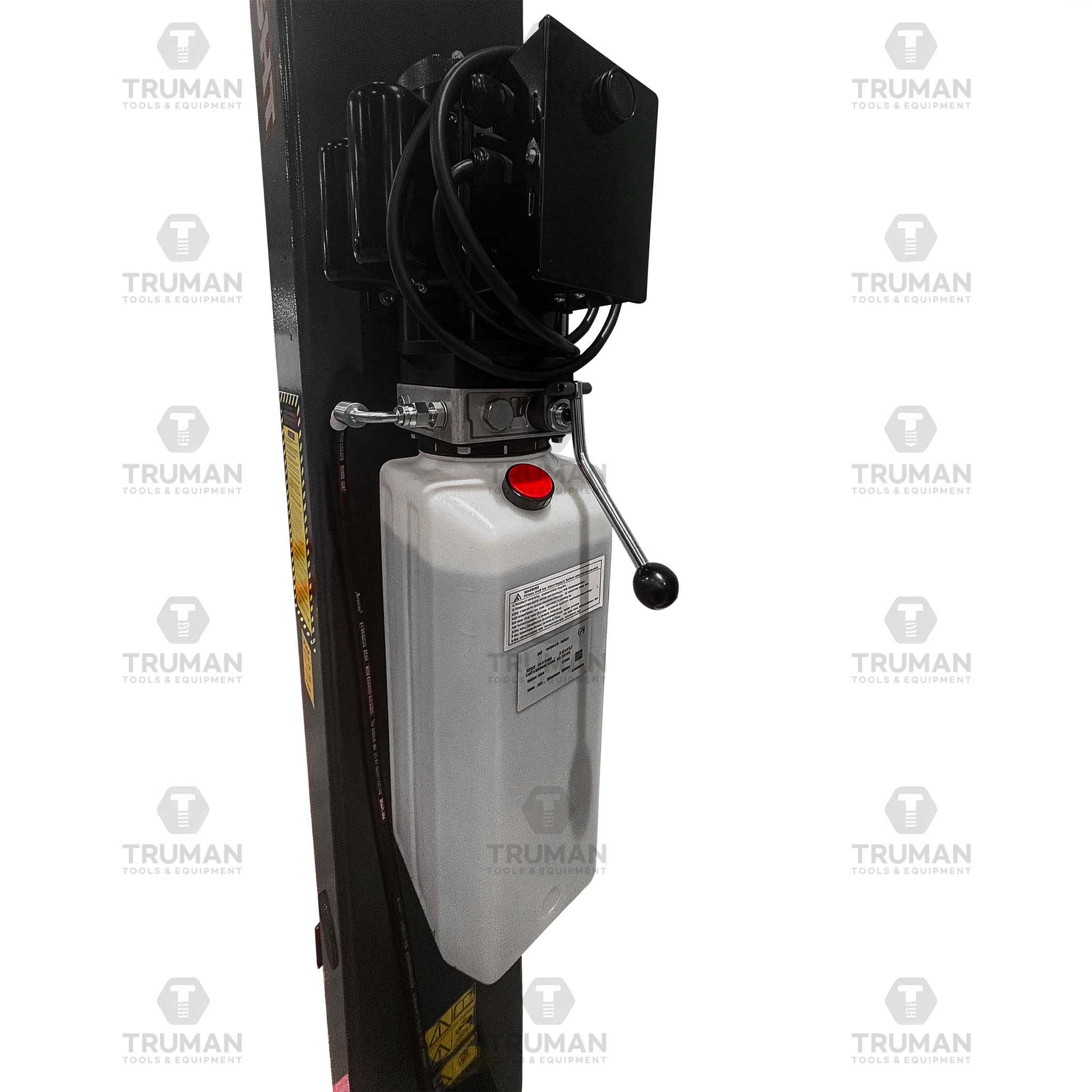

The reinforced lifting arms help prevent deformation, while the 28 mm base connection height provides smoother vehicle passage. The 115 mm pulleys help reduce steel wire wear and maintain stable lifting movement. A dual-side manual release system provides straightforward operation, while the preserved two-way mounting holes allow the pump station to be installed in either orientation according to workshop requirements.

With a 9,000 lb lifting capacity, 74.8-inch maximum lifting height, and 50-second lift time, this lift delivers practical performance for a wide range of vehicle service applications.

Specs and dimensions

Lifting Capacity
9,000 lbs
Lift Time
50 sec
Max Lifting Height
74.8"
Drive-Through Clearance
99.85"
Rear Arm Reach (Min/Max)
34" - 54.1"
Drop-in Pad Height
4.15"
Total Width
134.25"
Floor to Overhead Switch
28.5" - 41.5"
Inside Column Width
110.25"
Maximum Height
111.4"
Post Thickness
5 mm
Base Plate Thickness
16 mm
Carriage Plate Thickness
14 mm
Pulley Diameter
115 mm
Motor Power
3 HP
Power Input
220V
Gross Weight
1,500 lbs
Packing Dimensions
113.6" L × 19.9" W × 30.7" H
Accessory Box Dimensions
31.5" × 9.85" × 13"
Unlock Pattern
Manual release from two sides
Pump Station Mounting
Two-way mounting holes
