Two-Post Lifts

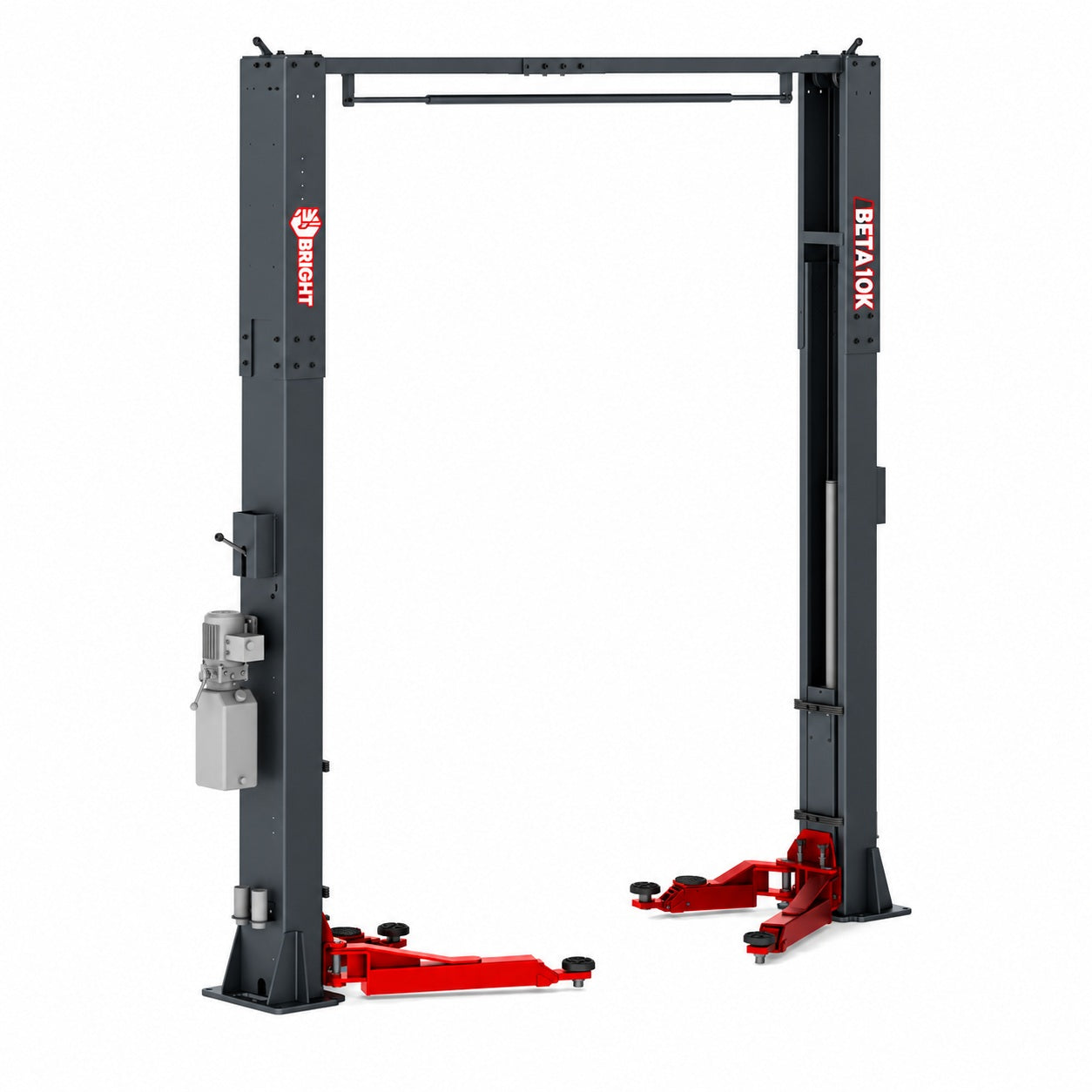

Bright Beta 10K Two-Post 10,000 lb. Capacity Overhead Lift
Bright Beta 10K Two-Post 10,000 lb. Capacity Overhead Lift
High-passage 10,000 lb. 2-post lift built for strength, stability, safety, and efficient professional vehicle servicing.
SKU: Beta 10K
Regular price
$3,495
Sale price
$3,495
Regular price
Need Help Deciding?
Specs can only tell you so much. Call or text our team for a straight answer on fit, install, and what actually works for your space and your vehicle.
Quantity
Couldn't load pickup availability
Largest Showroom in the Midwest
Our Team has 100+ Years of Experience
Fast Nationwide Shipping
Real People Ready to Help
At a Glance
10,000 LBS
Lifting Capacity
145"–149"
Maximum Height
115.75"
Inside Column Width
72"–78"
Lifting Height
Product Description
The BETA-10K is a high-passage 10,000 lb. 2-post lift engineered for strength, stability, safety, and efficient professional vehicle servicing. Its high-strength extra-long carriage features robust 14 mm plate construction, while the reinforced lifting arms help prevent deformation during heavy-duty use.
The two-cylinder direct-drive system provides smooth and reliable lifting performance, while the 115 mm steel rope pulleys help reduce rope wear and maintain stable movement. A quick-change slider block makes maintenance easier, and the standard height-limit microswitch provides added operational safety.
The convenient single-side manual unlock system allows straightforward operation, while the standard 2+3 stage arms and asymmetric arm design make vehicle positioning and entry easier. With a maximum height of 145"–149" and 115.75" inside column width, the BETA-10K provides generous working clearance for professional workshops.
Specs and dimensions
Lifting Capacity
10,000 lbs
Lifting Time
50 sec
Lifting Height
72" - 78"
Drive-Through Clearance
96"
Front Arm Reach (Min/Max)
25.5" - 44.5"
Rear Arm Reach (Min/Max)
39.5" - 57.5"
Drop-in Pad Height
4"
Total Width
139.5"
Inside Column Width
115.75"
Maximum Height
145" - 149"
Floor to Overhead Switch
136.75" - 140.75"
Carriage Plate Construction
14 mm
Steel Rope Pulley Diameter
115 mm
Arm Configuration
2+3 stage arms
Arm Design
Asymmetric
Motor Power
2.2 kW
Power Input
220V/380V
Gross Weight
1,667 lbs
Packing Dimensions
115.25" × 19.75" × 30.75"
Accessory Box Dimensions
32.25" × 10" × 12.5"
Unlock Pattern
Manual release from one side
Drive System
Two-cylinder direct drive system
Height Limit Switch
Included
Slider Block
Quick-change function
