Bright Beta 9K Two-Post 9,000 lb. Capacity Overhead Lift
Bright Beta 9K Two-Post 9,000 lb. Capacity Overhead Lift
9,000 lb. overhead two-post lift with asymmetric arms, single-side lock release, and 105" drive-through.
Regular price
$2,995
Sale price
$2,995
Regular price
SKU: Bright Beta 9K
Free:
Talk to an expert before you buy
· Real people in Indiana
On display in our .
See it run. We'll load it.
Included free with this product
America's largest automotive equipment showroom
See it run. Take it home today.
50,000+sq ft facility
50+machines on display
6 daysa week
- Watch lifts, tire changers and balancers run before you buy
- Real experts on the floor. No pressure.
- Same-day pickup. We'll load your truck or trailer.
Mon–Fri 8am–5pm, Sat 8am–Noon (Eastern)
More about the showroom
Quantity
Couldn't load pickup availability
Want to spread out the cost? Business financing available. Apply here or call
Why buy from Truman
Ships nationwideFast freight shipping
Installer referralsLocal pros near you
100+ yearsOf industry experience

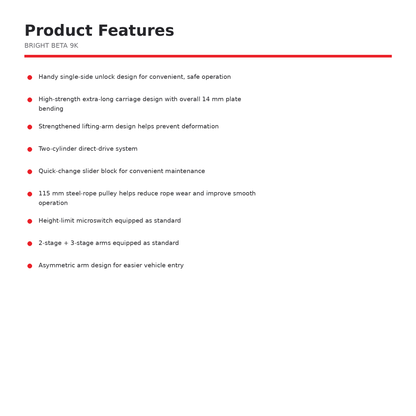

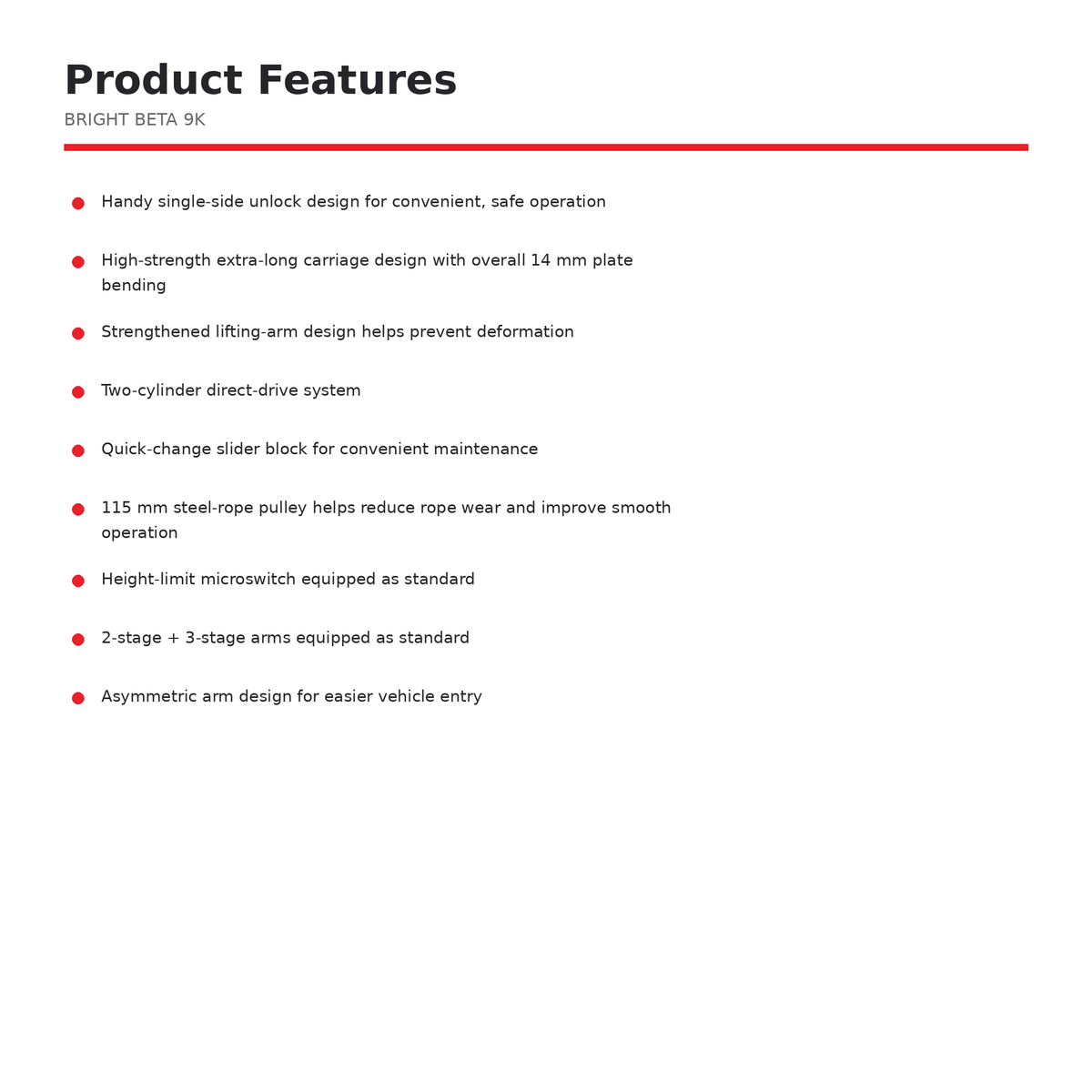

Why This Lift

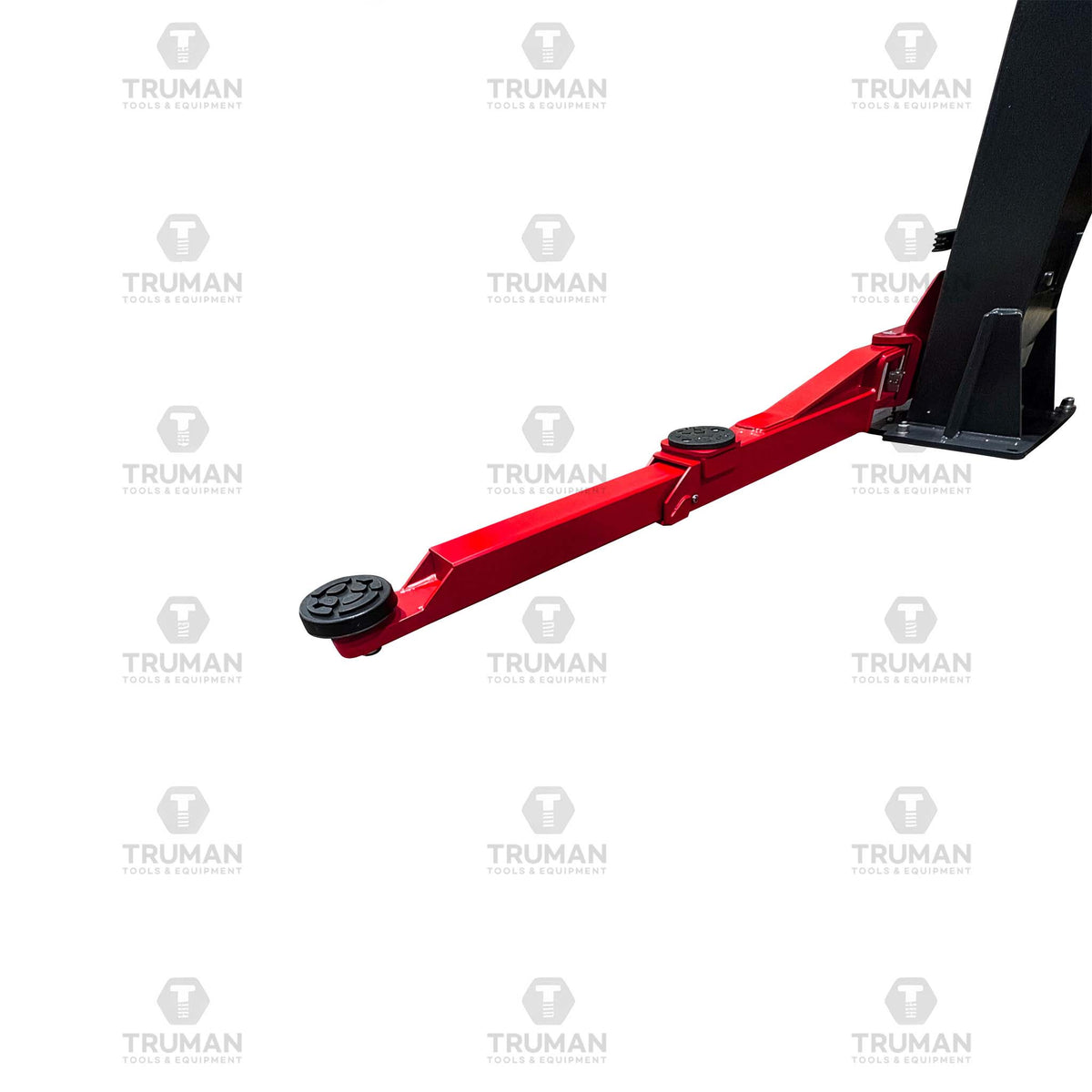

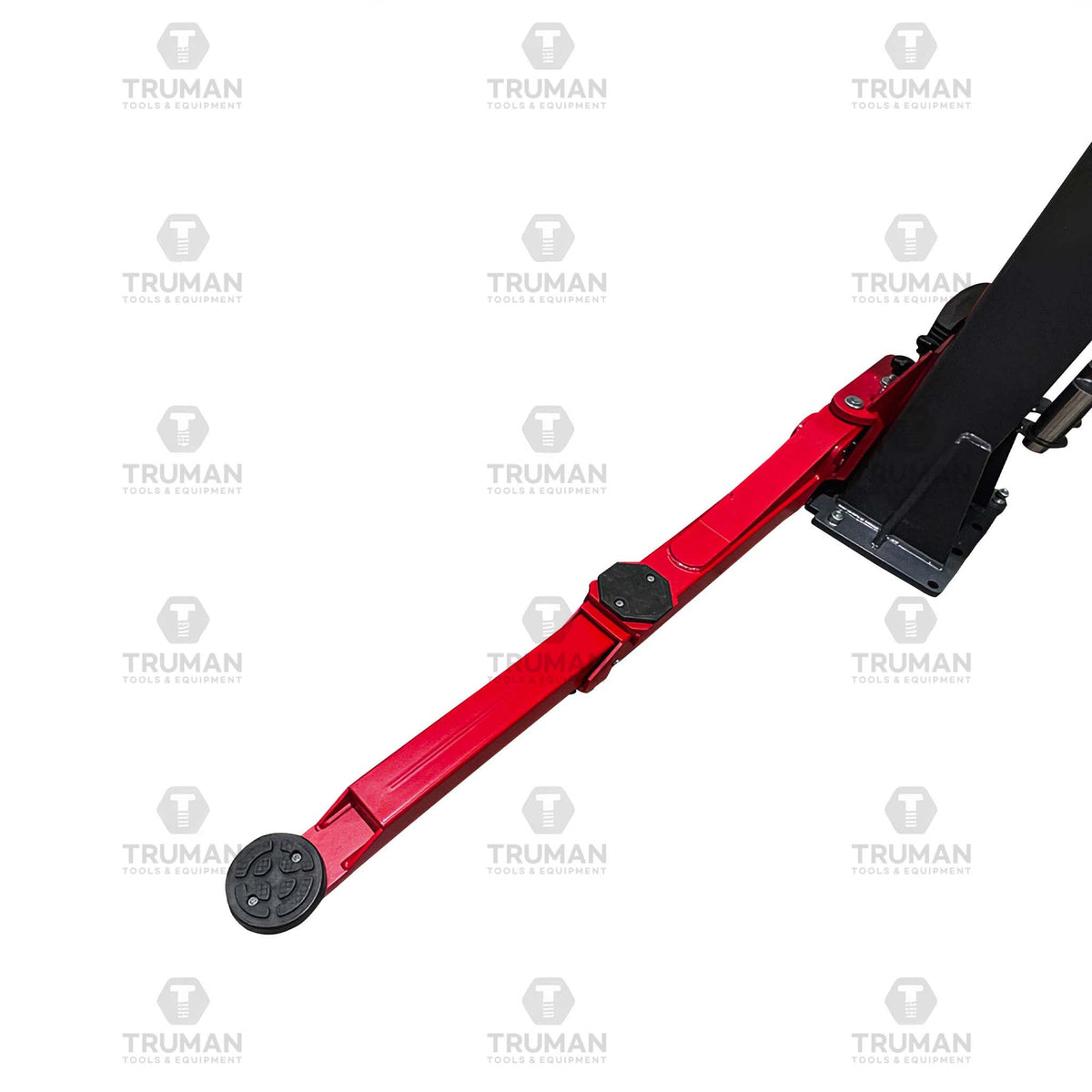

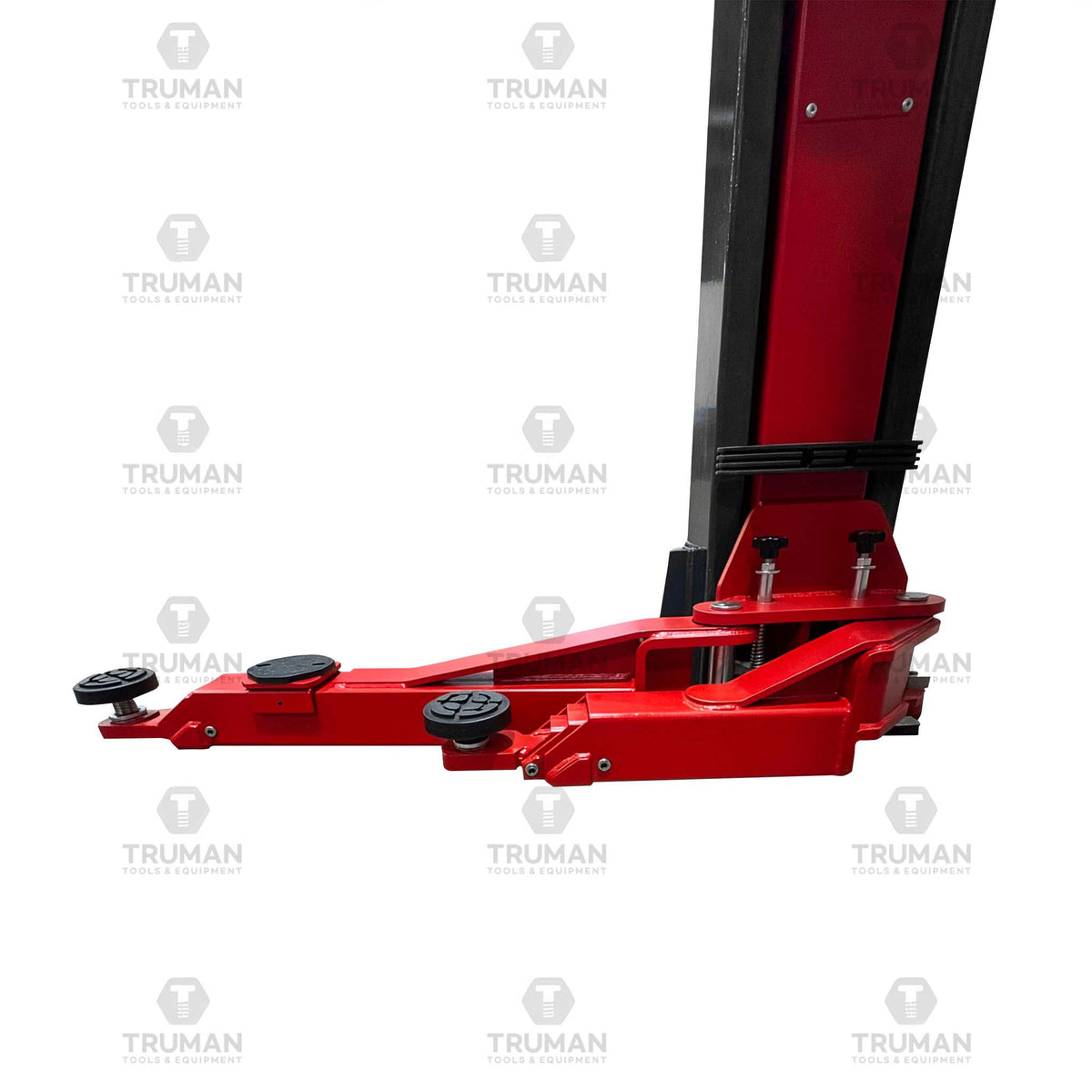

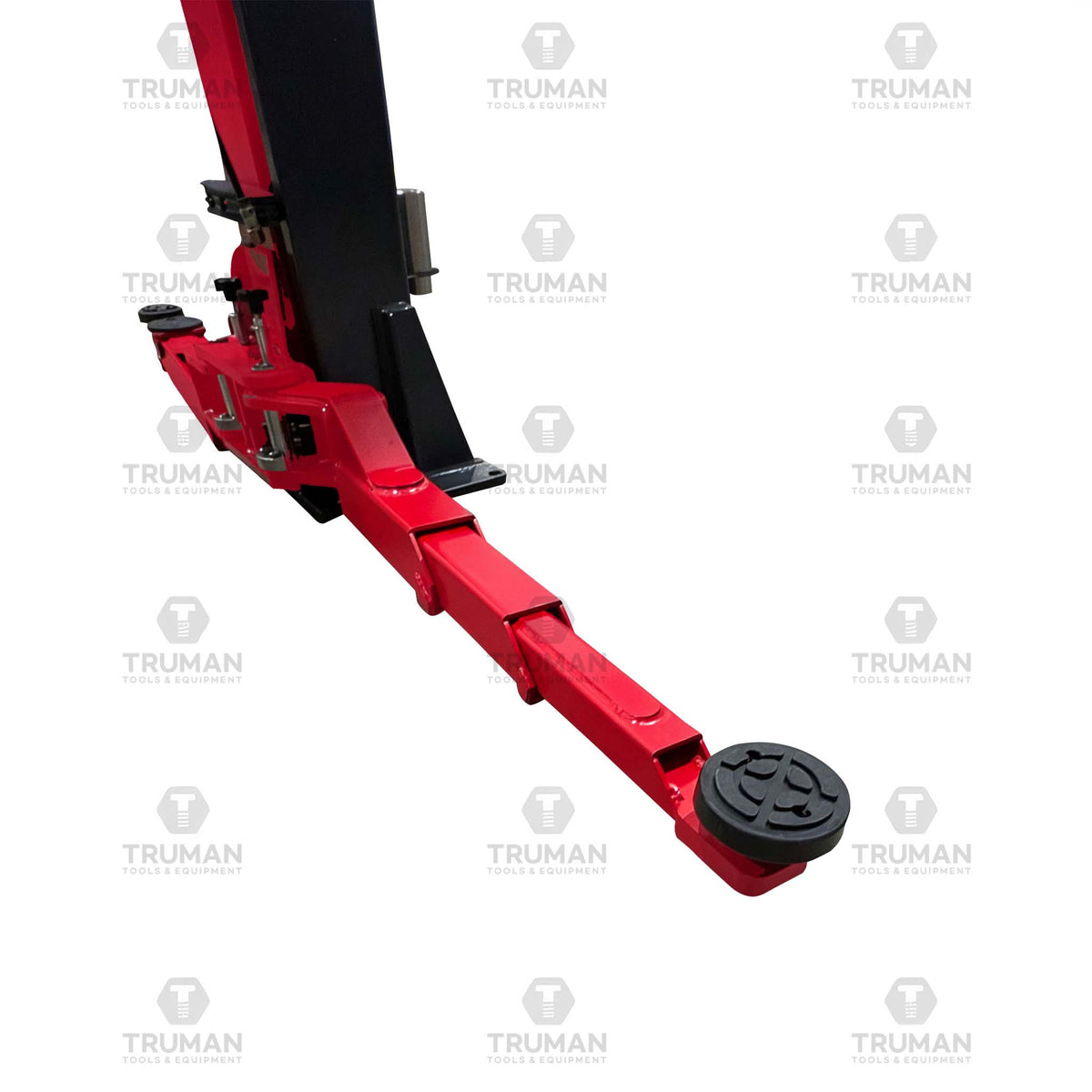

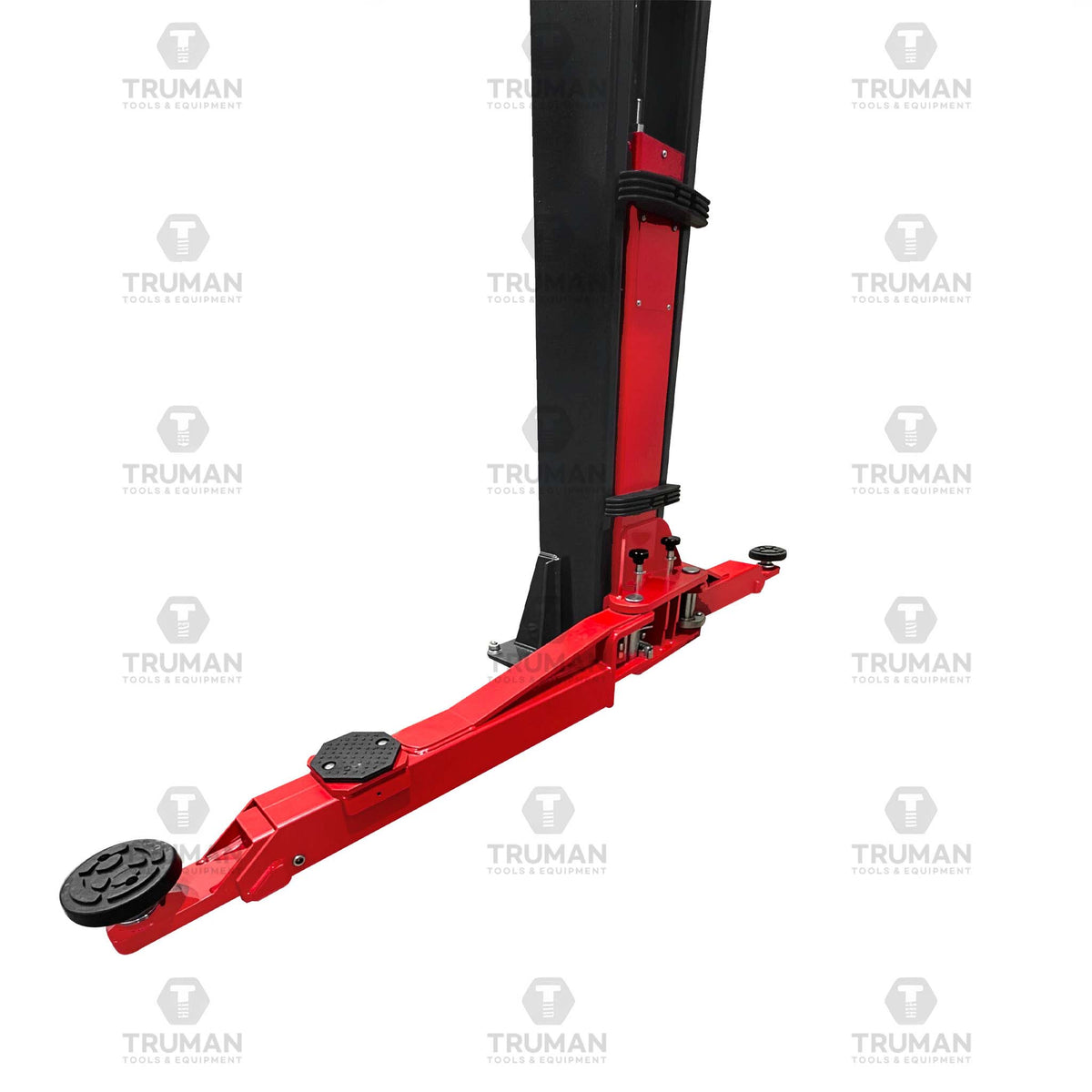

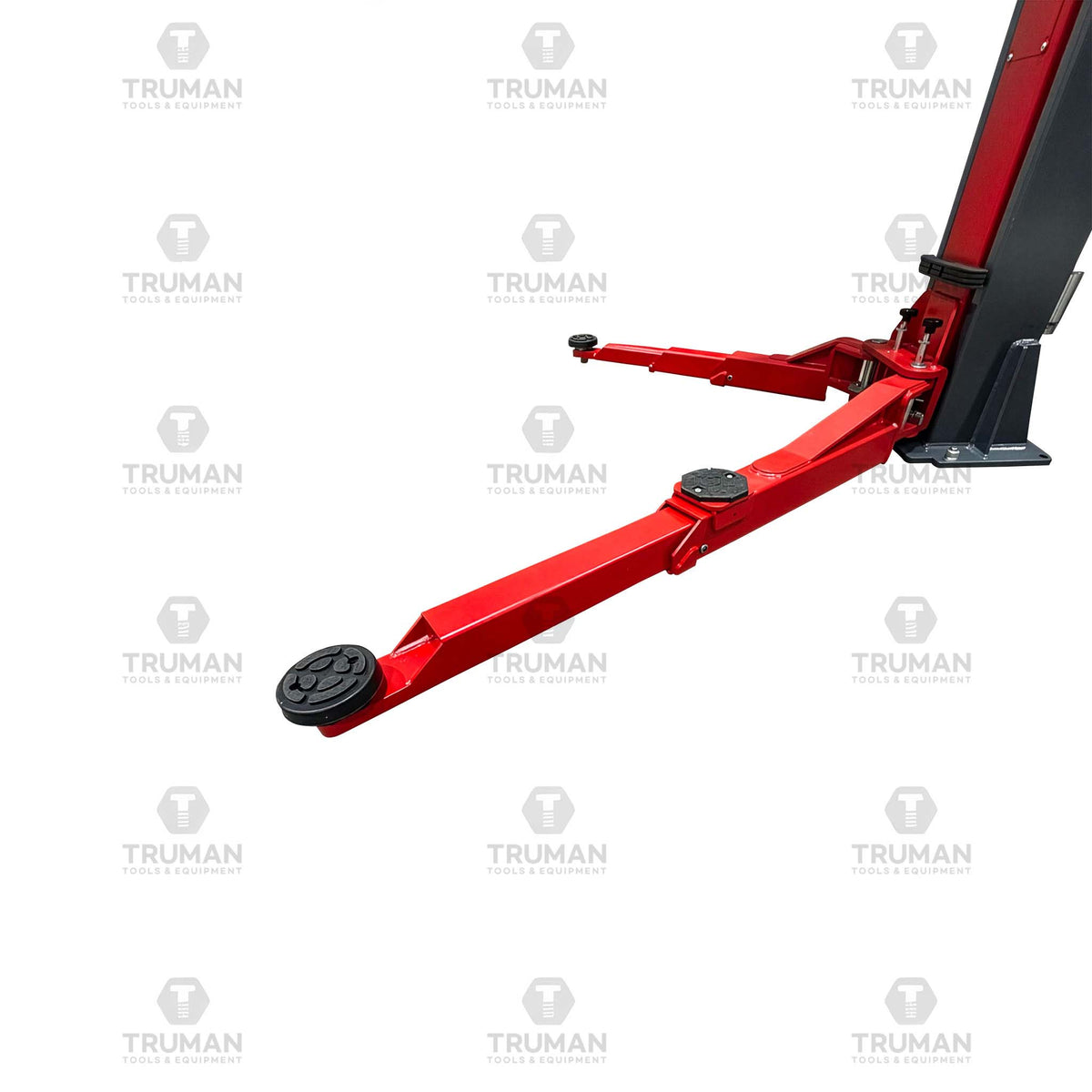

- 3-stage front, 2-stage rear armsSets the vehicle back so doors open easily

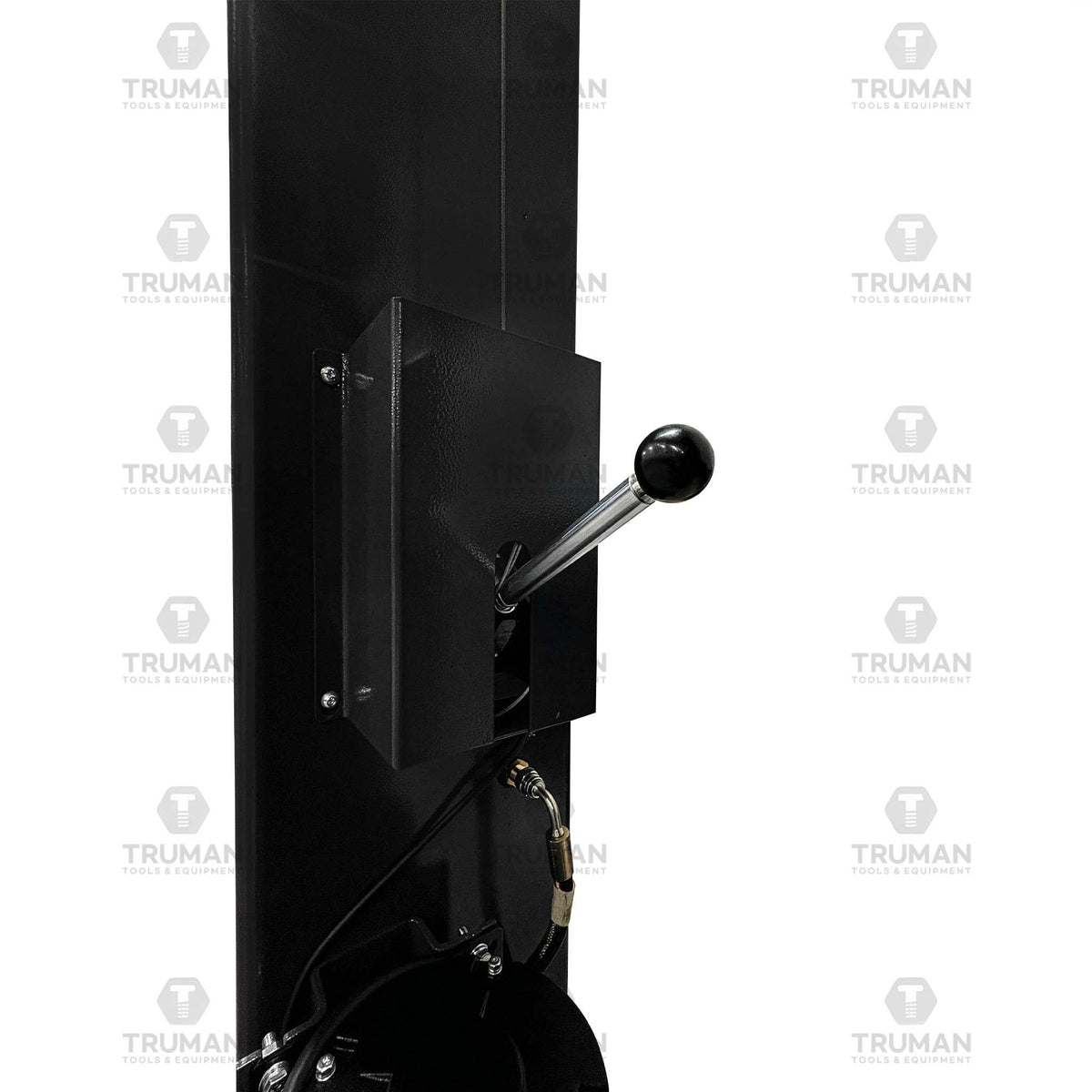

- Single-side lock releaseReleases both locks from one column
- Overhead safety shutoffHeight-limit switch stops the lift before the roof hits the beam
- Pro features, smart priceDirect-drive cylinders and 105" drive-through clearance
Explore this lift
Explore the Beta 9K
Tap a number to see what each part does.

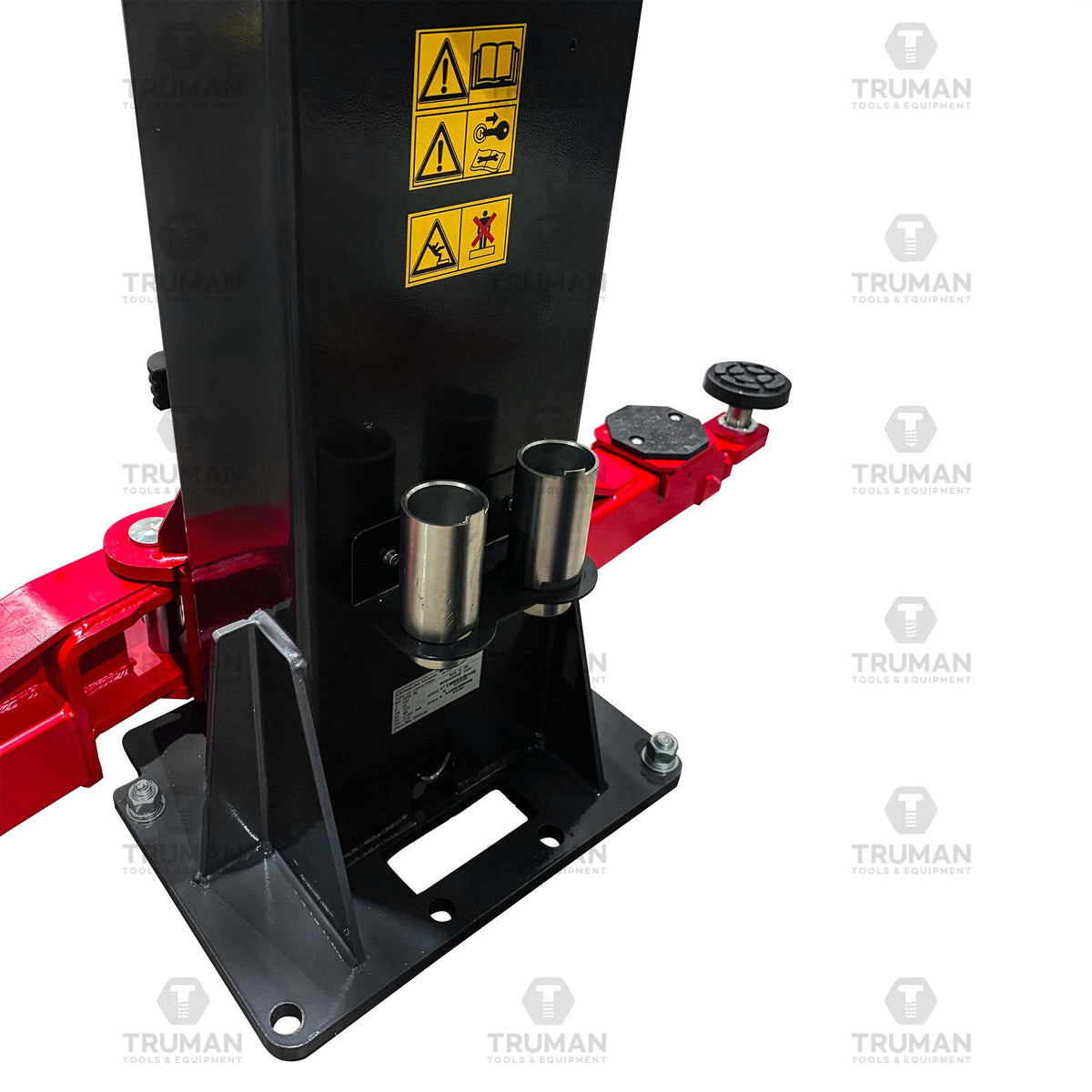

Product Description

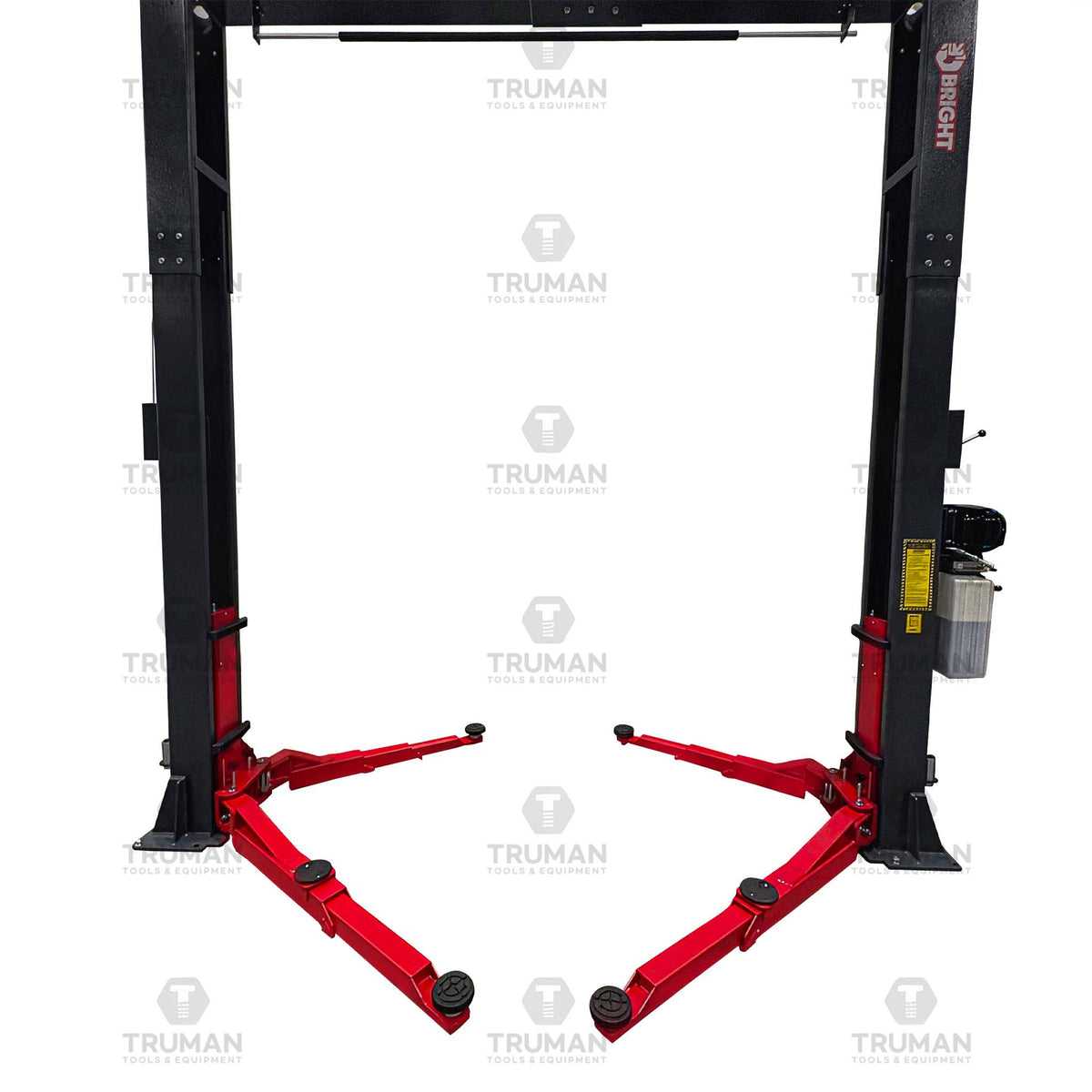

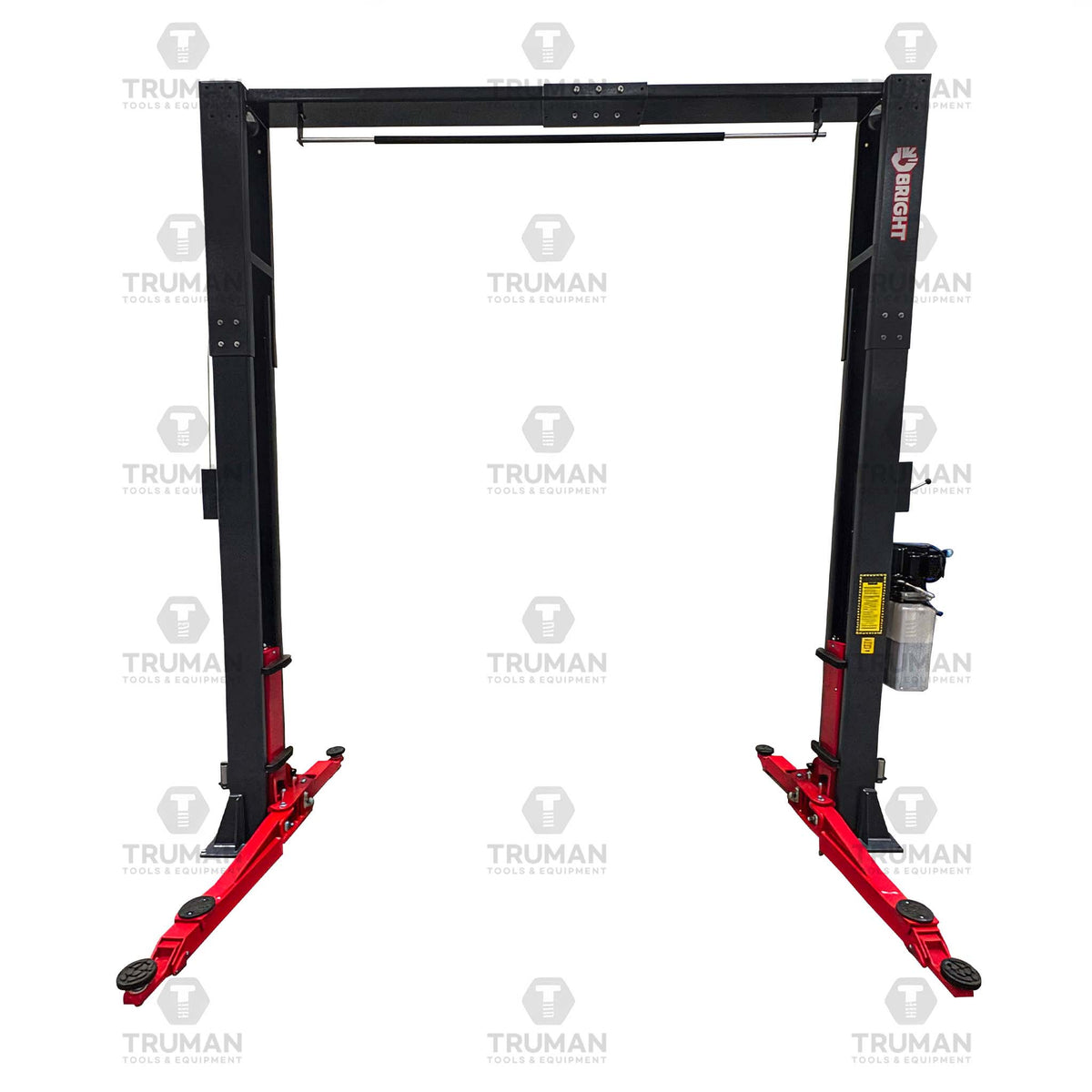

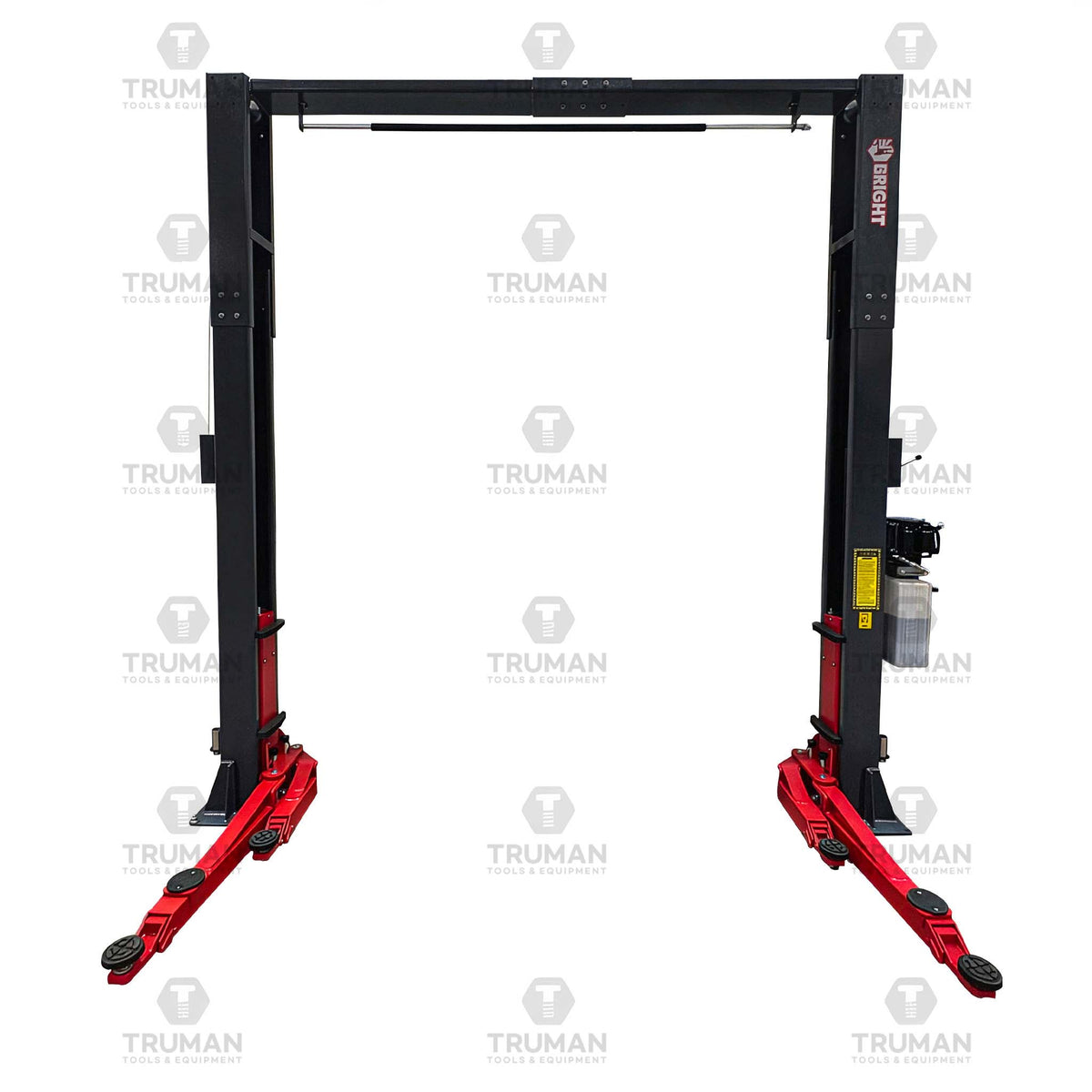

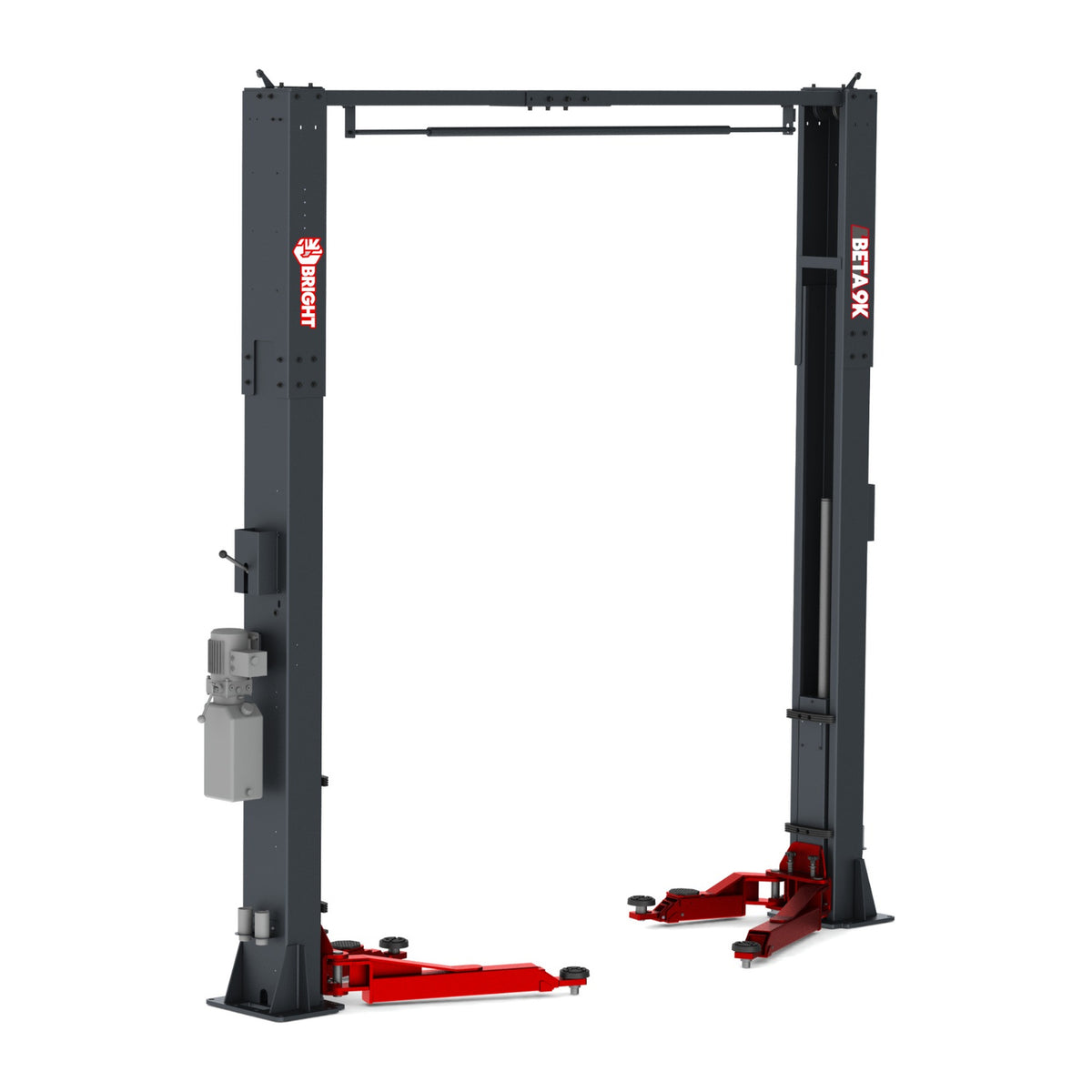

The Bright Beta 9K is a 9,000 lb. overhead two-post lift that delivers professional features at a price that makes sense for smaller shops and serious home garages. Its adjustable 145"–149" height and 105" of drive-through clearance give you plenty of room to work.
Two direct-drive cylinders provide smooth, even lifting, and an extra-long carriage with reinforced arms stands up to daily use. Asymmetric arms, 3-stage in front and 2-stage in back, let you set vehicles back between the columns so doors open easily. A single-side lock release frees both locks from one column, and the overhead height-limit switch stops the lift before a tall vehicle reaches the beam.
Large 4.5" pulleys reduce cable wear, and quick-change slider blocks make maintenance simple. See the Beta 9K in our Daleville, Indiana showroom, or call 765-723-6523 to talk with a lift specialist.

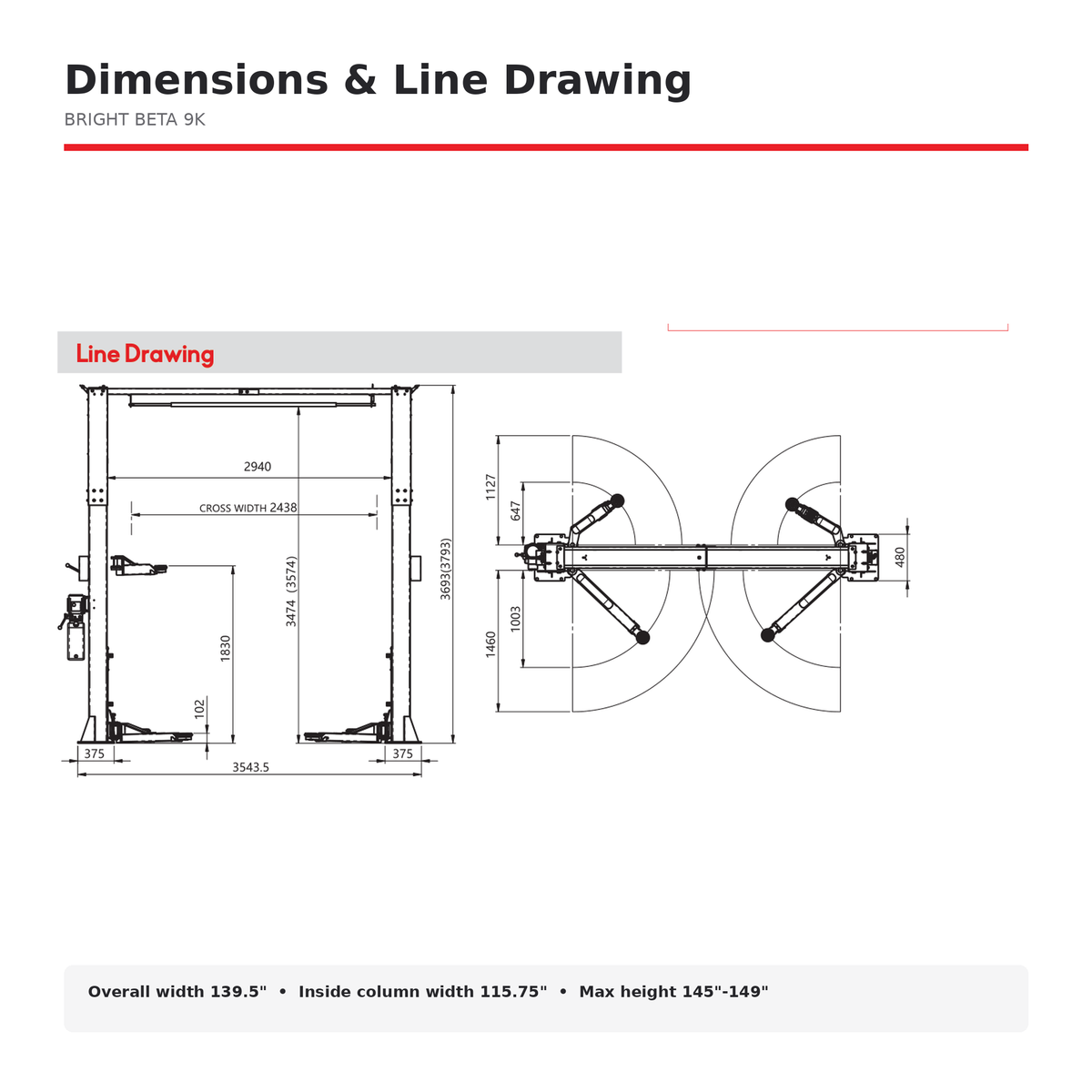

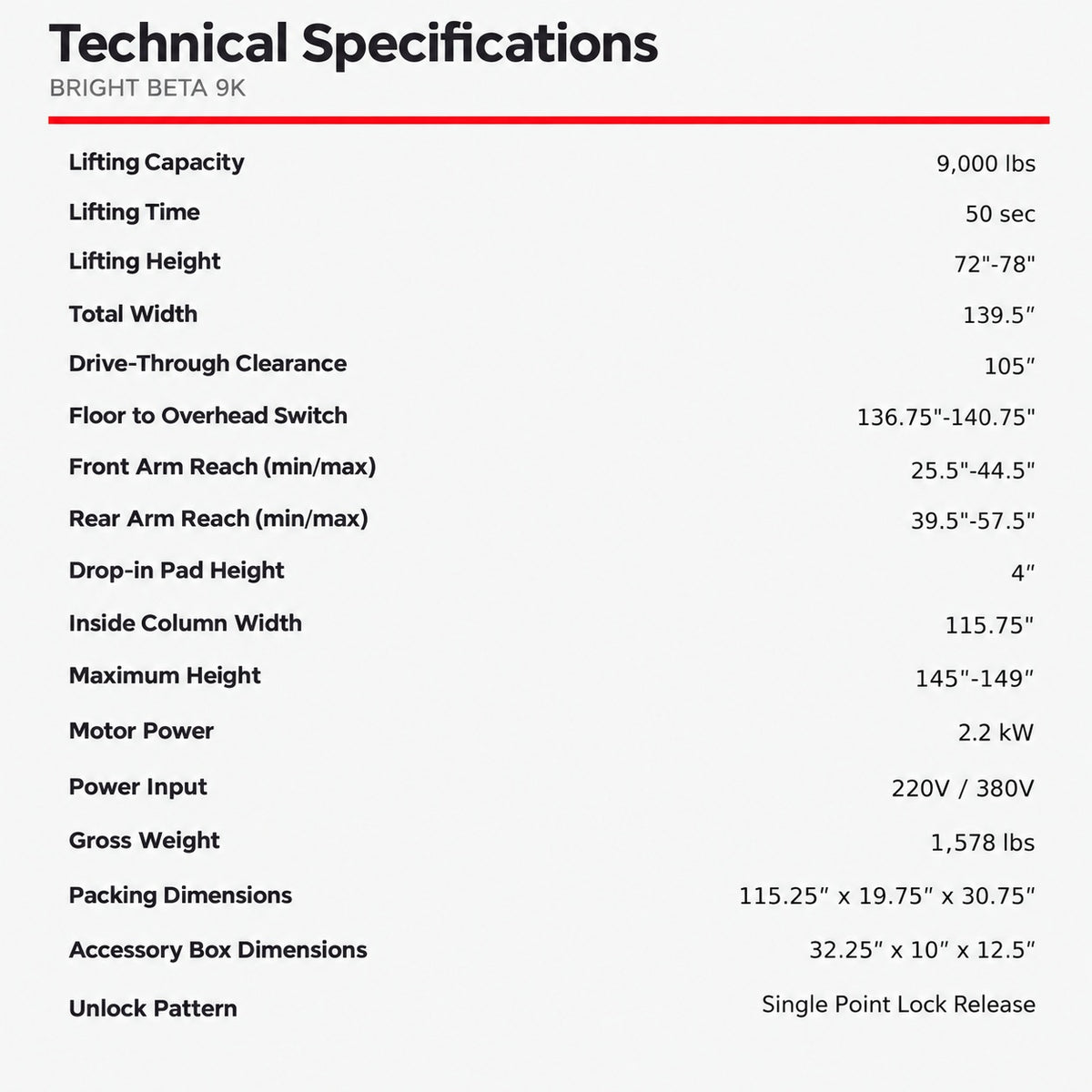

Specs and Dimensions
Lifting Capacity
9,000 lbs
Lifting Time
50 sec
Lifting Height
72"–78"
Drive-Through Clearance
105"
Front Arm Reach (min/max)
25.5"–44.5"
Rear Arm Reach (min/max)
39.5"–57.5"
Drop-In Pad Height
4"
Total Width
139.5"
Floor to Overhead Switch
136.75"–140.75"
Inside Column Width
115.75"
Maximum Height
145"–149"
Motor Power
3 HP
Power Input
220V
Shipping Weight
1,578 lbs
Packing Dimensions
115.25" × 19.75" × 30.75"
Accessory Box Dimensions
32.25" × 10" × 12.5"
Unlock Pattern
Single-side lock release
Manuals and Documents
Need a part number or a document that isn't listed? Call 765-544-3838 and we'll send it over.
Questions Before You Buy
Should I get the Beta 9K or the Beta 10K?
How tall does my ceiling need to be?
Will my doors open with the vehicle on the lift?
How thick does my concrete need to be?
What kind of power does it need?
Can I pick it up at the showroom?
