Why This Lift
- Extra-wide 24.5" runwaysPlenty of room for trucks, vans and wide tires
- Built for alignmentsSpacer blocks fit different wheelbases and turntables
- Add a jacking beamThe optional JB30W lifts the wheels free (7,000 lb. capacity)
- Long 204.7" runwaysHandles long-wheelbase trucks and vans

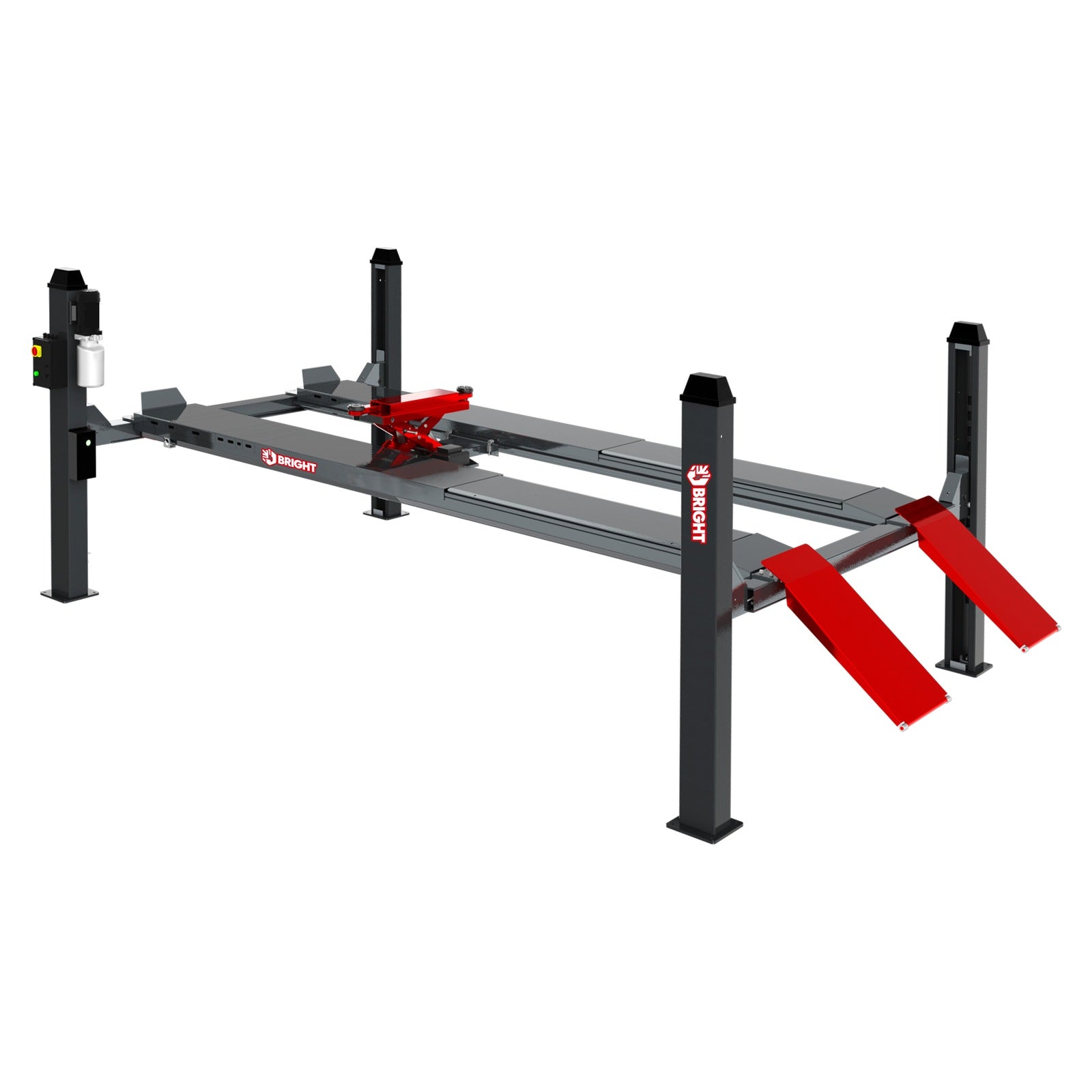

Explore this lift
Explore the Kappa 550
Tap a number to see what each part does.
Product Description

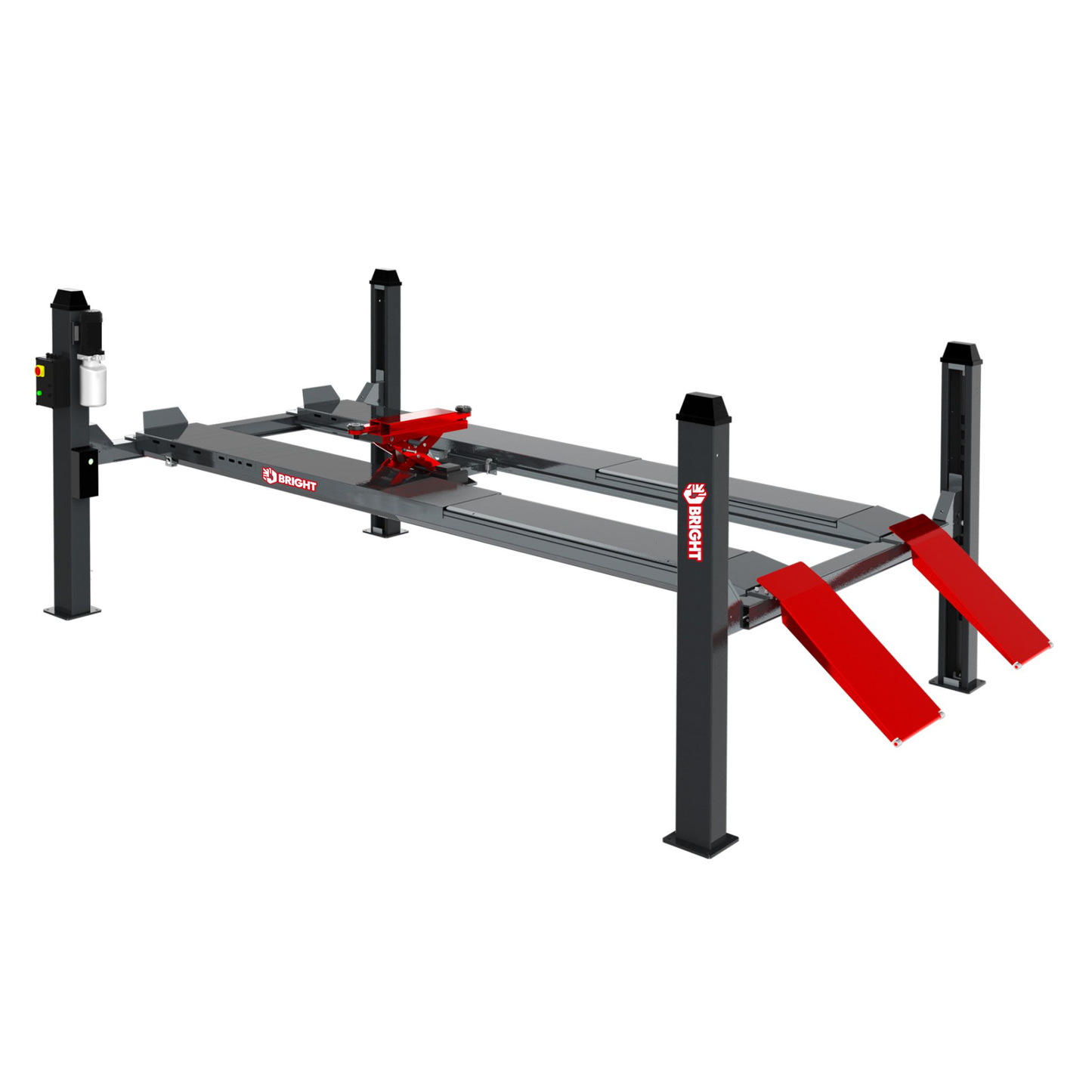

The Bright Kappa 12K (550/WT52E) is a 12,000 lb. four-post alignment lift with a jacking beam, made for alignment work and general service. Its 204.7" runways handle long-wheelbase trucks and vans, and extra-wide 24.5" runways leave room for wide tires.
The jacking beam lifts up to 6,614 lbs, raising the wheels off the runways for brake, suspension, and tire work. Spacer blocks adapt the runways to different wheelbases and turntable sizes. Air-released mechanical safety locks and a cable-break protection device keep the vehicle secure, and an adjustable flow valve lets you control lowering speed.
The Kappa 12K lifts to 70.87" in about 55 seconds and uses 87–116 PSI shop air. See it in our Daleville, Indiana showroom, or call 765-723-6523 to talk with a lift specialist.

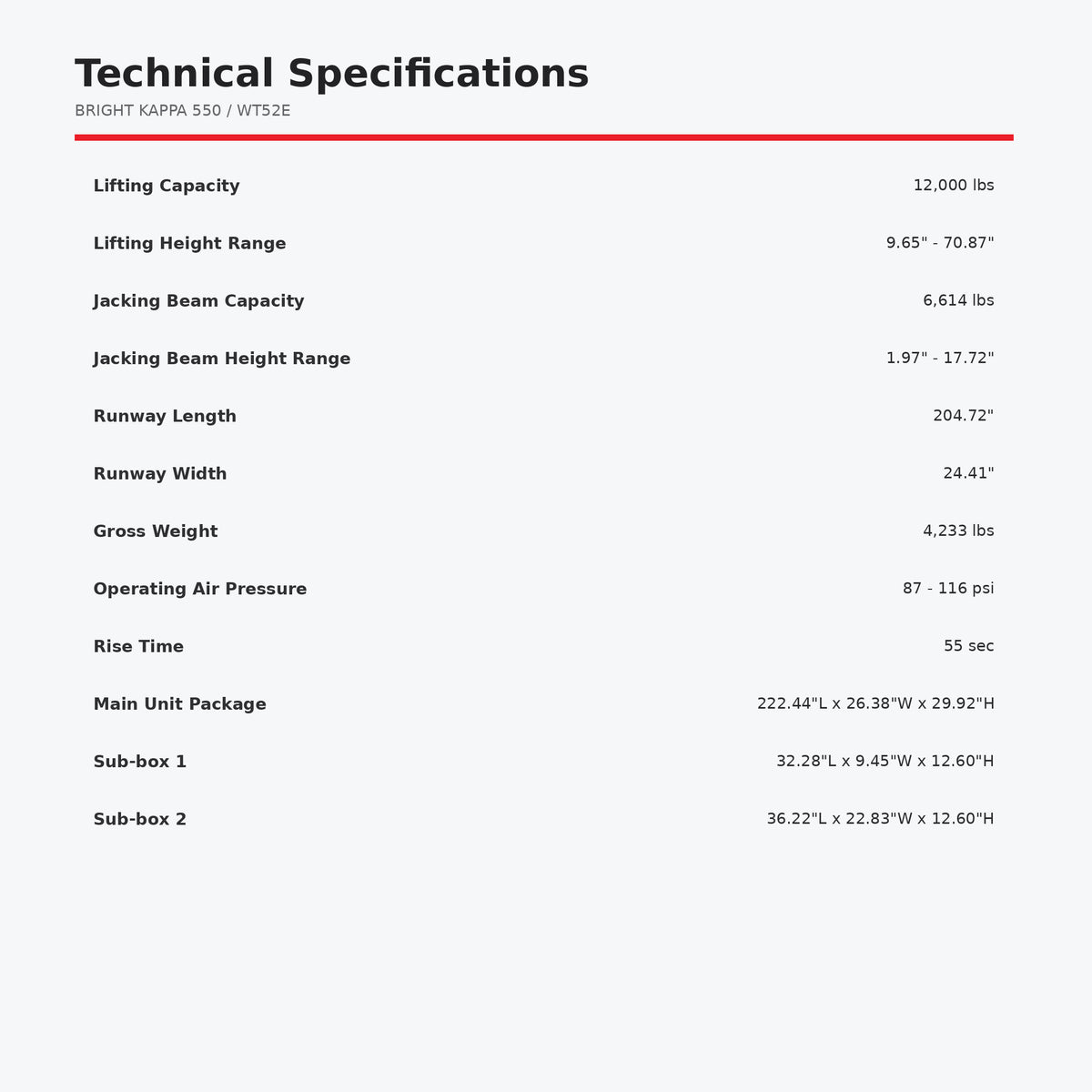

Specs and Dimensions
Lifting Capacity
12,000 lbs
Lifting Height Range
9.65" - 70.87"
Optional Jacking Beam Capacity
7,000 lbs (Bright JB30W, sold separately)
Optional Jacking Beam Height Range
1.97" - 17.72" (sold separately)
Rise Time
55 sec
Operating Air Pressure
87 - 116 psi
Runway Length
204.72"
Runway Width
24.5"
Gross Weight
4,233 lbs
Main Unit Package
222.44"L x 26.38"W x 29.92"H
Sub-box 1
32.28"L x 9.45"W x 12.60"H
Sub-box 2
36.22"L x 22.83"W x 12.60"H
