Why This Machine
- Light truck and ag wheels13" to 26" rims, wheels up to 63"
- 2,205 lb. wheel capacityHydraulic clamping holds heavy assemblies
- Portable control consoleRun the job from the best angle
- Two-speed spindle6.5 RPM for tough beads, 13 RPM for speed
Product Description

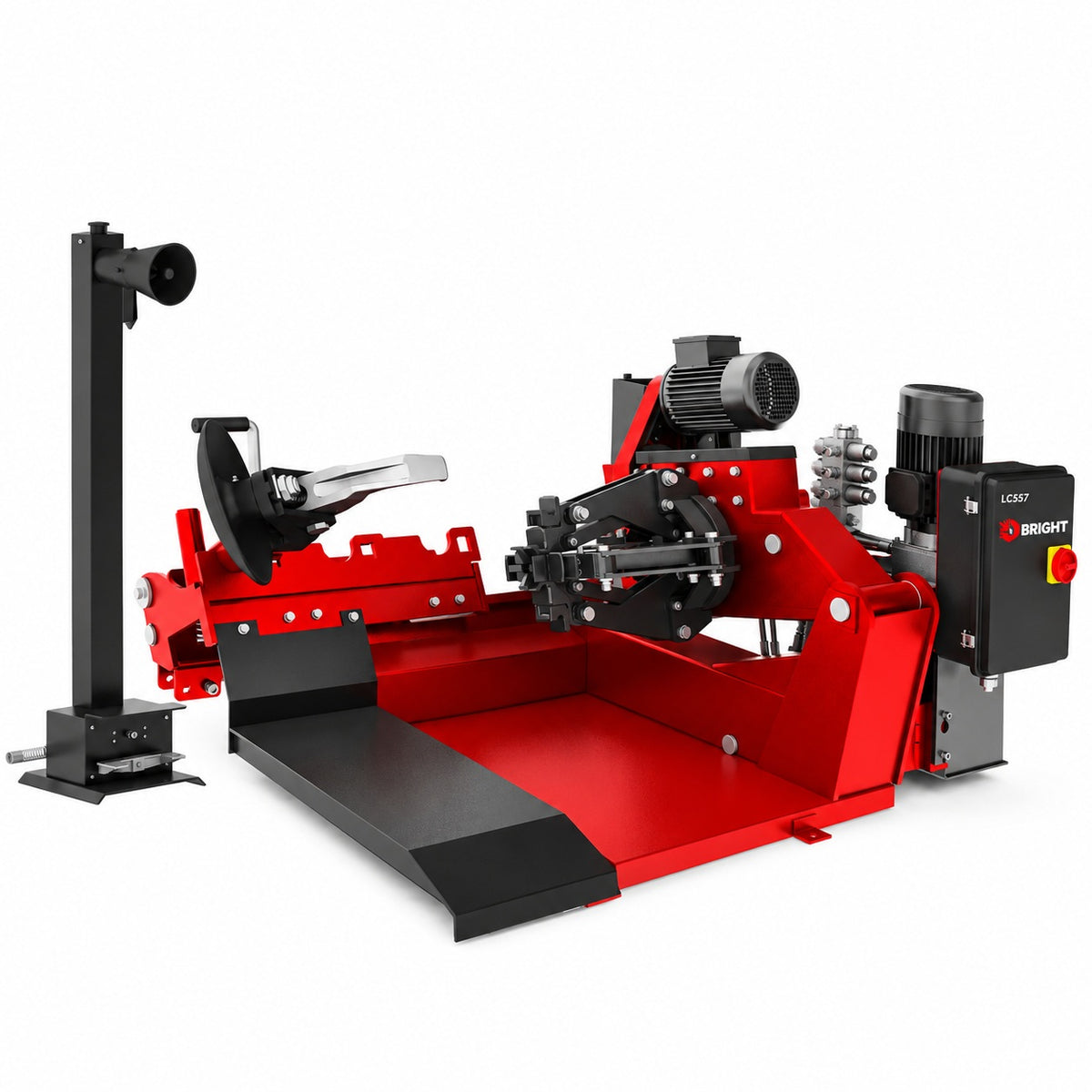

The Bright LC557 is a hydraulic truck tire changer built for light commercial trucks and agricultural wheels. It clamps 13" to 26" rims and handles wheels up to 63" in diameter, 31.5" wide, and 2,205 lbs.
A hydraulic clamping chuck grips the wheel securely, and the manual reversing tool head lets you work the bead from either side without repositioning the wheel. The carriage is built from double-layer reinforced plate, and the integrated frame resists twisting under heavy loads.
The portable control console moves with you around the wheel, so one tech can run the whole job safely from the best vantage point. A two-speed spindle (6.5 and 13 RPM) gives you control on tough beads and speed on easy ones.
Power: 220V, 60Hz, single phase. The machine ships without a plug, so plan for an electrician to wire it to your shop's power.
Want to see it run? Visit our Daleville, Indiana showroom or call 765-544-3838.
Specs and Dimensions
Rim Range
13"–26"
Max Wheel Diameter
62.99" (1,600 mm)
Max Wheel Width
31.5" (800 mm)
Max Wheel Weight
2,204.6 lbs (1,000 kg)
Minimum Hub Bore
4.33" (110 mm)
Spindle Rotation Speed
6.5 / 13 RPM
Spindle Motor
1.7–2.4 HP (1.3–1.8 kW)
Hydraulic Station Motor
2 HP (1.5 kW)
Noise Level
75 dB
Power Supply
220V, 60Hz, Single Phase (No Plug Included)
Machine Length
71.02" (1,804 mm)
Machine Width
72.44" (1,840 mm)
Machine Base Width
68.07" (1,729 mm)
Machine Height
50.83" (1,291 mm)
Net Weight
1,235 lbs (560 kg)
Packed Dimensions
65" × 62.2" × 41.7"
Shipping Weight
1,587 lbs (720 kg)

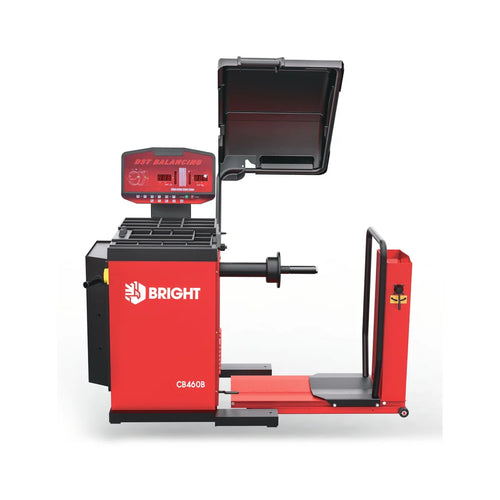

Add a Wheel Balancer and Save
Package pricing availableBuying a tire changer and wheel balancer together? We offer package pricing. These balancers are a great match for this machine.
Ask about package pricing on any tire changer and balancer. Call
765-544-3838
for a package quote.
