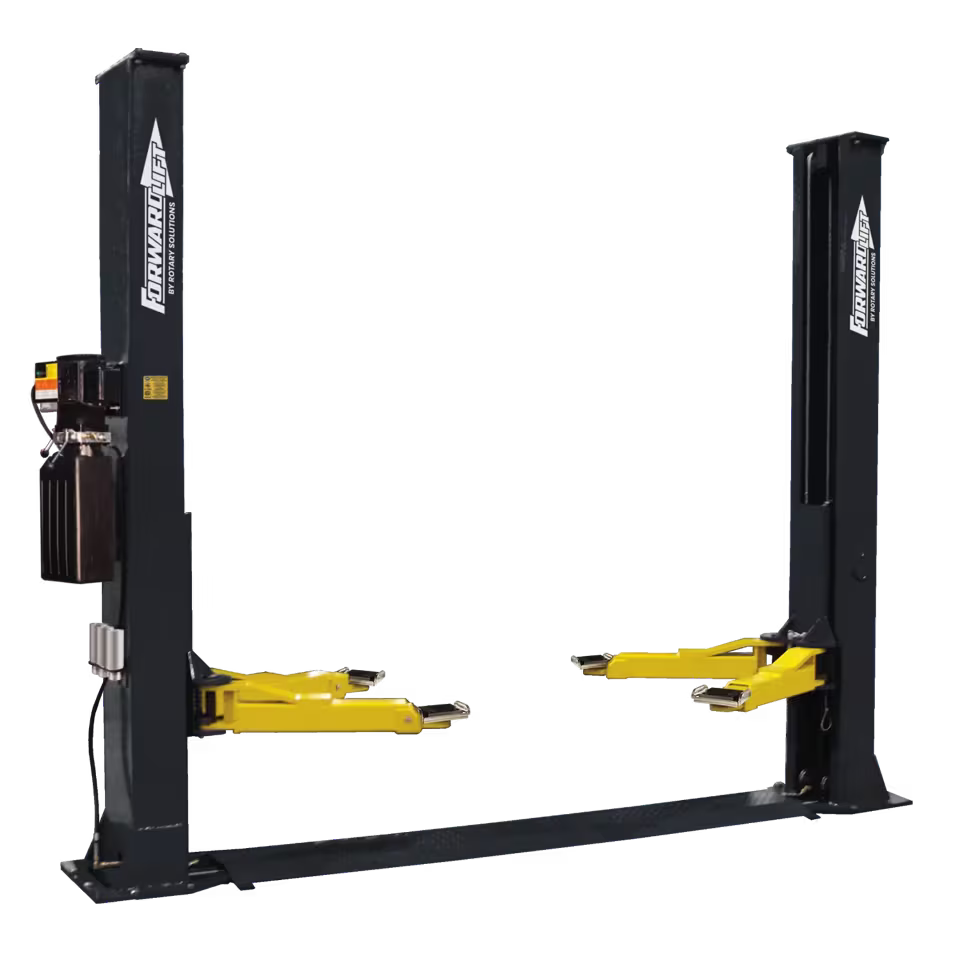

Forward-Lift BP9 Low Ceiling Two-Post Lift

Forward-Lift BP9 Low Ceiling Two-Post Lift

ALI Gold certified 9,000 lb. two-post floorplate lift designed for low-ceiling shops

SKU: BP9X

$6,603
$6,603
IN STOCK
$600 manufacturer rebate available

Have Questions? We're Here to Help

Call 765-544-3838 Text 765-544-3838
See it in Person
We also offer Nationwide Shipping — shipping cost calculated at checkout.
We also offer Nationwide Shipping

shipping cost calculated at checkout.

How you can receive this equipment

Two ways to get your order, plus help finding an installer

Free

Pickup at our showroom

Free pickup at our Daleville, IN showroom. We've got forklifts and an experienced warehouse team ready to load you up and get you back on the road.

  • 9175 S. Innovation Drive, Daleville IN
  • Most items ready same day
  • Bring a trailer rated for the load
Nationwide

Freight to your door

Curbside freight delivery across the lower 48. You unload with your own forklift, tractor, or skid steer. Liftgate service available on smaller items for an added fee.

  • Shipping calculated at checkout
  • Typical transit: 5-10 business days
  • Appointment call before delivery
Optional

Need help finding an installer?

Most customers install these themselves. If you'd rather hire it out, we don't do installs, but we're happy to point you in the right direction.

  • No cost, no commitment
  • You hire and pay the installer direct
  • Call or text 765-399-2598
  • Largest Showroom in the USA
  • Our Team has 100+ Years of Experience
  • Fast Nationwide Shipping
  • Real People Ready to Help
View full details

Key Highlights

9,000 lb Capacity
Heavy-duty lifting
Low Ceiling Design
Perfect For Low Garages
ALI Gold Certified
Industry Approved
Symmetric Arms
Balanced Lifting
Single-Point Lock Release
Simple and convenient operation
Commercial Grade
Designed for daily use

The BP9 is the perfect two-post lift for low ceilings. With an overall height of only 111.25”, this Forward Lift will fit with ceilings as low as 10 feet. A steel base plate runs between the two columns of the lift, protecting cables that would typically run overhead.

  • 9,000 lb. lifting capacity
  • Low-ceiling floorplate design
  • Fits shops with as little as 10 ft. ceiling height
  • 2-stage symmetric lifting arms
  • Single-point lock release
  • Carriage latch system engages every 3 in.
  • Adapter storage bracket included
  • Steel floorplate cable protection
  • Commercial-grade construction
  • ALI Gold Certified
  • 97.25 in. drive-through clearance
  • 208/230V power requirement
  • Optional 3-phase motor available
Capacity & Lift Range
Capacity 9,000 lbs.
Rise w/ Extensions 80.5 in.
Rise w/o Extensions 72 in.
Minimum Adapter Height 4.5 in.
Overall Dimensions
Overall Height 111.25 in.
Overall Width 138.5 in.
Width Inside Columns 111 in.
Minimum Ceiling Height 113 in.
Vehicle Access
Drive Through Clearance 97.25 in.
Arm Reach 30 - 46.25 in.
Drive-Over Height 1.5 in.
Power System
Voltage 208/230V
Current 20 Amps
Motor 2 HP, Single Phase
Optional Motor 3-Phase Available
