Product Description

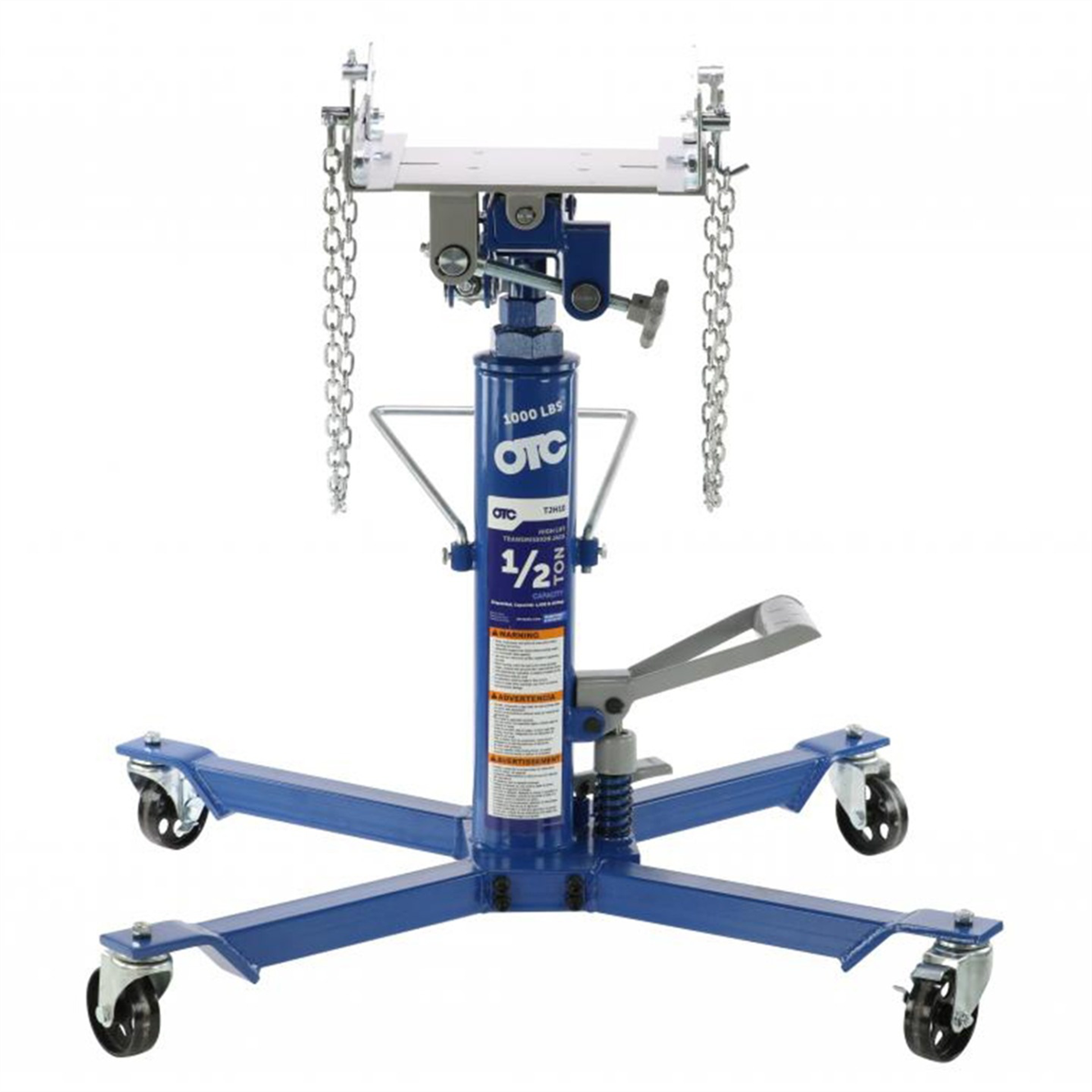

If you are pulling transmissions on a two-post or four-post lift, a high-lift transmission jack makes removing and installing them far easier and safer. The OTC 1000 lb telescopic jack raises from 35" to 71-5/8", so it reaches up to the drivetrain on a raised vehicle, then lets you tilt and fine-tune the load until the bolt holes line up.
It is rated at 1,000 lb and sized for automobile transmissions, and the foot pump keeps both hands free for guiding the unit into place.
Why This Jack
- Telescopic two-stage ram reaches 71-5/8" for work under a raised lift
- Head tilts 24° forward, 19° back and 20° side to side for precise alignment
- Universal saddle with adjustable corner brackets and safety chains holds the load secure
- Foot-operated pump and lowering pedal for hands-free height control
- Wide 37-1/8" leg base with 4" polyurethane swivel casters, two of them locking
- Built-in overload protection and flash-chromed rams for long service life
- Meets ASME PASE-2019 safety standards
Specifications
| Capacity | 1,000 lb |
| Minimum height (retracted) | 35" |
| Maximum height | 71-5/8" |
| Forward tilt (max) | 24° |
| Backward tilt (max) | 19° |
| Side tilt (max) | 20° each way |
| Leg width | 37-1/8" |
| Casters | 4" polyurethane swivel, 2 locking |
| Pump | Foot-operated hydraulic |
| Safety standard | ASME PASE-2019 |
Works With These OTC Adapters
- OTC 1758 Fuel Tank Handler
- OTC 1797 Heavy-Duty Clutch Adapter
- OTC 1870 Universal Transmission Adapter
Pair It With Your Lift
A high-lift transmission jack is built to work under a raised vehicle. Browse our two-post lifts and four-post lifts, or call or text an expert at 765-544-3838 and we will help you set up the bay.
