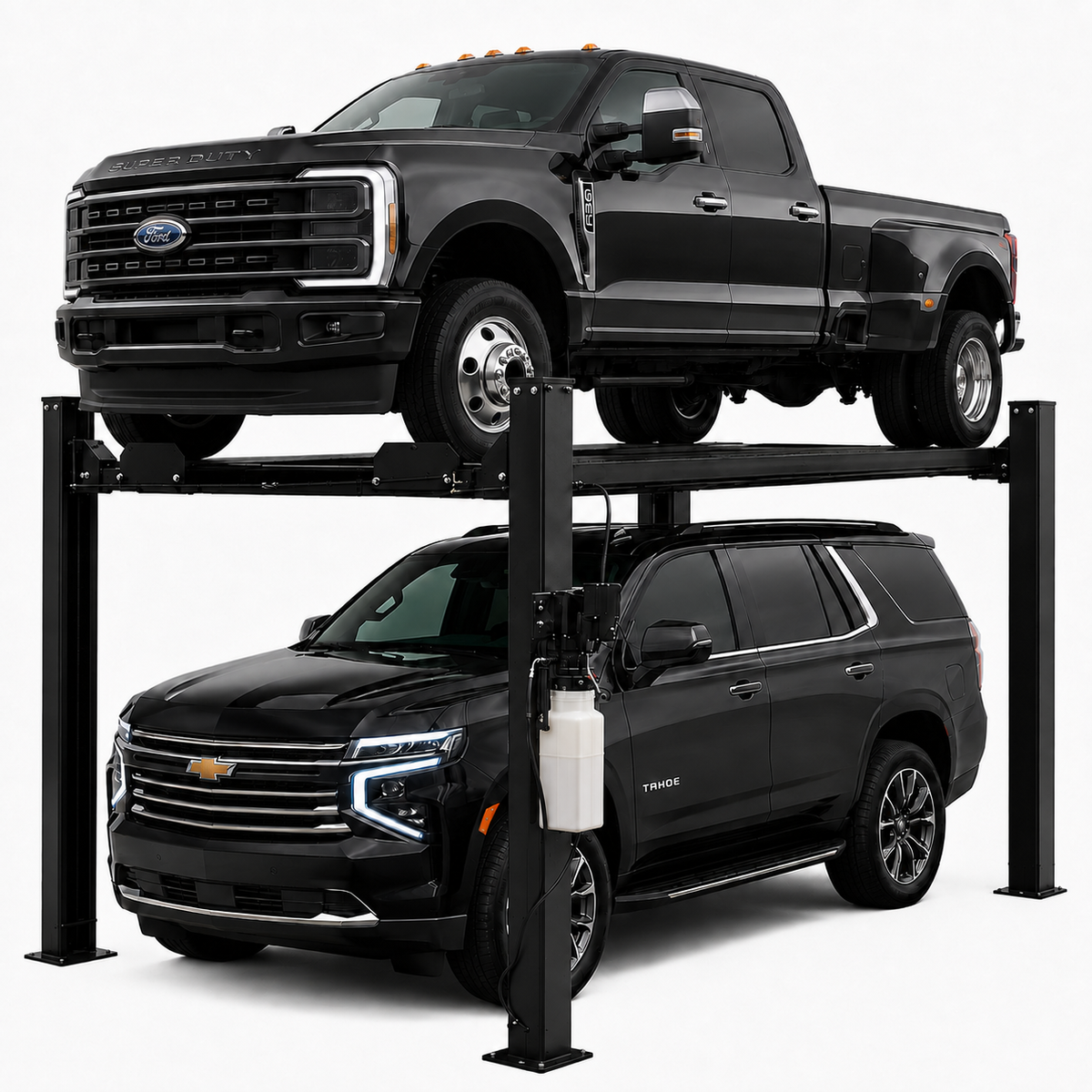

• A two-car garage lift system shown in a studio setting, with a black Ford pickup truck parked on the upper level and a black Chevrolet SUV parked on the lower level. The lift structure is black steel with white hydraulic fluid reservoirs visible on the front posts, photographed against a clean white background.
1 13

Atlas Garage PRO9000 9,000 lb 4-Post Lift

Atlas Garage PRO9000 9,000 lb 4-Post Lift

Lifts on display in the Truman showroom in Daleville, Indiana
Daleville, Indiana showroom

The largest Atlas display in the country

See this lift and the rest of the Atlas lineup set up side by side. Watch them run, compare models in person, and take yours home the same day.

  • Atlas lifts, tire changers and wheel balancers on display
  • Same-day pickup. We load it onto your truck or trailer.
  • Open Mon to Fri 8 to 5, Sat 8 to noon
Plan your visit Call 765-544-3838

One of our best-selling 4-post lifts. 9,000 lb. capacity with extra-long, extra-wide runways that fit duallys.

$4,899
$4,899
IN STOCK

SKU: ATEXH-PRO9000

Talk to an expert before you buy Questions on fit, ceiling height or install? We'll help you pick the right one.
Call 765-544-3838 or text us
Choose how you get your order

On display in our Indiana showroom. See it run, then take it home today. We'll load it for you. Open Mon–Sat.

See it in Person
We also offer Nationwide Shipping — shipping cost calculated at checkout.
We also offer Nationwide Shipping

shipping cost calculated at checkout.

Why buy from Truman

Free pickup

Indiana

Nationwide

Fast shipping

Local installer

Referrals

Largest showroomShowroom

In the countryLargest in the US

100+ years

Of experience

Real people

Ready to help

View full details

Why This Lift

  • Fits duallys and long trucks199.5" runways and 110.5" between the columns
  • 80.25" under the runwaysPark a pickup or SUV below, a car on top
  • Bridge jack readyBuilt-in tracks for a rolling bridge jack
  • Portable, extras includedCaster kit, drip trays, and jack tray, 110V power

Explore this lift

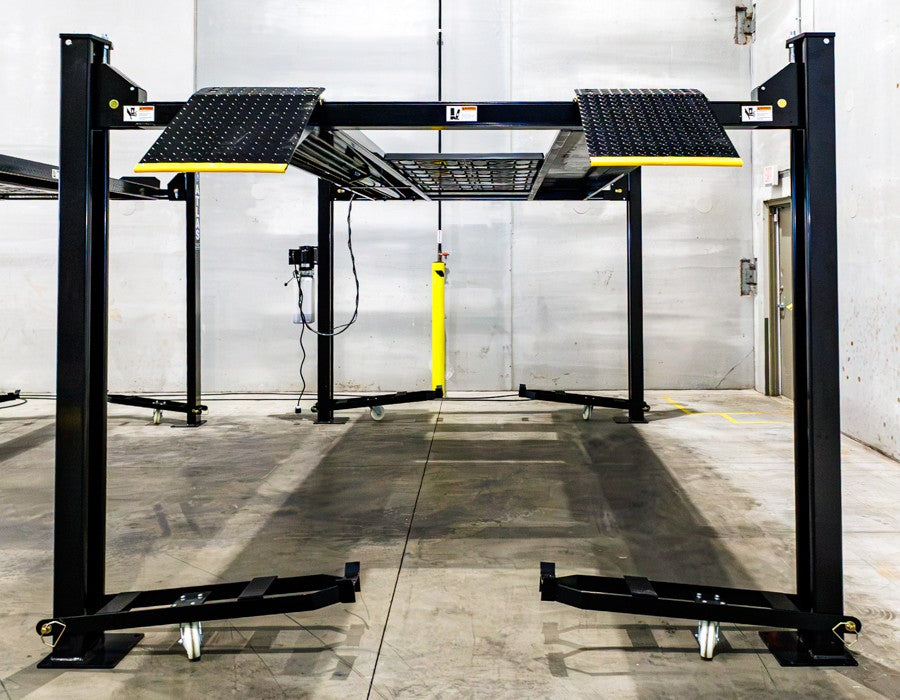

Explore the Garage PRO9000

Tap a number to see what each part does.

Atlas Garage PRO9000 9,000 lb 4-Post Lift See it in personIndiana showroom 80.25" clearance 95.75" 110.5" between columns

Product Description

The Atlas Garage PRO9000 is one of our best-selling four-post lifts and the biggest lift in the Garage PRO series. With 9,000 lb. capacity, 199.5" runways, and 110.5" between the columns, it handles long-wheelbase pickups and even dually trucks that won't fit on most portable four-posts.

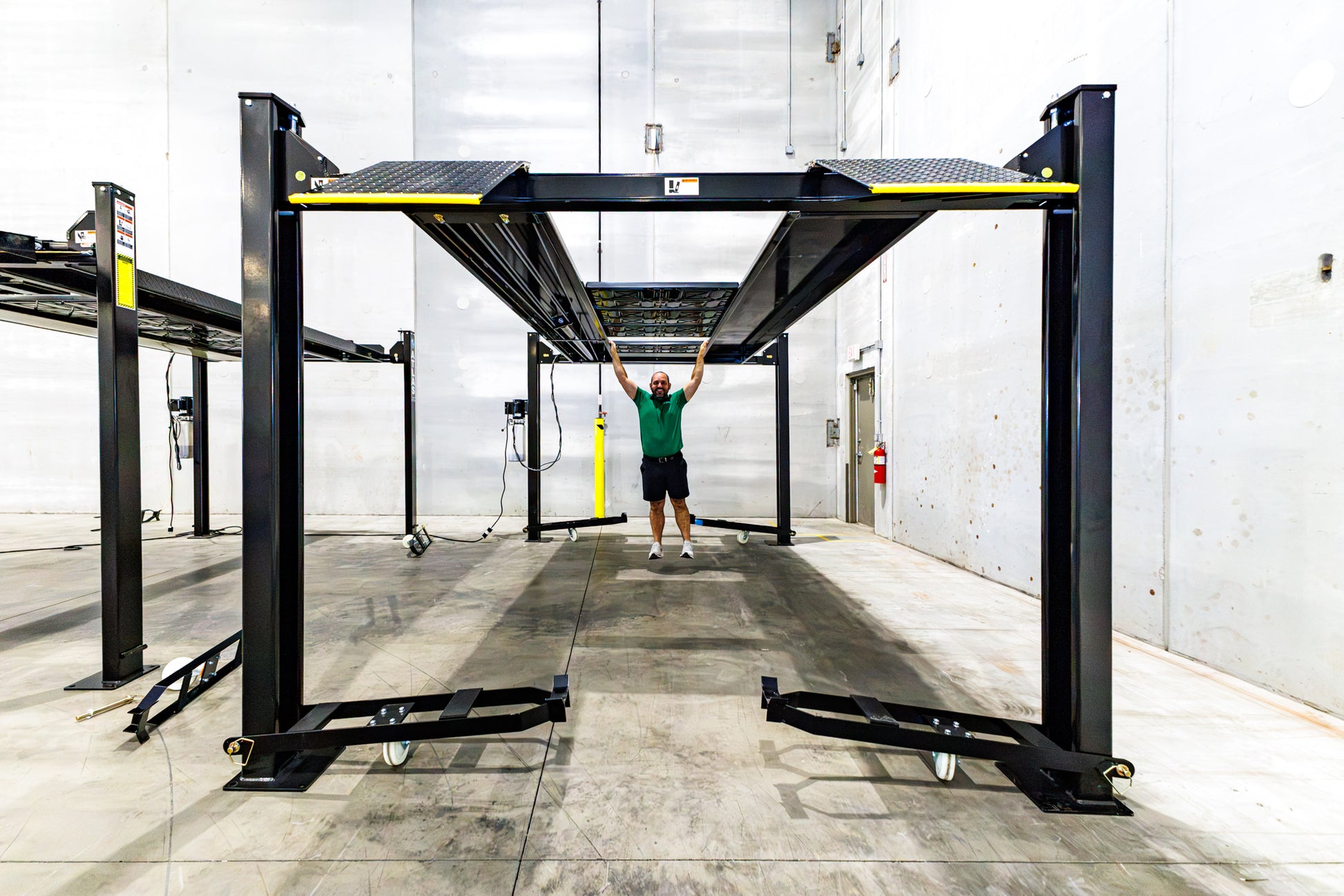

It also lifts higher than the PRO8000, with 80.25" of clearance under the raised runways, so you can park everything from a compact car to a pickup underneath while another vehicle sits on top. At roughly 600 lbs. heavier than the PRO8000, it's one of the most solidly built portable hobbyist lifts on the market.

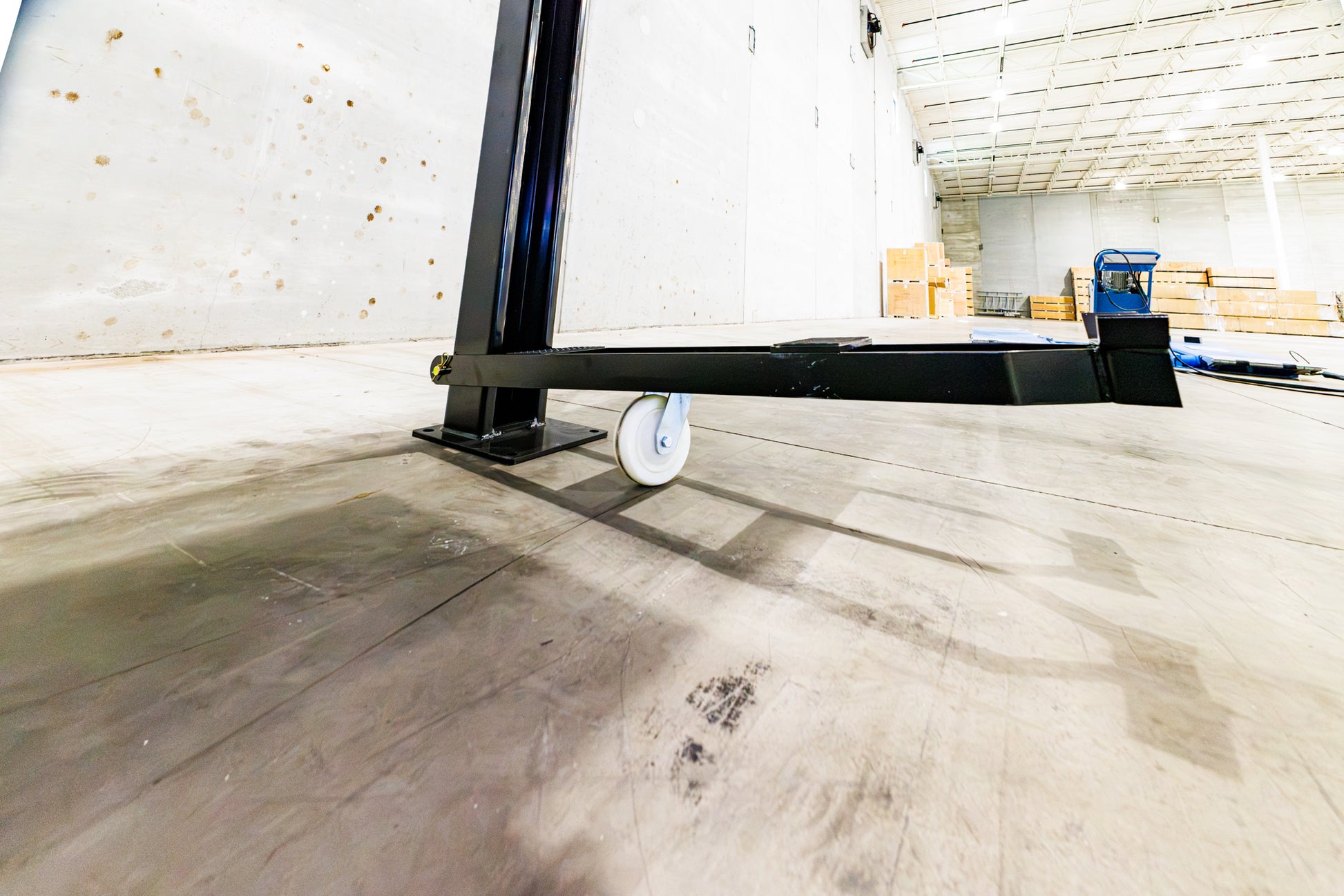

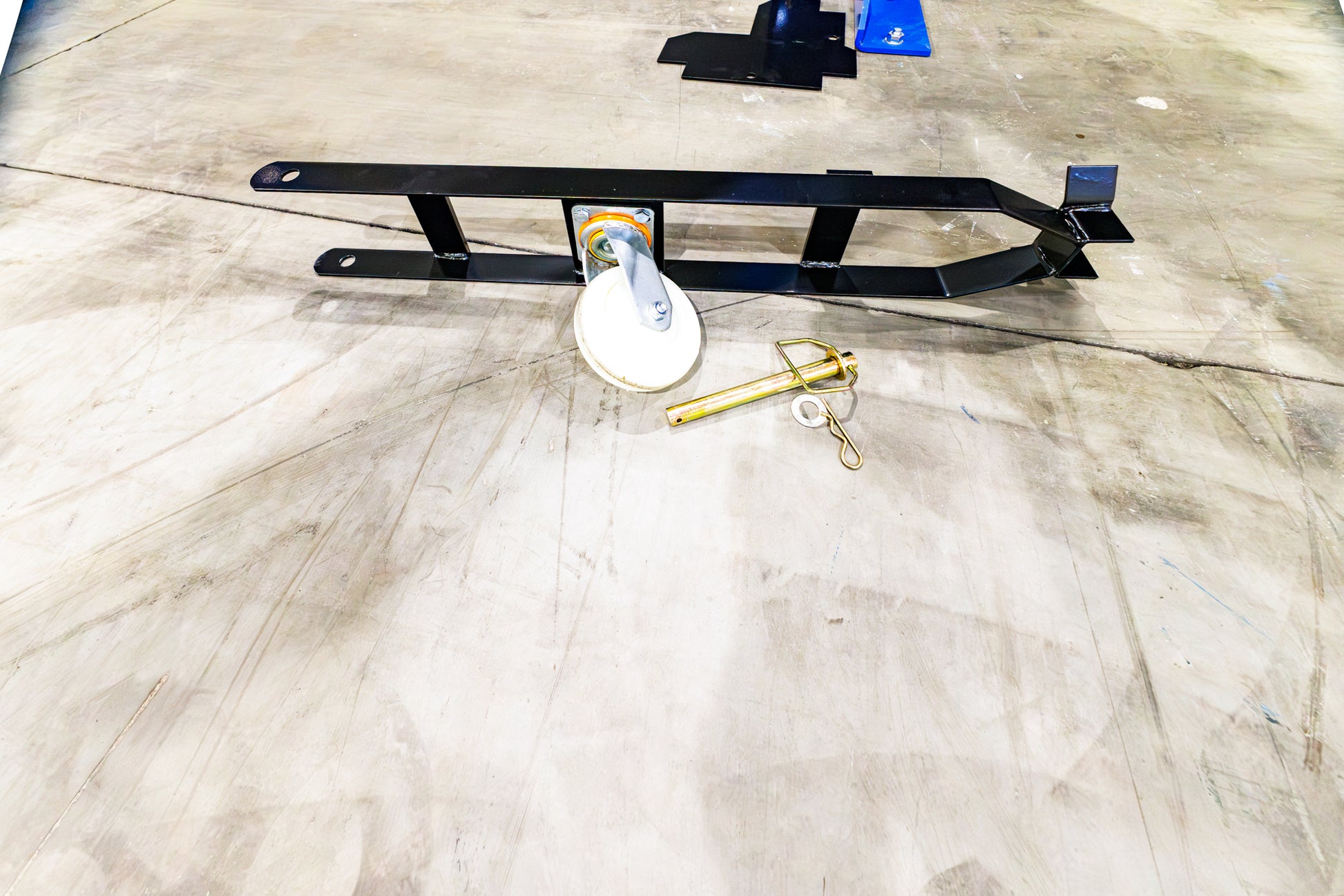

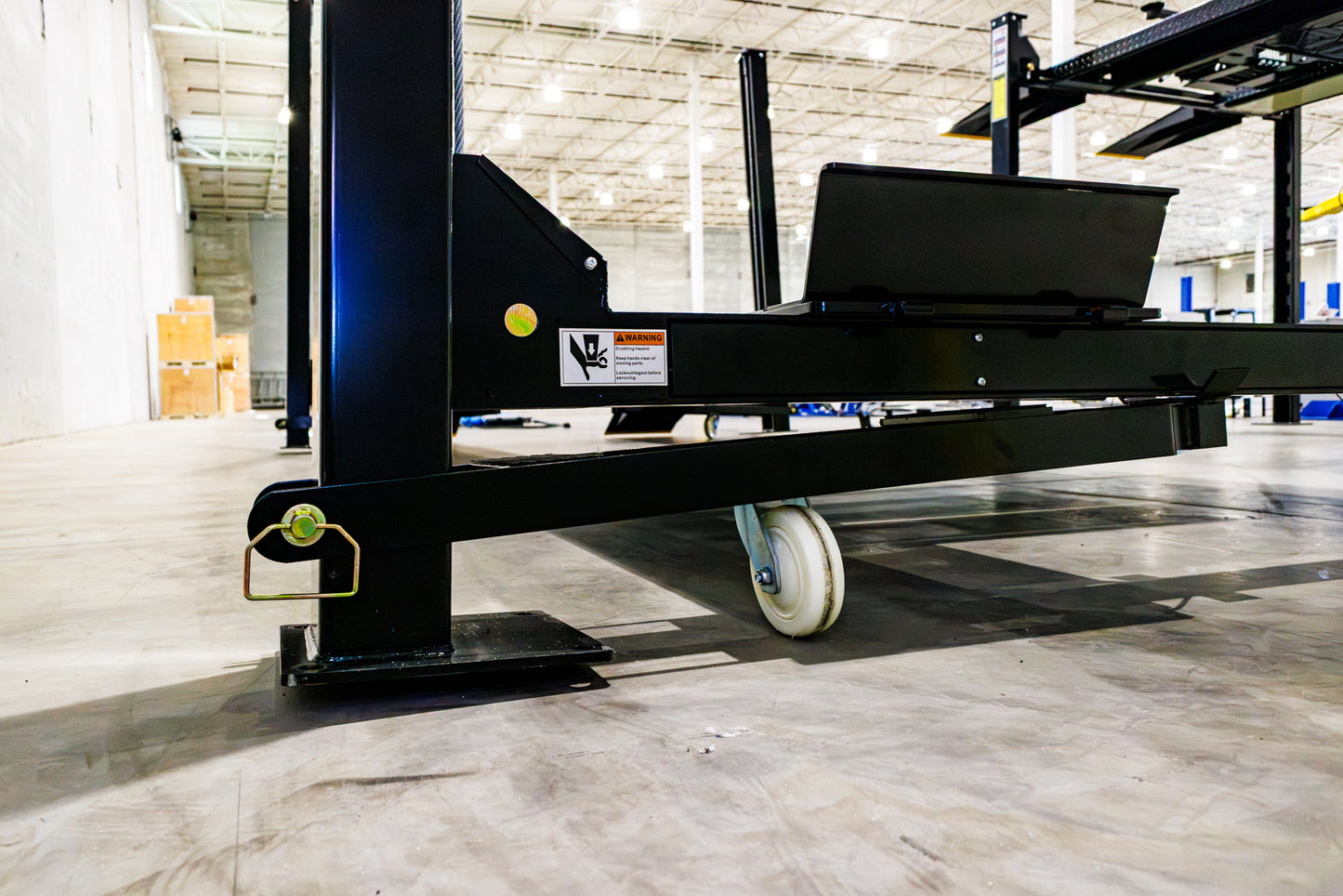

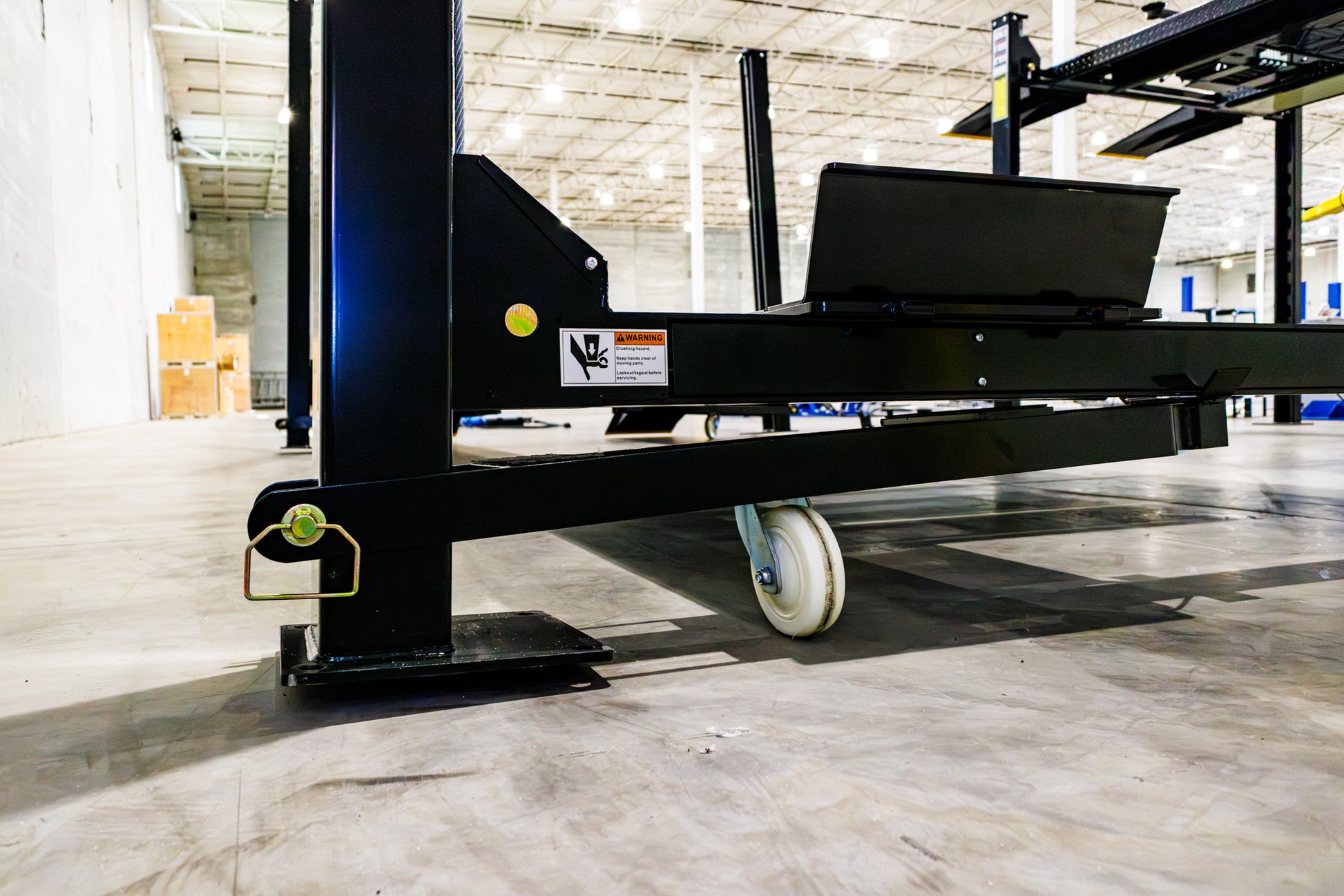

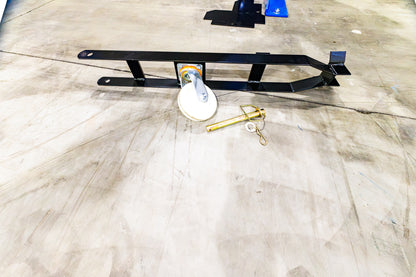

The PRO9000 is the only Garage PRO model with tracks between the runways for a rolling bridge jack, so you can lift the wheels free for brake, suspension, and tire work. Free plastic drip trays, a steel jack tray, and a caster kit with polyurethane wheels are included. The casters go on or come off in minutes, so you can move the lift between bays or even outside. It runs on standard 110V power with a 30 amp breaker.

See the PRO9000 in our Daleville, Indiana showroom, or call 765-723-6523 to talk with a lift specialist.

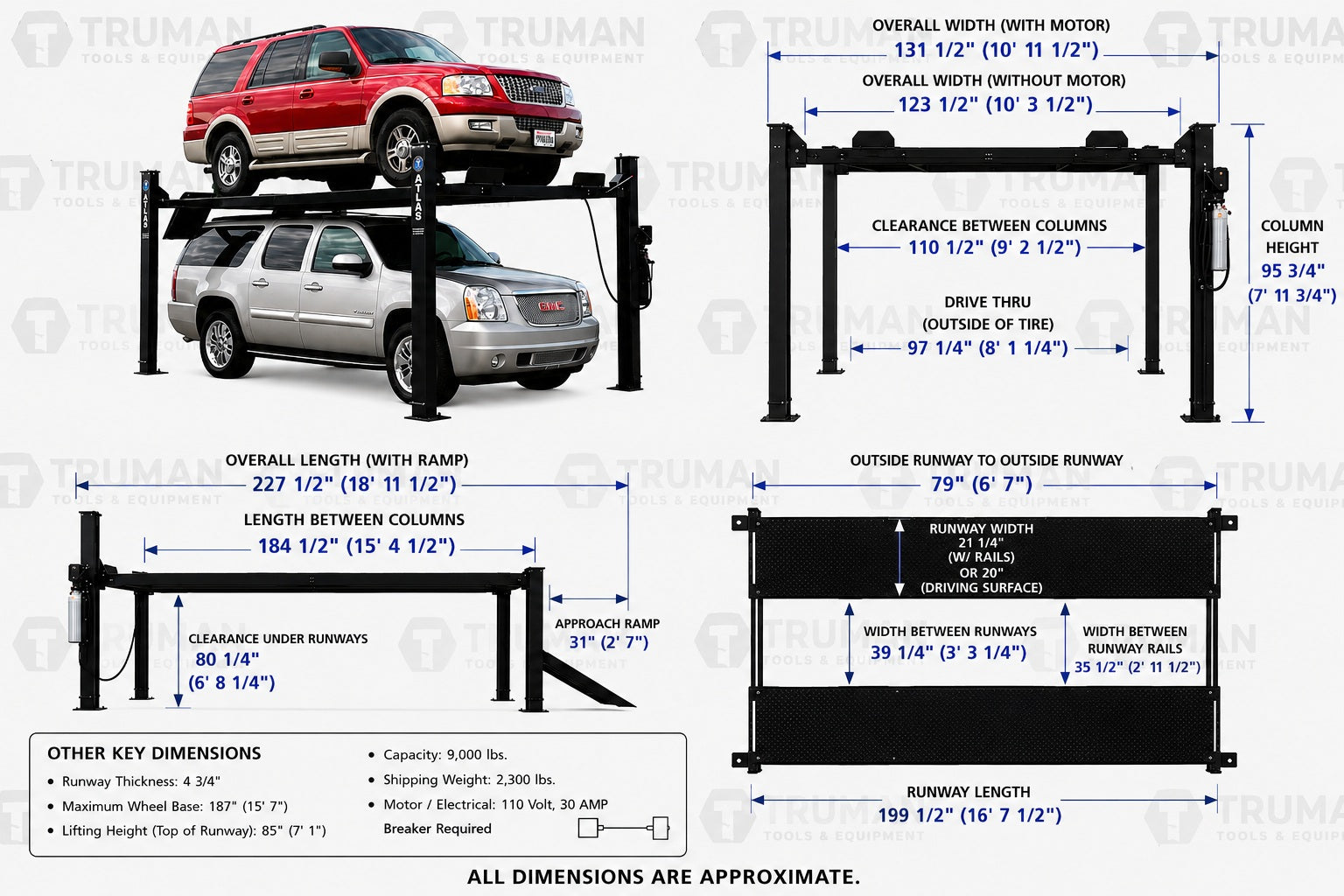

Specs and Dimensions

Capacity
9,000 lbs.
Lifting Height (Top of Runway)
85" (7' 1")
Clearance Under Runways
80 1/4" (6' 8 1/4")
Column Height
95 3/4" (7' 11 3/4")
Overall Width (Without Motor)
123 1/2" (10' 3 1/2")
Overall Width (With Motor)
131 1/2" (10' 11 1/2")
Overall Length (With Ramp)
227 1/2" (18' 11 1/2")
Shipping Weight
2,300 lbs.
Approach Ramp
31" (2' 7")
Runway Width
21 1/4" (w/ Rails) or 20" (Driving Surface)
Runway Length
199 1/2" (16' 7 1/2")
Runway Thickness
4 3/4"
Width Between Runways
39 1/4" (3' 3 1/4")
Width Between Runway Rails
35 1/2" (2' 11 1/2")
Outside Runway to Outside Runway
79" (6' 7")
Clearance Between Columns
110 1/2" (9' 2 1/2")
Length Between Columns
184 1/2" (15' 4 1/2")
Maximum Wheel Base
187" (15' 7")
Drive Thru
97 1/4" (8' 1 1/4")
Motor / Electrical Requirement
110 Volt, 30 AMP Breaker Required

Bridge Jacks That Fit This Lift

Add a bridge jack to lift the wheels free for tire, brake, and suspension work.

Popular Pick

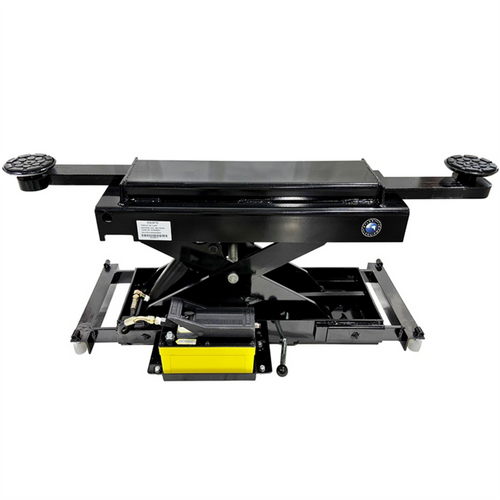

Atlas RJ45A 4,500 lb. Air/Hydraulic Rolling Bridge Jack
Popular Pick
Atlas RJ45A 4,500 lb. Air/Hydraulic Rolling Bridge Jack
4,500 lb. air/hydraulic rolling bridge jack with truck adapters included.
$1,299.00
View details
Atlas 3,500 lb. Sliding Bridge Jack
Atlas 3,500 lb. Sliding Bridge Jack
3,500 lb. sliding bridge jack with a manual hydraulic pump. No air compressor needed.
$949.00
View details
Atlas RJ6BK 6,000 lb. Air/Hydraulic Rolling Bridge Jack
Atlas RJ6BK 6,000 lb. Air/Hydraulic Rolling Bridge Jack
6,000 lb. air/hydraulic rolling bridge jack for the Atlas 412, 412A, 414, and 414A four-post lifts.
$1,799.00
View details

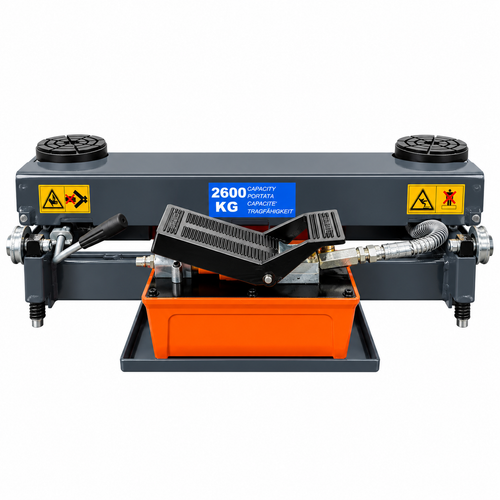

Bright JB26B Bridge Jack
Bright JB26B Bridge Jack
Rolling jacking beam for the Bright Lambda 500 and Atlas Garage PRO9000. Lifts the wheels free with 6,000 lbs of capacity.
$1,395.00
View details

Not sure which jack you need? Call 765-544-3838

Questions before you buy

Will my 3/4-ton or dually truck fit?

For most, yes. It's rated for 9,000 lbs, with 97 1/4" of drive-thru width, 110 1/2" between the columns, and room for a wheelbase up to 187". That's enough for most duallys, including the F-350 Super Duty. Check your truck's weight with any topper or load, and its width at the mirrors.

Can I park a pickup under a car?

Often, yes. There's 80 1/4" of clearance under the runways, so most cars and many pickups and SUVs fit below. Measure the vehicle you'll park underneath, including any topper or rack. For your ceiling, add the height of the vehicle on top to the 85" lifting height, plus a few inches of room.

Does it need to be bolted to my floor?

No. It's freestanding and comes with a caster kit, so you can roll it to a new spot when it's lowered. That also makes it a good choice if your concrete is cracked or you're not sure how thick it is.

What kind of power does it need?

Standard 110V household power on a 30-amp breaker.

What comes with it?

It comes with the caster kit, steel approach ramps, a steel jack tray, 4 drip trays, and 2 wheel chocks. The only thing you'll need to buy is hydraulic oil, which you can get at a farm supply or auto parts store. The manual lists the type and amount.

Can I do wheel and brake work on it?

Yes, with a rolling bridge jack. The runways have built-in tracks for one, and the compatible jacks are shown on this page.

Can I pick it up at the showroom?

Yes, and it's usually the best value. It's a 2,300 lb package about 17 feet long, so bring a car trailer or flatbed 18 feet or longer, and we'll load it for you. Because of its length, freight shipping costs more than for most lifts.

What's the warranty?

2 years structural and 1 year on hydraulics (parts only).

See all frequently asked questions
America's Largest Automotive Equipment Showroom Largest Automotive Equipment Showroom
Largest Automotive Equipment Showroom
Visit Our Showroom

See It Before You Buy It

See it before you buy it

Most products shown on our website can be seen in person at our huge showroom in Indiana. It's the largest showroom in the region, and there's nothing quite like seeing our products up close. Whether you're browsing or ready to buy, we make it easy and enjoyable. Bring a trailer and come visit us!
50,000+
Sq ft of equipment
sq ft
50+
Products on display
on display
100+
Years of industry experience
yrs experience
Get Directions Call First: 765-544-3838
9175 S. Innovation Drive, Daleville, IN 47334  · Open in Maps →
9175 S. Innovation Drive, Daleville, IN 47334
No pressure Browse at your own pace
Open 6 days a week Mon–Fri 8am–5pm, Sat 8am–Noon
Expert staff on floor Product demos available
Bring a trailer Take your purchase home same day
50,000 SQ FT
Our showroom floor in Daleville, IN
  • 5 stars: 3 (75%)
  • 4 stars: 1 (25%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
B
Brian Sprinkle

The lift works perfect for my application.

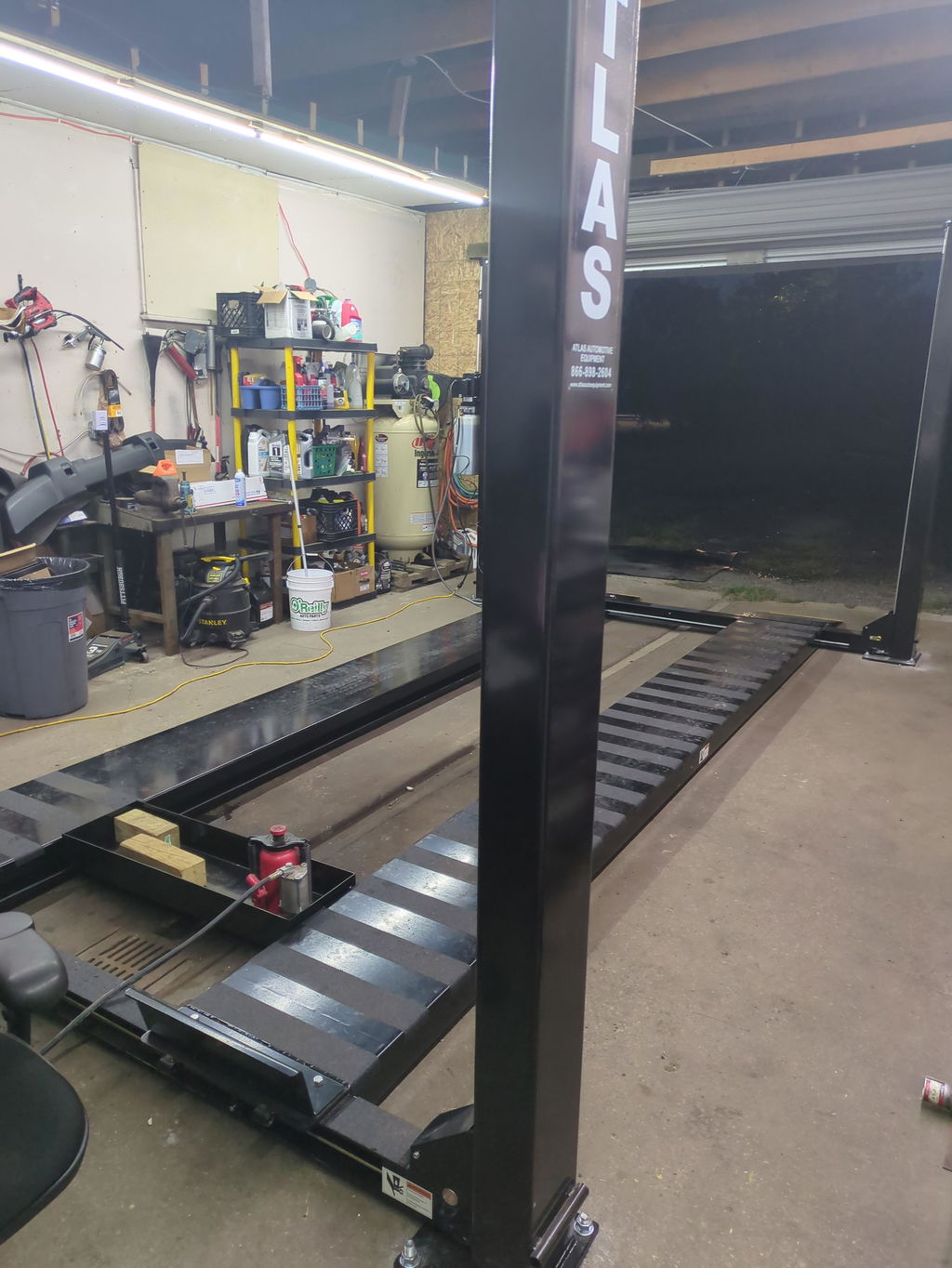

Brian Sprinkle review photo
