Four-Post Bridge Jacks
  • Atlas 3500 lb. Sliding Bridge Jack
1 1

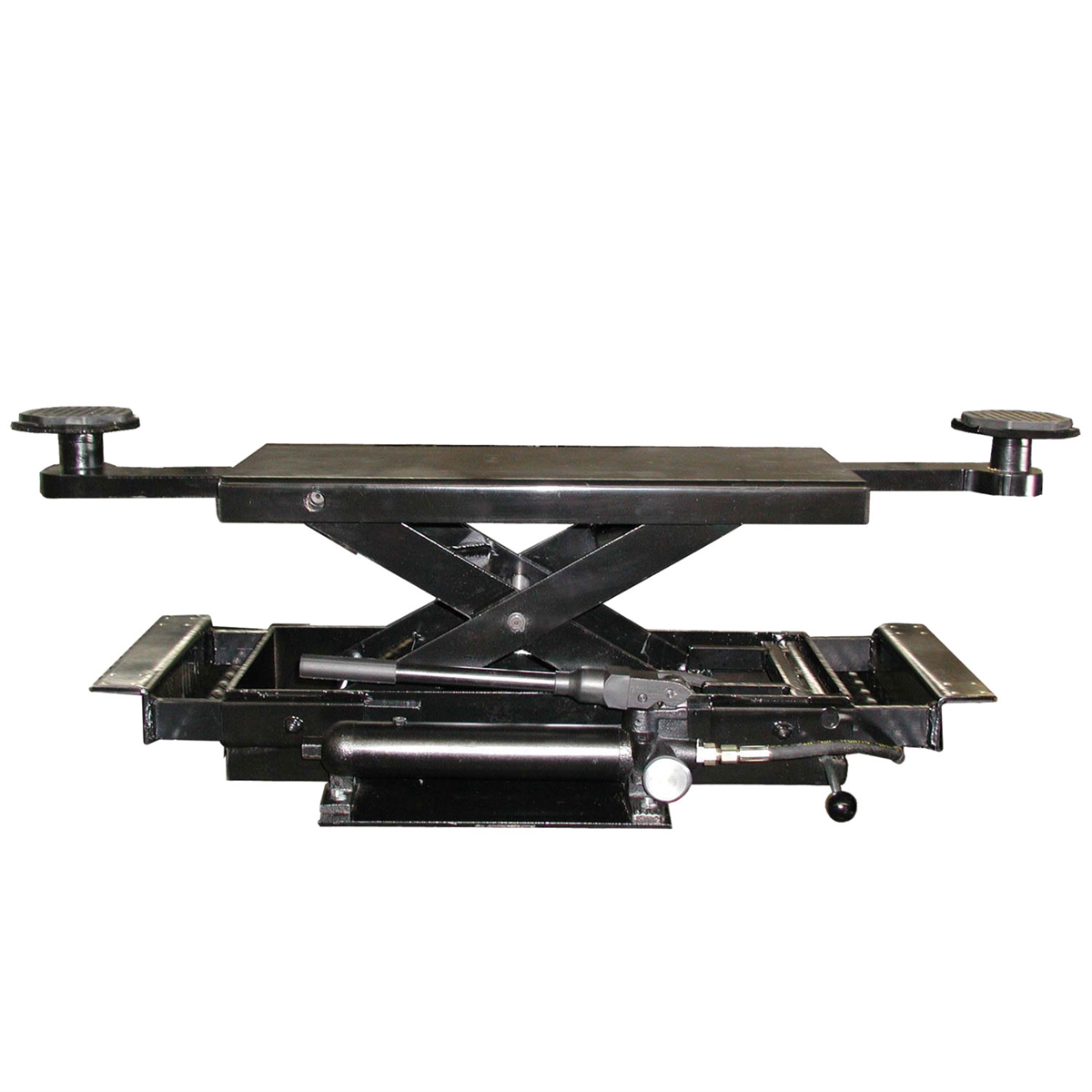

Atlas 3500 lb. Sliding Bridge Jack

Atlas 3500 lb. Sliding Bridge Jack

Sliding hydraulic bridge jack for 4-post lift wheel service

SKU: ATEXH-PROJACK35

$949
$949
IN STOCK

Have Questions? We're Here to Help

Call 765-544-3838 Text 765-544-3838
See it in Person
We also offer Nationwide Shipping — shipping cost calculated at checkout.
We also offer Nationwide Shipping

shipping cost calculated at checkout.

How you can receive this equipment

Two ways to get your order, plus help finding an installer

Free

Pickup at our showroom

Free pickup at our Daleville, IN showroom. We've got forklifts and an experienced warehouse team ready to load you up and get you back on the road.

  • 9175 S. Innovation Drive, Daleville IN
  • Most items ready same day
  • Bring a trailer rated for the load
Nationwide

Freight to your door

Curbside freight delivery across the lower 48. You unload with your own forklift, tractor, or skid steer. Liftgate service available on smaller items for an added fee.

  • Shipping calculated at checkout
  • Typical transit: 5-10 business days
  • Appointment call before delivery
Optional

Need help finding an installer?

Most customers install these themselves. If you'd rather hire it out, we don't do installs, but we're happy to point you in the right direction.

  • No cost, no commitment
  • You hire and pay the installer direct
  • Call or text 765-399-2598
  • Largest Showroom in the USA
  • Our Team has 100+ Years of Experience
  • Fast Nationwide Shipping
  • Real People Ready to Help
View full details

Key Highlights

3500 lb Capacity
Heavy duty lifting power
Sliding Design
Smooth runway movement
Manual Pump
No air required operation
Adjustable Arms
Wide lift point reach
Safety Lock System
Air-operated lock controls
Truck Adapters
Extra height support

The Atlas® RJ35 (3500 LB. capacity) sliding hydraulic bridge jack is the perfect choice for the owner of the or any of our other Atlas® Garage Pro lifts. The RJ35 Sliding Jack will also work on our other hobbyist four post lifts such as the and as well as the and . The RJ35 Sliding Jack is perfect for those who want to perform wheel service on a vehicle that is positioned on top of their four post lift.

Most four post hobbyist lifts come with a jack tray. The jack tray has certain limitations that are eliminated by using the Atlas® RJ35 Sliding Jack. The jack tray (with a small floor jack or jack stands) will support ONLY THOSE LIFTING POINTS of the raised vehicle that are between the runways of the four post lift. The RJ35 Sliding Jack has telescoping arms that can be extended over the runways of the four post lift. The lift pads at the end of these arms can be positioned under the LIFTING POINTS (that are located over the runways of the four post lift) of the vehicle allowing the operator to access many more LIFTING POINTS than just using the jack tray.

The Atlas® RJ35 Sliding Jack comes standard with a set of peg style truck adapters which increase the lifting height of the lift pads. These truck adapters will allow the RJ35 Sliding Jack sliding hydraulic jack to raise pick up trucks that will sit higher on the runways than the average passenger car. The RJ35 Sliding Jack is operated by a manual hydraulic pump (porta-power pump) and does not require an air compressor for power. This jack also features two solid locking positions that are used when the vehicle is to be suspended above the runways. When the locking positions of the Atlas® RJ35 Sliding Jack are engaged, the hydraulic pressure from the lifting cylinder of the jack is eliminated. (These locks act much like a pair of jack stands after you lift a vehicle off the ground with a service jack).

Finally, the versatile Atlas® RJ35 Sliding Jack is adjustable to fit between the runways of many of the other four post lifts that have been sold in the last several years.

  • Sliding Bridge Jack
  • Capacity: 3,500 lbs
  • Manual, hand pump operated
  • Scissor mechanism allows for level lifting
  • Low Profile, Compact Design
  • Adjustable Width to fit many 4-post lifts
  • Adjustable Lift Arms to reach many lifting points
  • Multiple Safety Lock Positions
  • 4 Piece Truck Adapter Set Included
  • 1 Year Parts Only Warranty
  • This part number FREIGHT PREPAID
Capacity
Capacity 3500 lbs
Max Height (w/o Adapter) 11 in
Max Height (w/ Adapters) 17 1/4 in
Dimensions
Lower Width 20 1/2 in - 47 in
Top Width 39 1/2 in - 64 3/4 in
Pad Height 3 1/2 in
Operation
Pump Type Manual hydraulic pump
Mechanism Scissor lift system
Shipping
Shipping Weight 350 lbs
