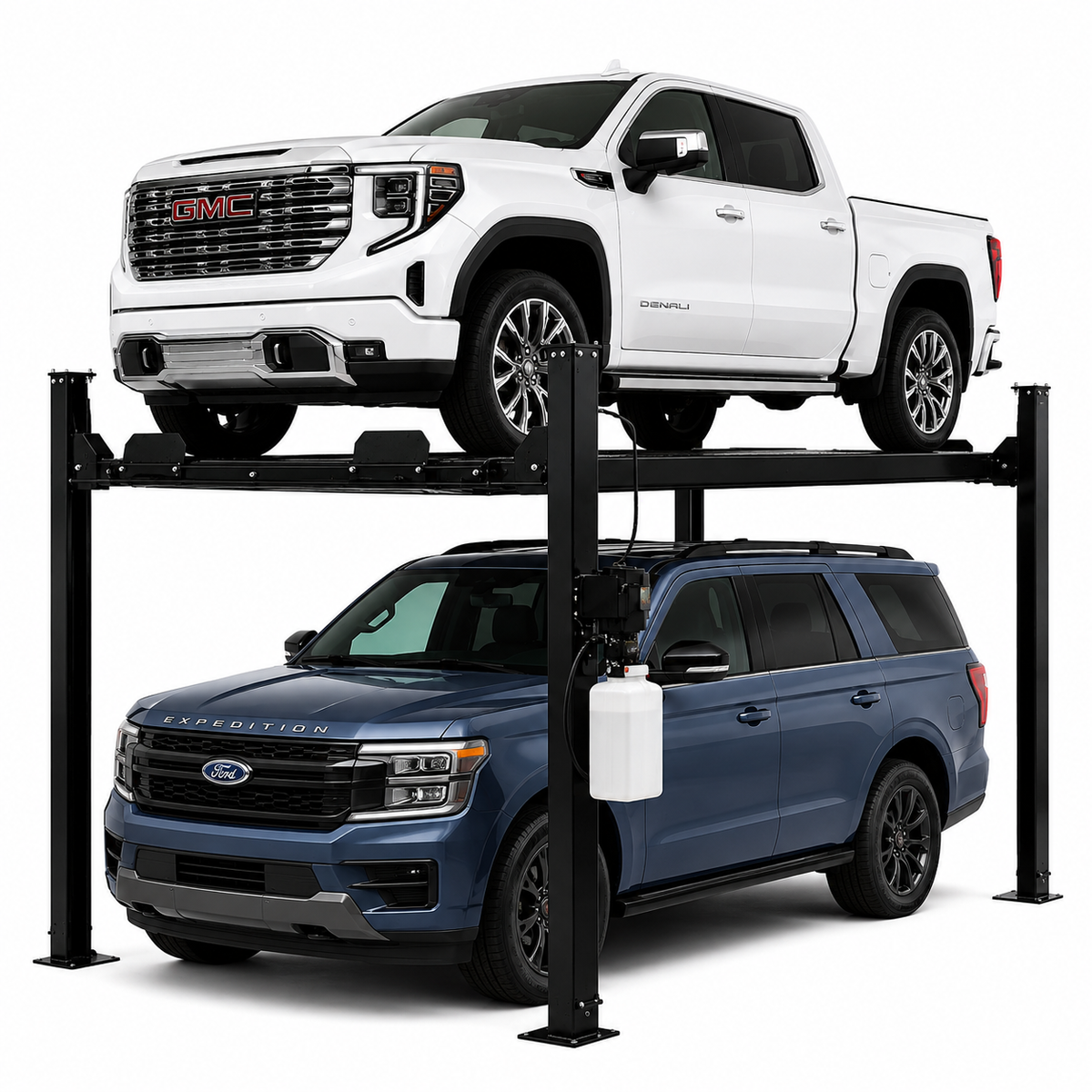

• A two-car, four-post vertical garage lift system shown with a white GMC truck parked on the top level and a blue Ford Expedition SUV parked on the bottom level against a clean white background.
1 10

Atlas Garage PRO8000EXT-L 8,000 lb Extra Tall/Extra Long 4-Post Lift

Atlas Garage PRO8000EXT-L 8,000 lb Extra Tall/Extra Long 4-Post Lift

Lifts on display in the Truman showroom in Daleville, Indiana
Daleville, Indiana showroom

The largest Atlas display in the country

See this lift and the rest of the Atlas lineup set up side by side. Watch them run, compare models in person, and take yours home the same day.

  • Atlas lifts, tire changers and wheel balancers on display
  • Same-day pickup. We load it onto your truck or trailer.
  • Open Mon to Fri 8 to 5, Sat 8 to noon
Plan your visit Call 765-544-3838

Extra-tall, extra-long 8,000 lb. 4-post lift for long-wheelbase pickups, with 78.5" under the runways.

$3,899
$3,899
IN STOCK

SKU: ATEXH-PRO8000EXT-L

Talk to an expert before you buy Questions on fit, ceiling height or install? We'll help you pick the right one.
Call 765-544-3838 or text us
Choose how you get your order

Same-day pickup at our Indiana showroom. See it in person, and we'll load it for you. Open Mon–Sat.

See it in Person
We also offer Nationwide Shipping — shipping cost calculated at checkout.
We also offer Nationwide Shipping

shipping cost calculated at checkout.

Why buy from Truman

Free pickup

Indiana

Nationwide

Fast shipping

Local installer

Referrals

Largest showroomShowroom

In the countryLargest in the US

100+ years

Of experience

Real people

Ready to help

View full details

Why This Lift

  • Fits long-wheelbase pickups185" runways and a 173" max wheelbase
  • 78.5" under the runwaysPark an SUV or pickup below
  • Wider stance3.5" wider than the PRO8000
  • Portable, 110V powerCaster kit, drip trays, and jack tray included

Product Description

The Atlas Garage PRO8000EXT-L combines the extra height of the PRO8000EXT with longer, wider runways. Its 185" runways, about 19" longer than the PRO8000EXT, and 173" maximum wheelbase fit most long-wheelbase pickups, with 78.5" of clearance underneath for parking another vehicle.

One exception: dually trucks won't fit, because the dual rear wheels are too wide to pass between the column locks. For a dually, the PRO9000 is the right lift.

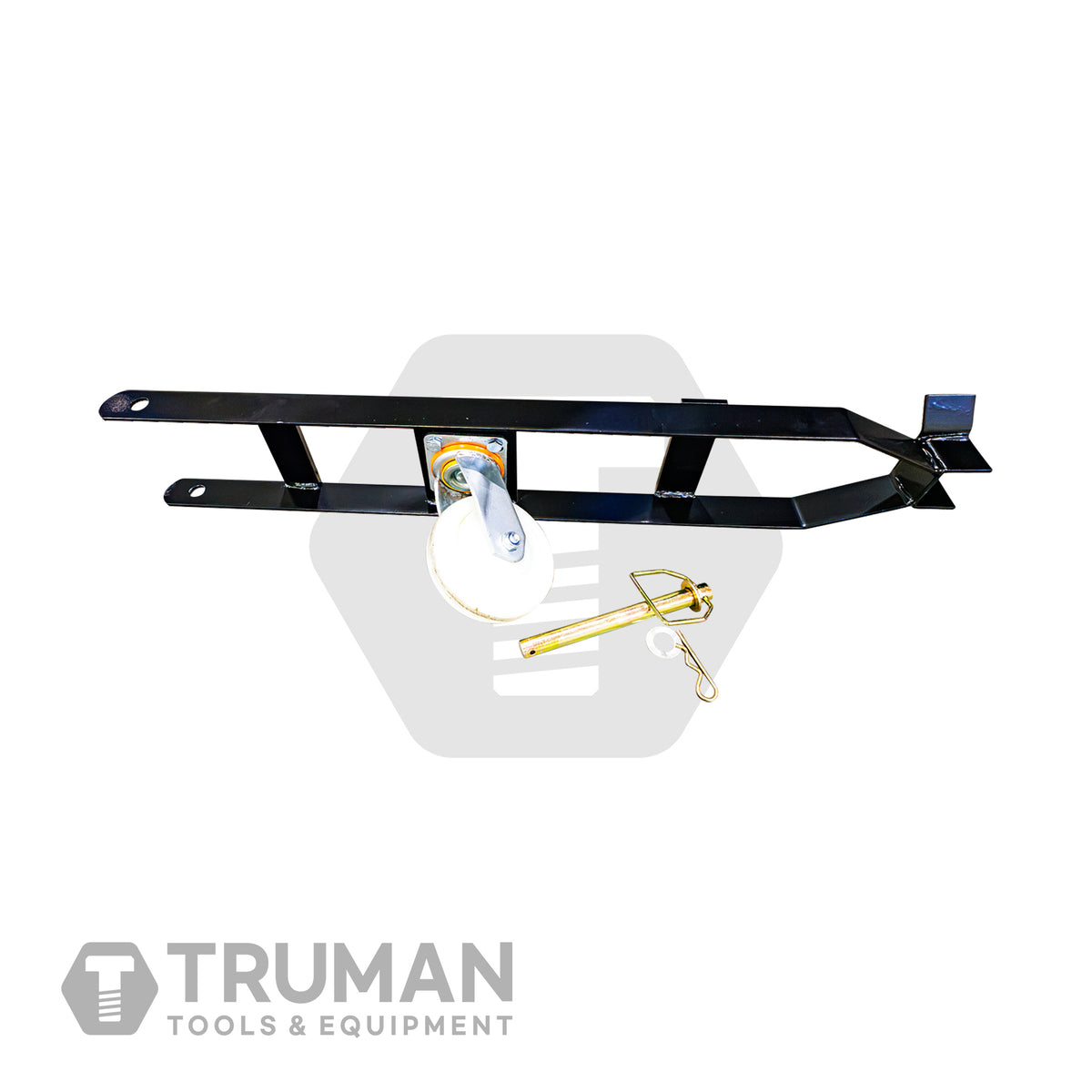

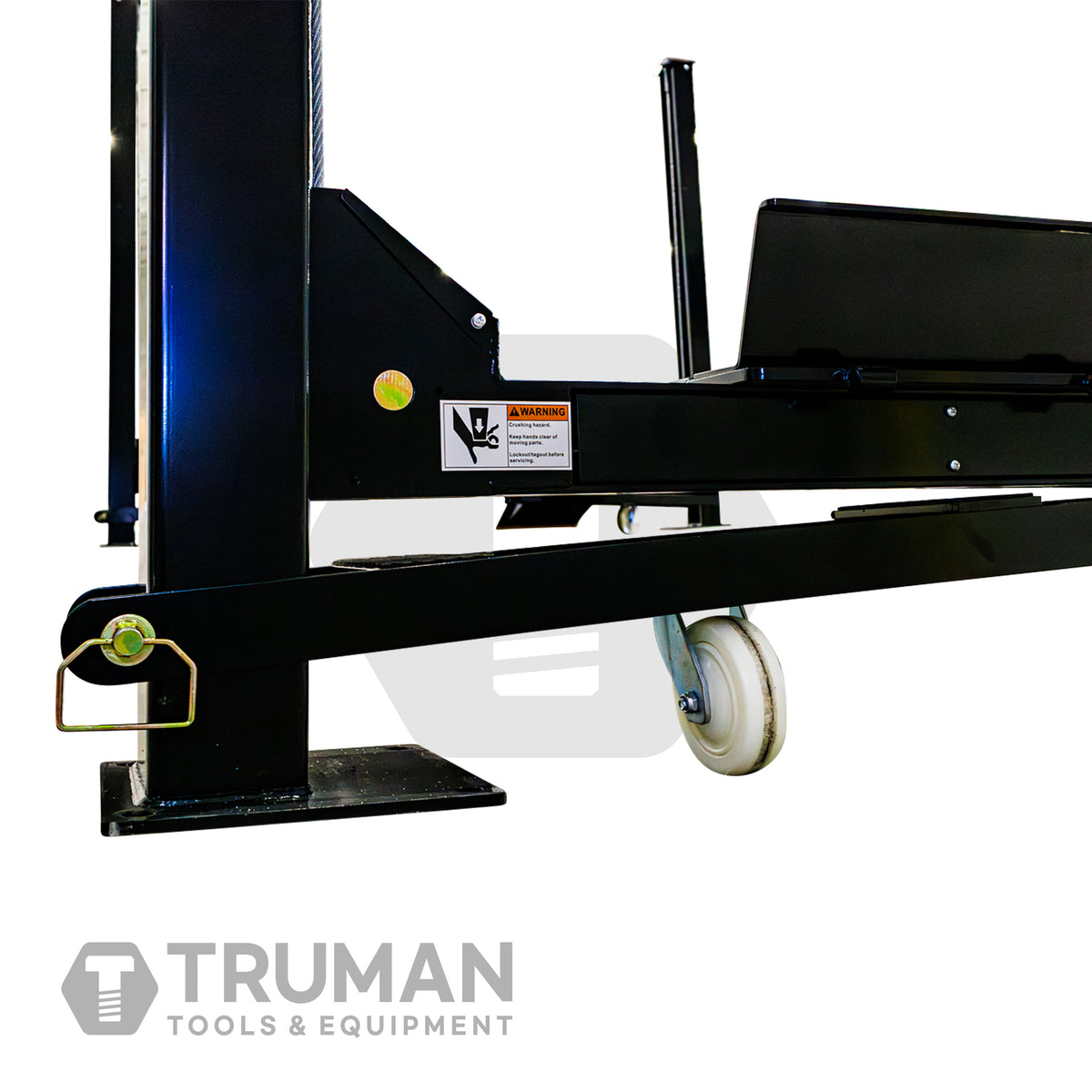

Free plastic drip trays, a steel jack tray, and a caster kit with polyurethane wheels come standard, and the casters go on or come off in minutes. It runs on standard 110V power with a 30 amp breaker. The PRO8000EXT-L is built for home garages, car collectors, and restoration shops rather than commercial shops that cycle a lift many times a day. Many owners add the Atlas RJ35 bridge jack to lift the wheels free for service.

See the PRO8000EXT-L in our Daleville, Indiana showroom, or call 765-723-6523 to talk with a lift specialist.

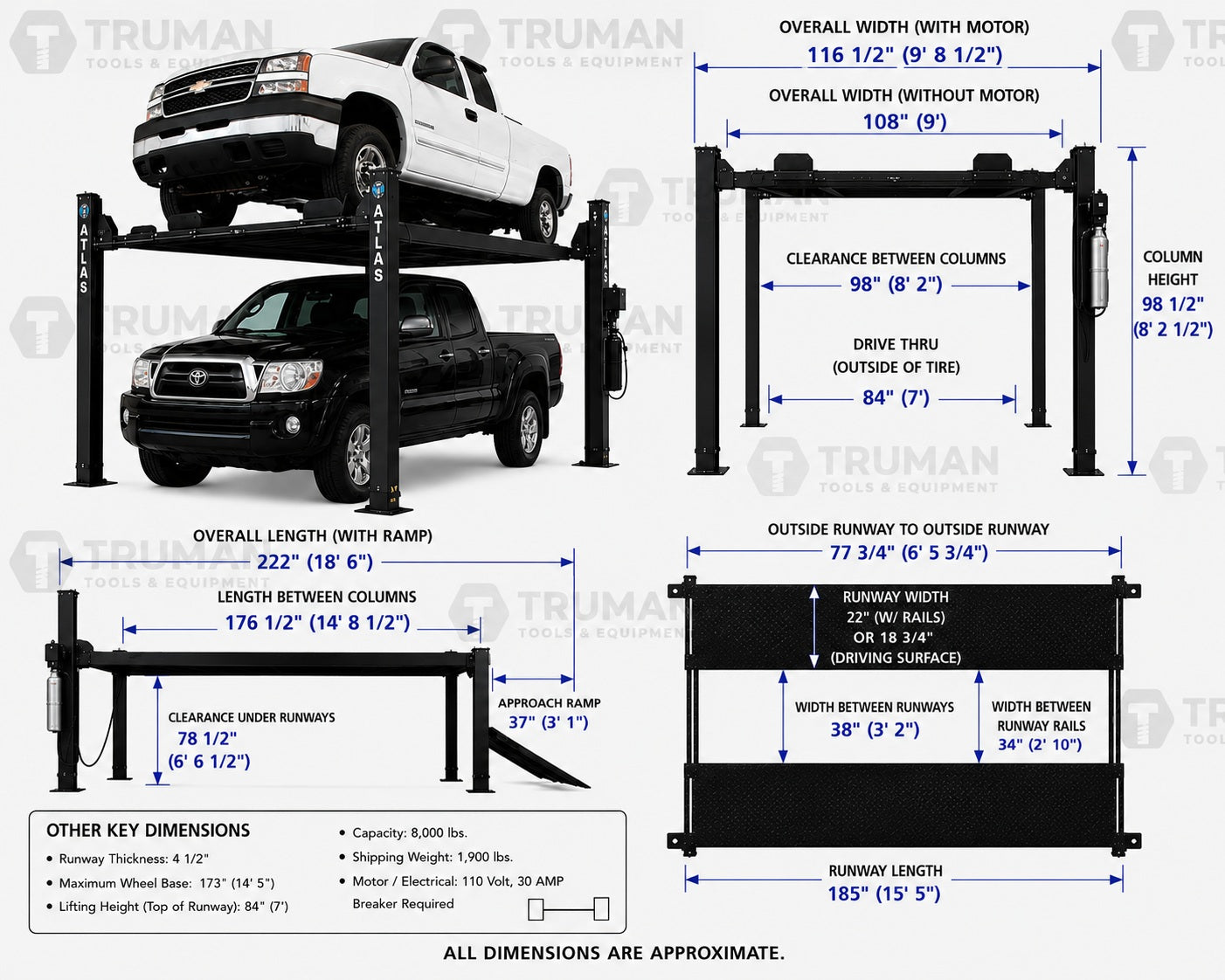

Specs and Dimensions

Capacity
8,000 lbs.
Lifting Height (Top of Runway)
84" (7')
Clearance Under Runways
78 1/2" (6' 6 1/2")
Column Height
98 1/2" (8' 2 1/2")
Overall Width (Without Motor)
108" (9')
Overall Width (With Motor)
116 1/2" (9' 8 1/2")
Overall Length (With Ramp)
222" (18' 6")
Shipping Weight
1,900 lbs.
Approach Ramp
37" (3' 1")
Runway Width
22" (w/ Rails) or 18 3/4" (Driving Surface)
Runway Length
185" (15' 5")
Runway Thickness
4 1/2"
Width Between Runways
38" (3' 2")
Width Between Runway Rails
34" (2' 10")
Outside Runway to Outside Runway
77 3/4" (6' 5 3/4")
Clearance Between Columns
98" (8' 2")
Length Between Columns
176 1/2" (14' 8 1/2")
Maximum Wheel Base
173" (14' 5")
Drive Thru
84" (7')
Motor / Electrical Requirement
110 Volt, 30 AMP Breaker Required

Bridge Jacks That Fit This Lift

Add a bridge jack to lift the wheels free for tire, brake, and suspension work.

Atlas 3,500 lb. Sliding Bridge Jack
Atlas 3,500 lb. Sliding Bridge Jack
3,500 lb. sliding bridge jack with a manual hydraulic pump. No air compressor needed.
$949.00
View details

Not sure which jack you need? Call 765-544-3838

Questions before you buy

Should I get the PRO8000EXT or the EXT-L?

The EXT-L has longer runways (185" vs. 165 3/4"), a longer max wheelbase (173" vs. 153 1/2"), and more drive-thru (84" vs. 80 1/2"). Choose it for crew cab or long-bed half-ton pickups. For 3/4-ton trucks or duallys, go with the Garage PRO9000.

Can I park a pickup under a car?

Often, yes. There's 78 1/2" of clearance under the runways. For your ceiling, add the height of the vehicle on top to the 84" lifting height, plus a few inches of room.

Does it need to be bolted to my floor?

No. It's freestanding and comes with a caster kit, so you can roll it to a new spot when it's lowered.

What kind of power does it need?

Standard 110V household power on a 30-amp breaker.

What comes with it?

It comes with the caster kit, steel approach ramps, a steel jack tray, 4 drip trays, 4 wheel stops, and 2 wheel chocks. The only thing you'll need to buy is hydraulic oil, which you can get at a farm supply or auto parts store.

Can I pick it up at the showroom?

Yes. It's a 1,900 lb package about 15 1/2 feet long, so bring a car trailer or flatbed 18 feet or longer, and we'll load it for you.

What's the warranty?

2 years structural and 1 year on hydraulics (parts only).

See all frequently asked questions
America's Largest Automotive Equipment Showroom Largest Automotive Equipment Showroom
Largest Automotive Equipment Showroom
Visit Our Showroom

See It Before You Buy It

See it before you buy it

Most products shown on our website can be seen in person at our huge showroom in Indiana. It's the largest showroom in the region, and there's nothing quite like seeing our products up close. Whether you're browsing or ready to buy, we make it easy and enjoyable. Bring a trailer and come visit us!
50,000+
Sq ft of equipment
sq ft
50+
Products on display
on display
100+
Years of industry experience
yrs experience
Get Directions Call First: 765-544-3838
9175 S. Innovation Drive, Daleville, IN 47334  · Open in Maps →
9175 S. Innovation Drive, Daleville, IN 47334
No pressure Browse at your own pace
Open 6 days a week Mon–Fri 8am–5pm, Sat 8am–Noon
Expert staff on floor Product demos available
Bring a trailer Take your purchase home same day
50,000 SQ FT
Our showroom floor in Daleville, IN
  • 5 stars: 4 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
T
Tommy Lema

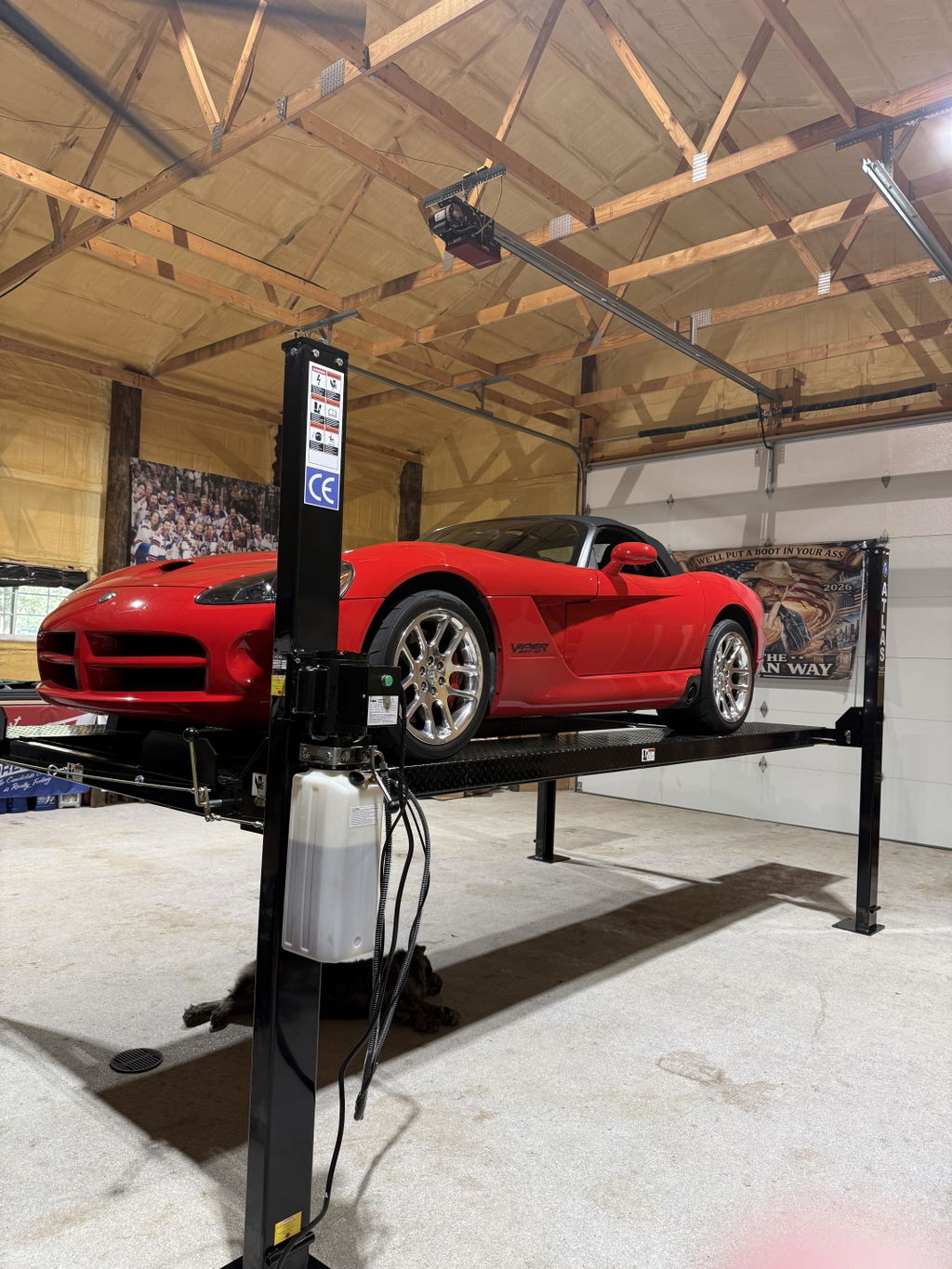

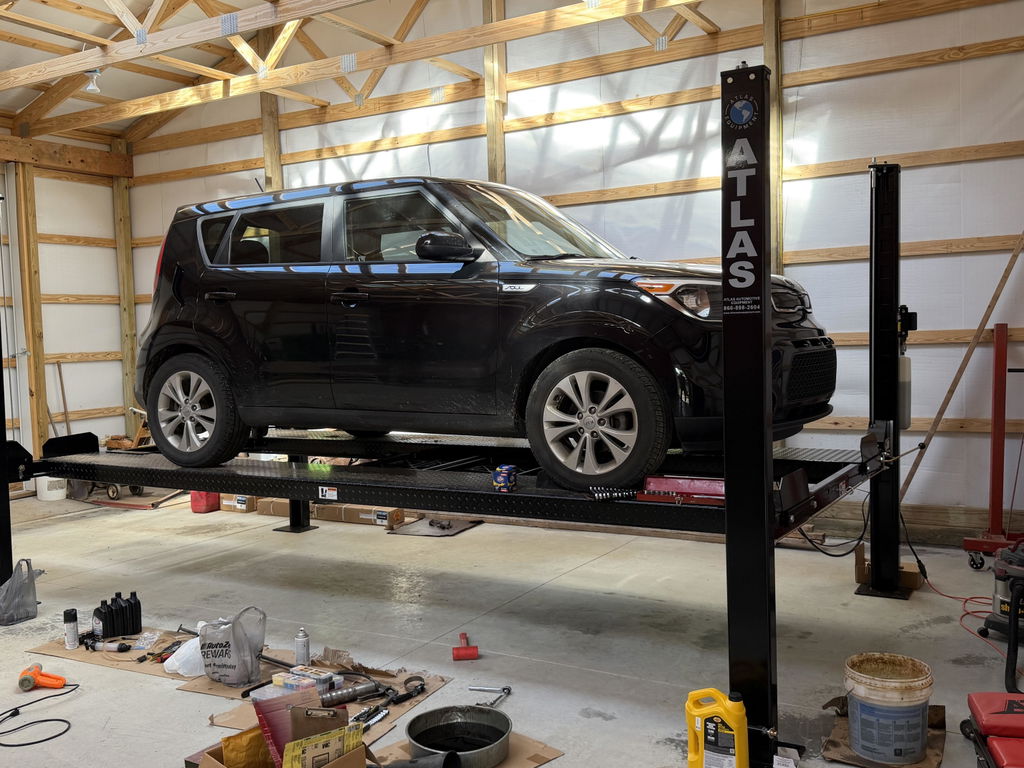

Love it very easy to use looks amazing in the Barn

Tommy Lema review photo
M
Michael Cloncs

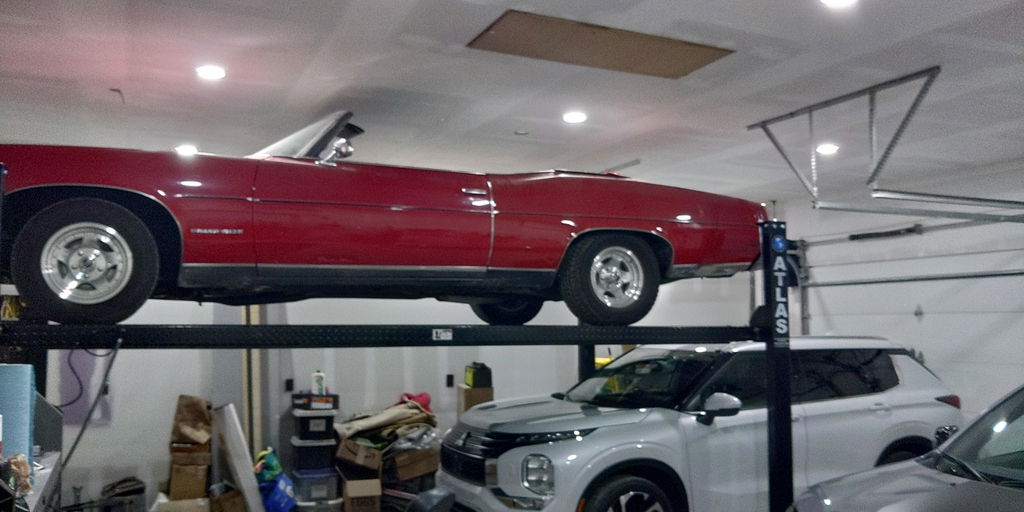

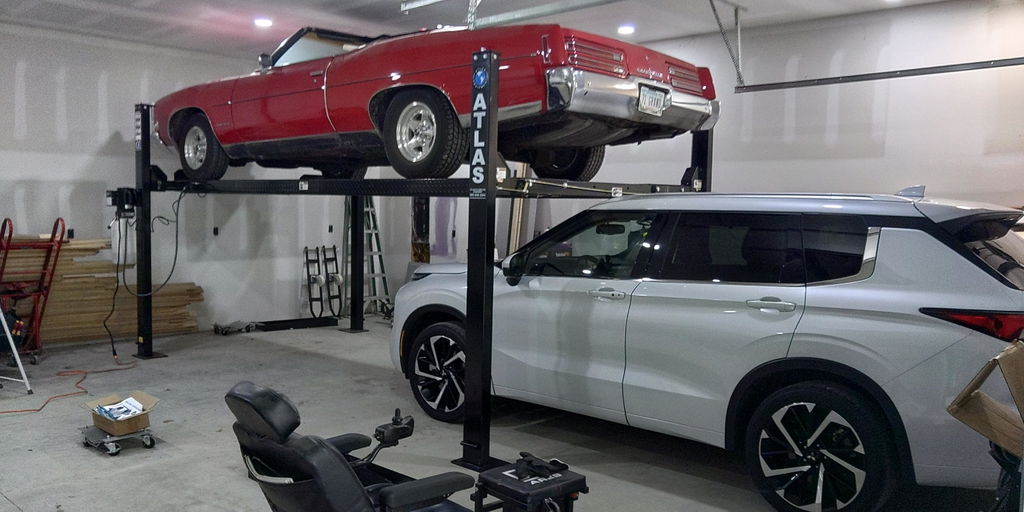

Great lift. My neighbor and I put this together. 71 Pontiac grand ville convertible sits on it. Garage is 11' tall.

Michael Cloncs review photo Michael Cloncs review photo
J
JOHN SANDERS

Lift assembled and works great!

JOHN SANDERS review photo
J
Jimmie Smith

Loving my lift i have changed oil in truck,
under coated my jeep, replaced a water pump the lift made it easy to diagnose the problem and draining the antifreeze all this without laying on the floor.I have more jobs planned
