Atlas Garage PRO8000EXT 8,000 lb Extra Tall 4-Post Lift

Atlas Garage PRO8000EXT 8,000 lb Extra Tall 4-Post Lift

Lifts on display in the Truman showroom in Daleville, Indiana
Daleville, Indiana showroom

The largest Atlas display in the country

See this lift and the rest of the Atlas lineup set up side by side. Watch them run, compare models in person, and take yours home the same day.

  • Atlas lifts, tire changers and wheel balancers on display
  • Same-day pickup. We load it onto your truck or trailer.
  • Open Mon to Fri 8 to 5, Sat 8 to noon
Plan your visit Call 765-544-3838

Extra-tall 8,000 lb. 4-post lift with 79" under the runways. Park an SUV or pickup below.

$3,799
$3,799
IN STOCK

SKU: ATEXH-PRO8000EXT

Talk to an expert before you buy Questions on fit, ceiling height or install? We'll help you pick the right one.
Call 765-544-3838 or text us
Choose how you get your order

On display in our Indiana showroom. See it run, then take it home today. We'll load it for you. Open Mon–Sat.

See it in Person
We also offer Nationwide Shipping — shipping cost calculated at checkout.
We also offer Nationwide Shipping

shipping cost calculated at checkout.

Why buy from Truman

Free pickup

Indiana

Nationwide

Fast shipping

Local installer

Referrals

Largest showroomShowroom

In the countryLargest in the US

100+ years

Of experience

Real people

Ready to help

View full details

Why This Lift

  • Park a truck underneath79" of clearance under the runways
  • Same compact footprintTaller than the PRO8000 without longer runways
  • Portable, extras includedCaster kit, drip trays, and steel jack tray
  • Runs on 110VRequires a 30 amp breaker, no 220V needed

Explore this lift

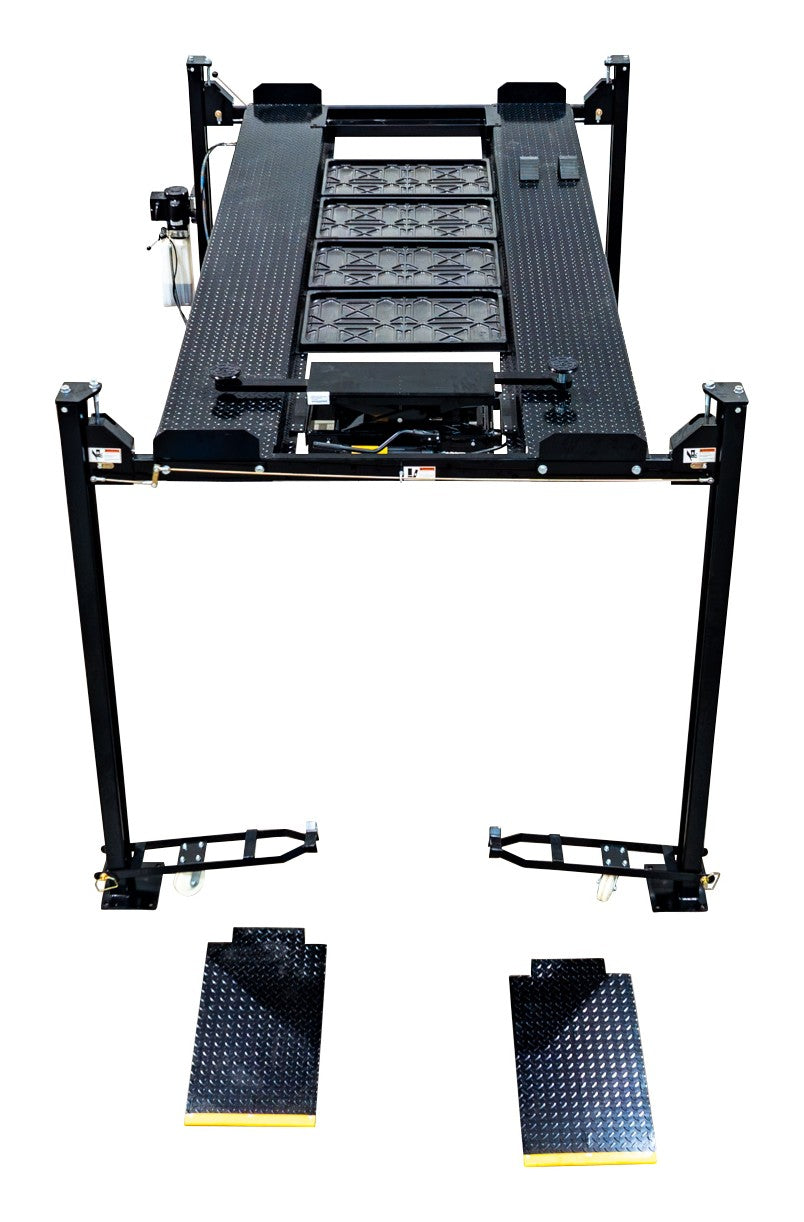

Explore the Garage PRO8000EXT

Tap a number to see what each part does.

Atlas Garage PRO8000EXT 8,000 lb Extra Tall 4-Post Lift See it in personIndiana showroom 79" clearance 98.5" 94.5" between columns 37" between runways

Product Description

The Atlas Garage PRO8000EXT is built for the most common storage setup we see: a car on top and an SUV or pickup parked underneath. It provides 79" of clearance under the raised runways, 12" more than the standard PRO8000.

Many taller lifts get their height by adding runway length, which eats up garage space. The PRO8000EXT keeps the same compact footprint as the PRO8000, 17' 2.75" long with the ramp, while lifting higher. If you need the extra height and also want longer runways, take a look at the PRO8000EXT-L.

Free plastic drip trays, a steel jack tray, and a caster kit with polyurethane wheels come standard, and the casters go on or come off in minutes. It runs on 110V with no 220V wiring needed, but Atlas requires a 30 amp breaker, so check your garage circuit before it arrives. The PRO8000EXT is built for home garages, car collectors, and restoration shops rather than commercial shops that cycle a lift many times a day. Many owners add the Atlas RJ35 bridge jack to lift the wheels free for service.

See the PRO8000EXT in our Daleville, Indiana showroom, or call 765-723-6523 to talk with a lift specialist.

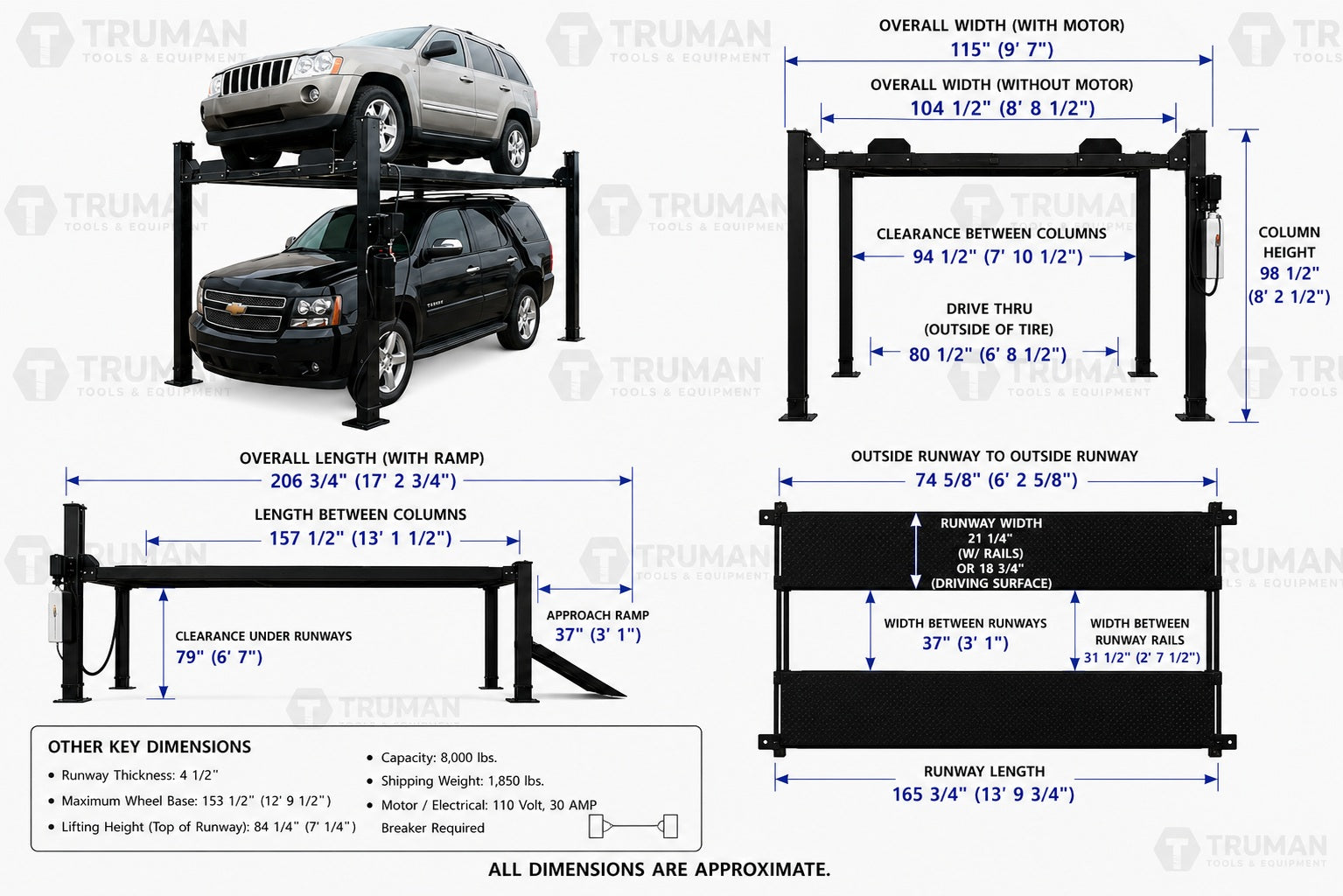

Specs and Dimensions

Capacity
8,000 lbs.
Lifting Height (Top of Runway)
84 1/4" (7' 1/4")
Clearance Under Runways
79" (6' 7")
Column Height
98 1/2" (8' 2 1/2")
Overall Width (Without Motor)
104 1/2" (8' 8 1/2")
Overall Width (With Motor)
115" (9' 7")
Overall Length (With Ramp)
206 3/4" (17' 2 3/4")
Shipping Weight
1,850 lbs.
Approach Ramp
37" (3' 1")
Runway Width
21 1/4" (w/ Rails) or 18 3/4" (Driving Surface)
Runway Length
165 3/4" (13' 9 3/4")
Runway Thickness
4 1/2"
Width Between Runways
37" (3' 1")
Width Between Runway Rails
31 1/2" (2' 7 1/2")
Outside Runway to Outside Runway
74 5/8" (6' 2 5/8")
Clearance Between Columns
94 1/2" (7' 10 1/2")
Length Between Columns
157 1/2" (13' 1 1/2")
Maximum Wheel Base
153 1/2" (12' 9 1/2")
Drive Thru
80 1/2" (6' 8 1/2")
Motor / Electrical Requirement
110 Volt, 30 AMP Breaker Required

Bridge Jacks That Fit This Lift

Add a bridge jack to lift the wheels free for tire, brake, and suspension work.

Atlas 3,500 lb. Sliding Bridge Jack
Atlas 3,500 lb. Sliding Bridge Jack
3,500 lb. sliding bridge jack with a manual hydraulic pump. No air compressor needed.
$949.00
View details

Not sure which jack you need? Call 765-544-3838

Questions before you buy

Should I get the PRO8000EXT or the PRO9000?

The PRO8000EXT is rated for 8,000 lbs, with 80 1/2" of drive-thru and a 153 1/2" max wheelbase. That's the right size for cars, SUVs, and half-ton pickups. For 3/4-ton trucks, duallys, or long-bed crew cabs, step up to the Garage PRO9000.

Can I park a pickup under a car?

Often, yes. There's 79" of clearance under the runways. For your ceiling, add the height of the vehicle on top to the 84 1/4" lifting height, plus a few inches of room.

Does it need to be bolted to my floor?

No. It's freestanding and comes with a caster kit, so you can roll it to a new spot when it's lowered.

What kind of power does it need?

110V, with a 30 amp breaker required by Atlas. That's more than a typical 15 or 20 amp household circuit, so have yours checked or ask an electrician. Call us if you have questions.

What comes with it?

It comes with the caster kit, steel approach ramps, a steel jack tray, 4 drip trays, 4 wheel stops, and 2 wheel chocks. The only thing you'll need to buy is hydraulic oil, which you can get at a farm supply or auto parts store.

Can I pick it up at the showroom?

Yes. It's a 1,850 lb package about 14 feet long, so bring a car trailer or flatbed 16 feet or longer, and we'll load it for you.

What's the warranty?

2 years structural and 1 year on hydraulics (parts only).

See all frequently asked questions
America's Largest Automotive Equipment Showroom Largest Automotive Equipment Showroom
Largest Automotive Equipment Showroom
Visit Our Showroom

See It Before You Buy It

See it before you buy it

Most products shown on our website can be seen in person at our huge showroom in Indiana. It's the largest showroom in the region, and there's nothing quite like seeing our products up close. Whether you're browsing or ready to buy, we make it easy and enjoyable. Bring a trailer and come visit us!
50,000+
Sq ft of equipment
sq ft
50+
Products on display
on display
100+
Years of industry experience
yrs experience
Get Directions Call First: 765-544-3838
9175 S. Innovation Drive, Daleville, IN 47334  · Open in Maps →
9175 S. Innovation Drive, Daleville, IN 47334
No pressure Browse at your own pace
Open 6 days a week Mon–Fri 8am–5pm, Sat 8am–Noon
Expert staff on floor Product demos available
Bring a trailer Take your purchase home same day
50,000 SQ FT
Our showroom floor in Daleville, IN
  • 5 stars: 6 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
A
Alex M

Lift is great once I figured out how to put it together. There were no instructions and even the mfg. Instructions online were not great . Great customer service from Truman!

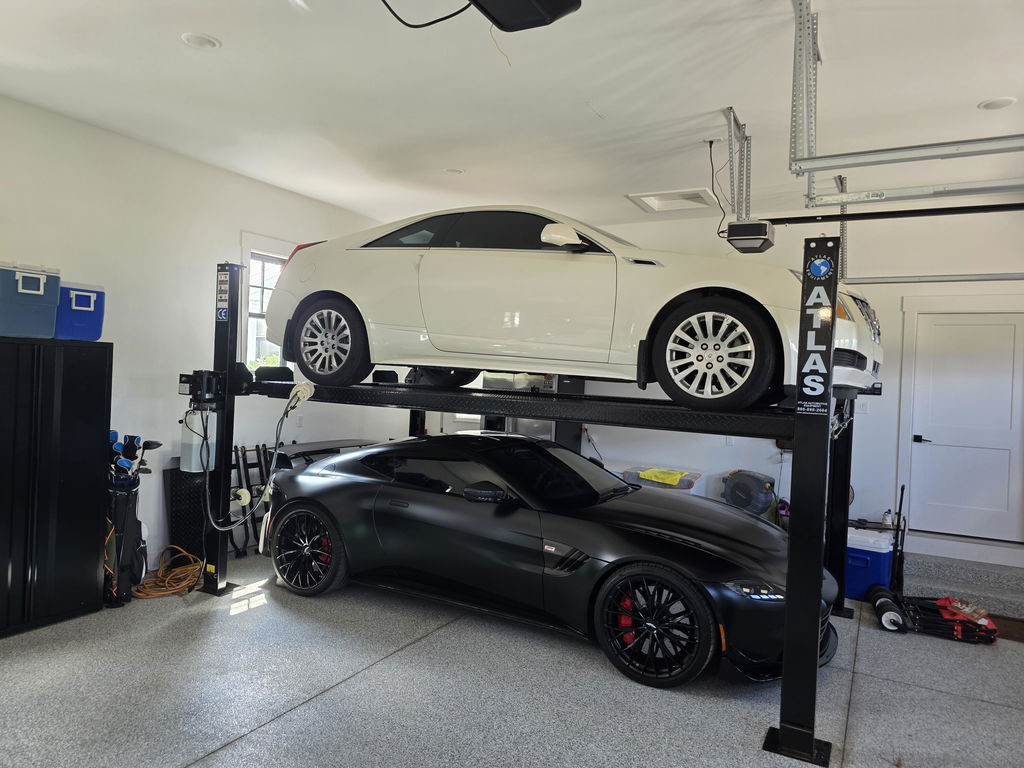

Alex M review photo
