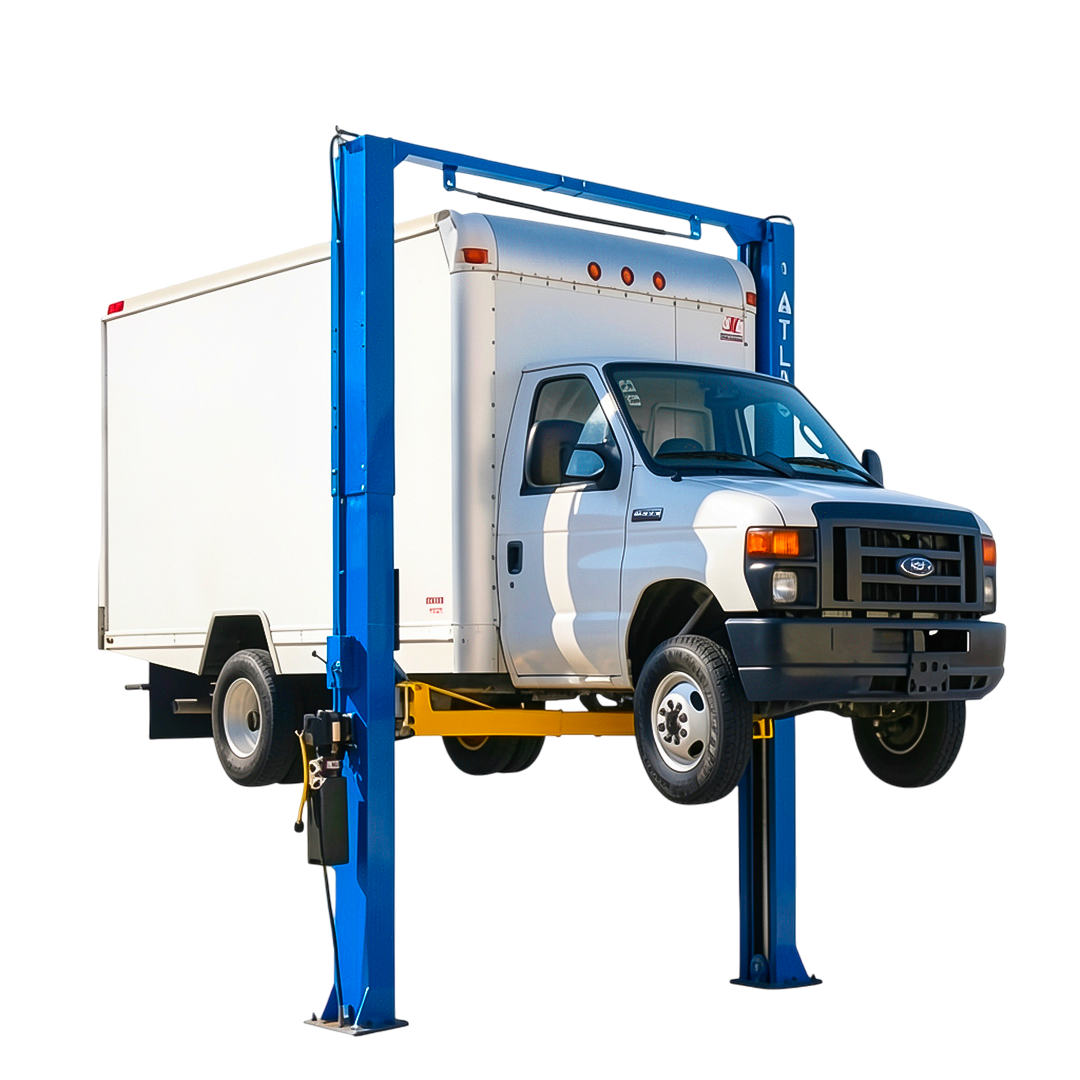

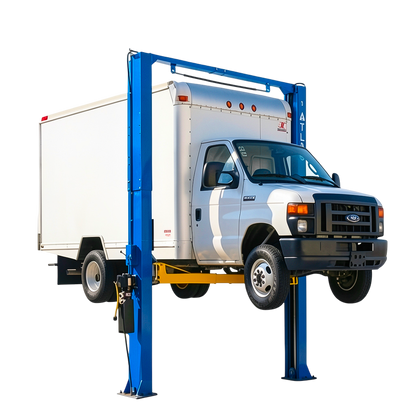

Atlas PV15PX 15,000 lb Overhead 2-Post Lift
Atlas PV15PX 15,000 lb Overhead 2-Post Lift
Heavy-duty 15,000 lb. 2-post lift. Extra-tall, extra-wide, and built for trucks, vans, and commercial fleets.
Regular price
$6,399
Sale price
$6,399
Regular price
SKU: ATEXH-PV15PX
Included free:Free: 12-piece truck adapter set (1.25", 2.5", 5")12 truck adapters
Talk to an expert before you buy
Questions on fit, ceiling height or install? We'll help you pick the right one.
On display in our Indiana showroom. See it run, then take it home today. We'll load it for you. Open Mon–Sat.
Included free with this product
Quantity
Couldn't load pickup availability
Why buy from Truman
Free pickup
Indiana
Nationwide
Fast shipping
Local installer
Referrals
Largest showroomShowroom
In the countryLargest in the US
100+ years
Of experience
Real people
Ready to help
Why This Lift
- 15,000 lb. capacityHeavy trucks, vans, and fleets
- Extra tall and extra wideRoom for big commercial vehicles
- Power-side equalizationSmooth, even lifting

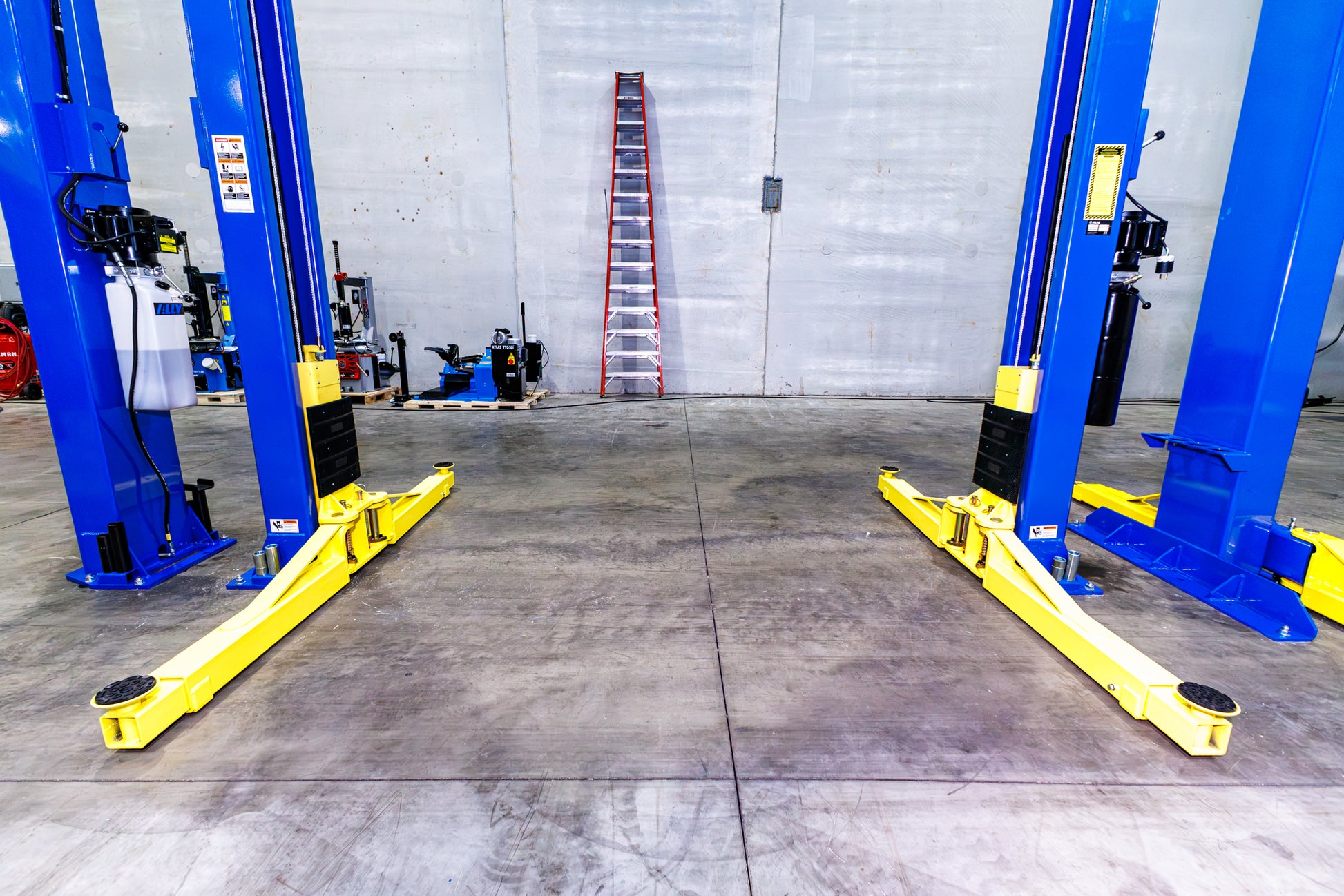

- Wide arm reachFits a range of wheelbases
Explore this lift
Explore the Atlas PV15PX
Tap a number to see what each part does.
Product Description
The Atlas PV15PX is a 15,000 lb. two-post lift for shops that lift everything from passenger cars to heavy service trucks, vans, and box trucks. It's the largest model in the Atlas PV series, which Atlas has built for over a decade.

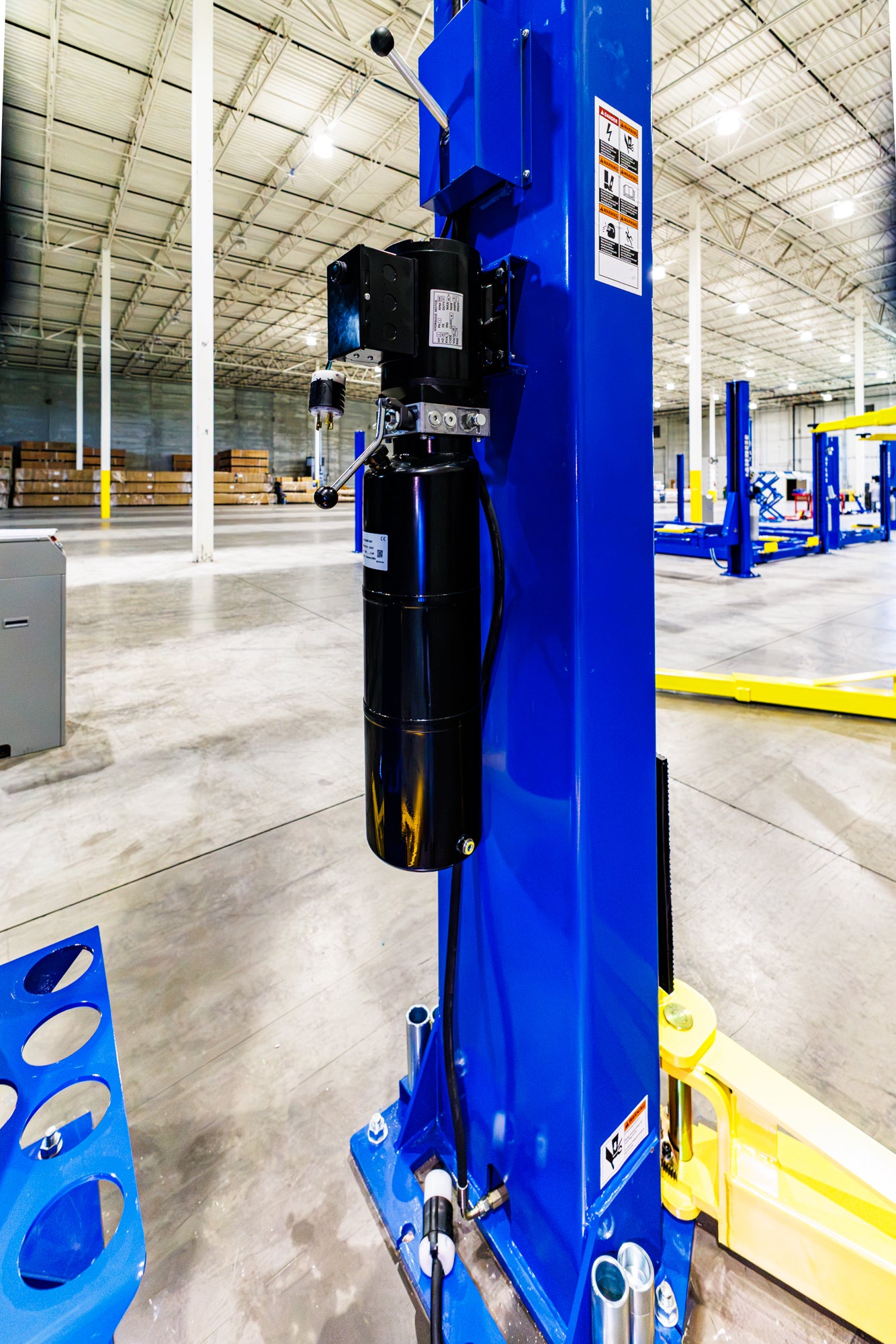

The symmetric columns sit almost 123" apart with more than 109" of drive-through, so wide trucks and vehicles with wide mirrors fit with room to spare. Longer arms and the included 12-piece truck adapter set reach long-wheelbase trucks with running boards. Dual direct-drive cylinders, a padded overhead shut-off bar, carriage door guards, automatic arm restraints, and a single-point lock release come standard.
It offers three height settings, and the lowest, 150" (12' 6"), requires optional short cables. It's backed by a 5-year structural warranty and a 2-year hydraulic warranty (parts only).
Lifting lighter trucks? See the 12,000 lb. PV12PX-3. See them in our Daleville, Indiana showroom, or call 765-723-6523 to talk with a lift specialist.

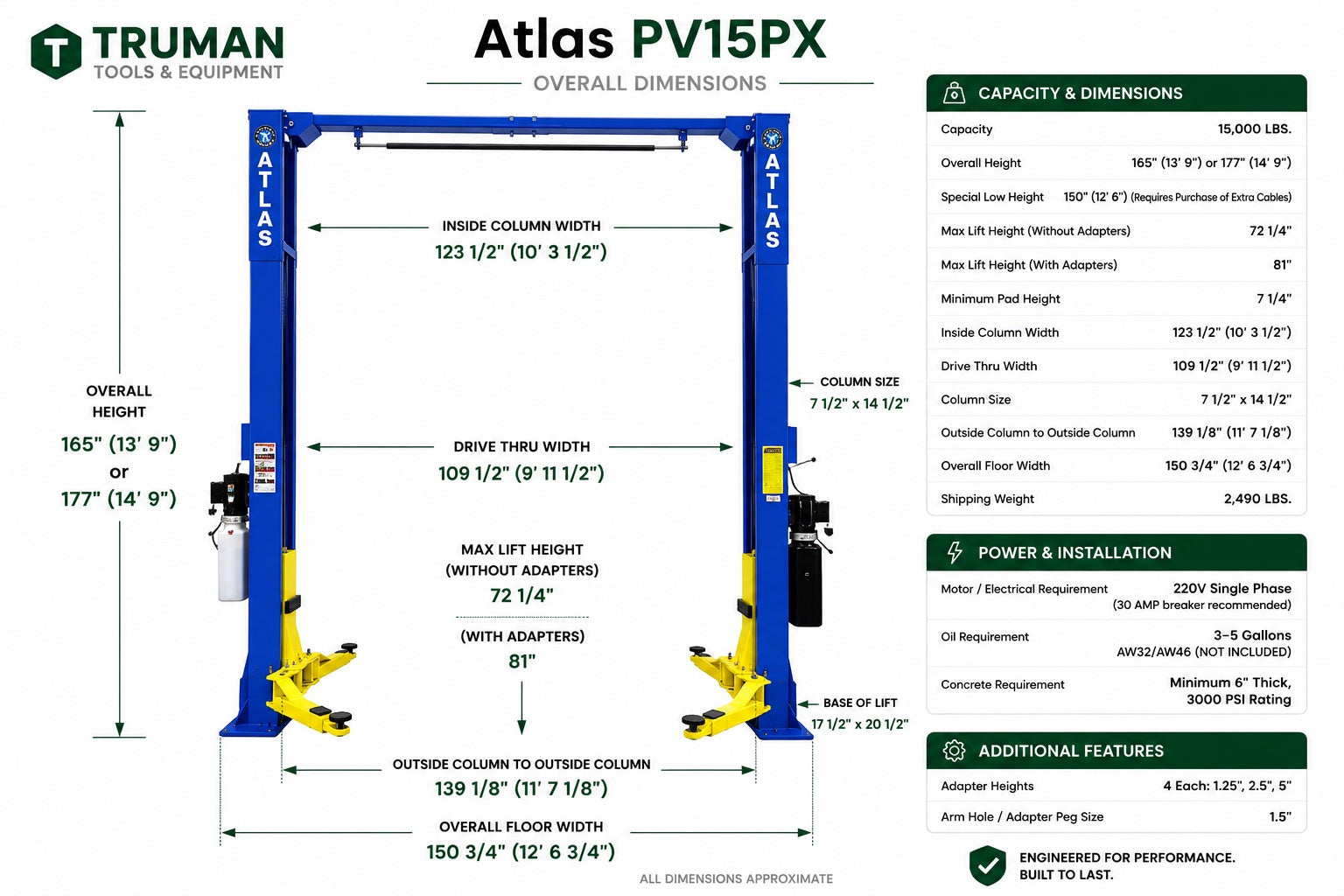

Specs and Dimensions
Capacity
15,000 lbs.
Overall Height
165" (13' 9") or 177" (14' 9")
Special Low Height
150" (12' 6")*
Overall Floor Width
150 3/4" (12' 6 3/4")
Outside Column to Outside Column
139 1/8" (11' 7 1/8")
Maximum Lift Height (Without Adapters)
72 1/4"
Maximum Lift Height (With Adapters)
81"
Minimum Pad Height
7 1/4"
Shipping Weight
2,490 lbs.
Inside Column Width
123 1/2" (10' 3 1/2")
Drive Thru Width
109 1/2" (9' 1 1/2")
Column Size
7 1/2" x 14 1/2"
Base of Lift
17 1/2" x 20 1/2"
Motor / Electrical Requirement
220 Volt Single Phase (30 AMP Breaker Recommended)
Oil Requirement
3-5 Gallons AW32/AW46 (Not Included)

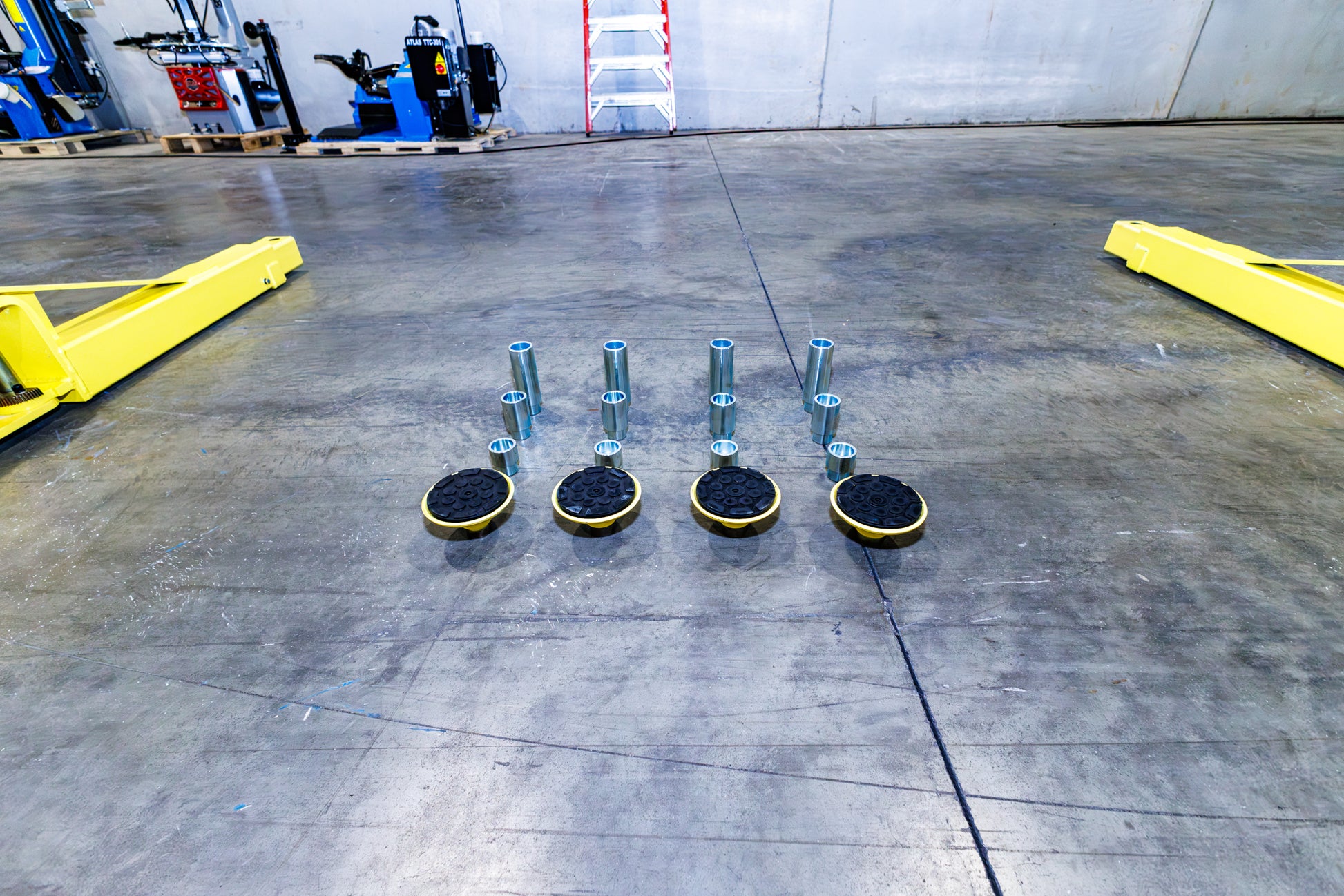

Adapter Heights
4 Each 1.25", 2.5", 5"
Arm Hole / Adapter Peg Size
1.5"
Concrete Requirement
Minimum 6" Thick, 3000 PSI Concrete
Low Height Configuration
Requires Optional Short Cables
