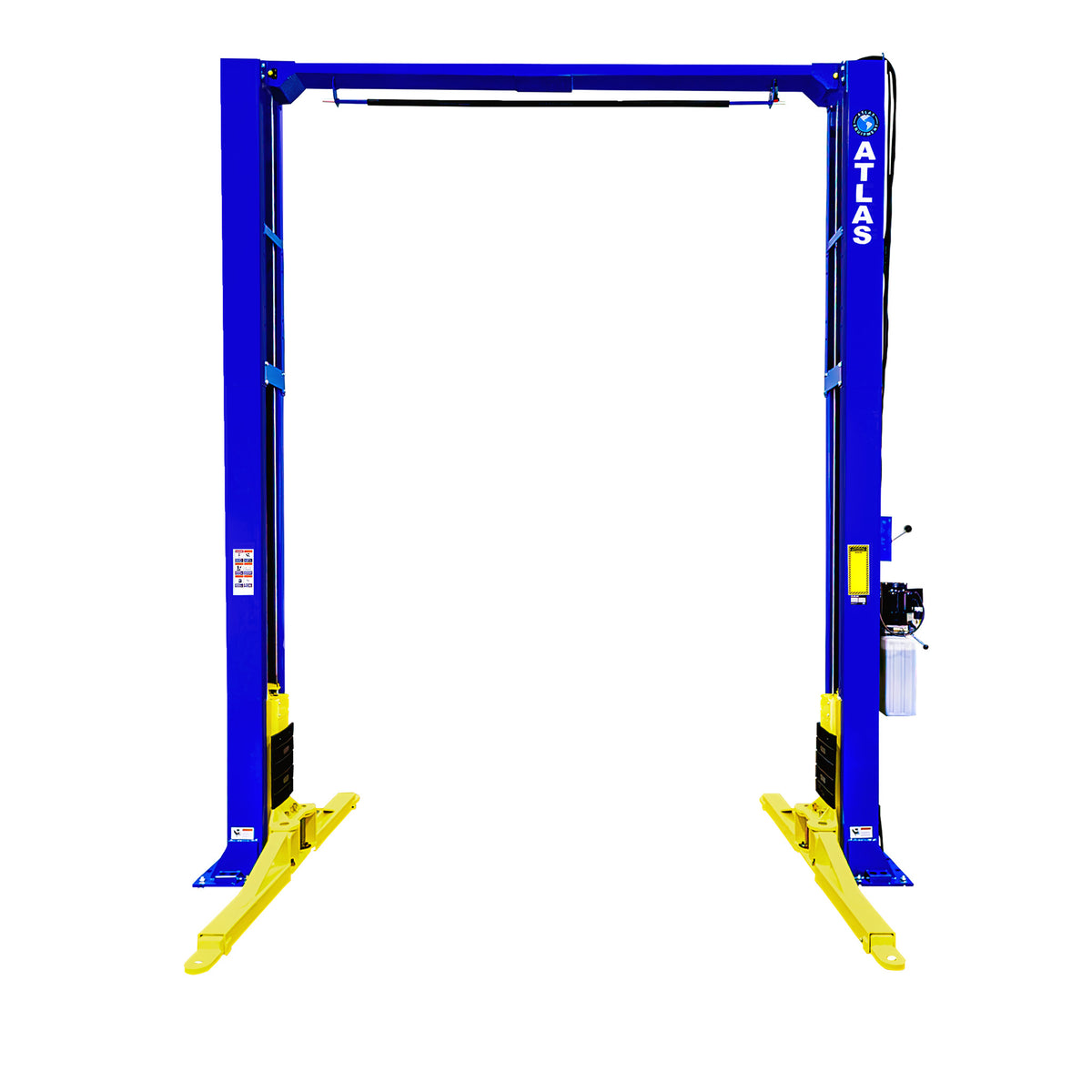

Atlas PV12PX-3 12,000 lb Overhead 2-Post Lift
Atlas PV12PX-3 12,000 lb Overhead 2-Post Lift
Heavy-duty 12,000 lb. commercial 2-post lift. Extra tall, extra wide, and built for trucks, vans, and daily shop use.
Regular price
$5,249
Sale price
$5,249
Regular price
SKU: ATEXH-PV12PX-3
Reserve yours by phone
Limited supply on the early December shipment. Call and we'll set one aside for you and answer any questions about fit.
On display in our .
See it run. We'll load it.
Included free with this product
America's largest automotive equipment showroom
See it run. Take it home today.
50,000+sq ft facility
50+machines on display
6 daysa week
- Watch lifts, tire changers and balancers run before you buy
- Real experts on the floor. No pressure.
- Same-day pickup. We'll load your truck or trailer.
Mon–Fri 8am–5pm, Sat 8am–Noon (Eastern)
More about the showroom
Quantity
Couldn't load pickup availability
Want to spread out the cost? Business financing available. Apply here or call
Why buy from Truman
Ships nationwideFast freight shipping
Installer referralsLocal pros near you
100+ yearsOf industry experience
Why This Lift
- 12,000 lb. capacityLong-wheelbase trucks, vans, and box trucks
- 109.5" drive-throughRoom for wide trucks and mirrors
- 3-stage armsReach short and long wheelbase lift points
- Low 4.5" pad heightStill lifts passenger cars
Explore this lift
Explore the Atlas PV12PX
Tap a number to see what each part does.
Product Description
The Atlas PV12PX-3 is a 12,000 lb. capacity commercial two-post lift built for long-wheelbase trucks, vans, and box trucks, while its low 4.5" pad height still lets it lift passenger cars.
The symmetric columns sit 123 1/2" apart with a 109 1/2" drive-through, so even the widest trucks with wide mirrors fit with room to spare. Three-stage telescoping arms reach short and long wheelbase lifting points, improve load balance, and make it easier to set up in tighter bays. A peg-style truck adapter set (1.25", 2.5", and 5") comes standard for trucks with running boards.
The PV12PX-3 offers three height settings: 13' 9", 14' 9", or 12' 6" with the optional short cables. It runs on 220V single-phase power with a 30 amp breaker. Note that it requires at least 6" of 3,000 PSI concrete.
Working with a lower ceiling or lighter vehicles? See the 10,000 lb. PV10PX or the ALI certified PVL10. See them in our Daleville, Indiana showroom, or call 765-723-6523 to talk with a lift specialist.
Specs and Dimensions
Capacity
12,000 lbs.
Overall Height
165" (13' 9") or 177" (14' 9")
Special Low Height
150" (12' 6")*
Overall Floor Width
150 3/4" (12' 6 3/4")
Outside Column to Outside Column
139 1/8" (11' 7 1/8")
Maximum Lift Height (Without Adapters)
72 1/4"
Maximum Lift Height (With Adapters)
81"
Minimum Arm Height
4 1/2"
Shipping Weight
2,160 lbs.
Inside Column Width
123 1/2" (10' 3 1/2")
Drive Thru Width
109 1/2" (9' 1 1/2")
Column Size
7 1/2" x 14 1/2"
Base of Lift
17 1/2" x 20 1/2"
Motor / Electrical Requirement
220 Volt Single Phase (30 AMP Breaker Recommended)
Oil Requirement
3-5 Gallons AW32/AW46 (Not Included)
Adapter Heights
4 Each 1.25", 2.5", 5"
Arm Hole / Adapter Peg Size
1.5"
Concrete Requirement
Minimum 6" Thick, 3000 PSI Concrete
Low Height Configuration
Requires Optional Short Cables
