Key Highlights
The Atlas PV series represents the absolute best value for the customer who demands a heavy duty, professional grade two post lift at the lowest possible price — and the PV10PX is the crown jewel of that legendary lineup. When it comes to finding a commercial grade above ground car lift that delivers uncompromising quality without the premium price tag, nothing else on the market comes close.
Atlas has been manufacturing the PV series two post above ground lifts for over a decade. Thousands sold. That kind of track record doesn't happen by accident — it happens because a product consistently delivers on its promises year after year, shop after shop. Descriptions such as "bulletproof," "built like a brick outhouse," "tougher than nails," and other such euphemistic phrases are used every day to describe any of the Atlas PV series models. When your customers are reaching for words like that, you know you've built something special.
Whether you are an automotive shop or working on personal vehicles from your home, the PV10PX is the industry standard. From high-volume commercial repair facilities to the dedicated pole barn hobbyist, this is the two post lift that professionals trust and enthusiasts aspire to own.

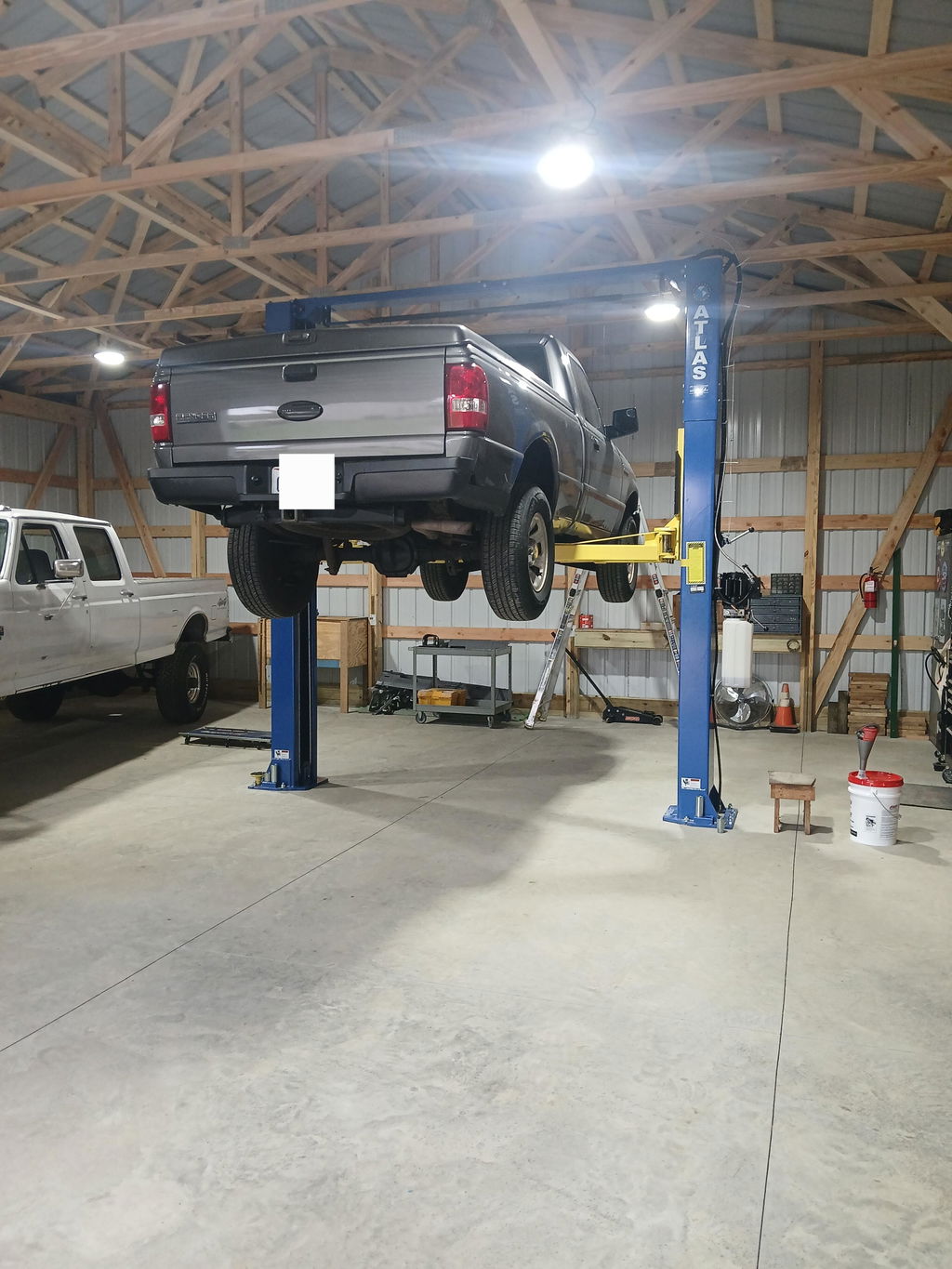

The commercial grade Atlas PV10PX two post lift includes modifications and improvements that make it one of the most popular above ground lifts in the world. This lift is the perfect choice for use in either a large commercial service department or for the "pole barn" owner who wants the biggest and baddest lift in the country. If you're searching for a heavy duty two post lift that can handle virtually any vehicle thrown at it, the PV10PX is built for exactly that.

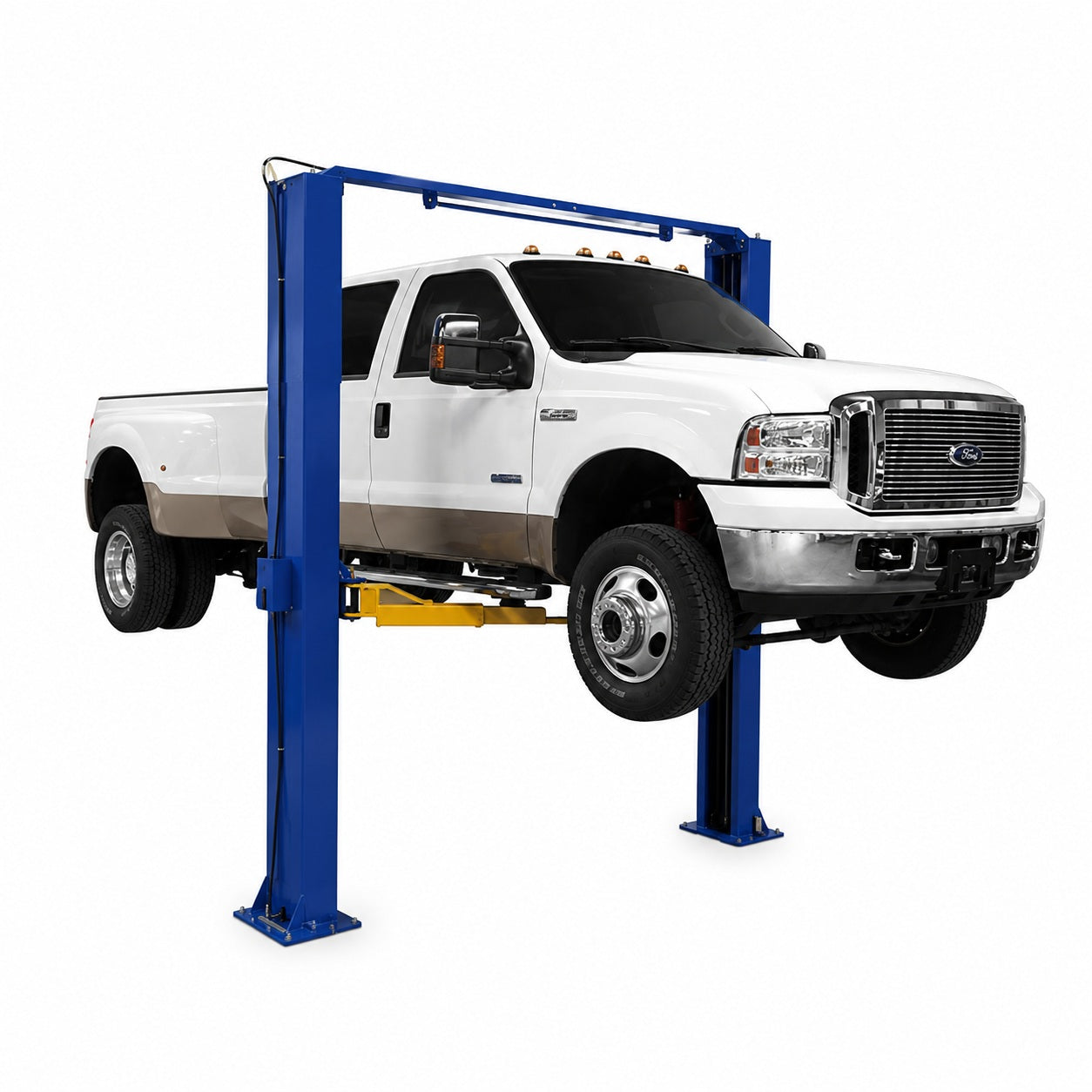

The Atlas PV10PX is designed and engineered to safely lift and work on everything from a Smart Car to a one ton diesel dually — making it one of the most versatile professional automotive lifts available today. No matter what rolls into your shop or garage, the PV10PX is ready for it.

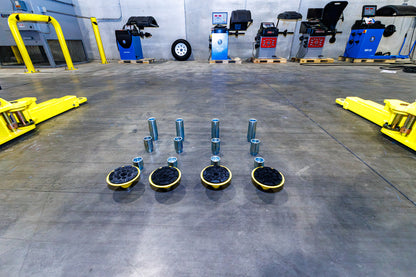

Every detail of the PV10PX has been thoughtfully engineered with both the vehicle and the operator in mind. This lift incorporates a padded shut-off bar to protect the top of the vehicle from contacting the crossbar. The carriages are equipped with rubber protective covers (size may vary) to help prevent the vehicle's doors from damage if opened into the columns or carriages. The PV10PX also includes a deluxe truck adapter set — 12 pieces versus the standard 8 pieces — and a reinforced rubber lift pad designed to ensure solid, secure contact with the vehicle's lifting points. These aren't afterthought features — they're the kind of thoughtful, real-world details that set the PV10PX apart from cheaper imitations and make it a lift that technicians love working with every single day.
If you're in the market for a heavy duty two post car lift, a professional above ground automotive hoist, or simply the toughest and most reliable lift your money can buy, the Atlas PV10PX belongs at the top of your list. Join the thousands of satisfied shop owners and enthusiasts who already know what the rest of the industry is just figuring out — the Atlas PV series is in a class of its own.
- 10,000 lb lifting capacity
- Commercial-grade construction
- Adjustable height configuration
- Asymmetric or symmetric arm setup
- Automatic arm restraint system
- Padded overhead shut-off bar
- Padded carriage protection
- Single-point lock release
- Direct-drive hydraulic cylinders
- Durable powder-coated finish
- 12-piece truck adapter set included
- Mounting hardware included
- Shipping weight: 1,875 lbs.
- 5-year structural warranty
- 2-year hydraulic warranty (parts only)

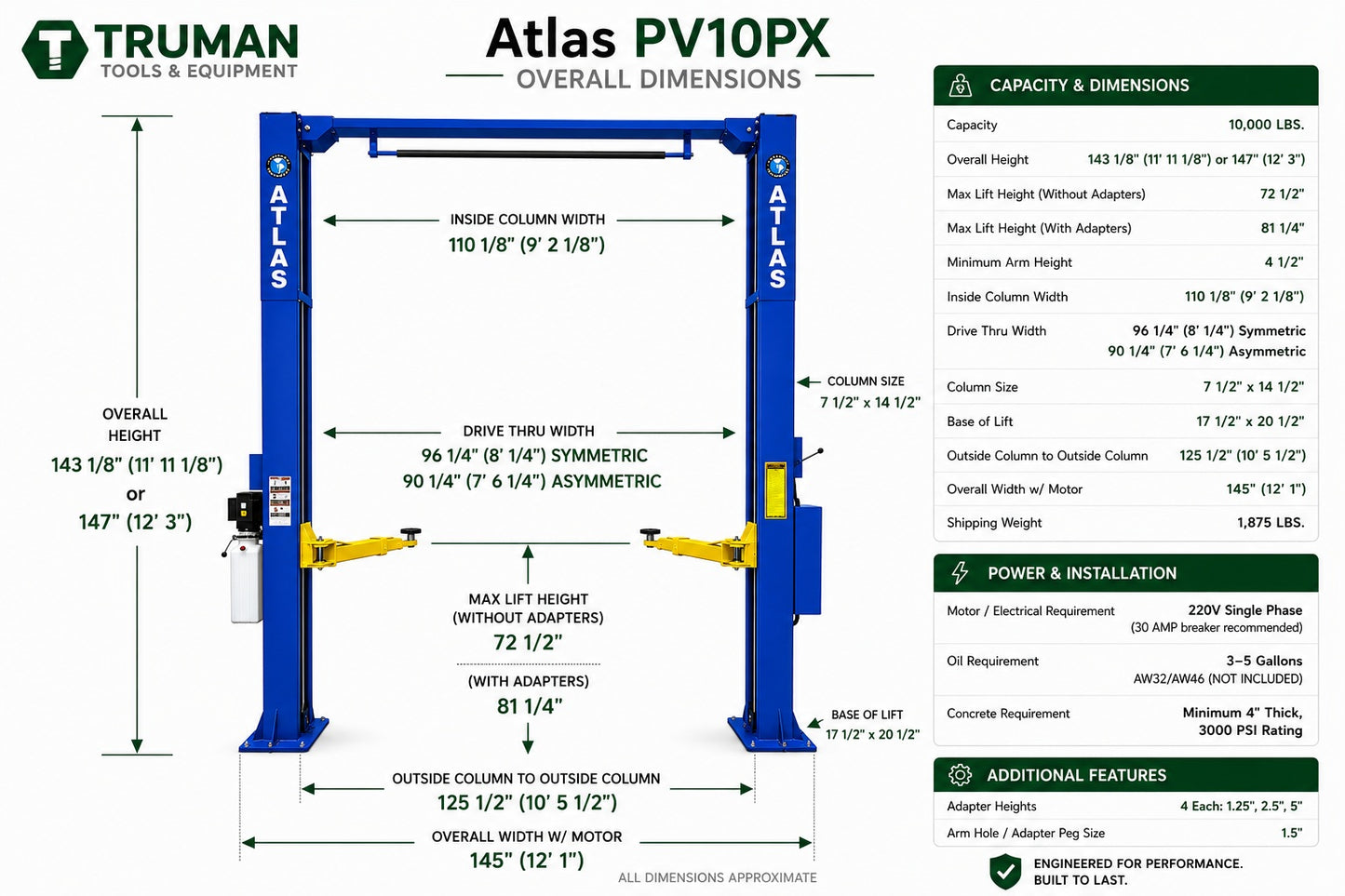

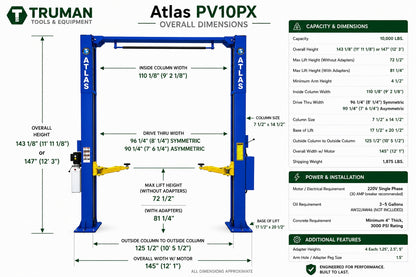

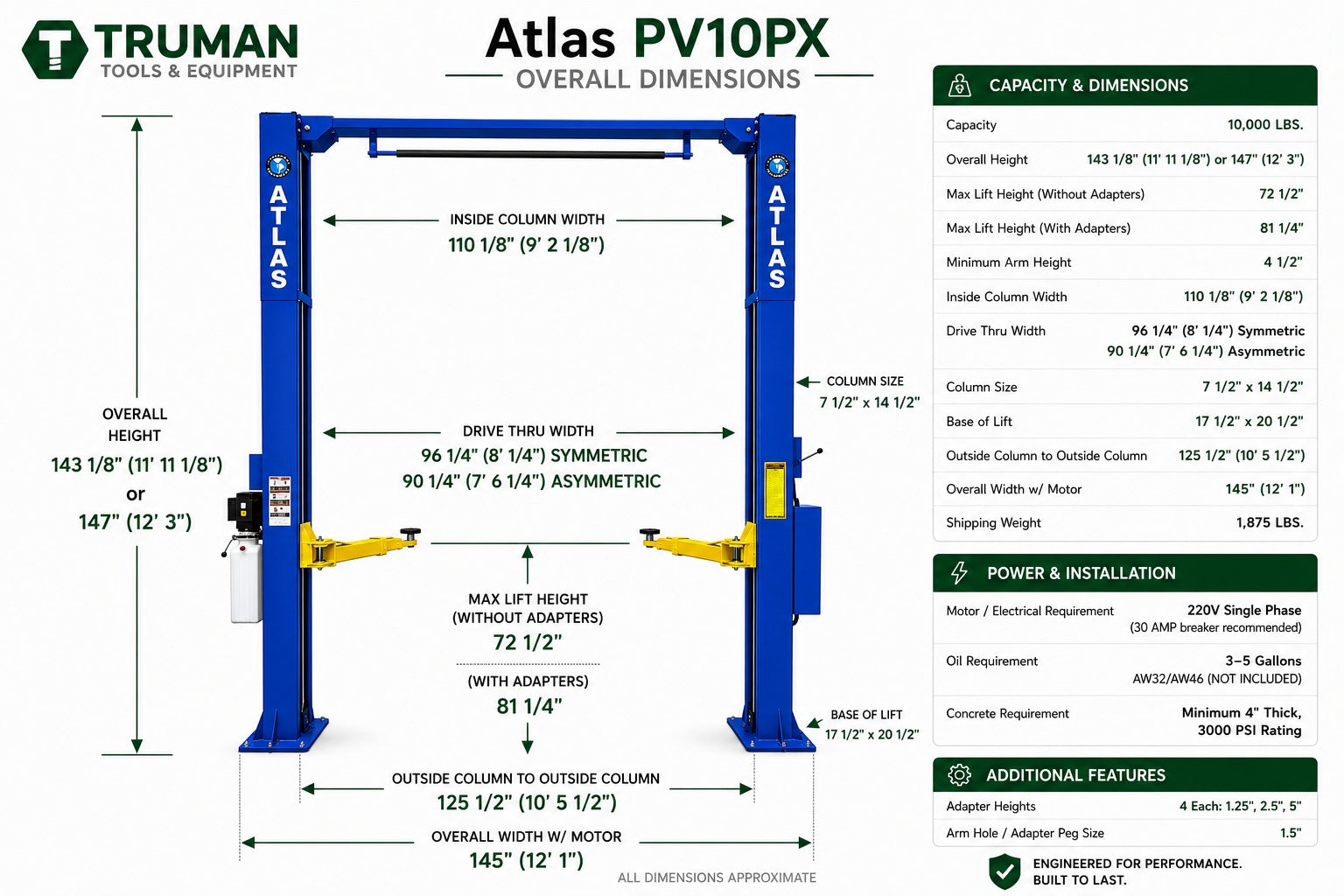

| Capacity | 10,000 lbs. |
| Overall Height | 143 1/8" (11' 11 1/8") or 147" (12' 3") |
| Overall Width (With Motor) | 145" (12' 1") |
| Outside Column to Outside Column | 125 1/2" (10' 5 1/2") |
| Maximum Lift Height (Without Adapters) | 72 1/2" |
| Maximum Lift Height (With Adapters) | 81 1/4" |
| Minimum Arm Height | 4 1/2" |
| Shipping Weight | 1,875 lbs. |
| Inside Column Width | 110 1/8" (9' 2 1/8") |
| Drive Thru (Symmetric) | 96 1/4" (8' 1/4") |
| Drive Thru (Asymmetric) | 90 1/4" (7' 6 1/4") |
| Column Size | 7 1/2" x 14 1/2" |
| Base of Lift | 17 1/2" x 20 1/2" |
| Motor / Electrical Requirement | 220 Volt Single Phase (30 AMP Breaker Recommended) |
| Oil Requirement | 3-5 Gallons AW32/AW46 (Not Included) |

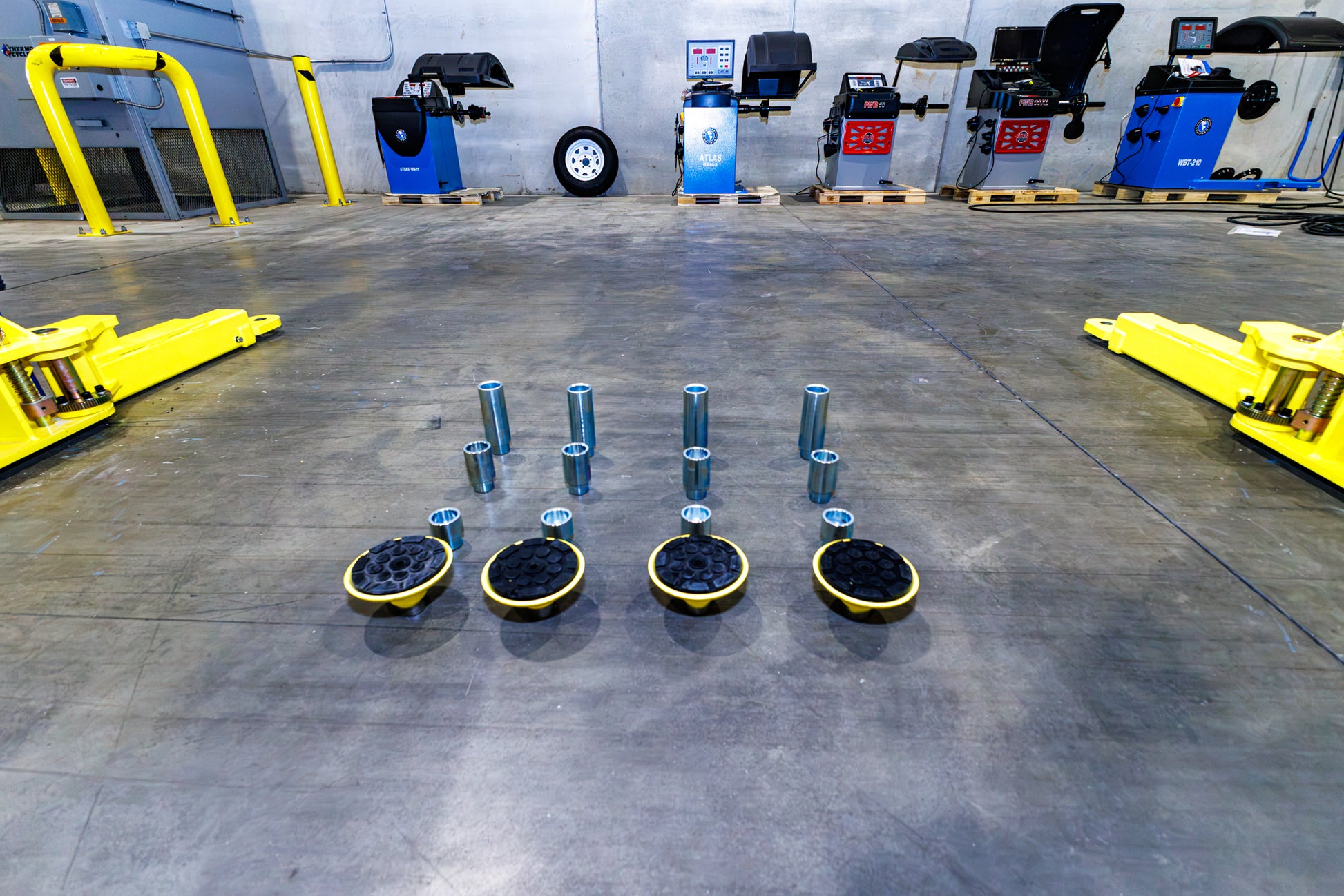

| Adapter Heights | 1.25", 2.5", 5" (4 Each) |
| Arm Hole / Adapter Peg Size | 1.5" |
| Concrete Requirement | Minimum 4" Thick, 3000 PSI Concrete |
